Recessed LED Emergency Light with Dual MR-16 Heads – NYC Approved
Regular price
$392.74
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Recessed LED Emergency Light with Dual MR-16 Heads – NYC Approved
The RMW Recessed Architectural LED Emergency Light installs flush in suspended or drywall ceilings to maintain clean sightlines while meeting New York City emergency-code requirements. This fixture also qualifies as NYC-approved emergency lights . As part of our recessed LED emergency lights collection, it delivers code-ready performance with a rugged 20-gauge steel enclosure, two fully adjustable 5 W MR-16 LED heads capable of 47.5 ft spacing, a sealed lead-calcium battery providing 90 minutes of emergency operation, and universal 120/277 VAC electronics.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- NYC Approved
- UL 924
- 120/277 VAC
- MR-16 LED
- Dual / Adjustable
- Recessed Mount
- 90 min Battery
- Steel Housing
- Dry Location
- Self Testing (opt.)
Key features
- Flush, fully recessed ceiling installation with low-profile trim for clean sightlines.
- Dual 5 W MR-16 LED heads; spacing guideline: 47.5 ft center-to-center on a 3 ft path at 10 ft mounting height.
- 90-minute emergency runtime from sealed lead-calcium battery; optional Ni-Cd available.
- Universal 120/277 VAC input; solid-state two-rate charger, LVD, brownout & overcharge protection.
- Rugged 20-ga steel back-box; trim finishes in White (WH) or Black (BL) .
- NYC Approved ; listed to UL 924 ; compliant with NFPA 101 and NEC ; dry-location rated.
- Optional G2 self-test/diagnostics for automated monthly/annual testing.
Documents
Related Recessed & Emergency Light Guides
Recessed NYC Exit Signs & Emergency Lights NYC Emergency Lighting Requirements
Spec Sheet
Download RMW LED Emergency Light Spec Sheet (PDF)
Illumination

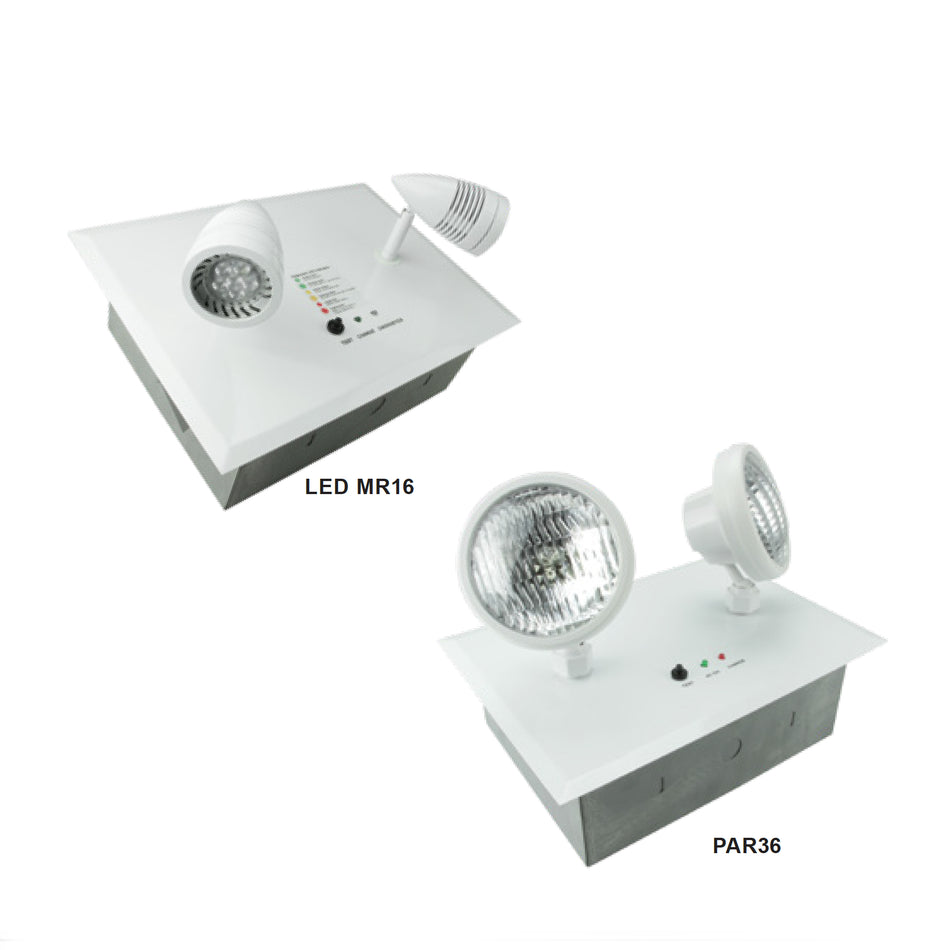

- Two fully adjustable 5 W MR-16 LED bullet heads; optional PAR36 incandescent heads available.
- Sample spacing: 47.5 ft on a 3 ft path at 10 ft mounting height (design aid).
Electrical
- Universal 120/277 VAC , 50/60 Hz ; solid-state two-rate charger.
- Maintenance-free sealed lead-calcium battery — 90-minute runtime; ~ 24-hour recharge.
- Protections: low-voltage disconnect , brownout sensing, short-circuit & overcharge protection.
- Ni-Cd battery option available.
Mounting
- Flush ceiling install with torsion-spring secured trim plate.
- Adjustable bar hangers for both T-bar/grid and drywall ceilings.
Housing / Finish
- Heavy-duty 20-gauge steel back-box with durable powder coat.
- Trim finishes: White (WH) or Black (BL) .
Dimensions
- Trim plate: 10.2" L × 8.1" W
- Overall height to lamp tops: 9.5"
Warranty / Listings
- 5-year warranty on electronics and housing; battery 5-year prorated.
- CSA listed to UL 924 ; NFPA 101 , NEC , and NYC compliant.
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
