New York City Approved Steel Glare Free Lamp Heads Emergency Unit
Regular price
$87.81
Regular price
Sale
$97.57
Sale price
$87.81
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
New York City Approved Steel Glare Free Lamp Heads Emergency Unit

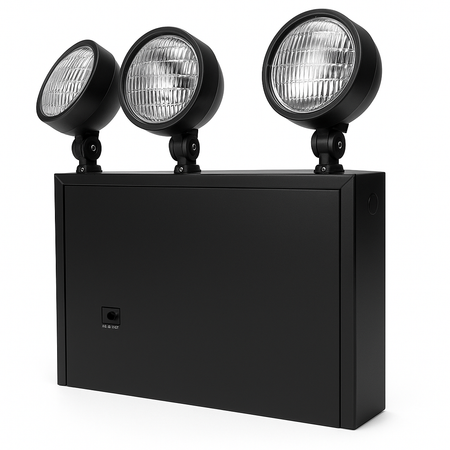

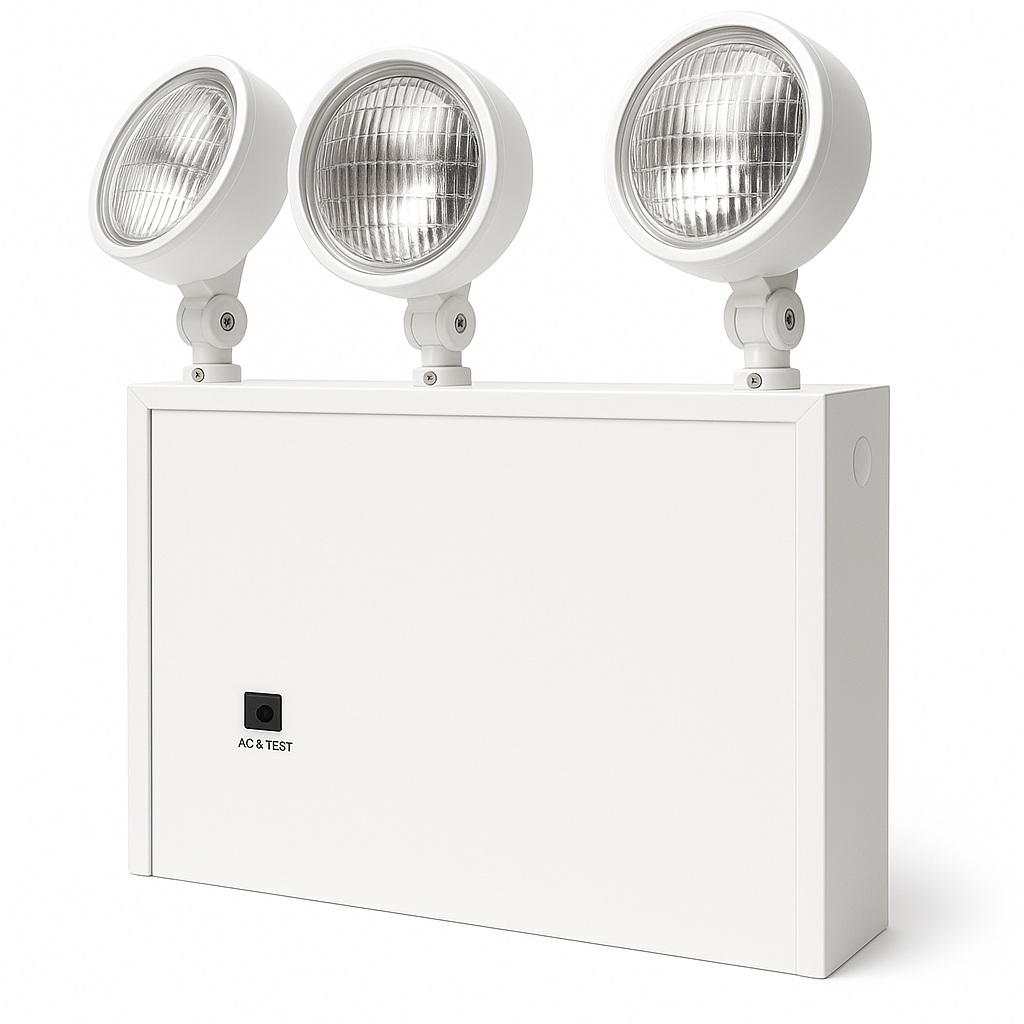

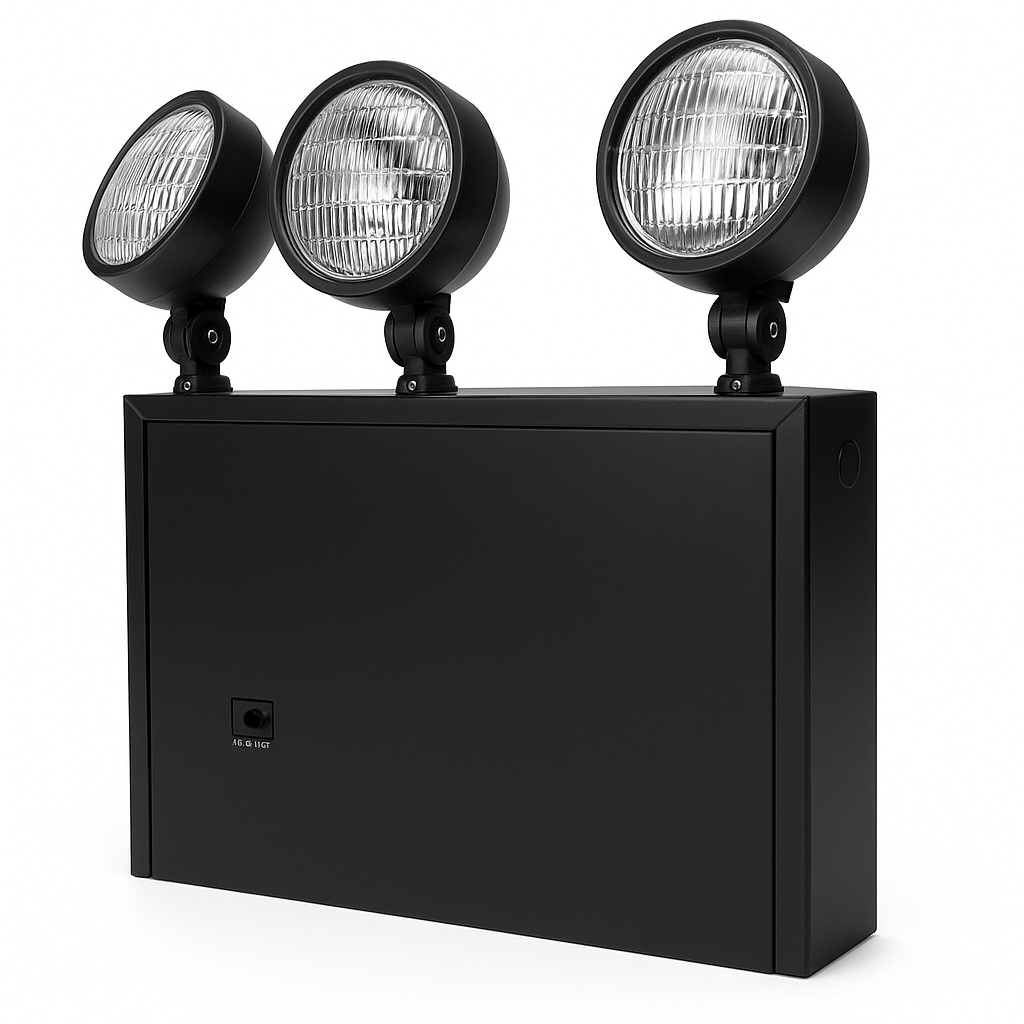

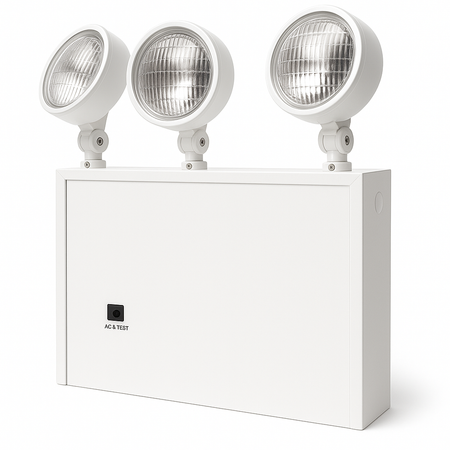

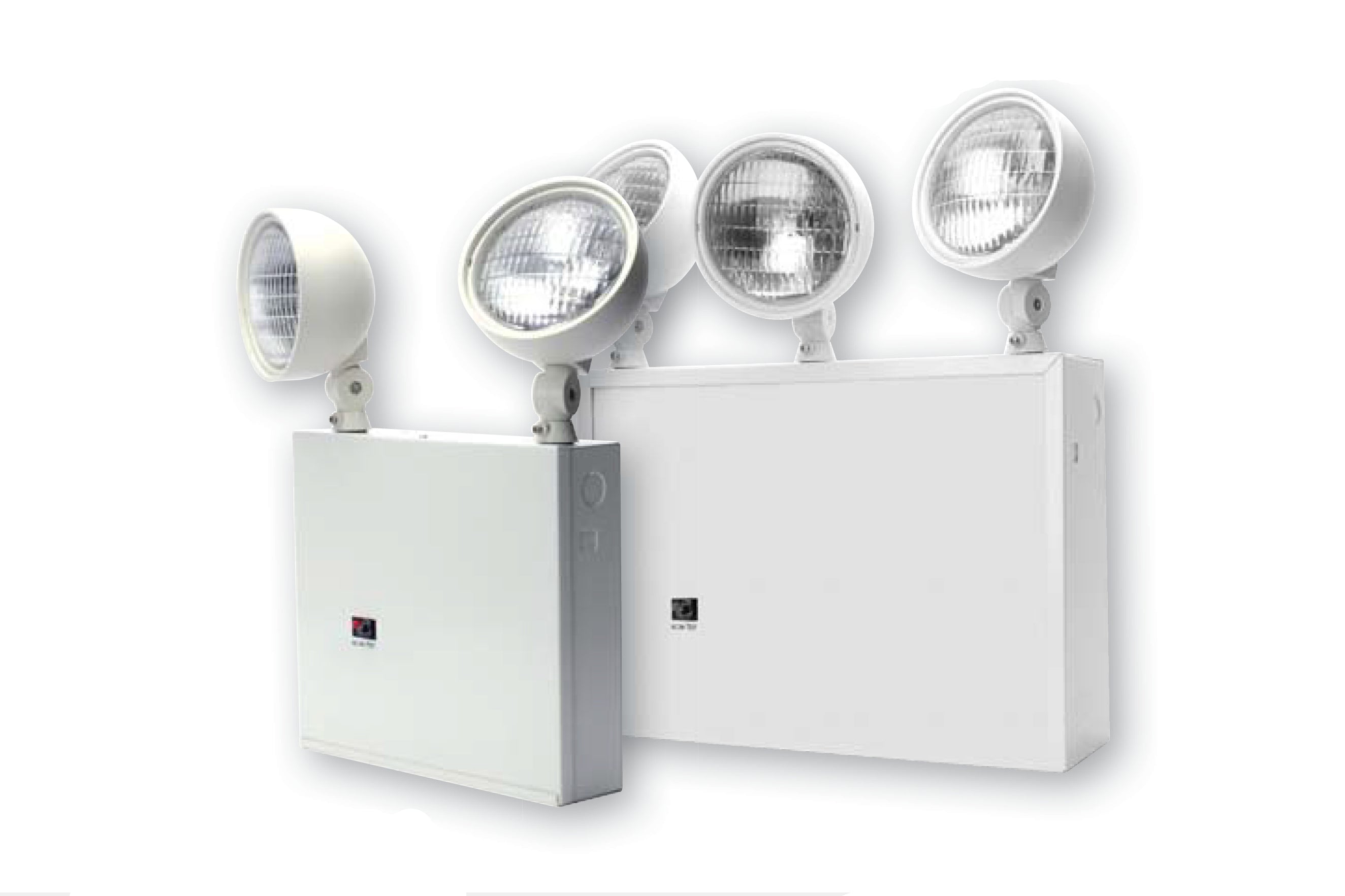

The NYDXR New York City–Approved Emergency Unit pairs a rugged, powder-coated 20-gauge steel cabinet from our steel emergency lights lineup with up to three fully adjustable, glare-free PAR-style lamp heads. Available in 6 V and 12 V configurations, it delivers 18 W , 27 W , or 50 W of emergency lighting and provides up to 14 W of remote-head capacity on the 12 V 3-head model. Fully compliant with UL 924 and NYC-approved emergency lights requirements for interior egress.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- NYC Approved
- UL 924
- Steel 20-Gauge
- 6 V / 12 V
- Remote-Capable
- NFPA 101
- OSHA
- LED
- Emergency
- Emergency Lights
Key features
- NYC Approved ; UL 924 compliant interior egress unit.
- Rugged 20-gauge steel cabinet (powder-coated white or black).
- Adjustable PAR-style heads: two standard; third head on 27 W / 50 W models.
- Output choices: 18 W (6 V) , 27 W (6 V) , 50 W (12 V) .
- Universal 120/277 VAC ; charge/power LED, push-to-test, LVD .
- Maintenance-free SLA battery; 90 min runtime; ~ 24 h recharge.
- Remote capacity: 14 W on 12 V 3-head (50 W) ; up to 14–32 W per remote family.
- Wall surface mount; back-plate knockouts; top/side ½" conduit entries.
- Listing: dry-location (25 °C); meets NFPA 101 , NEC , OSHA .
- Warranty: 5-year electronics/housing; battery 2-year prorated.
Documents
Related NYC Emergency Light Guides
NYC Emergency Lighting Requirements Chicago vs NYC – Code & Compliance
Spec Sheet
Download Emergency Unit Spec Sheet (PDF)
Illumination
- Adjustable glare-free PAR-style heads — 9 W on 6 V models; 12 W on 12 V models.
- 27 W and 50 W versions include a third head (field-installable).
Electrical
- Universal 120/277 VAC input; charge/power LED and push-to-test switch; LVD to prevent deep discharge.
- Maintenance-free sealed lead-acid battery; 90-minute minimum emergency illumination; 24-hour full recharge.
- Remote capacity: 14 W standard on the 12 V 3-head (50 W) unit; up to 14–32 W depending on remote head family (see spec table).
- Input power / current: • 18 W & 27 W : 7.1 W / 0.066 A @ 120 V • 8.0 W / 0.031 A @ 277 V • 50 W : 15.2 W / 0.143 A @ 120 V • 15.8 W / 0.065 A @ 277 V
Mounting
- Back-plate knockouts for wall mounting.
- ½" side/top knockouts for surface conduit feed.
Housing
- Durable 20-gauge steel , powder-coated in white or black.
- High-impact thermoplastic PAR heads.
Compliance & Warranty
- UL 924 listed; meets NFPA 101 , NEC , OSHA , and local/state codes.
- Dry-location listed (25 °C).
- 5-year warranty on electronics/housing; battery prorated 2 years .
Dimensions
- 18 W model: 10½" W × 9 1/16" H × ~2½" D
- 27 W / 50 W models: 14½" W × 10½" H × ~2½" D
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
