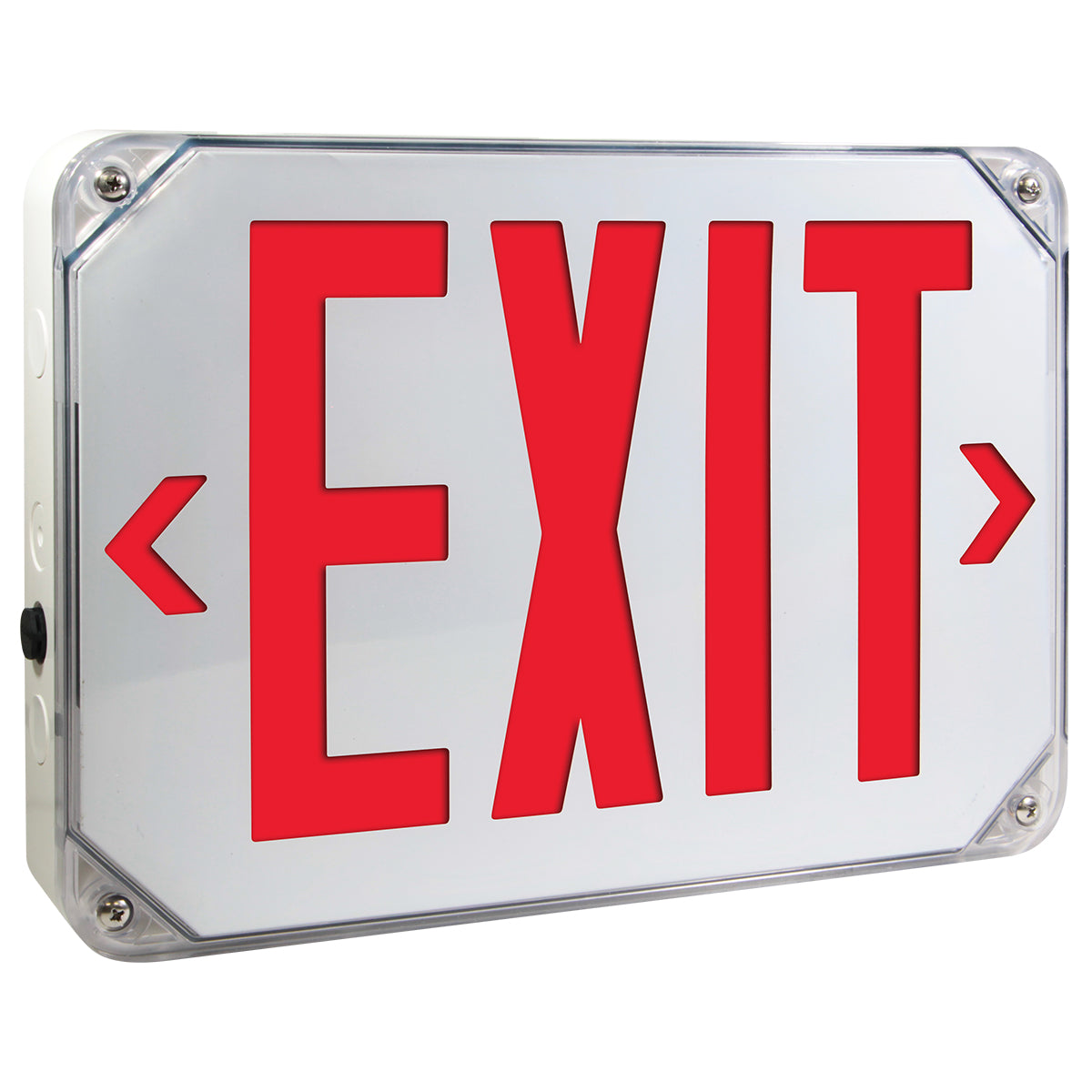

NYC-approved NEMA 4X LED exit sign – front view with 8" red legend and sealed housing
Front view dimensions: 14.5 in width, EXIT legend with left/right arrows and rounded-corner face
Side profile dimensions: 10.5 in height and 2.13 in depth with three conduit knockouts
NYC-approved NEMA 4X LED exit sign – front view with 8" red legend and sealed housing
Front view dimensions: 14.5 in width, EXIT legend with left/right arrows and rounded-corner face
Side profile dimensions: 10.5 in height and 2.13 in depth with three conduit knockouts

NYC NEMA 4X LED Exit Sign – IP66, Wet-Location & Food-Zone Rated

SKU: NYN4X-1-LB-R-WH
$255.50

Got questions?

Give us a call 800-847-1955!

NYC NEMA 4X LED Exit Sign – IP66, Wet-Location & Food-Zone Rated

The NYN4X Series New-York-approved NEMA 4X LED Exit Sign provides reliable egress marking in wet, hose-down, and outdoor environments. A fully gasketed polycarbonate enclosure protects long-life red LEDs behind a fully illuminated legend. The unit is UL 924 wet-location listed and NEMA 4X rated, with dual-voltage input and AC-only ( LB ) or 90-minute Ni-Cd battery ( WB ) models. It installs to walls or ceilings and supports conduit entry for pendant mounting. Browse wet-location exit signs and NYC-approved exit signs .

Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.

Buying support

Product details and buying checks

Review specs, documents, buying checks, compatible products, and FAQs before ordering.

  • New York City Approved
  • UL 924
  • NEMA 4X
  • Wet Location
  • Battery Backup
  • 120/277 VAC
  • Face: Single / Double
  • Chevron Knockouts
  • Universal Mount
  • Assembled in USA

Key features

  • NEMA 4X sealed polycarbonate enclosure with stainless hardware; UL 924 listed for wet locations.
  • Fully illuminated legend with 8" characters and 1" stroke (NYC compliant); red LEDs exceed UL 924 brightness/uniformity.
  • Power options: LB (AC-only) or WB (Ni-Cd) with 90-minute emergency runtime; ~ 24 hour recharge.
  • 120/277 VAC dual-primary input; LVD, brownout protection, and solid-state transfer/charger.
  • Field-selectable directional chevrons (snap-out) concealed behind the lens.
  • Operating temperature: 0–40 °C (32–104 °F).
  • Universal mounting : rear J-box pattern for wall; pendant mounting via top/side conduit.
  • Finish: White ; assembled in USA with global components.
  • Dimensions: 14.5" W × 10.5" H × 2.13" D .
Product family Exit Signs
SKU NYN4X-1-LB-R-WH
Listing UL 924
Runtime/service 90-minute emergency runtime; ~ 24 hour recharge
Environment NEMA 4X sealed polycarbonate enclosure with stainless hardware; UL 924 listed for wet locations
Power led polycarbonate enclosure with stainless hardware; UL 924 listed for wet locations

Documents

Related Exit Sign Guides

Exit Signs for Outdoor/Wet Areas Wet-Location Emergency Egress Guide

Spec Sheet

Download NYN4X LED Exit Sign Spec Sheet (PDF)

Illumination
  • High-intensity red LEDs provide uniform legend illumination.
  • 8" EXIT letters with 3/4" stroke meet NYC/UL 924 requirements.
  • Field-selectable chevrons hidden behind the tamper-resistant lens.
Electrical
  • 120/277 VAC , 60 Hz dual-voltage input.
  • LB – AC-only • WB – Ni-Cd battery with 90-minute backup (approx. 24 hour recharge).
  • Low-voltage disconnect, brownout, overload protection, and solid-state charger.
  • Bi-color status indicator and push-to-test switch.
Construction / Finish
  • 0.23" thick UV-stable polycarbonate housing, fully gasketed for outdoor use.
  • White finish with stainless-steel hardware for corrosion resistance.
  • Overall dimensions: 14.5" W × 10.5" H × 2.13" D .
Mounting
  • Rear knockout pattern supports wall mounting to a standard J-box.
  • Top/side conduit entry supports pendant stem mounting (1 ft or 2 ft kits available).
Options / Accessories
  • ER1-KIT-WH-ADPTR – 1 ft pendant kit
  • ER2-KIT-WH-ADPTR – 2 ft pendant kit
Compliance
  • UL 924 listed for wet locations; meets NYC Code, NFPA 101, NEC, and OSHA.
  • NEMA 4X rated enclosure; CEC Title 20 energy-efficiency compliant.
Compliance notes
  • Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
  • Verify the selected model is rated for the final environment before ordering.
