PELX Series – Affordable Edge-Lit Exit Sign with Red & Green

PELX Exit Sign Spec Sheet Icon Download PELX Exit Sign Spec Sheet (PDF)

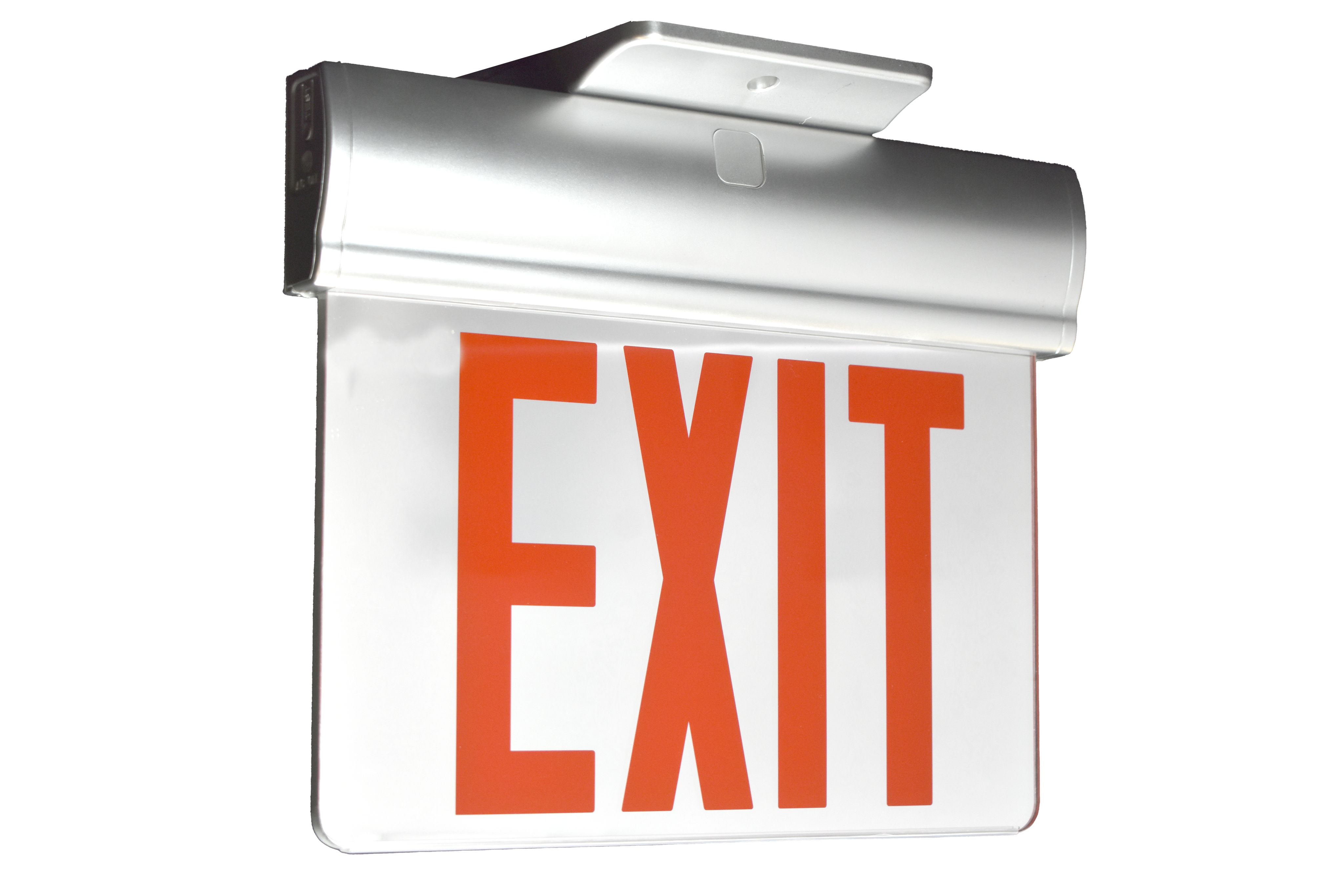

The PELX Economy Plastic Edge-Lit Exit Sign offers sleek, affordable egress signage in a low-profile package. A crystal-clear acrylic panel “floats” the EXIT legend in red or green LEDs, backed by universal mounting options and emergency battery backup. Surface and recessed installations are supported using the included or optional kits.

Illumination

  • Field-selectable red or green LED EXIT legend
  • Edge-lit acrylic panel for consistent, glare-free lighting
  • Ships with universal single/double-face panel and silver mylar backer

Electrical

  • Dual 120/277 VAC input with status LED and push-to-test button
  • 3.6 V Ni-Cd battery (EM models) provides 90 minutes of emergency power
  • Solid-state transfer switch and two-rate charger (24-hour recharge)
  • SPV version accepts 208/220/240 VAC input

Mounting

  • EZ-snap canopy for top, end, or back mounting (surface models)
  • PREL-KIT enables recessed mounting in T-bar or drywall

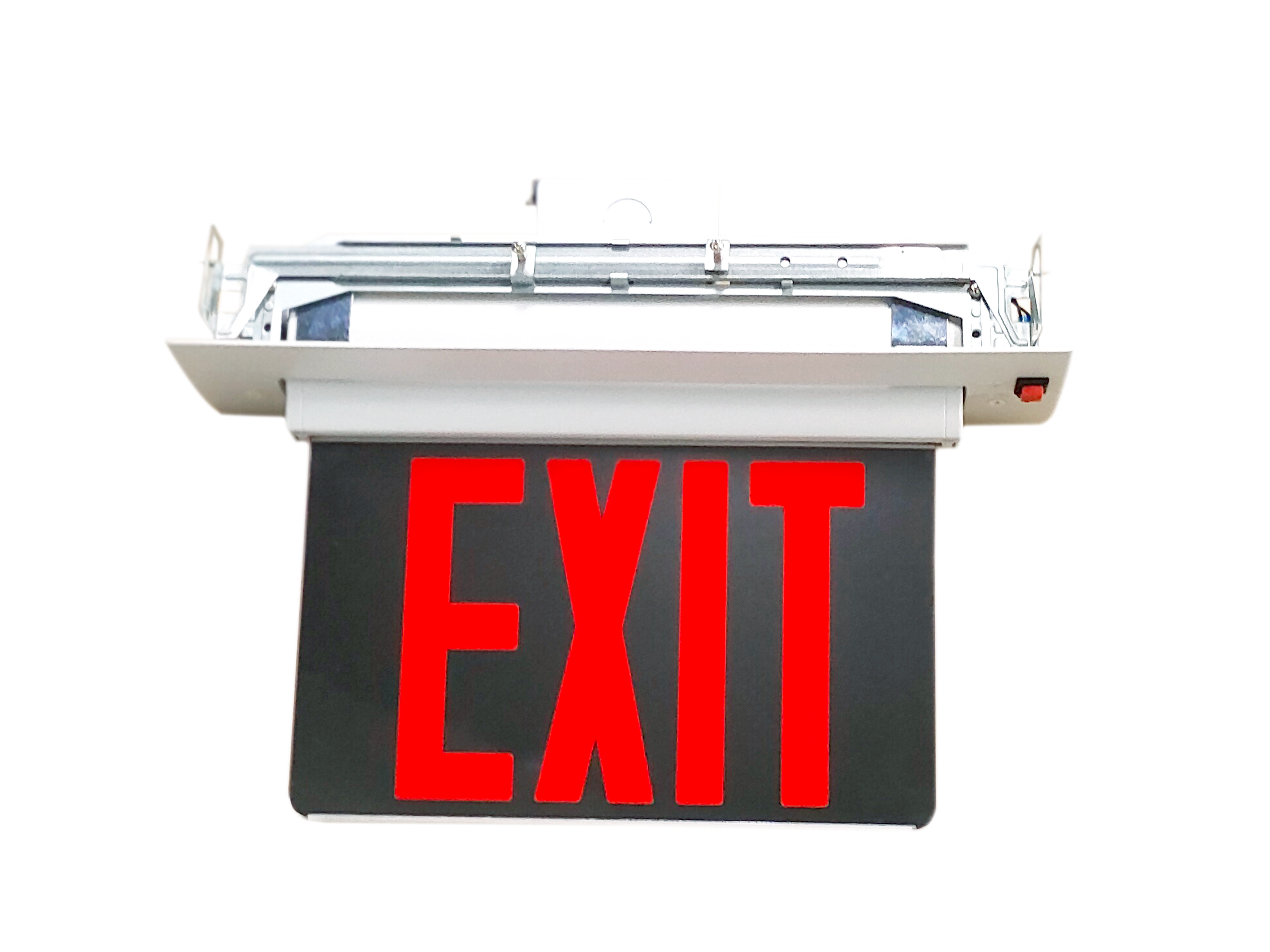

  • Recessed version includes bar hangers and detachable trim ring

Housing / Panel

  • 5 VA flame-retardant thermoplastic in white, black, or silver finish
  • Clear acrylic panel with directional chevrons and installation template
  • Recessed trim accessible from below ceiling level

Options

  • PREL-KIT — Field conversion kit for recessed install
  • SDT — Self-diagnostic testing
  • Custom — Special wording or legends (factory quote)

Warranty / Listings

  • 5-year warranty on housing and electronics; battery prorated 5 years
  • UL 924 listed for damp locations (0 °C – 50 °C)
  • NFPA 101, NEC, OSHA, and CEC Title 20 compliant

Dimensions

  • Surface: 12.06 in W × 9.50 in H × 2.63 in D
  • Recessed: 15.79 in W × 11.18 in H × 4.13 in D

Frequently Asked Questions

Can I choose between red and green EXIT legends?

Yes. The PELX Exit Sign ships with a field-selectable LED panel that allows you to choose red or green legend color during installation.

Is this model available in both surface and recessed versions?

Yes. Surface-mount models are standard, and the PREL-KIT accessory allows for conversion to recessed ceiling mount.

Does it support emergency backup lighting?

Yes. Emergency models include a 3.6 V Ni-Cd battery that provides 90 minutes of illumination during power loss.

What mounting options are included?

The fixture includes an EZ-snap canopy for top, end, or back mount. Recessed versions ship with bar hangers and trim.

Can it be used in damp locations?

Yes. The PELX is UL 924 listed for damp locations and meets NFPA 101, NEC, OSHA, and CEC Title 20 standards.

Product Features

  • Battery Backup
  • Brand: Best Lighting
  • Ceiling Mount
  • Damp Location
  • Edge Lit
  • Housing Color: Black
  • Housing Color: Silver
  • Housing Color: White
  • LED
  • Letter Color: Green
  • Letter Color: Red
  • Letter Color: Universal
  • Low Profile
  • Product: PELX
  • Recessed Lights
  • Self Testing
  • Thermoplastic
  • Exit Signs
