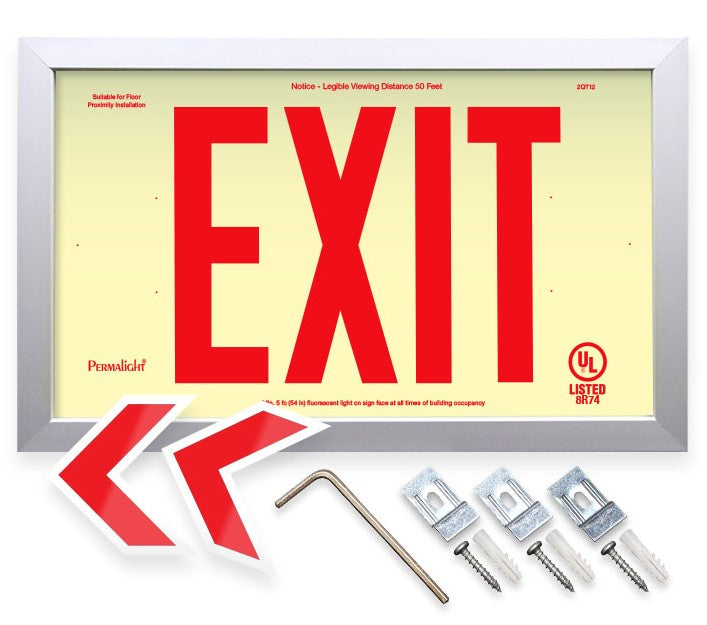

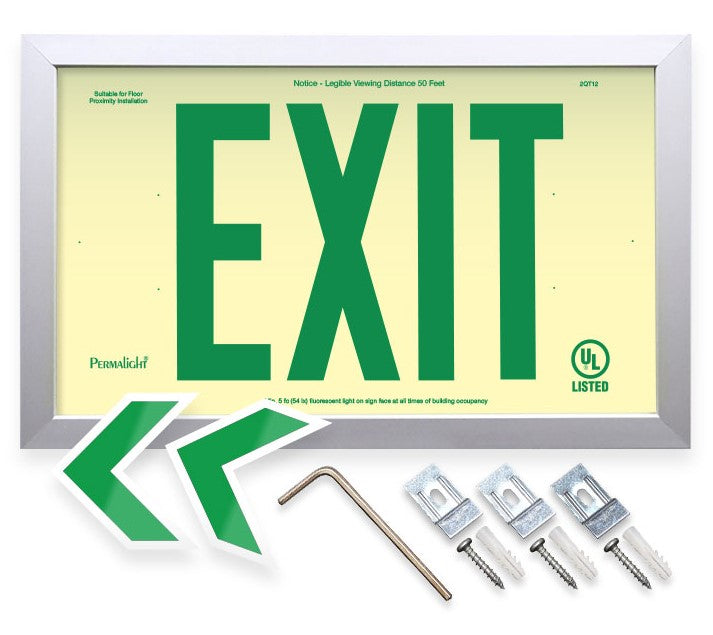

50-Ft Photoluminescent Exit Sign (Brushed Aluminum)
This 50-ft photoluminescent exit sign pairs an architectural brushed-aluminum frame with a rigid glow panel for high-contrast legibility along indoor egress paths where a listed 50-foot viewing distance is sufficient. It provides UL 924 visibility with no power, wiring, or routine maintenance . Available in single- or double-sided models with green or red EXIT letters. For another non-electrical option, see our self-luminous exit signs .
1.5', 10', 19.5' for Framed Photoluminescent Exit Signs
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- NFPA 101
- 50-ft Viewing
- No Power
- Glow-in-the-Dark
- OSHA
- Photoluminescent
- Exit Signs
Key features
- Non-electrical, non-radioactive: zero wiring, batteries, or bulbs
- 50-ft UL 924 viewing classification for interior egress paths
- Brushed aluminum frame with rigid photoluminescent PVC panel
- Single- or double-face; EXIT legend in green or red
- Peel-and-stick field-applied chevrons included
Illumination
- Charges using ambient LED, fluorescent, metal halide, or mercury vapor lighting
- Requires a minimum of = 5 foot-candles (54 lux) on the face during occupancy
- Automatically provides visibility during outages after proper charging
Electrical
- Non-electrical operation—no wires, power, or energy cost
- No batteries or circuit connections; zero routine maintenance
Mounting
- Flat-mount hardware included for surface wall installation
- Optional accessories available for ceiling and flag mounting
- Chevron arrows can be applied or left blank as required by the path of egress
Housing / Finish
- Rigid photoluminescent PVC panel with brushed aluminum frame
- Dimensions: 14.625" W × 9.125" H × 0.625" D
- Approx. weight: 2 lb
Options
- Face Type — Single- or double-sided
- Letter Color — Green or red EXIT legend
- Mounting — Optional ceiling/flag kits sold separately
Warranty / Listings
- UL 924 listed; compliant with IBC/IFC and NFPA 101 Life Safety Code
- OSHA 1910.37(b)(6) wayfinding compliant
- Approved for high-location and floor-proximity installations (verify with AHJ)
How can I confirm from my drawings that a 50-ft rating is sufficient for this location?
Measure the longest straight-line approach distance to the sign along the intended viewing path on your plan set. If the farthest viewer position is = 50 ft with clear line-of-sight, this 50-ft model is appropriate; otherwise step up to a 100-ft model.
Can this 50-ft model be used for floor-proximity (low-level) exit indication?
Yes—if permitted by the AHJ and the face receives = 5 fc during occupancy at the installed height. Maintain contrast against the adjacent finish and avoid baseboard obstructions.
Does the brushed aluminum frame provide advantages beyond appearance?
It offers rigid support for the PL panel and a durable, architectural finish that resists warping and helps keep the legend flat and crisp at 50 ft. Do not paint or wrap the luminous surface.
Is there any perceptible difference between red vs. green legends at 50 ft?
Both versions are UL 924 listed for 50-ft viewing when properly charged. Choose the legend color specified by your AHJ or to maximize contrast against nearby finishes.
Compliance notes
- Confirm viewing distance, charging-light level, mounting condition, and local AHJ acceptance before ordering.
