Outdoor 100-Ft Photoluminescent Exit Sign (Wet Location)
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Outdoor Photoluminescent Exit Sign - 100 Ft Viewing, Parking Garage - Features & Specs
Our outdoor 100-ft photoluminescent exit sign for parking garages, ramps, and canopies is a fully non-electrical, wet-location solution for exterior egress points. It is UL 924 listed for wet locations and intended for applications that specifically require a 100-ft viewing classification. Place at ramp crests/approaches, helix turns, and pedestrian connectors (stairs/elevators). Browse all photoluminescent exit signs.
Key Features
- Non-electrical: no wiring, batteries, or bulbs—zero energy cost.
- 100-ft UL 924 photoluminescent legend for long, straight sightlines in garages.
- Wet-location ABS housing for outdoor/garage hose-down and weather exposure.
- Garage-focused placement: ramp crests, helix curves, long drive aisles, and pedestrian connectors.

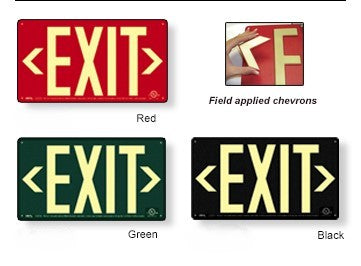

- Background colors: black, red, or green with glow EXIT letters; single- or double-sided.
- Field-applied chevrons included (left/right/both/none).
- Hardware tip: use 316 stainless fasteners & lock washers for vibration/corrosion resistance.
Frequently Purchased With:
These are compatible T-bar ceiling mounting brackets.
Mounting Brackets
T-Bar Ceiling Mount Photoluminescent Exit Signs
Illumination
- Photoluminescent EXIT legend charges from LED/fluorescent garage luminaires.
- Maintain = 5 foot-candles (54 lux) on the sign face during occupancy; coordinate with timeclocks/occupancy/daylight controls so faces are lit whenever the deck is open.
- Provides code visibility for 90+ minutes after lights go out when properly charged; brightness decays gradually (normal for PL materials).
Electrical
- 100% non-electrical — no AC input, no batteries, no circuitry.
- No ongoing operating costs; no test switches or status indicators.
Mounting
- Supports surface (flush), ceiling, flag (perpendicular), and T-bar grid mounting.
- For columns/soffits: anchor to flat, rigid surfaces; add a rigid backer on mesh or open framing.
- Use 316 stainless anchors, lock washers, and thread-locker in vibration-prone areas.
Housing / Finish
- Material: injection-molded ABS (weather-resistant, impact-durable, UV-stable).

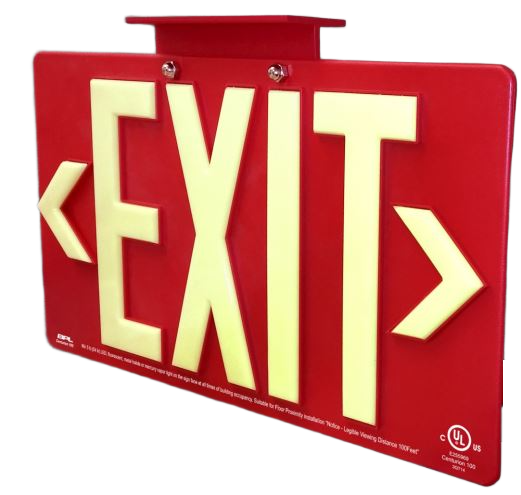

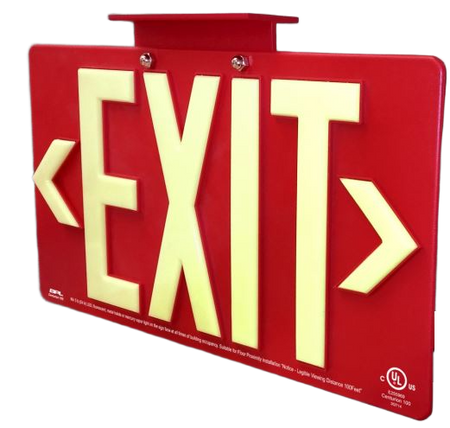

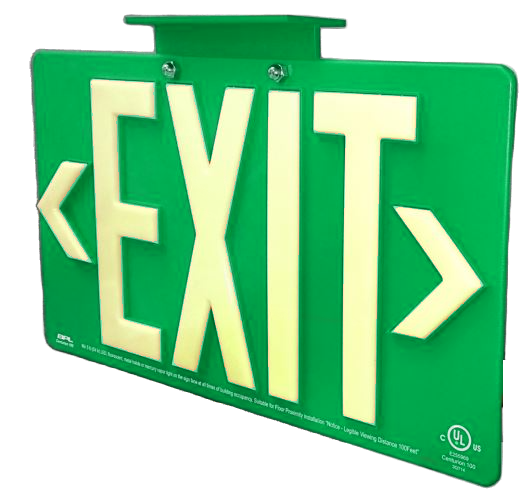

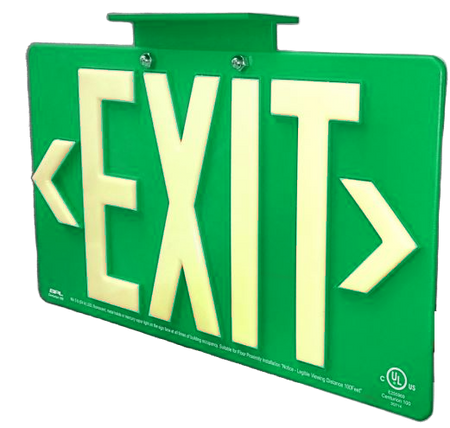

- Background colors: black, red, or green with photoluminescent letters.
Dimensions
- Letter size: 8 in high with 1 in stroke (optimized for 100-ft viewing).
- Overall: 17.25 in W × 9.5 in H × 13/64 in thick.
Options
- Color — black, red, or green background.
- Mounting configuration — wall/surface, ceiling, flag, or T-bar.
- Face type — single- or double-sided.
Warranty / Listings
- UL 924 Listed for indoor and outdoor use; NFPA 101 compliant.
- Meets OSHA, ICC-IBC, ASTM 2072, and Joint Commission (TJC) standards.
- 15-year limited manufacturer warranty.
- Not submersible; not explosion-proof. Verify acceptance with your AHJ.
Frequently Asked Questions
Where should I place signs on ramps and helical drive aisles to maintain a true 100-ft approach?
Mount before ramp crests (approach side) and at helix turns so the legend is perpendicular to traffic. Add follow-up signs after turns and at long straights so drivers are always within 100 ft line-of-sight.
Do open-air top decks meet charging requirements after dark?
Only if adjacent area luminaires provide = 5 fc on the face during occupancy. Daylight helps in daytime but does not ensure night readiness—position near reliable fixtures.
What mounting height works best around clearance bars and overhead piping?
Mount above the clearance device and just below the soffit/beam line to keep the legend in driver view and out of vehicle sweep paths. Avoid locations blocked by signage, cameras, or conduit.
Should I use double-face units on center columns or mid-aisle islands?
Yes where traffic approaches from two directions. Confirm each face receives = 5 fc from garage lighting; an unlit face can underperform at 100 ft.
Do vehicle headlights help charging or can they hurt visibility?
Headlights are intermittent and directional—do not treat them as a charging source. They can also cause glare on glossy backgrounds; prefer matte surroundings and keep the sign perpendicular to the approach.
What hardware holds up to vibration and corrosion in garages?
Use 316 stainless anchors/screws with lock washers or nylon-insert nuts. Apply thread-locker where vibration is severe and avoid dissimilar-metal stacks that promote corrosion.
How often should I clean signs in diesel/heavy-traffic garages?
Adopt a monthly wipe-down (more often in high-soot zones). Use a soft cloth and mild soap; avoid abrasives, ammonia, and solvents that can haze the luminous surface.
Can I mount behind wire mesh or a protective shield?
Yes, with a rigid backer and a clear, non-tinted shield. Tinted/UV-filtering covers can reduce charging; re-check face illuminance to maintain = 5 fc.
Will precipitation or fog impact 100-ft recognition in open garages?
Rain/mist reduce contrast at distance. Shorten spacing between signs in exposed areas and locate units near dependable lighting or under overhangs where possible.
What should my commissioning record include for a parking structure?
Per level: sign locations/orientation, mounting height, day & night face-illuminance readings, control schedules affecting local lights, and confirmation of 100-ft sightlines from driver approach points.
