Edge-Lit Thermoplastic Exit Sign - Face: Double - Letter-Color: Red

PLELRXTEU Series – Compact Edge-Lit Exit Sign with Red or Green Legend

Download PLELRXTEU Edge-Lit Exit Sign Spec Sheet (PDF)

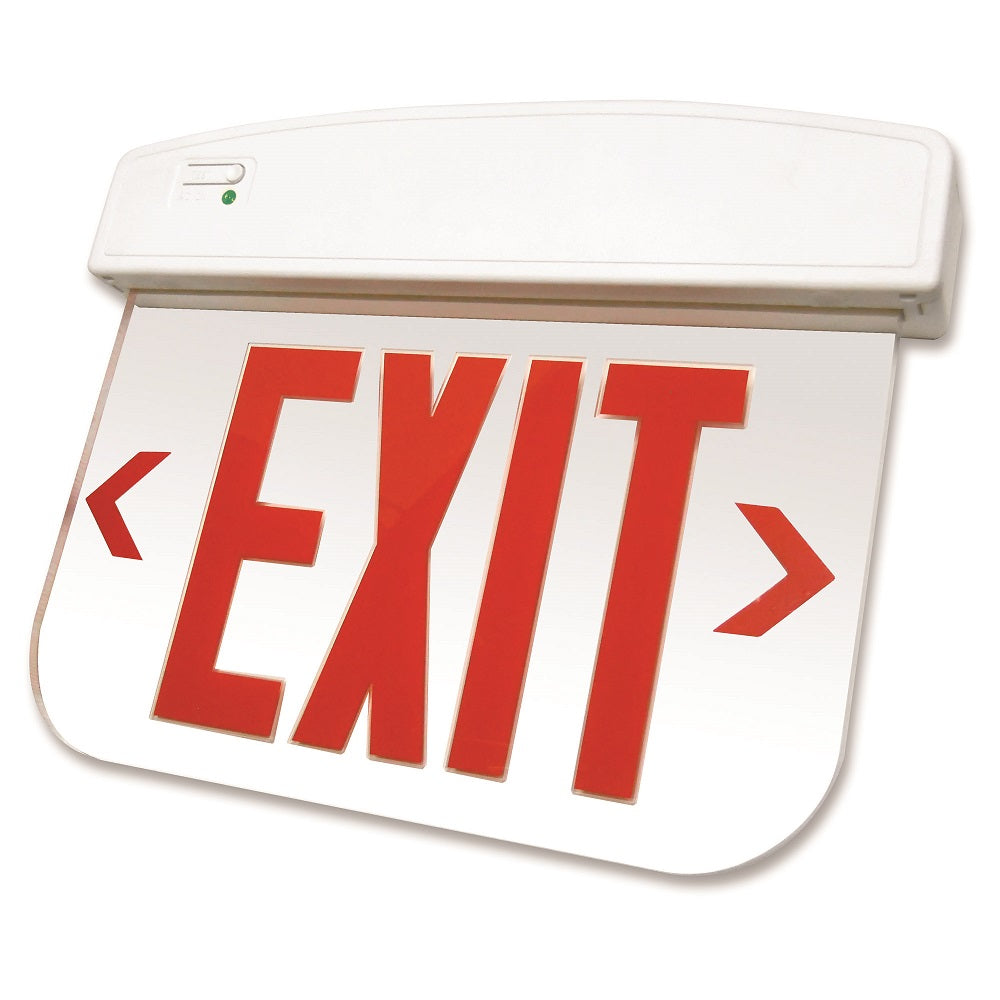

The PLELRXTEU Edge-Lit Thermoplastic Exit Sign features a crystal-clear acrylic panel and low-profile thermoplastic frame to deliver a modern “floating” EXIT legend. With selectable red or green LEDs, universal mount options, and 90-minute emergency battery backup, it’s ideal for upscale commercial interiors and damp-rated corridors.

Illumination

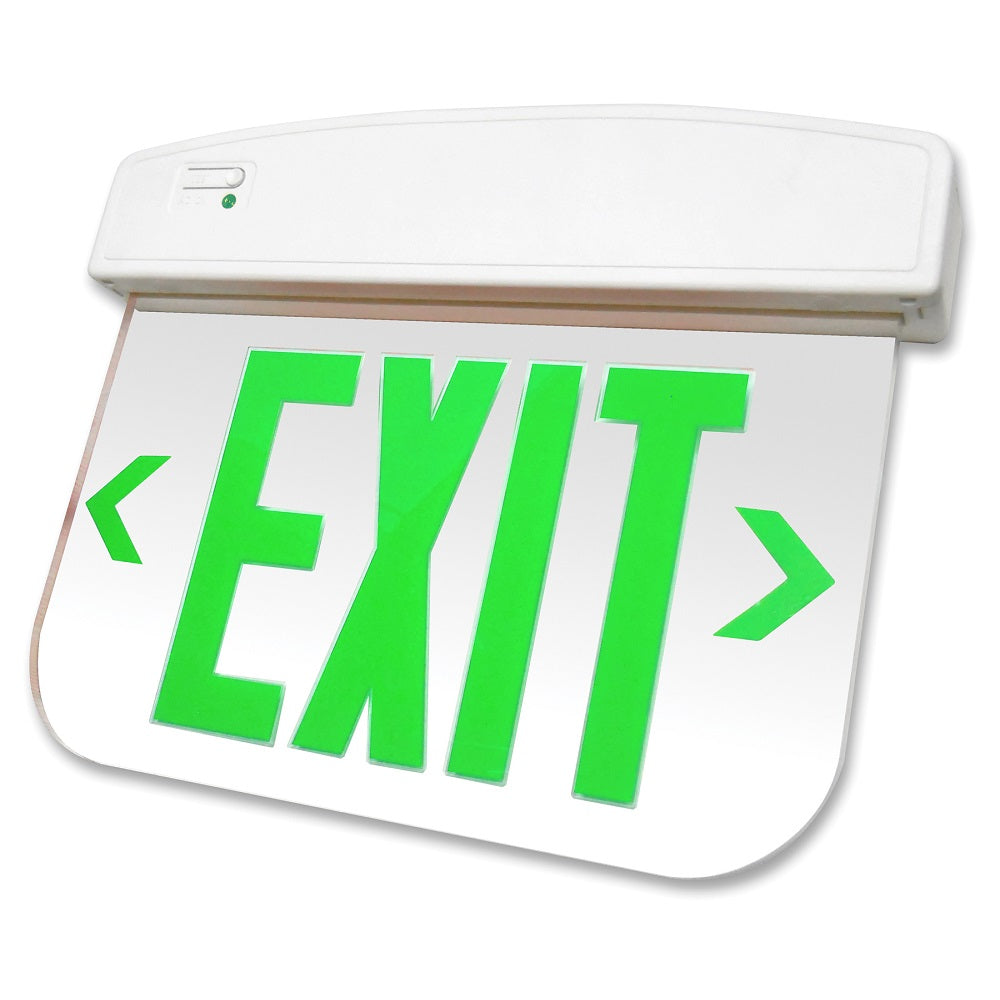

• Bright, energy-efficient LEDs — field-selectable red or green legend
• Edge-lit acrylic panel with uniform, glare-free lighting
• Double-face models include factory-installed mylar backer (silver or white)
• Self-adhesive directional chevrons with included template

Electrical

• Universal 120/277 VAC input (optional SPV 208/220/240 VAC)
• Bi-color status LED and push-to-test button
• 4.8 V Ni-Cd battery provides 90 minutes of emergency runtime
• Solid-state transfer switch and two-rate charger
• 2C-120 / 2C-277 dual-circuit for AC-only operation

Mounting

• EZ-snap canopy for top, end, or back mount
• Field-configurable single- or double-face design

Housing / Panel

• Injection-molded 5 VA thermoplastic — white, black, or silver
• Quick-snap faceplate for tool-free service

Options

• SDT — Self-diagnostic testing
• Custom — Special wording or graphics available

Warranty / Listings

• 5-year warranty on housing & electronics; battery prorated 5 years
• UL 924 listed for damp locations (0 °C – 50 °C)
• NFPA 101, NEC, OSHA, and CEC Title 20 compliant

Dimensions

• Single-face: 10¾ in W × 7 11/16 in H × 1¾ in D
• Double-face overall width: 12 11/16 in

Frequently Asked Questions

Can I choose between red and green EXIT lettering?

Yes. The PLELRXTEU ships with a field-selectable LED panel. You can choose red or green at the time of installation.

Is the PLELRXTEU suitable for double-face applications?

Yes. The unit supports single or double-face configurations and includes a silver or white mylar backer for double-sided models.

Does this exit sign include emergency battery backup?

EM models include a 4.8 V Ni-Cd battery that provides 90 minutes of emergency illumination during power outages.

What mounting options are supported?

It includes an EZ-snap canopy for top, end, or back mounting. It’s also convertible between single and double face in the field.

Can this model be installed in damp locations?

Yes. It is UL 924 listed for damp locations and is compliant with NFPA 101, NEC, OSHA, and CEC Title 20 codes.
