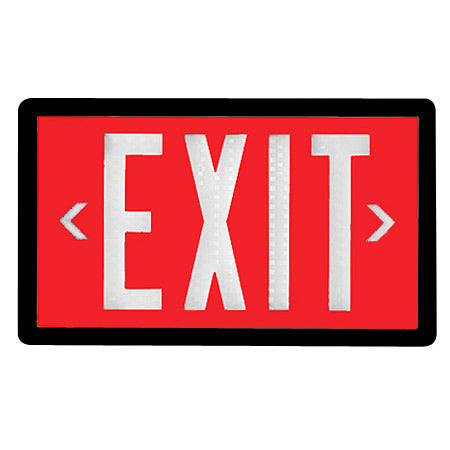

Tritium Self-luminous exit sign – front view with red legend and black frame

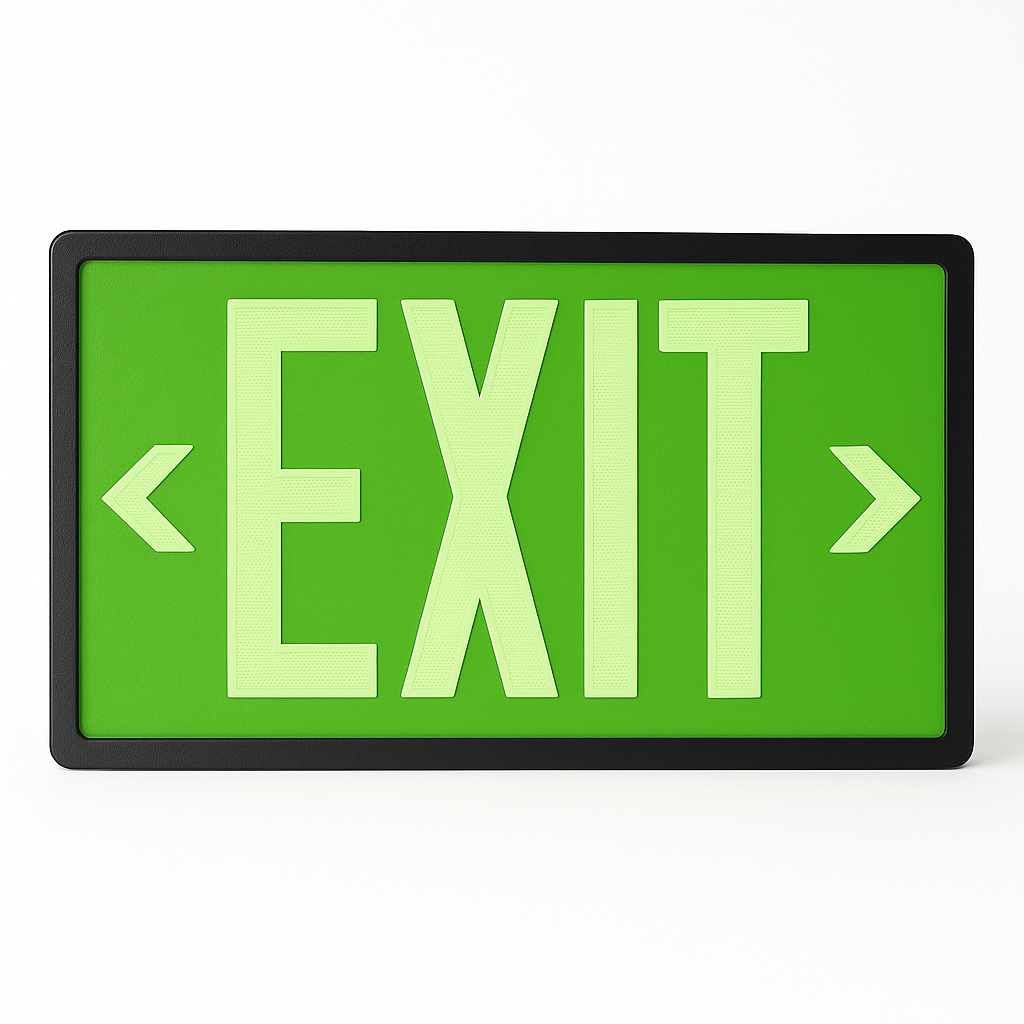

Tritium Self-luminous exit sign – front view with green legend and black frame
Tritium Self-luminous exit sign – front view with black legend and white frame
Tritium Self-luminous exit sign – front view with red legend and black frame
Tritium Self-luminous exit sign – front view with green legend and black frame
Tritium Self-luminous exit sign – front view with black legend and white frame

Tritium Self-Luminous Exit Sign – 10 or 20 Years, No Power Required

SKU: PXP-1G-10-WH
$434.35

Got questions?

Give us a call 800-847-1955!

Tritium Self-Luminous Exit Sign – 10/20-Year Life, Zero Power, 100-ft Viewing – Features & Specs

The PXP Series Tritium Self-Luminous Exit Sign delivers maintenance-free, energy-free egress marking for 10 or 20 years using sealed tritium tubes—no wiring, electricity, batteries, or lamps required. Its high-impact ABS body installs quickly with a universal bracket and operates safely in wet locations, hazardous areas, and vibration-prone environments. This zero-power fixture is ideal for remote or power-restricted applications.

UL 924 Non Electrical Tritium Self Luminous Wet Location 100-Ft Viewing Face: Single / Double Universal Mount No Power / No Battery −60 °C to 100 °C Tamper Resistant (opt.)

Key Features

  • Zero electricity: self-powered for 10 or 20 years with sealed tritium tubes (0.15 fL initial brightness).
  • Explosion-proof by design—no circuitry, switches, or battery contacts; suitable for hazardous-area use.
  • Wet-location and outdoor rated; vibration-resistant construction.
  • 100-ft visibility with 6″ letters and 3/4″ stroke; legend color: green only.
  • Universal mounting bracket for wall, ceiling, or end mount; optional 12″ pendant kit (PM).
  • Operating temperature: −60 °C to 100 °C (−76 °F to 212 °F).

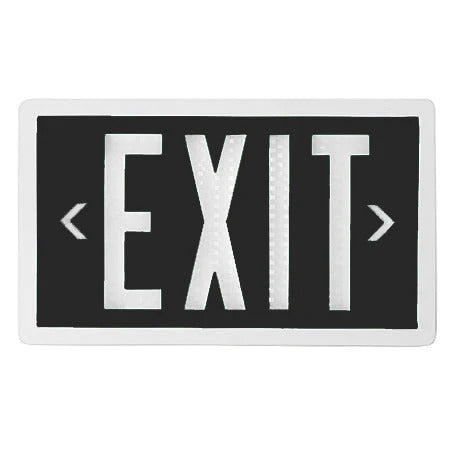

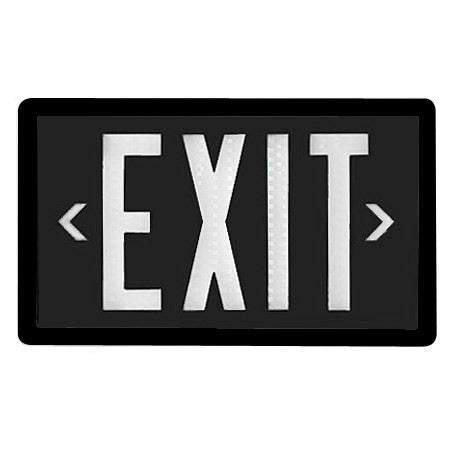

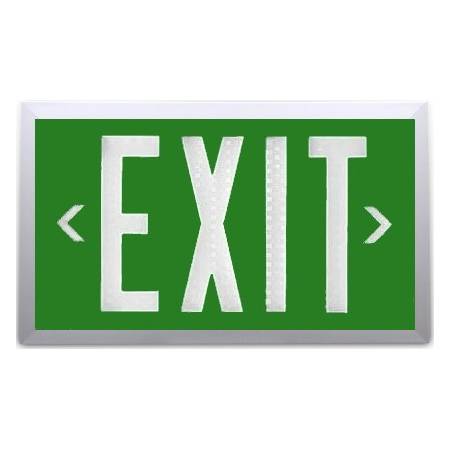

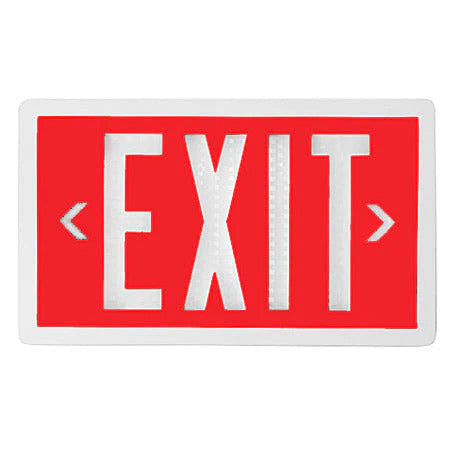

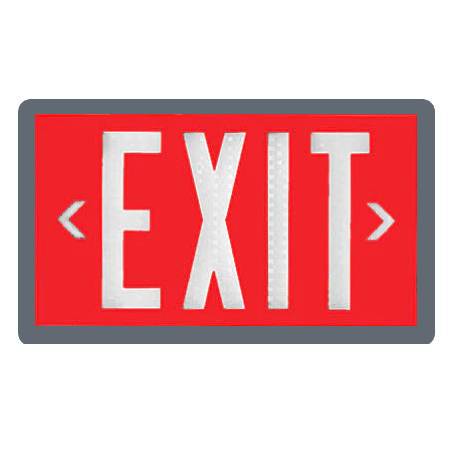

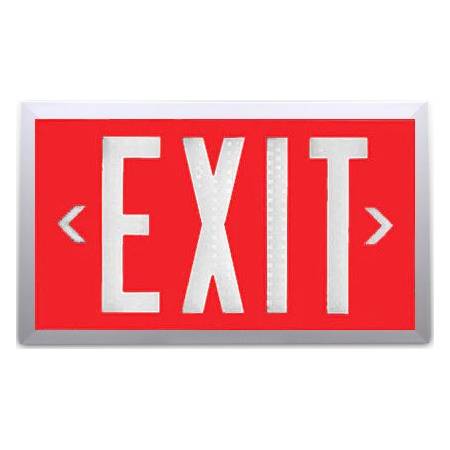

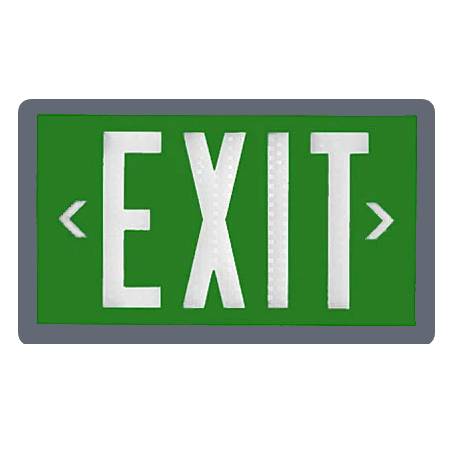

  • Panel colors: black/green/red; frame finishes: brushed aluminum, black, gray, or white.
  • Options: IF institutional frame with 3/8″ polycarbonate lens; SL security lens; WG-S/XG-6 guards.
  • Compliances: UL 924, NFPA 101, OSHA, USNRC, CEC.

PXP Spec Sheet PDF Icon Download PXP Self-Luminous Exit Sign Spec Sheet (PDF)

Features & Benefits

  • No wiring or power required – maintenance-free for 10 or 20 years
  • Explosion-proof – contains no circuitry, switches, or battery contacts
  • Wet-location rated and vibration-resistant
  • IF (Institutional Frame) option includes 3/8″ polycarbonate lens for high-abuse areas
  • Green legend only; 100 ft viewing distance per UL 924

Illumination

  • Self-luminous tritium-filled tubes (0.15 fL initial)
  • 6″ high EXIT characters with 3/4″ stroke in green only
  • No power, test button, or LEDs required

Construction

  • Flame-retardant ABS panel with optional brushed aluminum, black, white, or gray frame
  • Available backgrounds: black, green, or red
  • Extreme temperature operation: −60 °C to 100 °C (−76 °F to 212 °F)

Mounting

  • Universal mounting bracket included for wall, ceiling, or end mount
  • Optional 12″ pendant stem (PM) available for high ceilings

Options / Accessories

  • IF – Institutional frame with 3/8″ polycarbonate lens (single-face)
  • SL – 3/8″ security polycarbonate lens (single-face)
  • WG-S – Wire guard • XG-6 – Polycarbonate guard

Ordering Guide (excerpt)

  • PXP-1G-10-WH – single-face, 10-year life, white frame
  • PXP-2G-20-BL – double-face, 20-year life, black frame
  • PXP-1G-20-BL-IF – single-face, 20-year, black frame with institutional lens

Warranty / Listings

  • Lifetime warranty for full rated service life (10 or 20 years)
  • UL 924, OSHA, NFPA 101, CEC, and US NRC compliant
