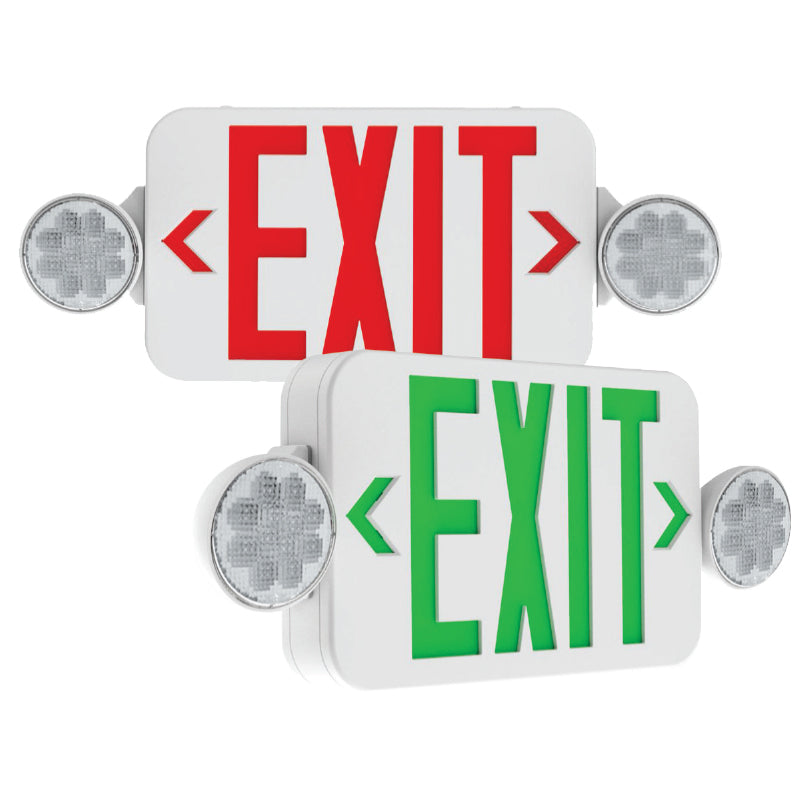

QCRS Series – Universal Red/Green LED Exit & Emergency Combo
The QCRS Series Universal Red/Green LED Combo Exit combines a compact thermoplastic exit sign with two fully adjustable 1.5 W LED emergency heads. Each unit ships with both red and green diffusers, dual faceplates, a snap-fit canopy, and chevron knock-outs, so you can configure single- or double-face, wall, ceiling, or end mounting on-site. This easy-to-install combo is UL 924 listed for damp locations and CEC Title 20 compliant—perfect for code-ready retrofits in commercial spaces.
Download QCRS LED Exit & Emergency Combo Spec Sheet (PDF)
Features & Benefits
- Field-selectable red or green LED legend via interchangeable diffuser
- Single- or double-face configuration with snap-out directional chevrons
- Two 1.5 W round LED heads provide uniform egress lighting
- Only 1.8" cabinet depth for low-profile installations
- UL 924 listed for damp locations; CEC Title 20 energy compliant
Illumination
- Fully illuminated 6" EXIT letters with ¾" stroke
- 23 ft spacing on a 3 ft path or 18 ft on a 6 ft path at 7.5 ft mounting height
Electrical
- Dual-voltage 120 / 277 VAC input, 60 Hz (4.1 W max)
- 3.6 V Ni-Cd battery provides 90 minutes of emergency backup
- Solid-state charging circuit with low-voltage disconnect and brownout protection
- Dual-color LED status indicator and push-to-test switch included
Construction & Finish
- Injection-molded thermoplastic enclosure with UL 94 V-0 flame rating
- Standard finish: white
- Universal J-box pattern and keyhole slots for fast, tool-free installation
- Dimensions: 18" W × 7.2" H × 4.3" D (1.8" cabinet depth)
Mounting
- Wall surface mount via backplate, or ceiling / end mount with snap-fit canopy
- Lightweight (approx. 3.2 lb) for drywall or J-box mounting
Options / Accessories
-
WG-L
– Wire guard for high-abuse or tamper-prone areas
Warranty / Listings
- 5-year warranty on electronics and housing
- Battery carries a 5-year prorated warranty
- UL 924 listed; NFPA 101, NEC, OSHA, and CEC Title 20 compliant
Frequently Asked Questions
Can I switch the legend color on-site?
Yes. Each unit ships with red and green diffusers that are field-swappable using the included legend panels.
Does this combo support double-face installation?
Yes. The QCRS includes dual faceplates and supports single- or double-face mounting configurations.
What mounting options are included?
The included backplate and snap-fit canopy allow for wall mount, ceiling mount, or end mount without needing extra accessories.
How long does the emergency battery last?
The 3.6 V Ni-Cd battery provides 90 minutes of emergency illumination and recharges in 24 hours.
Is this sign suitable for energy code compliance?
Yes. It meets CEC Title 20 standards and is UL 924 listed for damp location use.
