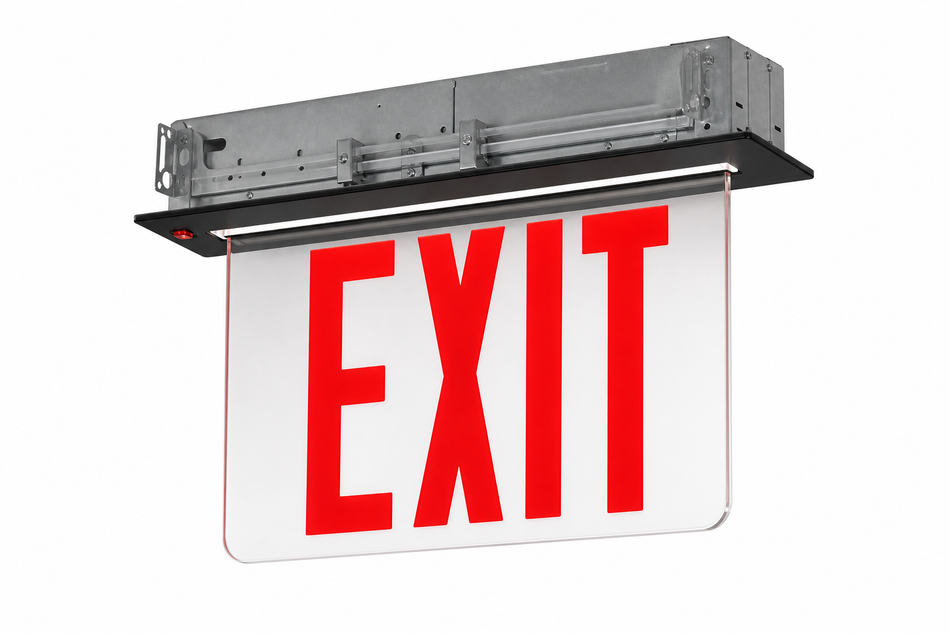

NYC Recessed Edge-Lit Exit Sign - 8 in Red Letters
Regular price
$200.62
Couldn't load pickup availability
Got questions?
Give us a call 1-888-959-1965!
NYRELZXTE Recessed NYC Edge-Lit Exit Sign Overview
The NYRELZXTE NYC recessed edge-lit exit sign is built for projects that require an 8 in red EXIT legend, a low-profile recessed housing, and a clean acrylic edge-lit panel. It is a fit for New York City commercial interiors where recessed installation, architectural appearance, and UL 924 emergency egress compliance all matter.
Configure single- or double-face panels, clear/mirror/white panel combinations, white/black/natural aluminum trim finishes, optional EM battery backup, SDT self-diagnostics, SPV special-voltage input, and WM recessed wall-kit variants. Compare the full Edge-Lit Exit Signs lineup, browse NYC-approved exit signs, or review Recessed Exit Signs for similar flush-mount applications.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- NYC Approved
- UL 924
- 8 in Red Letters
- Recessed Mount
- Edge-Lit Acrylic
- Single / Double Face
- Clear / Mirror / White Panels
- White / Black / Aluminum Trim
- 120/277 VAC
- Ni-Cd Backup
- 90-min Runtime
- SDT Option
- SPV Option
- WM Wall Kit Option
- Damp Location
- NFPA 101
- OSHA
Key features
- NYC-approved recessed edge-lit LED exit sign with 8 in red EXIT letters for jurisdiction-specific egress signage.
- UL 924 listed and damp-location rated from 0-50 C for suitable commercial interiors.
- Clear acrylic edge-lit panel provides a clean floating EXIT appearance with uniform red LED illumination.
- Recessed chassis installs in drywall or T-bar ceiling grids and is serviceable from below the ceiling level.
- Single-face and double-face configurations support one-direction and two-direction viewing conditions.

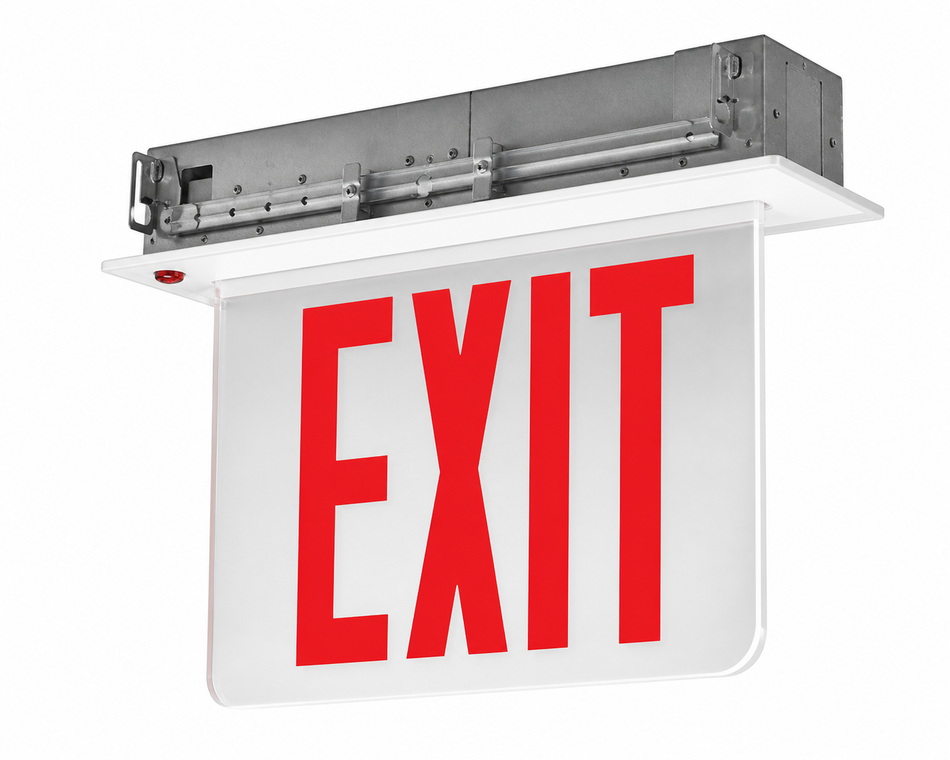

- Panel and trim combinations support clear, mirror, or white panels with white, black, or natural aluminum trim finishes.
- Self-adhesive chevrons with template support left, right, or no-arrow directional marking.
- Universal 120/277 VAC input with bi-color status LED and push-to-test button.
- EM models include a 4.8 V Ni-Cd battery for 90-minute emergency operation and about 24-hour recharge.
- Solid-state transfer switch, two-rate charger, and low-voltage disconnect support emergency operation.
- Optional SDT self-diagnostics supports automated inspection routines.
- Optional SPV supports 208/220/240 VAC input where special-voltage service is required.
Documents
Best Applications

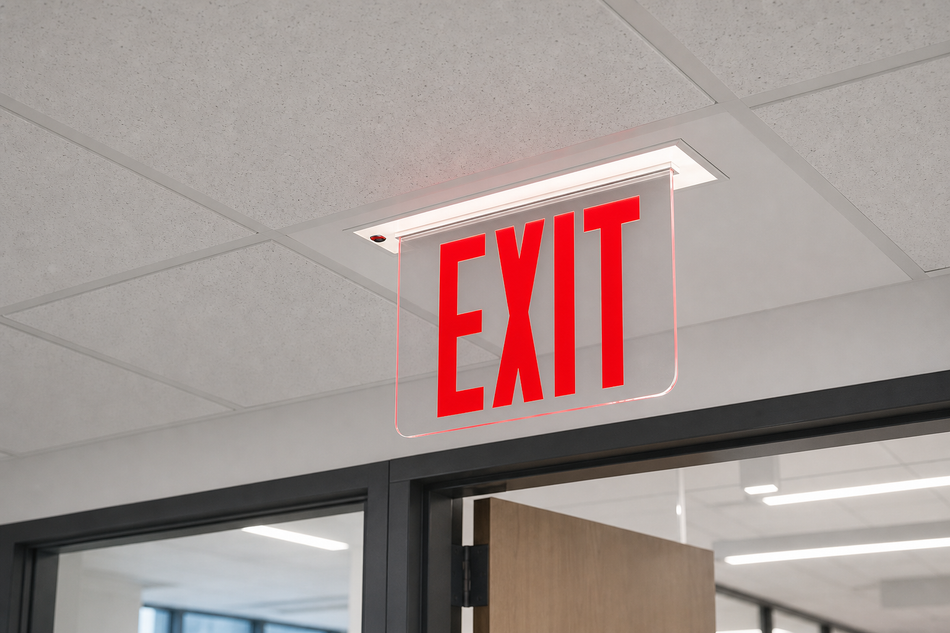

Choose NYRELZXTE for NYC commercial interiors that require an 8 in red-letter edge-lit EXIT sign in a recessed architectural format. Common applications include corridors, elevator lobbies, tenant spaces, public buildings, schools, hotels, and finished ceilings where a surface box would be visually disruptive.
Face, Panel, and Trim Selection
- Use single-face configurations where the sign is viewed from one primary direction.
- Use double-face configurations where occupants approach the sign from two directions.
- Choose clear, mirror, or white panel combinations to match the visibility and appearance required by the space.
- Select white, black, or natural aluminum trim to coordinate with the finished ceiling or wall plane.
EM, SDT, and SPV Selection
- Choose EM variants when the sign needs integral 4.8 V Ni-Cd battery backup for 90 minutes of emergency operation.
- Choose SDT self-diagnostics when the owner wants automated test support for inspection routines.
- Choose SPV when the project requires 208/220/240 VAC input instead of standard 120/277 VAC.
- Allow EM battery models to complete their charge period before a full-duration discharge test.
Recessed Rough-In Planning
- Use standard recessed configurations for drywall or T-bar ceiling grid installations.
- Use the WM option when the application calls for a recessed wall installation.
- Confirm above-ceiling space, framing, access, trim alignment, and serviceability before rough-in.
- The fixture is serviceable from below ceiling level for maintenance access.
NYC Egress Marking
- The product family uses an 8 in red EXIT legend for NYC-style requirements.
- Self-adhesive chevrons and a template support left, right, or no-arrow egress marking.
- Confirm final arrow direction against the life-safety plan before closeout.
- Keep the acrylic panel clean and unobstructed to preserve edge-lit visibility.
Input and Test Workflow
- Standard input is 120/277 VAC with bi-color status LED and push-to-test button.
- EM models include solid-state transfer, two-rate charging, and low-voltage disconnect.
- The SPV option supports UL-listed 208/220/240 VAC input where required.
- Document push-to-test checks and full-duration emergency runtime tests for maintenance records.
Recessed Chassis Fit
- Extruded-aluminum housing with detachable trim ring supports recessed architectural applications.
- Available trim finishes include natural aluminum, white, and black powder coat.
- Housing dimensions are approximately 18 in L x 4 in D; trim height is approximately 10 in.
- Confirm final dimensions and cutout conditions with the linked spec sheet before installation.
Submittal Closeout
- Confirm NYC approval, UL 924 listing, face count, trim finish, panel type, arrow direction, runtime, and installation method with the project documents.
- Final placement and acceptance should be confirmed with the local AHJ.
- Warranty coverage is 5 years on housing and electronics; Ni-Cd battery coverage is 5-year prorated.
Compliance notes
- Confirm NYC approval, UL 924 listing, face count, panel type, trim finish, arrow direction, installation condition, runtime, and local AHJ acceptance for the project.
Frequently asked questions
Is NYRELZXTE accepted for NYC projects?
Yes. NYRELZXTE is an NYC-approved recessed edge-lit LED exit sign family with 8 in red EXIT letters and UL 924 listing.
What makes this model NYC-specific?
The 8 in red EXIT legend supports New York City-style exit sign requirements. Always confirm final legend and placement requirements with project documents and the local AHJ.
Can I choose one-sided or two-sided viewing?
Yes. The product family includes single-face and double-face configurations for one-direction or two-direction visibility.
Which panel looks are available?
Configurations include clear, mirror, and white panel combinations with white, black, or natural aluminum trim finishes.
What do EM versions provide?
EM variants include a 4.8 V Ni-Cd battery for 90 minutes of emergency operation. Non-EM variants are intended for projects where emergency power is handled separately.
How should SDT, SPV, and WM be selected?
SDT adds self-diagnostics, SPV supports 208/220/240 VAC input, and WM indicates the recessed wall-mount kit option.
Can this recessed exit sign be installed in drywall or T-bar ceilings?
Yes. The recessed chassis is intended for drywall or T-bar ceiling grid installations and is serviceable from below ceiling level.
Is this NYC recessed edge-lit exit sign damp-location rated?
Yes. It is UL 924 listed and damp-location rated from 0-50 C for suitable commercial interior applications.
