RELZXTE Recessed Edgelit Aluminum Exit Sign - Face: Single - Letter-Color: Green - Panel: Mirror
Regular price
$158.41
Couldn't load pickup availability

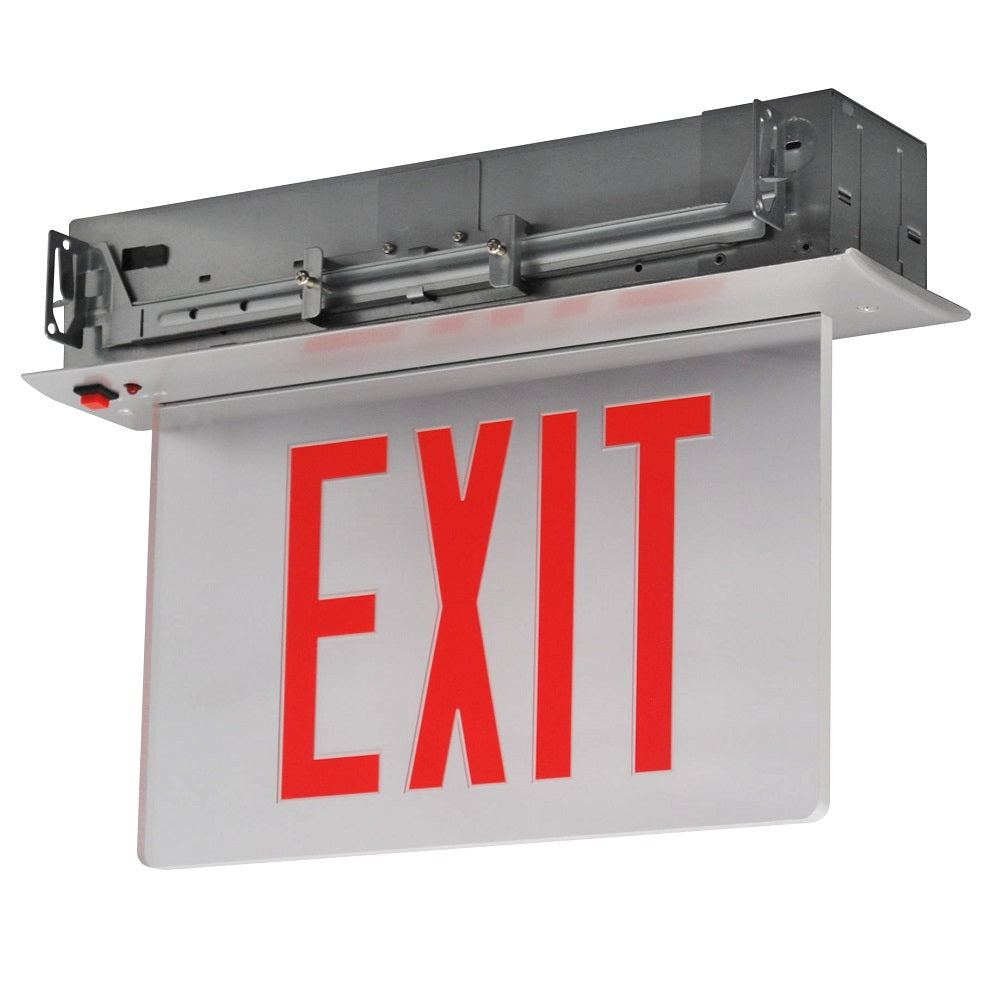

The RELZXTE Recessed Edge-Lit Aluminum Exit Sign delivers a sleek,
“floating” EXIT legend with ultra-bright field-selectable red or green LEDs.
Its extruded-aluminum housing recess-mounts in drywall or T-bar ceilings (bar
hangers included), while an optional trim kit allows recessed wall installation.
Universal 120/277 VAC electronics, an optional 4.8 V Ni-Cd battery
(≥ 90 min runtime) and a detachable trim plate provide fast,
code-compliant installation in upscale interiors and damp locations.
Illumination
- Long-life, energy-efficient LEDs — select red or green legend
- UV-stabilised edge-lit acrylic panel for uniform, glare-free lighting
- Double-face models ship with silver or white mylar backer
Electrical
- Dual-voltage 120/277 VAC input with charge-status LED & push-to-test button
- 4.8 V maintenance-free Ni-Cd battery (EM models) provides ≥ 90 min emergency light
- Solid-state transfer switch; two-rate charger restores battery within 24 h
- SPV version accepts 208/220/240 VAC 50/60 Hz
Mounting
- Recess chassis installs in drywall or T-bar grid; bar hangers included
- WM option enables recessed wall mount
- Single- / double-face convertible; self-adhesive chevrons supplied
Housing / Trim
- Premium extruded-aluminum body with detachable trim for below-ceiling service
- Finishes: natural aluminum, white, or black powder-coat
Options
- 2C-120 / 2C-277 — dual-circuit AC operation (AC-only)
- SDT — self-diagnostic testing (monthly, bi-annual, annual)
- USA — assembled in the USA (Buy American Act)
- CUSTOM — special wording or graphics
Warranty / Listings
- Five-year warranty on electronics & housing; battery prorated five years
- UL 924 listed for damp locations (0 °C – 50 °C); NFPA 101, NEC, OSHA compliant
- CEC Title 20 energy-efficiency certified
Dimensions
- Housing 14 9⁄16 in W × 4 ⅜ in D | Trim 10 9⁄16 in H (see spec sheet for diagram)
Product Features
- Assembled in the USA
- Battery Backup
- Brand: Best Lighting
- Damp Location
- Edge Lit
- Face: Single
- LED
- Letter Color: Green
- Product: RELZXTE
- Recessed Lights
- Self Testing
- Exit Signs
