Indoor High Lumen MR16 LED Remote Head

SKU: RH16LED-1-MV
$20.67

Got questions?

Give us a call 800-847-1955!

High-Lumen MR16 LED Remote Head – Features & Specs

The RH16LED high-lumen MR16 LED remote head delivers bright, directional egress lighting when paired with a 5–15 V DC remote-capable emergency light. Available in single- or double-head versions, choose the standard 3.6 W MR16 or upgrade to the 5.0 W HL option for longer throws. Browse all emergency lighting remote heads.

UL 924 3.6 W / 5.0 W 5–15 V DC Single / Double Damp Location Directional Optics

Key Features

  • UL 924 listed; damp-location rated (0–50 °C)
  • Operates on 5–15 V DC from a remote-capable host (no internal battery)
  • Output choices per head: 3.6 W standard or 5.0 W HL upgrade
  • Configurations: single or double heads with directional MR16 optics
  • Universal adapter plate fits a standard single-gang box (wall or ceiling surface-mount)
  • Installer-supplied low-voltage wiring; size for run length & voltage drop
  • 5VA thermoplastic housing (white or black)
  • Compatibility: works with common remote-capable hosts (verify remote wattage)
  • 5-year warranty on housing and electronics

Spec Sheet

Download Remote Head Spec Sheet (PDF)

Illumination

  • 3.6 W MR16 per head (standard) for bright, long-throw emergency light
  • HL upgrade: 5.0 W MR16 for increased brightness and spacing
  • Precision MR16 reflector with clear lens for controlled, uniform distribution

Electrical

  • Operates on 5–15 V DC from a compatible remote-capable emergency unit
  • Installer-supplied low-voltage wiring; allowable run length depends on voltage, gauge, and total load

Mounting

  • Universal adapter plate and hardware included
  • Aligns with a standard single-gang box for wall or ceiling surface install

Housing

  • Injection-molded, flame-retardant 5VA thermoplastic — white or black
  • Double-head footprint: see spec sheet for exact dimensions

Options

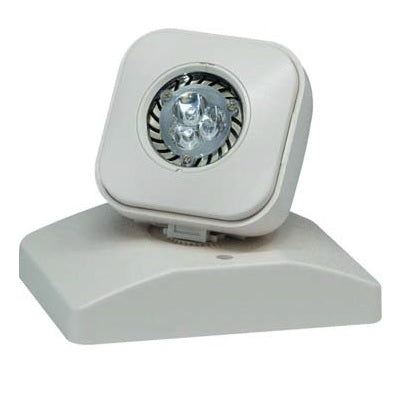

  • RH16LED1-MV — single head, white
  • RH16LED2-MV — double head, white

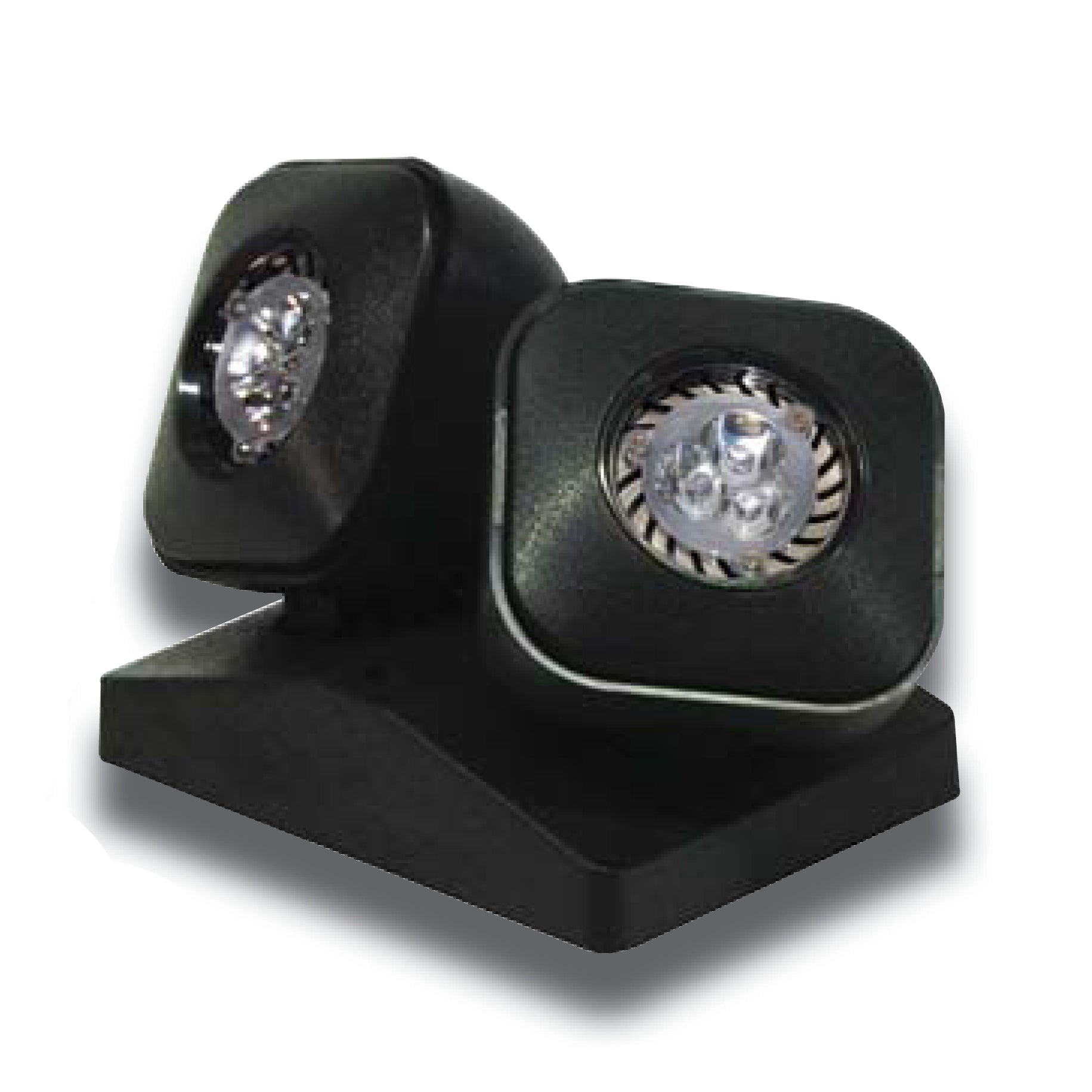

  • Add B for black housing (e.g., RH16LED2-B-MV)
  • Add HL for 5.0 W high-lumen MR16 (e.g., RH16LED2-HL-MV)

Fixture Compatibility

Works with remote-output hosts such as CALEDCXTE-RC, CADXR, DXR/NYDXR, LEDSDXR627, CWLEZXTE-RC, RMR-16-65/125, and similar models (verify available remote wattage).

Warranty / Listings

  • 5-year warranty on housing and electronics
  • UL 924 listed for damp locations (0 °C – 50 °C)
  • Meets NFPA 101, NEC, OSHA, and applicable state/local codes

Frequently Asked Questions

Which emergency units are compatible?

Any 5–15 V DC remote-capable host with sufficient remote wattage, such as CALEDCXTE-RC, DXR, LEDSDXR627, CWLEZXTE-RC. Confirm output wattage and wiring limits.

How many remote heads can my unit support?

Divide the host’s available remote wattage by the head wattage: 3.6 W (standard) or 5.0 W (HL). Account for wire length/voltage drop.

Standard vs. HL?

HL uses a 5.0 W MR16 for higher brightness and spacing than the standard 3.6 W head.

Can I ceiling-mount it?

Yes. The universal plate supports ceiling or wall surface installations on a single-gang box.

Is it wet-location rated?

No. This model is damp-location only. For wet areas, see our wet-location emergency lights and outdoor remote heads.
