Indoor Thermoplastic Remote Head with Adjustable LED Lamps

RHLED Series – Indoor Thermoplastic Remote Head with Adjustable LED Lamps

Download RHLED Remote Head Spec Sheet (PDF)

The RHLED Indoor Thermoplastic Remote Head adds bright, adjustable illumination to any remote-capable emergency unit. Each head features 1 W (or 1.5 W with HL option) of white LED output, housed in a compact, 5 VA flame-retardant thermoplastic body for reliable use in commercial interiors and damp locations.

Illumination

• 1 W standard (8 LEDs); optional 1.5 W high-lumen (12 LEDs) heads
• Chrome reflectors and clear lenses provide uniform distribution
• Heads tilt and swivel for optimal light coverage

Electrical

• Compatible with 3.6 V, 6 V, 9.6 V or 12 V DC remote-output systems
• Installer-supplied wiring; max run length depends on voltage and load

Mounting

• Universal mounting plate fits single-gang switch boxes
• Surface install on ceiling or wall

Housing

• Injection-molded, 5 VA thermoplastic — white (standard) or black finish
• Double-head dimensions: 8½ in W × 5 ? in H × 4 ? in D

Ordering Information

• RHLED1-MV — single head, white

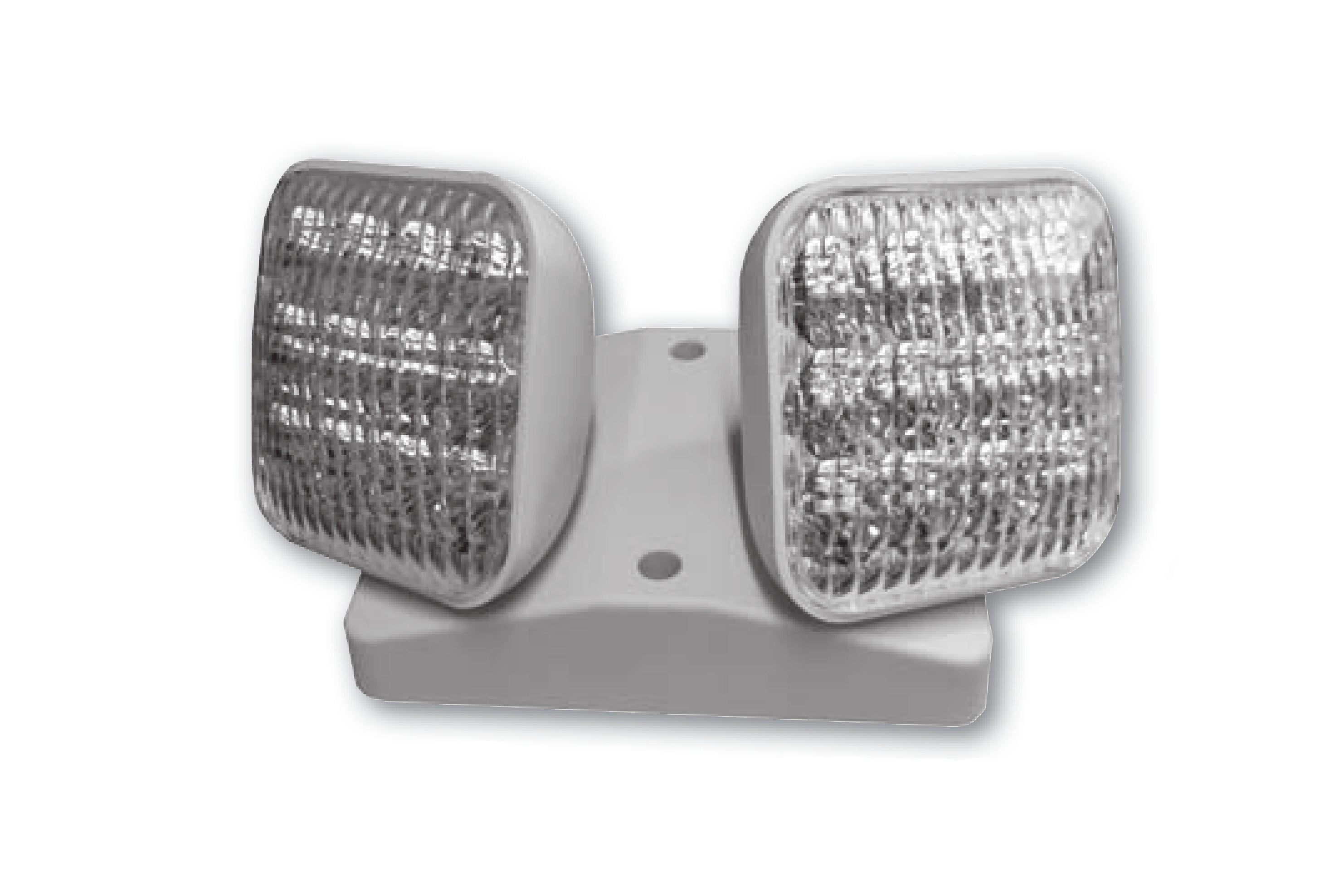

• RHLED2-MV — double head, white
• Add “B” for black housing (e.g., RHLED2-B-MV)
• Add “HL” for high-lumen heads (e.g., RHLED2-HL-MV)

Typical Compatible Fixtures

CEM-RC • EM-RC • CEU-RC • DXR • LEDSDXR627 • RMR-16-65/125 • CALEDCXTE-RC …

Warranty / Listings

• 5-year warranty on housing and electronics
• UL 924 listed for damp locations (0 °C – 50 °C)
• Complies with NFPA 101, NEC, OSHA and local codes

Frequently Asked Questions

What voltage does the RHLED support?

The RHLED operates on 3.6 V, 6 V, 9.6 V, or 12 V DC depending on the host emergency fixture. Always confirm your fixture’s output before connecting.

Can I install the RHLED on the ceiling?

Yes. The universal mounting plate allows the RHLED to be installed on ceilings or walls using a standard single-gang electrical box.

What’s the difference between the standard and HL models?

The standard head outputs 1 W of LED power; HL (High Lumen) models provide 1.5 W per head with wider beam distribution for greater spacing.

Is this remote head damp-location rated?

Yes. The RHLED is UL 924 listed for damp locations and is constructed of durable thermoplastic for indoor use in commercial environments.

Product Features

• Brand: Best Lighting
• Damp Location
• High Lumen
• LED
• Product: RHLED
• Remote Capable
• Remote Heads
• Self Testing
• Thermoplastic
• Emergency Lights
