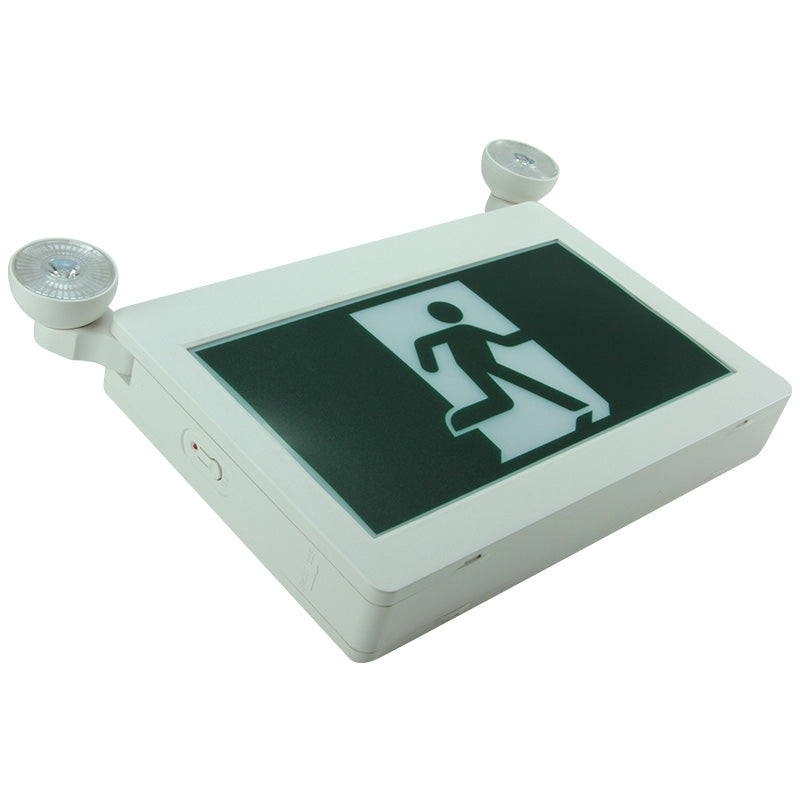

“Running Man” LED exit/emergency combo – angle view with universal pictogram panel

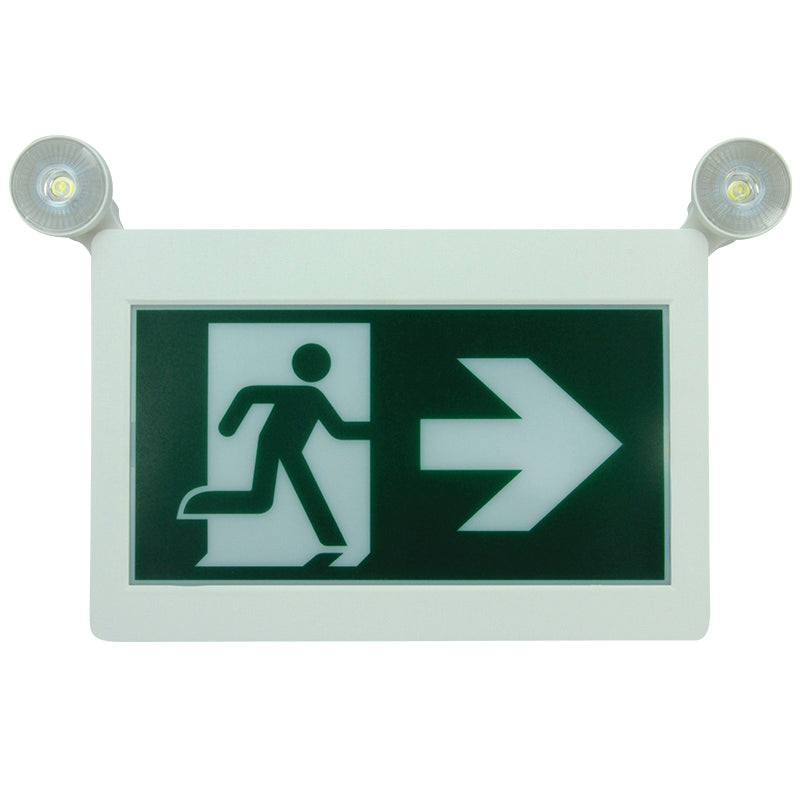

“Running Man” LED exit/emergency combo – front view with universal pictogram panel

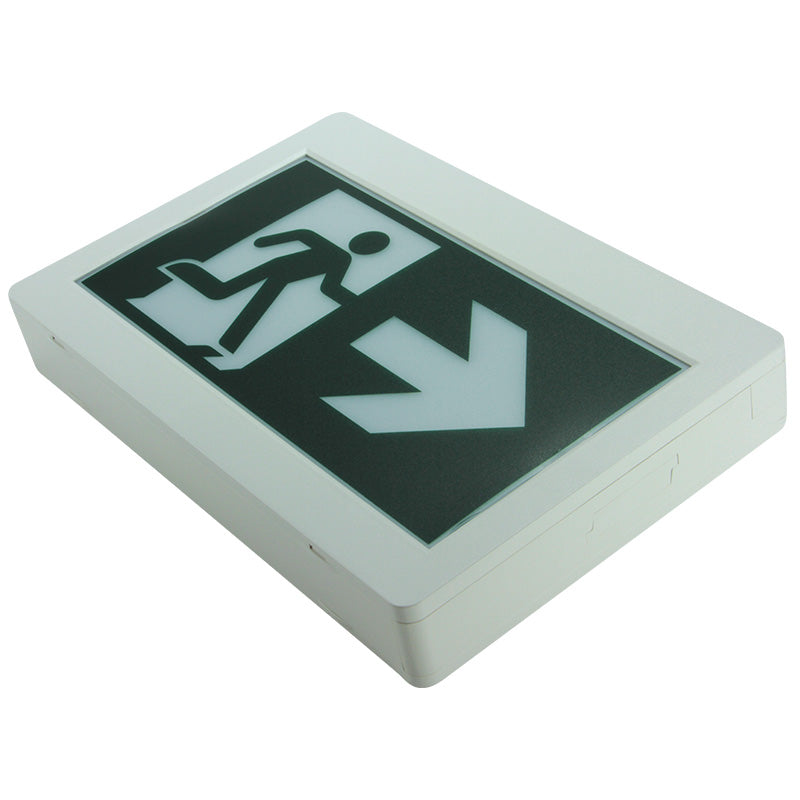

“Running Man” LED exit/emergency combo – left angle view with universal pictogram panel
“Running Man” LED exit/emergency combo – angle view with universal pictogram panel
“Running Man” LED exit/emergency combo – front view with universal pictogram panel
“Running Man” LED exit/emergency combo – left angle view with universal pictogram panel

Running Man LED Exit & Emergency Combo – CSA Listed, 90 Min

SKU: RMPC-1W-WH
$89.06

Got questions?

Give us a call 800-847-1955!

Running Man LED Exit & Emergency Combo - CSA Listed, Meets UL 924, 120/347V, 90-min, Damp Location - Features & Specs

The RMPC Running Man LED exit & emergency combo combines a CSA-listed Running Man pictogram with dual 1 W adjustable LED heads in a compact, damp-location thermoplastic enclosure. It runs on 120/347 VAC and uses a maintenance-free Ni-Cd battery to provide 90 minutes of emergency illumination. Interchangeable pictograms (blank, left, right) and a universal canopy enable wall, ceiling, or end mounting. See our exit sign & emergency light combos and battery-backup exit sign & emergency light combos for related options.

CSA Listed Meets UL 924 90-min Battery Voltage 120/347V Damp Location Running Man LED Dual / Adjustable Heads Face: Single/Double Universal Mount UL 94 5VA Thermoplastic

Key Features

  • Interchangeable pictograms: blank, left arrow, right arrow (field-installable).
  • Two 1 W LED heads (6000 K) rotate 360° horiz. / 180° vert.; design-aid spacing ~ 16' O.C. at 8' MH on a 3' path.
  • 120/347 VAC dual-primary input; maintenance-free Ni-Cd with 90-minute runtime; ~24-hour recharge.
  • Solid-state transfer, low-voltage disconnect, and brownout protection for reliable operation.
  • Rugged, UV-stable ABS thermoplastic enclosure; UL 94 5VA flame-rated.
  • Damp-location rated: 10–40 °C (50–104 °F).
  • Universal canopy for wall, ceiling, or end mount.

Related Exit/Emergency Combo Guides

Exit + Emergency Combos — Spec, Sizing & Code Emergency Lighting — UL 924 Runtime & Layout Basics

Spec Sheet

Download RMPC Running Man Combo Spec Sheet (PDF)

Illumination

  • Pictogram legend illuminated by long-life white LEDs; two fully adjustable 1 W emergency heads (6000 K).
  • Design aid spacing: ~ 16' O.C. at 8' MH on a 3' path (multiple units).

Electrical

  • Dual-voltage 120/347 VAC (50/60 Hz) input.
  • Maintenance-free Ni-Cd battery — 90-minute emergency power; ~24-hour recharge.
  • Low-voltage disconnect, brownout protection, solid-state transfer.

Mounting

  • Universal canopy supports wall, end, or ceiling installation.
  • Snap-together assembly with interchangeable face/back plates.
  • Pictograms included: Running Man (blank), left arrow, right arrow.

Housing

  • Injection-molded ABS thermoplastic, UL 94 5VA flame-rated; UV-stable, corrosion-resistant.
  • White finish resists dents and peeling.
  • Damp-location rated (10–40 °C / 50–104 °F).

Dimensions

  • 13.5" W × 11.0" H × 2.0" D

Warranty / Listings

  • 5-year warranty on housing & electronics; battery 5-year prorated.
  • CSA Listed for Damp Locations; meets UL 924, NEC, and NFPA 101 requirements.
