LED Wall Pack Glass Refractor – Up to 120W, Selectable Wattage & CCT (DLC Premium)

LED Glass Refractor Wall Pack – Traditional Housing with Power & CCT Selectable Output

The LED Glass Wall Pack pairs a classic housing with modern performance. Available in small or medium sizes, each unit offers selectable power (29W–60W or 60W–120W) and CCT (3000K / 4000K / 5000K), delivering up to 16,218 lumens. A prismatic borosilicate glass lens provides wide, uniform Type IV illumination. Fully gasketed, IP65, and cULus Wet Listed, this outdoor wall pack light is ideal for schools, loading areas, warehouses, and commercial exteriors.

Key Features & Benefits

• Two size options (small / medium) fit new installs or retrofits.
• Four selectable output steps per family: 29–60W or 60–120W.
• Tunable CCT: 3000K / 4000K / 5000K for site matching.
• High performance: up to 16,218 lm with wide, uniform coverage.
• Type IV distribution for perimeters, loading areas, and façades.
• Rugged, fully gasketed housing: IP65 and cULus Wet Listed.
• DLC Premium for potential utility incentives (model dependent).
• Sensor-ready design for controls (photocell/motion; model dependent).

Performance Snapshot

• Wattage: selectable, up to 120W
• Lumens: up to 16,218
• CCT: 3000K / 4000K / 5000K
• Distribution: Type IV
• Rating: IP65; Listings: cULus Wet

Download LED Glass Refractor Wall Pack Spec Sheet (PDF)

See all Wall Pack Lights

Features & Benefits

• Classic refractor design with durable die-cast aluminum housing
• Power selectable: 29W–60W (small), 29W–60W or 60W–120W (medium)
• CCT selectable: 3000K / 4000K / 5000K
• Glass borosilicate lens for uniform Type IV light distribution
• Delivers up to 16,218 lumens at 146 LPW

Illumination

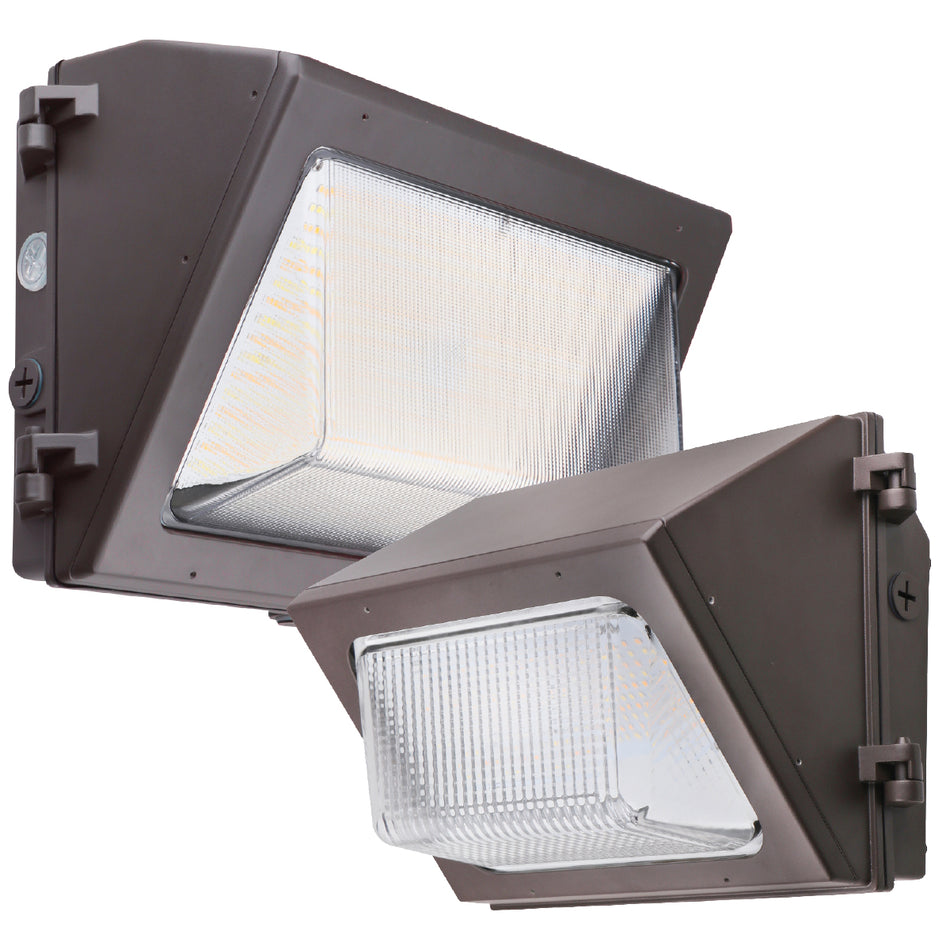

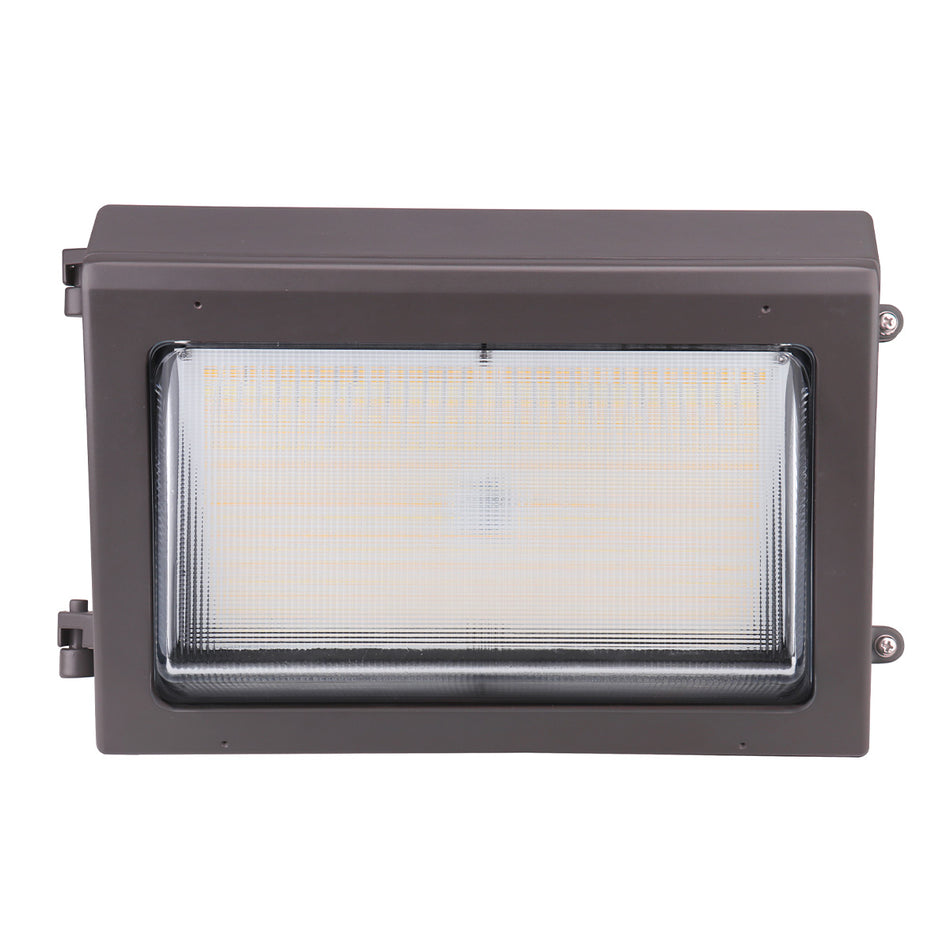

• Prismatic borosilicate glass refractor for wide glare-free coverage
• Color rendering index (CRI) =80
• L70 lifetime >100,000 hours; L90 >51,000 hours

Electrical

• Universal 120–277 VAC input, 50/60 Hz
• 0–10V dimming standard with 4kVA surge protection
• Integral photocontrol standard (can be disconnected)

Mounting

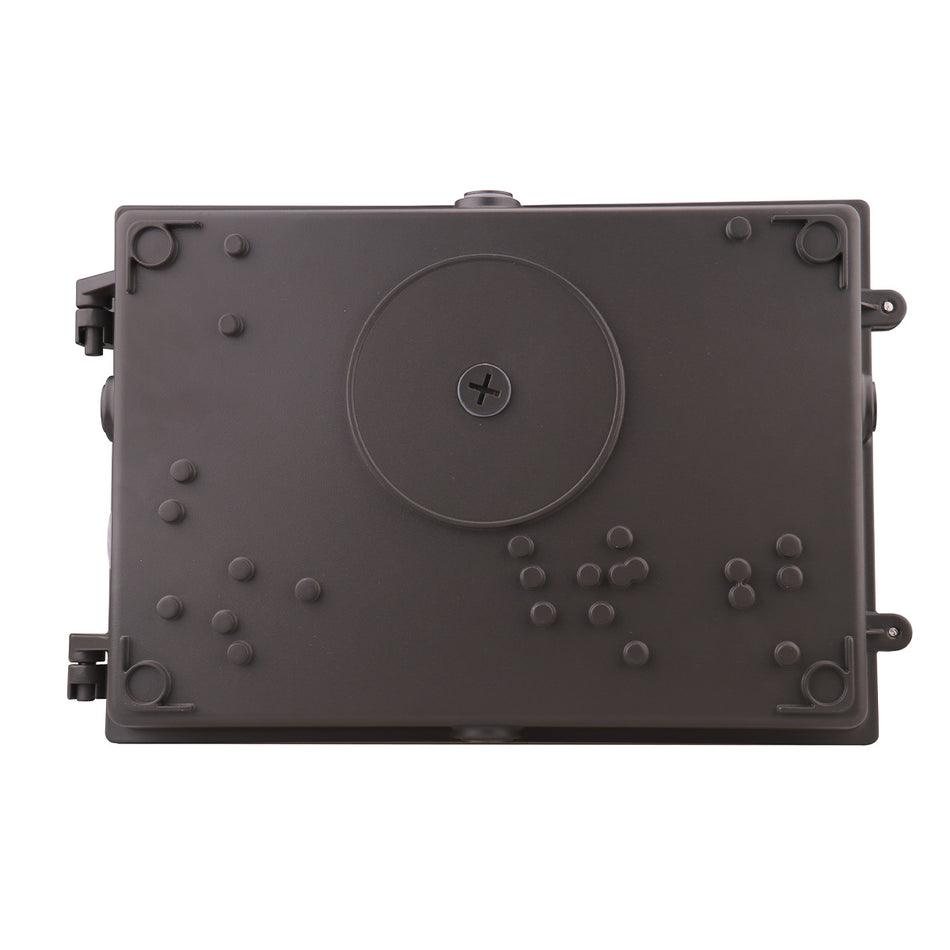

• Mounts to standard 3" or 4" J-box
• Surface conduit entry on all four sides
• Hinged housing for fast access to wiring and controls

Housing / Finish

• Die-cast aluminum with dark bronze polyester powder coat
• IP65 rated for dust and water protection
• Optional wire guard available (WG-RWE-M)
• Medium dimensions: 14.4" W × 9.3" H × 7.9" D

Options

• BB – Battery backup lighting (available in medium 60W config only)
• LiteLogic Bluetooth and wired dimming sensor options
• Sensor DIP switch or remote-controlled (TL-SC1H-REMOTE)

Warranty / Listings

• 5-year limited warranty
• cULus listed for Wet Locations
• IP65 rated enclosure
• DLC PREMIUM Qualified

Frequently Asked Questions

How do I adjust the wattage and color temperature?

Access the dial and switch inside the hinged enclosure to set output (e.g., 60W/100W/120W) and CCT (3000K/4000K/5000K).

Is this fixture suitable for outdoor wet locations?

Yes, it's cULus listed for Wet Locations, IP65 rated, and built to withstand harsh environments.

Does it include a built-in photocontrol?

Yes, every model includes an integral 120–277V photocontrol. Connect or bypass as needed.

What is the glass lens made of?

The lens is prismatic borosilicate glass, designed for high light transmission and even diffusion.

Which configurations offer battery backup?

The medium 60W model is available with a battery backup option providing 900 lumens for 90 minutes.

Product Features

• Battery Backup
• Brand: TraceLite
• Die-Cast Aluminum
• LED
• Product: RWE
• Wall Packs
