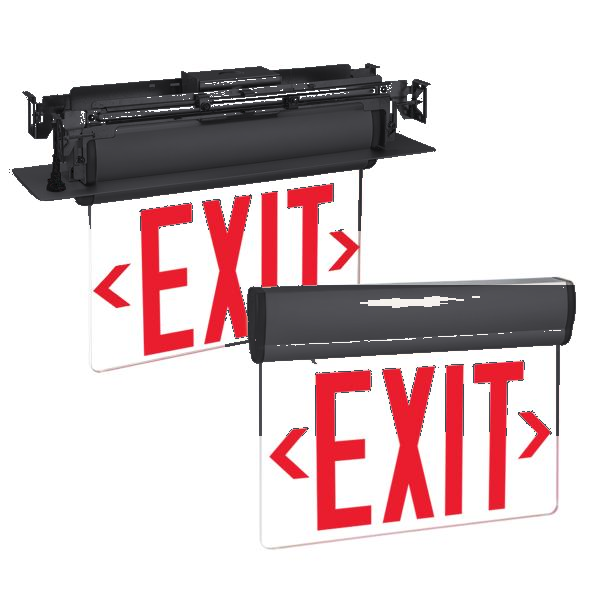

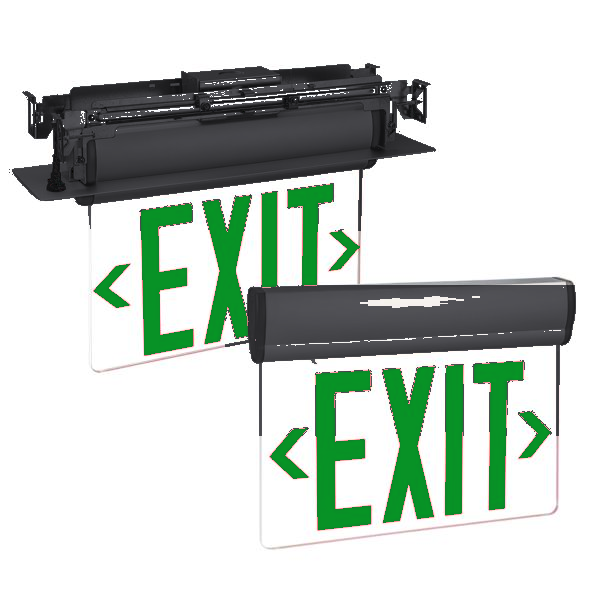

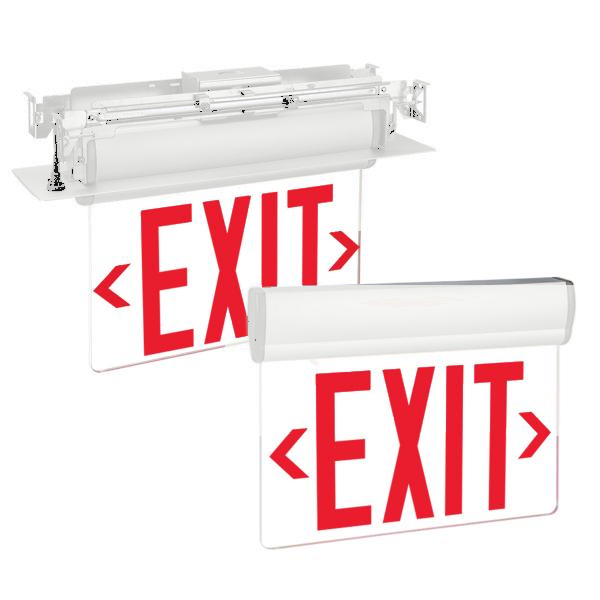

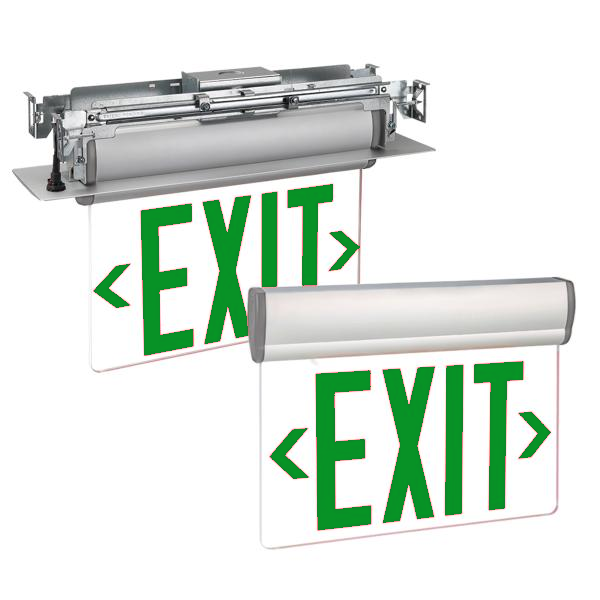

Swivel-Mount Edge-Lit Exit Sign – Surface or Recessed, 90 Min Backup

SKU: S900U-LB-SR-G-AG
$164.98

Got questions?

Give us a call 800-847-1955!

Universal Swivel‑Mount Edge‑Lit LED Exit Sign — Surface or Recessed, G3 Self‑Test + Remote Monitoring, 90‑min Ni‑Cd, 120/277 V — Features & Specs

This swivel‑mount edge‑lit EXIT sign pivots for wall, ceiling, or recessed installs—including sloped ceilings—without changing models. Dual‑face panels, mirrored insert, and a universal canopy ship standard; add the 90‑min battery backup for reliable UL 924 egress. Browse the full Edge‑Lit Exit Signs collection.

UL 924 Edge Lit Swivel Mount Surface / Recessed Single / Double Face 120/277 V 90‑min Backup Self‑Testing (G3) Remote Monitoring Damp Location CEC Title 20

Key Features

  • Pivoting backbone supports wall, ceiling, recessed, and sloped‑ceiling installs; canopy and recessed housing included.
  • Guardian G3 self‑test/diagnostics with remote monitoring & reporting built in (G3PRO adds automated email notifications).
  • Dual‑primary 120/277 V input; maintenance‑free Ni‑Cd battery provides 90‑minute emergency runtime (≈24‑hour recharge).
  • Field‑selectable chevrons; single‑ or double‑face legends with mirrored insert for double‑face.
  • Listed to UL 924 for damp locations and compliant with CEC Title 20; operating temp 10–40 °C (50–104 °F).
  • Finishes: Brushed Aluminum (AG), Black (BL), or White (WH).

Related Edge‑Lit Guides

Install & Wiring Walkthrough (Edge‑Lit) Single vs Double‑Face: Plan It Right

Spec Sheet

Download S900 Swivel‑Mount Exit Sign Spec Sheet (PDF)

Illumination

  • Long‑life red or green LEDs (≤ 5 W for battery models).
  • 6″ EXIT letters with ¾″ stroke; 100 ft viewing distance.

Electrical / Battery

  • Dual‑primary 120/277 V, 60 Hz input.
  • LB — AC‑only • WB — Ni‑Cd battery provides 90‑minute backup.
  • Solid‑state charger with low‑voltage disconnect, brownout protection, and push‑to‑test.

Construction

  • Extruded‑aluminum housing with high‑grade acrylic legend panel.
  • Finishes: Brushed Aluminum (AG), Black (BL), or White (WH).
  • Recessed box includes adjustable bar hangers for grid ceilings or joist mounting.

Mounting

  • Surface mount via canopy for ceiling or end installations.
  • Wall mount via backplate or recessed mount using hanger assembly.
  • Compatible with sloped ceilings via the pivoting backbone.

Dimensions

  • Surface mount: 14.5″ W × 4.4″ H × 11.5″ D
  • Recessed mount: 3.4″ box depth; flange 11.8″ W × 9.7″ H

Options / Accessories

  • G3 / G3PRO — self‑test/diagnostics with remote monitoring (G3PRO adds automated email reports).
  • ER1‑KIT — 1 ft pendant kit • ER2‑KIT — 2 ft pendant kit.
  • Field‑replaceable mirrored or clear panels available.

Compliance / Warranty

  • Compliant with UL 924, NFPA 101, NEC, and CEC Title 20.
  • Damp‑location rated: 10–40 °C (50–104 °F).
  • 5‑year warranty on electronics and housing; 5‑year prorated battery warranty.
