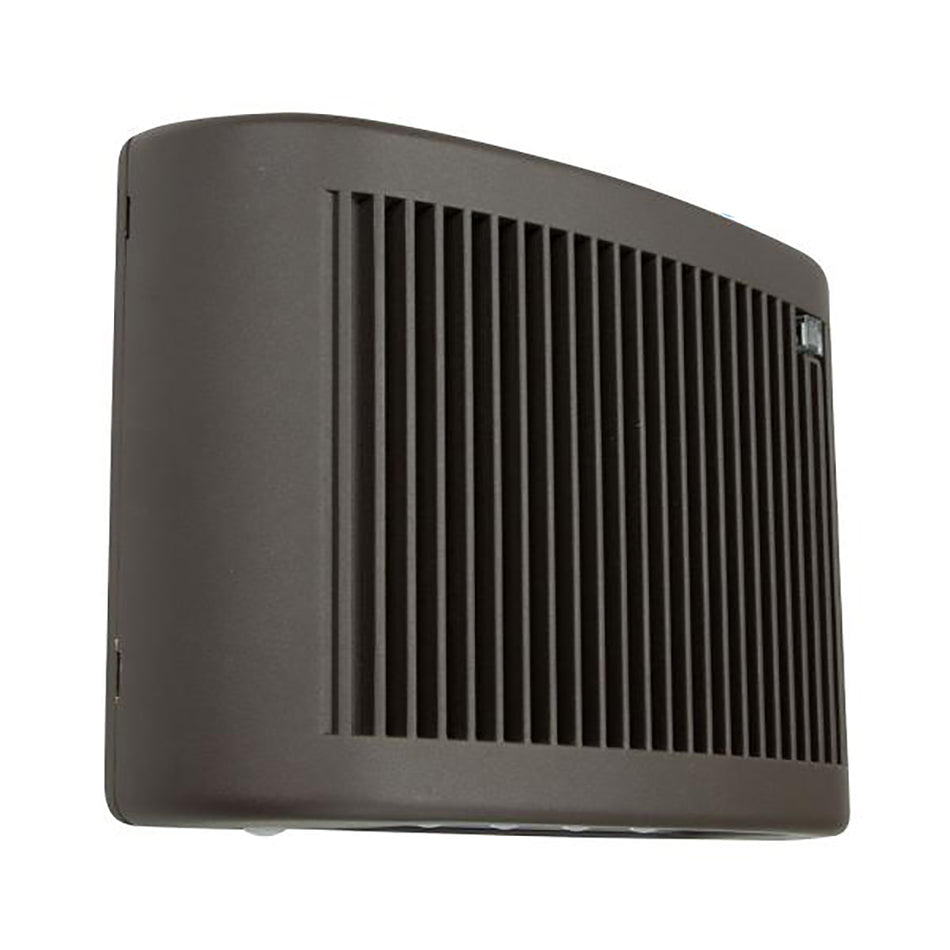

Side view of architectural LED wall pack showing vertical heat sink fins and low-profile design

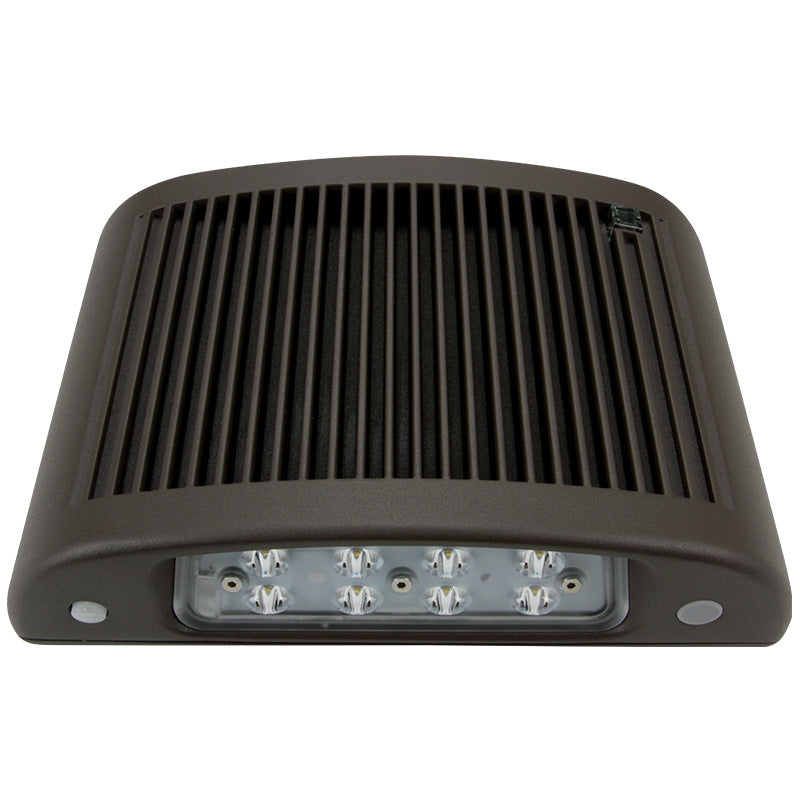

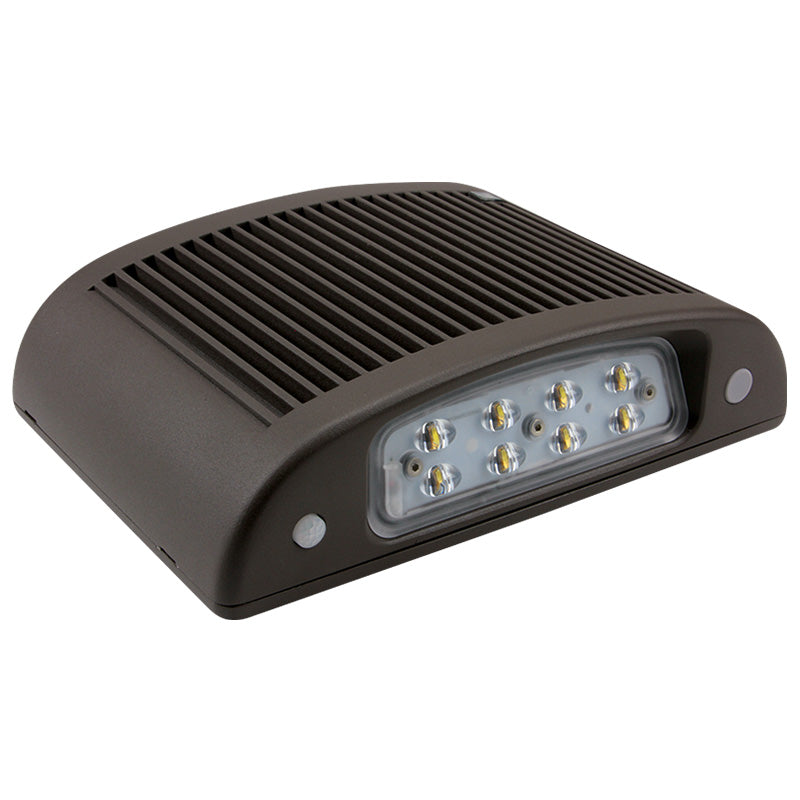

Slim LED wall pack with exposed lens and ribbed aluminum housing for thermal management
Slim LED wall pack with exposed lens and ribbed aluminum housing for thermal management
Dual view of slim architectural LED wall packs with bronze ribbed housings and integrated emergency lighting
Side view of architectural LED wall pack showing vertical heat sink fins and low-profile design
Slim LED wall pack with exposed lens and ribbed aluminum housing for thermal management
Slim LED wall pack with exposed lens and ribbed aluminum housing for thermal management

Slim LED Wall Pack with Motion Sensor and Emergency Battery – 1,750 Lumens

In stock
SKU: SLW-15-4K
$182.50

Got questions?

Give us a call 800-847-1955!

Low-Profile LED Wall Pack – Motion & Photocontrol with Emergency Egress Option

The Low-Profile LED Wall Pack delivers efficient perimeter lighting with integrated motion detection, dusk-to-dawn photocontrol, and an optional UL 924 emergency egress function. This 15W architectural wall fixture outputs 1,750 lumens in normal operation and 650 lumens in EM mode, providing 90 minutes of path-of-egress lighting. Its slim, modern design and zero-uplight optics make it ideal for entryways, corridors, and walkways. Rated for wet locations and cold weather performance down to –25°C.

SLW Spec Sheet PDF Icon Download Low-Profile LED Wall Pack Spec Sheet (PDF)

Features & Benefits

  • Slim architectural design with zero-uplight optics
  • Built-in motion detection and dusk-to-dawn photocontrol
  • Optional emergency battery backup (UL 924 egress rated)
  • Delivers 1,750 lumens (AC) and 650 lumens (EM)
  • Available in bronze, black, silver, or white finishes

Illumination

  • 15W LED engine with 4000K color temperature
  • LED array protected by high-impact, UV-resistant lens
  • Emergency mode spacing: 60 ft centers @ 9 ft mount height
  • CRI = 70; L70 life >54,000 hours

Electrical

  • 120–277 VAC input, 60Hz driver
  • Emergency model includes NiCad battery with internal heater
  • AC power indicator and bottom-mounted test switch on EM version
  • PIR and photocontrol can be manually disconnected/disabled

Mounting

  • Universal J-box pattern; mounts to 3" or 4" boxes
  • ½” top conduit entry provided
  • Snap-fit housing simplifies installation and maintenance

Housing / Finish

  • Die-cast aluminum housing with IP65-rated sealed construction
  • Polycarbonate lens and low-profile architectural form factor
  • Available in Bronze, Black, Silver, or White
  • Dimensions: 9.1” W × 6.3” H × 2.6” D

Warranty / Listings

  • 5-year warranty on fixture; 5-year prorated on battery (EM only)
  • UL 924 listed for egress (EM version only)
  • cULus listed for Wet Locations
  • Title 24 and Title 20 compliant

Frequently Asked Questions

How long does the emergency battery last?

The emergency battery provides 90 minutes of illumination and recharges fully within 24 hours.

Can the motion sensor and photocontrol be disabled?

Yes. Internal connectors allow the installer to easily disable the PIR or photocell if desired.

Is this suitable for cold environments?

Yes. The emergency version includes a heater and is rated down to –25°C (–13°F).

What is the on-center spacing for egress?

When mounted at 9 feet, spacing is 47' for 3' paths and 45' for 6' corridors.

Does it comply with Title 24 and UL 924?

Yes. The EM version is fully compliant with UL 924, Title 24, Title 20, NFPA 70, and NFPA 101.

Product Features

  • Architectural
  • Battery Backup
  • Brand: TraceLite
  • Cold Weather
  • Die-Cast Aluminum
  • LED
  • Low Profile
  • Photocell
  • Product: SLW
  • Self Testing
  • Wall Packs
  • Vandal Proof
  • Wet Location
