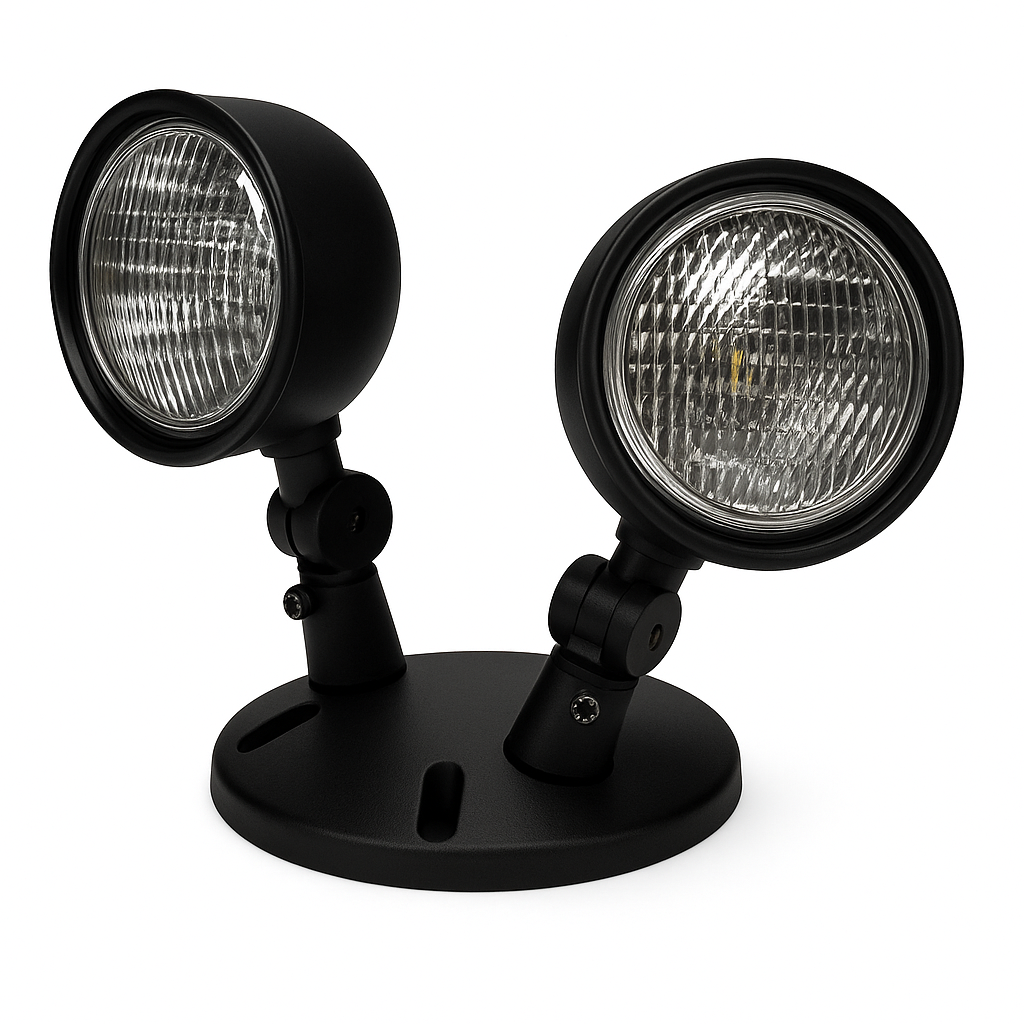

Indoor Steel LED Remote Head Emergency Light

Indoor Steel LED Remote Head – Features & Specs

The SRHLED indoor steel LED remote head delivers focused 5.3 W PAR-style illumination for 6 V systems. Designed to pair with remote-capable emergency lights, it’s available in single or double head configurations with a rugged, powder-coated steel body for commercial interiors. Explore more emergency lighting remote heads.

Key Features

• UL 924 listed; damp-location rated
• Operates on 6 V DC from a remote-capable host (no internal battery)
• PAR-style LED output: 5.3 W per head with glass lens & chrome reflector
• Configurations: single or double heads; tilt/swivel adjustable aim
• Surface-mount to wall or ceiling; fits a standard single-gang box
• Rugged 20-gauge steel housing, powder-coated (white standard; black optional)
• Installer-supplied low-voltage wiring; size runs for voltage drop / load
• Compatible with 6 V remote-capable hosts (verify available remote wattage)
• Warranty: 5-year housing & electronics; meets NFPA 101, NEC, OSHA

Spec Sheet

Download Steel Remote Head Spec Sheet (PDF)

Illumination

• 5.3 W white LED PAR lamp with chrome reflector and glass lens
• Tilt/swivel adjustable heads for precise egress coverage
• Single- or double-head configurations

Electrical

• Powered by 6 V DC from a compatible host fixture (no internal battery)
• Installer-supplied low-voltage wiring; allowable run depends on gauge and voltage drop

Mounting

• Universal steel base plate for wall or ceiling surface mounting
• Fits a standard single-gang box for quick installation

Housing

• Powder-coated 20-gauge steel — white (standard) or optional black
• Base: 4 ½" diameter  ·  Double-head width: 9 ¼"  ·  Depth: 7 ¼"

Ordering Information

• SRHLED-1-6V — single head, white
• SRHLED-2-6V — double head, white
• Add B for black finish (e.g., SRHLED-2-B-6V)

Typical Compatible Fixtures

CALEDCXTEU-RC, NYDXR-27, RMR-16-65, DXR-65/610 — verify the host’s remote-wattage capacity.

Warranty / Listings

• 5-year warranty on housing and electronics
• UL 924 listed for damp locations; meets NFPA 101, NEC, OSHA

Frequently Asked Questions

What type of host unit powers the SRHLED?

Any 6 V remote-capable emergency light with sufficient remote output, such as CALEDCXTEU-RC or NYDXR-27. Check the host’s spec sheet.

How many heads can my host power?

Divide the host’s remote wattage by 5.3 W per head (account for wiring distance/voltage drop). A 10 W output typically supports two heads.

Can I mount it on the ceiling?

Yes. The universal steel base plate supports ceiling or wall surface mounting on a single-gang box.

Is the housing metal or plastic?

Metal. The SRHLED uses a powder-coated 20-gauge steel housing for superior durability.
