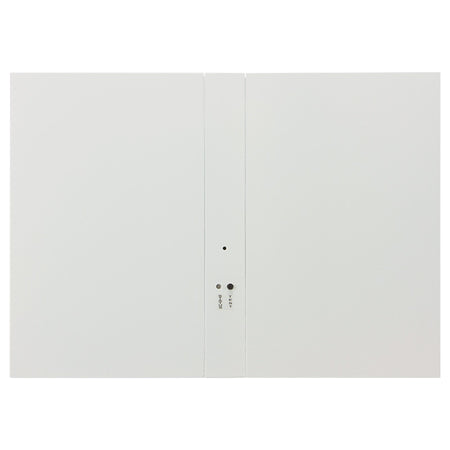

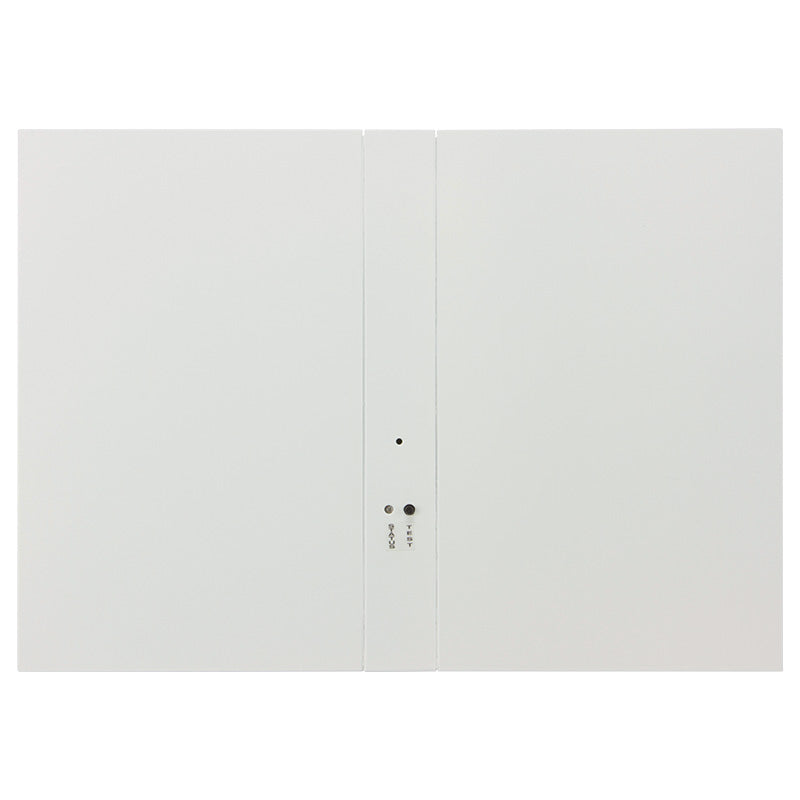

Flush-mounted LED emergency light with closed aluminum doors

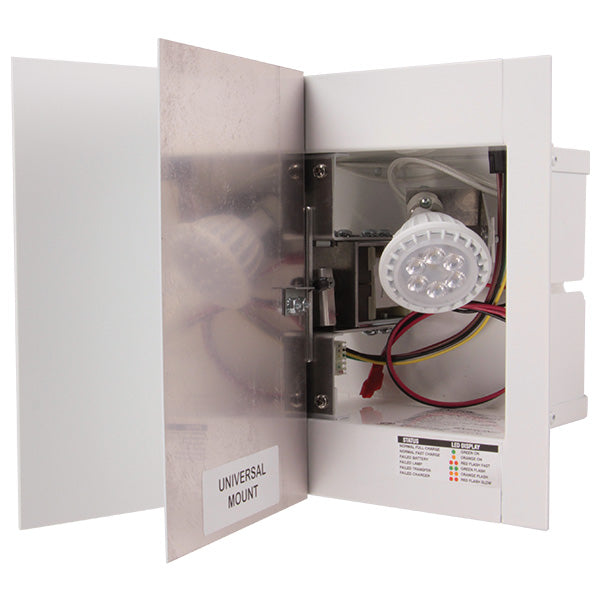

Stealth LED unit installation view with doors closed and white finish
Hinged-door emergency light – recessed into drywall ceiling
Flush-mounted LED emergency light with closed aluminum doors
Stealth LED unit installation view with doors closed and white finish
Hinged-door emergency light – recessed into drywall ceiling

Flush-Mount LED Emergency Light – Adjustable Dual Head, Concealed Hinged Doors

SKU: S-NC-18-2
$1,144.64

Got questions?

Give us a call 800-847-1955!

Stealth Flush-Mount LED Emergency Unit - Dual 9W MR-16 Heads, 120-min Runtime, Hinged Doors - Features & Specs

The Stealth Flush-Mount LED Emergency Lighting Unit hides two fully adjustable 9 W MR-16 LED heads behind paintable doors that sit flush to the ceiling or wall. When AC power fails, the spring/solenoid doors open instantly to deliver bright, uniform egress lighting; when power is restored, they retract automatically. A maintenance-free battery provides up to 120 minutes of emergency runtime.

UL 924 120/277 VAC 120-min Battery MR-16 LED Flush / Recessed Wall or Ceiling G2 Self-Test Damp Location (opt.) BAA/BABA

Key Features

  • Doors sit flush to the surface and can be painted, textured, or wallpapered for a near-invisible look in normal mode.
  • Automatic spring/solenoid mechanism with magnetic latch opens on power loss and retracts on restore for silent, reliable operation.
  • Dual 9 W MR-16 LED heads (independently adjustable) with metalized reflectors for uniform egress coverage; lamp life to 60,000 hours.
  • Up to 120 minutes of emergency runtime; typical 24-hour recharge.
  • Guardian™ G2 self-test / diagnostics standard with multicolor status LED.
  • 120/277 VAC dual-voltage input; Ni-Cd or sealed lead-calcium battery options.
  • Universal wall or ceiling installation; rough-in opening 6? × 9?.
  • Galvanized steel back-box with aluminum doors/lamp housing; finish white (custom colors available).
  • Options/accessories: DR (Damp Location), CC (Custom Color), RTP (Remote Test Panel), retrofit kit for legacy housings.

Stealth Flush-Mount Emergency Unit Spec Sheet PDF Icon Download Stealth Flush-Mount Emergency Unit Spec Sheet (PDF)

Illumination

  • Two 9 W MR-16 LED heads; independently adjustable for precise aiming.
  • Door interiors feature reflective surfaces to maximize delivered light.

Electrical

  • Dual-voltage 120/277 VAC input, 60 Hz; solid-state charging circuit.
  • Maintenance-free Ni-Cd or sealed lead-calcium battery; 120-minute emergency run, ~24-hour recharge.
  • Guardian™ G2 self-test/diagnostics standard (monitors AC, battery, charger, transfer, and lamp circuits).

Mounting

  • Flush mount in ceilings or walls; fits standard 6? × 9? rough opening.
  • Magnetic-latch doors adjustable through 90°; surface-mount kit available.

Housing / Finish

  • Galvanized-steel back-box with aluminum doors and lamp housing.
  • Finish: White (custom colors available via CC option).
  • Option DR: Damp-location rated.

Dimensions

  • Back-box: 10? W × 7? H × 4? D; required opening: 6? H × 9? W.

Warranty / Listings

  • 3-year warranty on electronics & housing; battery 3-year prorated.
  • cETLus listed to UL 924; meets NFPA 101 & NEC; BAA/BABA compliant.
