600E Series Steel Direct View LED Exit
Regular price
$339.45
Couldn't load pickup availability
Got questions?
Give us a call 1-888-959-1965!

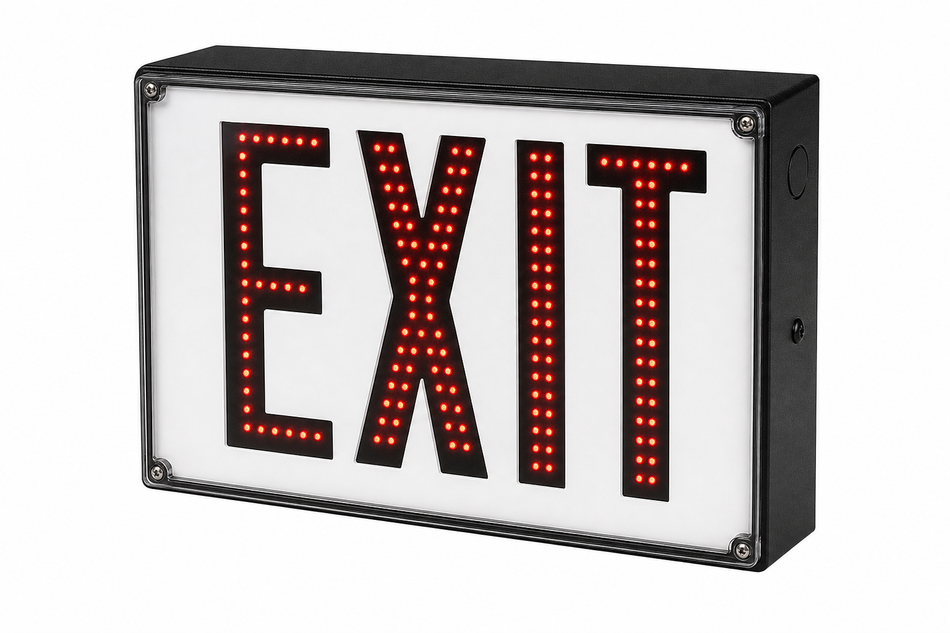

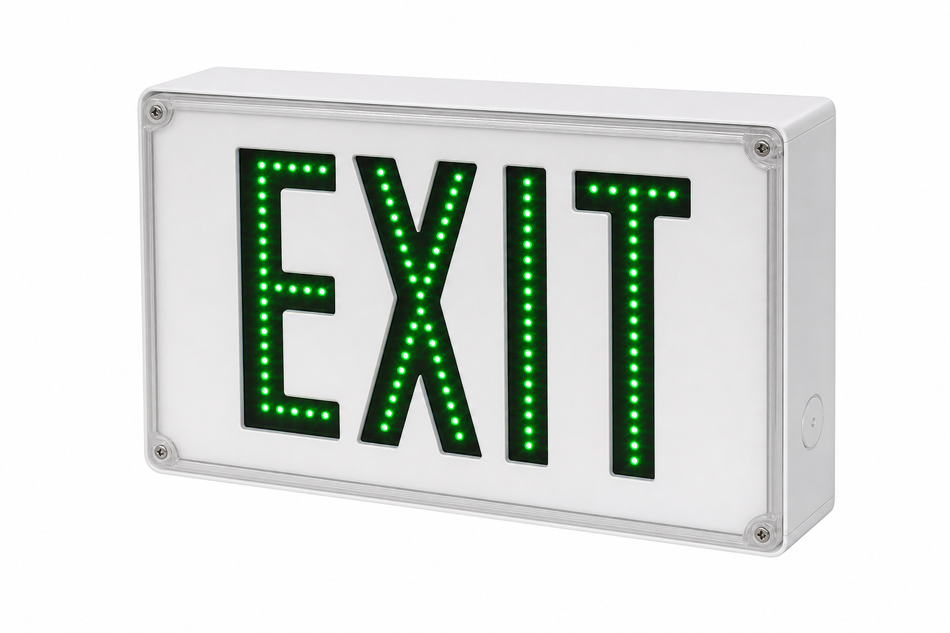

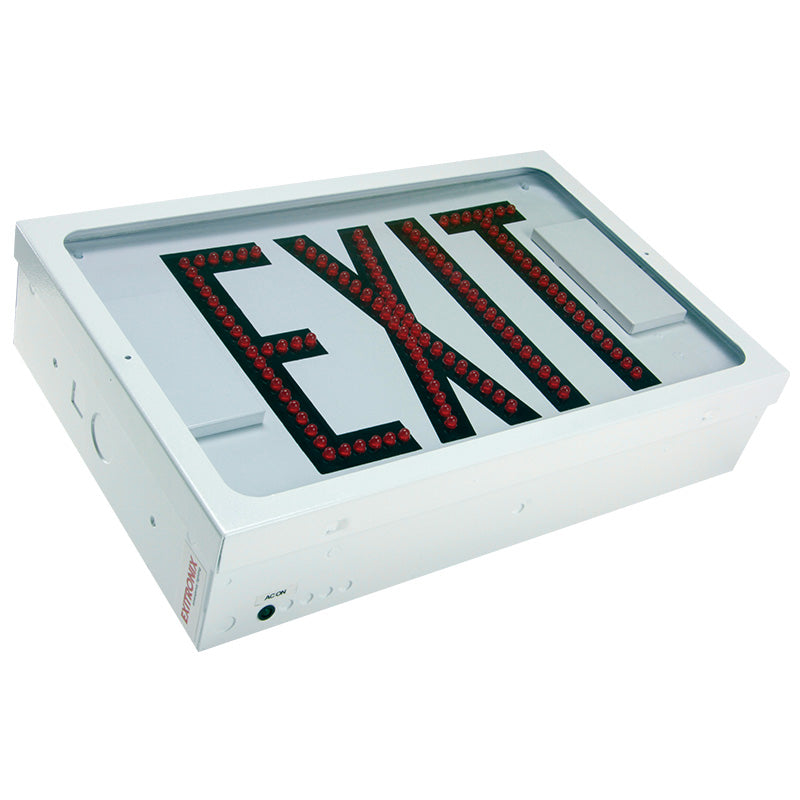

The 600E Series steel direct view LED exit sign is designed for high visibility in normal and smoke-filled environments.
Features
- 20 gauge steel enclosure
- 1/8" vandal-resistant polycarbonate lens
- Field-selectable chevrons
- Combination exit/emergency light option with REN3 lamps
- Guardian Self-diagnostics option
- Assembled in the USA with global components
Specifications
- Illumination: red or green LEDs
- Input: 120/277VAC, 50/60Hz
- Battery: NiMH or sealed lead calcium with G1
- Run time: UL Listed 90 minute emergency operation with 24 hour recharge
- Mounting: ceiling, end, or wall mount with canopy included
- Finishes: black or white
- Certifications: UL Listed, NEC, and NFPA 101
- Warranty: 25 years, with battery prorated for 5 years
Spec Sheet
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- NFPA 101
- Damp-location
- battery backup
- self-diagnostic
- LED
- emergency
- Exit
- Exit Signs
Documents
Illumination
- Direct-view red or green LEDs (dot-matrix) for high clarity in smoke/haze
- 6" EXIT characters with 3/4" stroke; 100-ft viewing distance
- Field-selectable directional chevrons
Electrical
- Dual-primary input: 120/277 VAC , 50/60 Hz
- Battery: maintenance-free NiMH ; sealed lead-calcium when ordered with G1 diagnostics
- Protection: low-voltage disconnect, brownout, overload/short-circuit, and solid-state transfer; push-to-test
- Dual-circuit input (options) : 2CI1 120/120V, 2CI7 277/277V, 2CI17 120/277V (not available with G1 )
- Emergency operation: 90-minute runtime; 24-hour recharge
Mounting

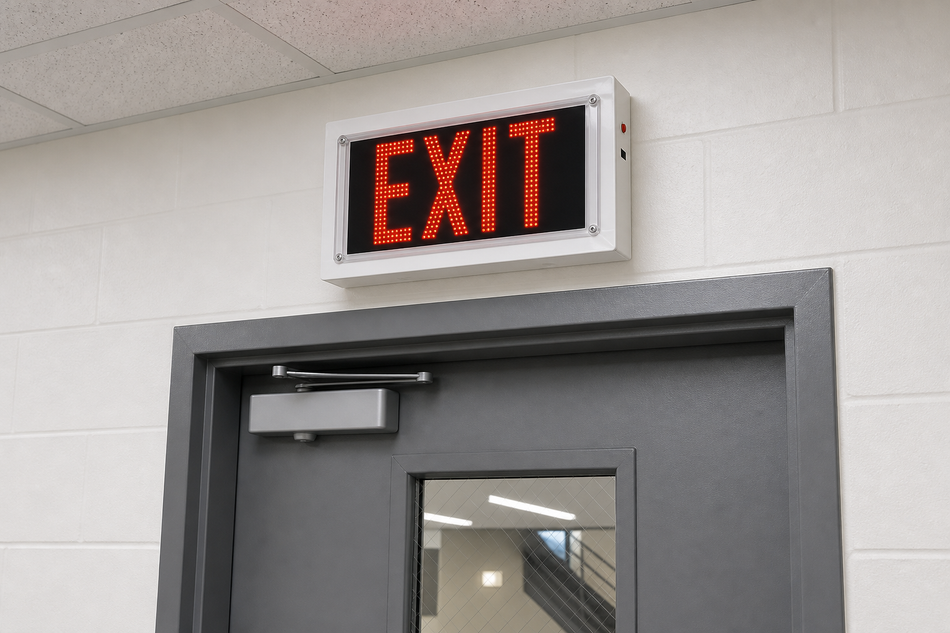

- Universal canopy included for ceiling , end , or wall mounting
Housing / Finish
- Rugged 20-gauge steel cabinet with 1/8" vandal-resistant polycarbonate lens
- Finishes: White or Black
- Assembled in the USA with global components
Dimensions
- 12.375" W × 8.0" H × 2.75" D
Options & Accessories
- G1 — Guardian self-diagnostics (battery models)
- DL — Integral downlight for path illumination
- DR — Damp-location rating
- REN3 — Combo option with two 2.6 W PAR16 LED heads; not UL Listed and available only with sealed lead-calcium WB + G1
- ER1-KIT / ER2-KIT — 1' / 2' pendant kits; WG-S wire guard (back-mount), XG-1 poly guard (back-mount), XG-3 poly guard (ceiling-mount); TRH tamper-resistant hardware ( TRHT-6H-8H tool sold separately)
Warranty / Listings
- 25-year warranty on electronics & housing; battery 5-year prorated
- UL 924 listed; meets NFPA 101 and NEC
Why choose a direct-view legend in tough environments?
Individual LEDs render the EXIT legend without a diffuser, improving legibility through smoke and haze.
Does it include emergency lighting?
The WB battery model provides 90 minutes of exit illumination. The REN3 combo adds two 2.6 W PAR16 heads ( not UL Listed ) and requires sealed lead-calcium WB with G1 .
What mounting options are supported?
Ceiling, end, or wall mount using the included universal canopy.
Compliance notes
- Confirm final fixture placement, runtime, and local code approval for the project.
Frequently asked questions
Why choose a direct-view legend in tough environments?
Individual LEDs render the EXIT legend without a diffuser, improving legibility through smoke and haze.
Does it include emergency lighting?
The WB battery model provides 90 minutes of exit illumination. The REN3 combo adds two 2.6 W PAR16 heads ( not UL Listed ) and requires sealed lead-calcium WB with G1 .
What mounting options are supported?
Ceiling, end, or wall mount using the included universal canopy.
