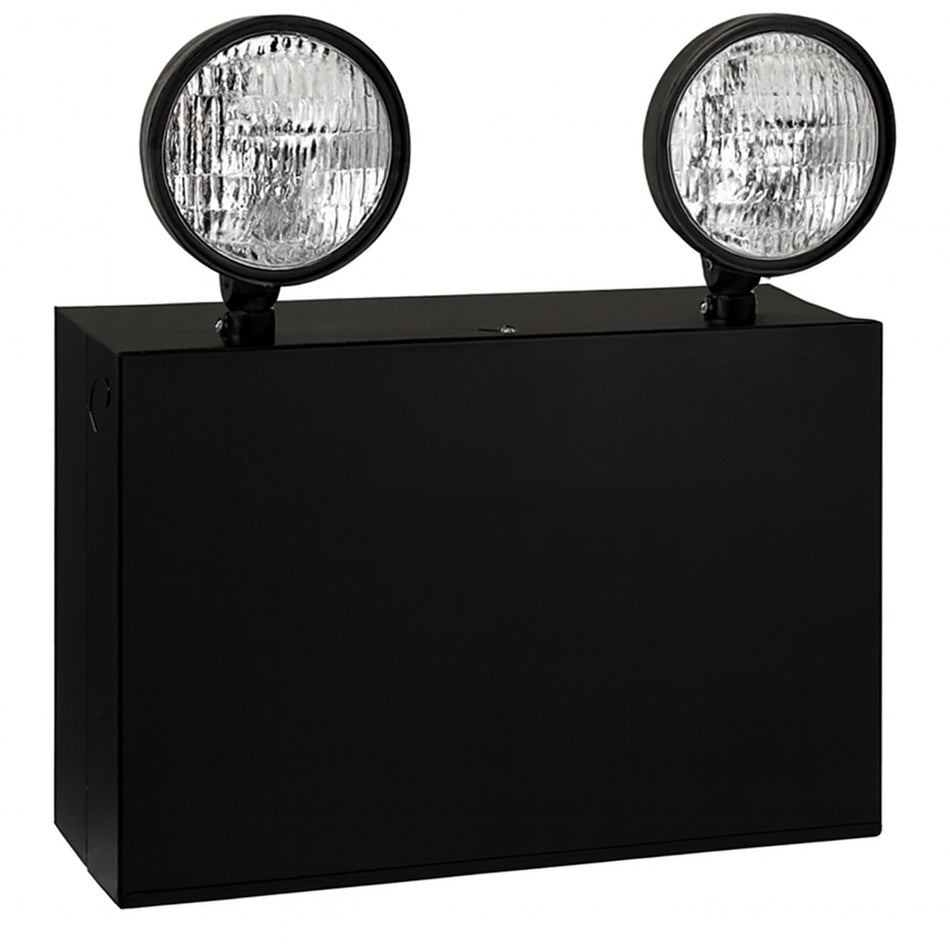

Steel Emergency Lighting Unit – 120–360W, Dual Head, Remote-Capable
The RS Series Steel Emergency Lighting Unit pairs a rugged 20-gauge steel cabinet with field-configurable power in 6 V , 12 V , or 24 V models. Output ranges from 120 W to 360 W with capacity for up to three cabinet-mounted heads and additional remote fixtures . Dual-voltage 120/277 VAC input, your choice of sealed lead-calcium or Ni-Cd batteries, and optional Guardian™ self-diagnostics deliver dependable egress lighting for commercial and industrial sites.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- CSA Listed
- 120/277 VAC
- 90-min Battery
- Lead-Calcium / Ni-Cd
- G2 Self-Test (opt.)
- 120–360 W
- 6/12/24 V Output
- Remote-Capable
- Steel Cabinet
- NFPA 101
Key features
- Rugged 20-ga steel enclosure with powder-coat finish; Black (B) or White (W).
- Available in 6/12/24 V models and 120–360 W capacities; supports up to 3 cabinet heads plus remote loads.
- 120/277 VAC dual-primary input; solid-state two-rate charger.
- Battery choices: sealed lead-calcium or Ni-Cd ; minimum 90-minute emergency runtime; ~24-hour recharge.
- Protection circuits: LVD , brownout, short-circuit/overload, and voltage surge.
- Guardian™ (G2) self-test/self-diagnostics and TD 15-minute time-delay options.
- Compatible with MIST Series remote lamps; universal wall-mount pattern with rear keyholes.
- BAA / ARRA compliant; assembled in the USA.
Documents
Illumination
- Supports 6 V or 12 V tungsten wedge-base lamps from 9–18 W ; up to three cabinet heads per unit.
- Adjustable heads focus light to the egress path; remaining capacity powers remote fixtures.
Electrical
- Universal 120/277 VAC , 60 Hz input; solid-state transfer.
- Maintenance-free sealed lead-calcium or Ni-Cd battery with 90-minute emergency run time.
- Safety features: low-voltage disconnect , brownout sensing, overload/short-circuit & surge protection.
- Options: G2 Guardian self-diagnostics; TD 15-minute time delay.
Mounting
- Universal wall-mount pattern with rear keyhole slots; knockouts on top/back/sides for conduit or lamp heads.
- Shelf-mount kit available for alternate mounting surfaces.
Housing / Finish
- 20-ga steel cabinet with durable powder coat.
- Push-to-test button and bi-color status LED for visual checks.
- Finishes: Black (B) or White (W) .
Dimensions
- 120–180 W (6 V / 12 V): 13? W × 10? H × 6? D
- 250–360 W (12 V / 24 V): 18? W × 10? H × 6? D
Warranty / Listings
- 5-year warranty on electronics & housing; battery 5-year prorated .
- CSA Listed; meets NEC and NFPA 101 requirements.
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
