Steel LED Exit Sign – Direct-View with Battery Backup
Regular price
$311.71
Couldn't load pickup availability
Got questions?
Give us a call 1-888-959-1965!
Steel Direct-View LED Exit Sign - 20-Gauge Steel, 6" Letters, Direct-View LEDs - Features & Specs

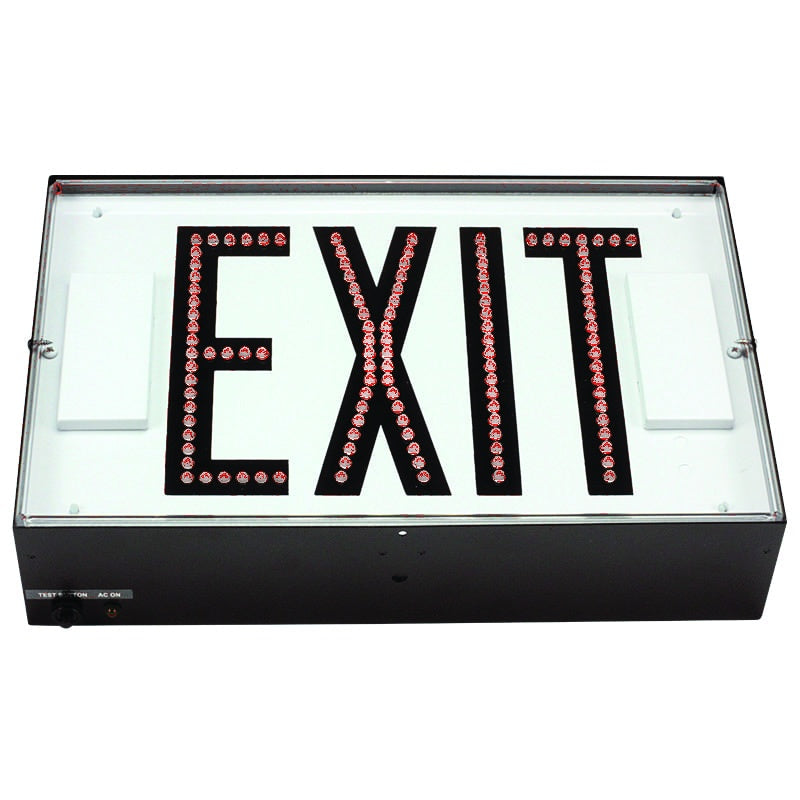

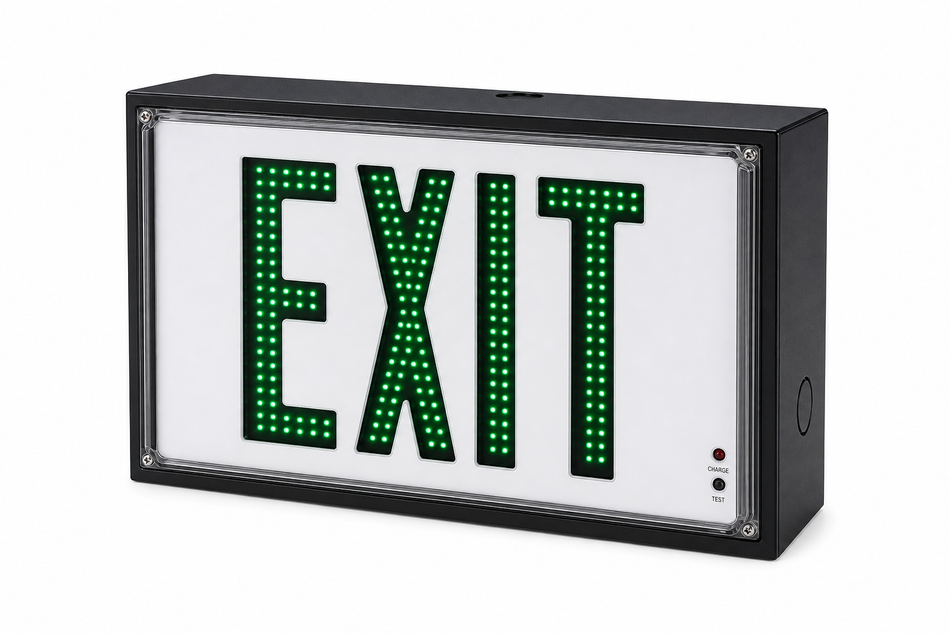

The 500E Series Steel Direct-View LED Exit Sign delivers maximum visibility in smoke, fog, or low-contrast environments using dot-matrix, direct-view LEDs. Built with a rugged 20-gauge steel housing and a solid 1/8" vandal-resistant polycarbonate lens, it’s designed for demanding industrial and commercial settings. The unit includes field-selectable chevrons and a universal mounting canopy; optional battery backup and combo heads are available.
Download 500E Series Exit Sign Spec Sheet (PDF)
Illumination
- Direct-view red or green LEDs (dot-matrix) for superior visibility in smoke or haze
- 6" EXIT characters with 3/4" stroke; viewing distance up to 100 ft
- Field-selectable chevrons for reliable directional guidance
Electrical
- Universal input: 120/277 VAC, 50/60 Hz (dual primary)
- Battery choices: NiMH (standard WB) or sealed lead-calcium with
G1self-diagnostics - 90-minute emergency runtime; 24-hour recharge
- Low-voltage disconnect, brownout/overload/short-circuit protection; solid-state transfer
-
Dual-circuit inputs available:
2CI1(120/120V),2CI7(277/277V),2CI17(120/277V) (not available with G1)
Mounting

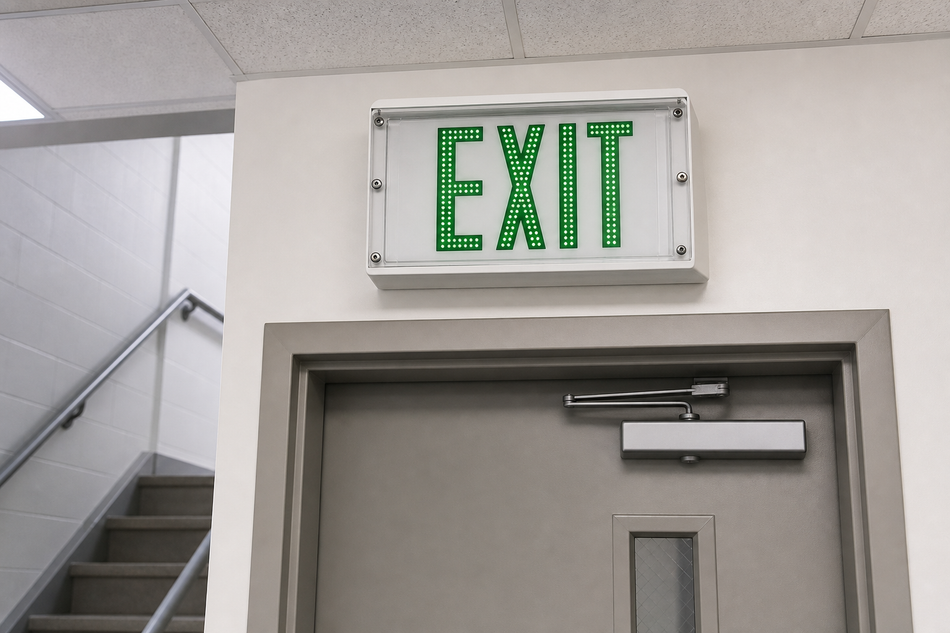

- Universal canopy supports ceiling, end, or wall mounting
- Quick installation; canopy included
Housing

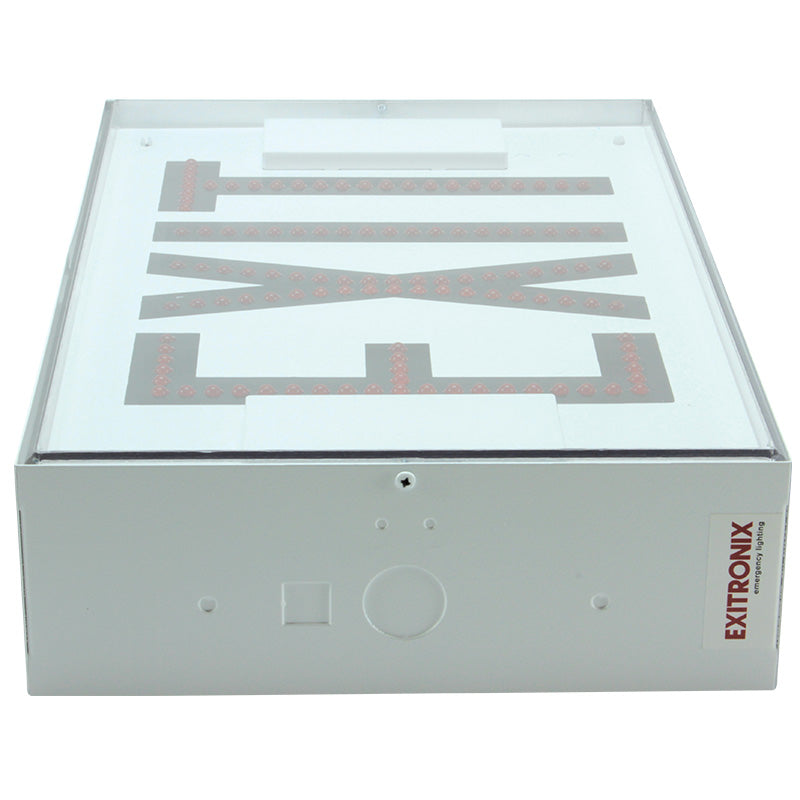

- Durable 20-gauge steel cabinet with 1/8" polycarbonate lens
- Finishes: White or Black
- Assembled in the USA with global components
Dimensions
- 12.375" W × 8.0" H × 2.75" D
Options & Accessories
-
G1— Guardian self-diagnostics (battery models) -
DL— Integral downlight for path illumination -
DR— Damp-location rated (0 °C – 40 °C) -
REN3— Combo option with two 2.6 W PAR16 LED heads (not UL Listed; requires sealed lead-calcium WB + G1) - ER1-KIT / ER2-KIT — 1' or 2' pendant mount kits
- WG-S — Wire guard (back mount); XG-1 — Poly guard (back mount); XG-3 — Poly guard (ceiling mount)
- TRH — Tamper-resistant hardware (not UL-listed option)
Warranty / Listings
- 25-year warranty on electronics & housing; battery 5-year prorated
- UL 924 listed; meets NFPA 101 and NEC
- Damp-location option (0 °C – 40 °C)
Frequently Asked Questions
Why is direct-view LED better in smoky areas?
The LED points are visible through smoke and haze when diffuser-style legends wash out, improving legibility at a distance.
Is a battery backup version available?
Yes. Standard WB models use NiMH. A sealed lead-calcium battery is available when you order the G1 diagnostics option.
Can this be wall-mounted?
Yes. The unit ships with a universal canopy for ceiling, end, or wall mounting.
Does it include emergency lighting?
The REN3 combo adds two 2.6 W PAR16 LED heads. Note: this combo option is not UL Listed and requires sealed lead-calcium WB with G1.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- NFPA 101
- Damp-location
- battery backup
- self-diagnostic
- LED
- emergency
- Exit
- Exit Signs
Documents
Illumination
- Direct-view red or green LEDs (dot-matrix) for superior visibility in smoke or haze
- 6" EXIT characters with 3/4" stroke; viewing distance up to 100 ft
- Field-selectable chevrons for reliable directional guidance
Electrical
- Universal input: 120/277 VAC , 50/60 Hz (dual primary)
- Battery choices: NiMH (standard WB) or sealed lead-calcium with G1 self-diagnostics
- 90-minute emergency runtime; 24-hour recharge
- Low-voltage disconnect, brownout/overload/short-circuit protection; solid-state transfer
- Dual-circuit inputs available: 2CI1 (120/120V), 2CI7 (277/277V), 2CI17 (120/277V) (not available with G1)
Mounting
- Universal canopy supports ceiling , end , or wall mounting
- Quick installation; canopy included
Housing
- Durable 20-gauge steel cabinet with 1/8" polycarbonate lens
- Finishes: White or Black
- Assembled in the USA with global components
Dimensions
- 12.375" W × 8.0" H × 2.75" D
Options & Accessories
- G1 — Guardian self-diagnostics (battery models)
- DL — Integral downlight for path illumination
- DR — Damp-location rated (0 °C – 40 °C)
- REN3 — Combo option with two 2.6 W PAR16 LED heads (not UL Listed; requires sealed lead-calcium WB + G1)
- ER1-KIT / ER2-KIT — 1' or 2' pendant mount kits
- WG-S — Wire guard (back mount); XG-1 — Poly guard (back mount); XG-3 — Poly guard (ceiling mount)
- TRH — Tamper-resistant hardware (not UL-listed option)
Warranty / Listings
- 25-year warranty on electronics & housing; battery 5-year prorated
- UL 924 listed; meets NFPA 101 and NEC
- Damp-location option (0 °C – 40 °C)
Why is direct-view LED better in smoky areas?
The LED points are visible through smoke and haze when diffuser-style legends wash out, improving legibility at a distance.
Is a battery backup version available?
Yes. Standard WB models use NiMH. A sealed lead-calcium battery is available when you order the G1 diagnostics option.
Can this be wall-mounted?
Yes. The unit ships with a universal canopy for ceiling, end, or wall mounting.
Compliance notes
- Confirm final fixture placement, runtime, and local code approval for the project.
Frequently asked questions
Why is direct-view LED better in smoky areas?
The LED points are visible through smoke and haze when diffuser-style legends wash out, improving legibility at a distance.
Is a battery backup version available?
Yes. Standard WB models use NiMH. A sealed lead-calcium battery is available when you order the G1 diagnostics option.
Can this be wall-mounted?
Yes. The unit ships with a universal canopy for ceiling, end, or wall mounting.
Does it include emergency lighting?
The REN3 combo adds two 2.6 W PAR16 LED heads. Note: this combo option is not UL Listed and requires sealed lead-calcium WB with G1 .
