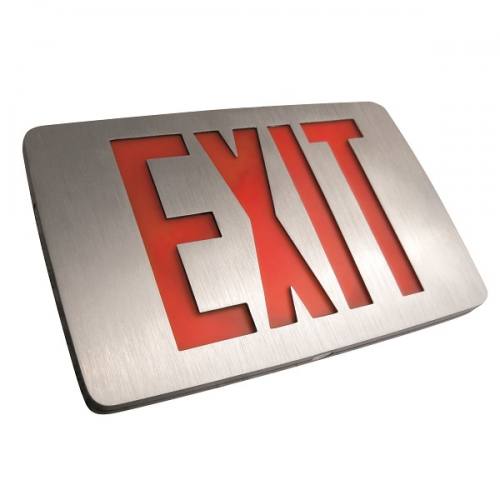

KZXTEU thin die-cast aluminum LED exit sign with red letters
KZXTEU thin die-cast aluminum LED exit sign with green letters

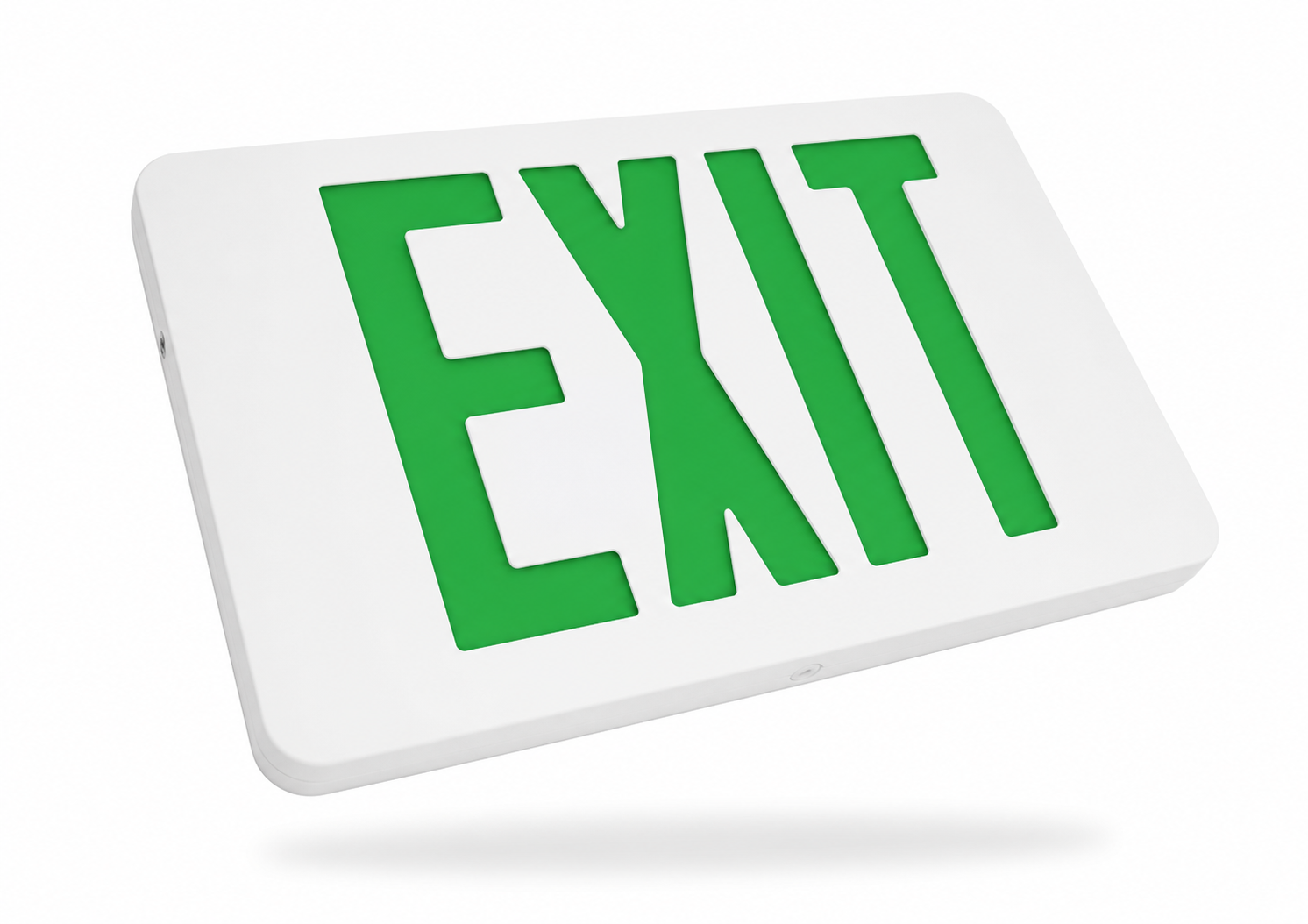

Best Lighting KZXTEU thin die-cast low profile LED exit sign with white housing and green EXIT letters

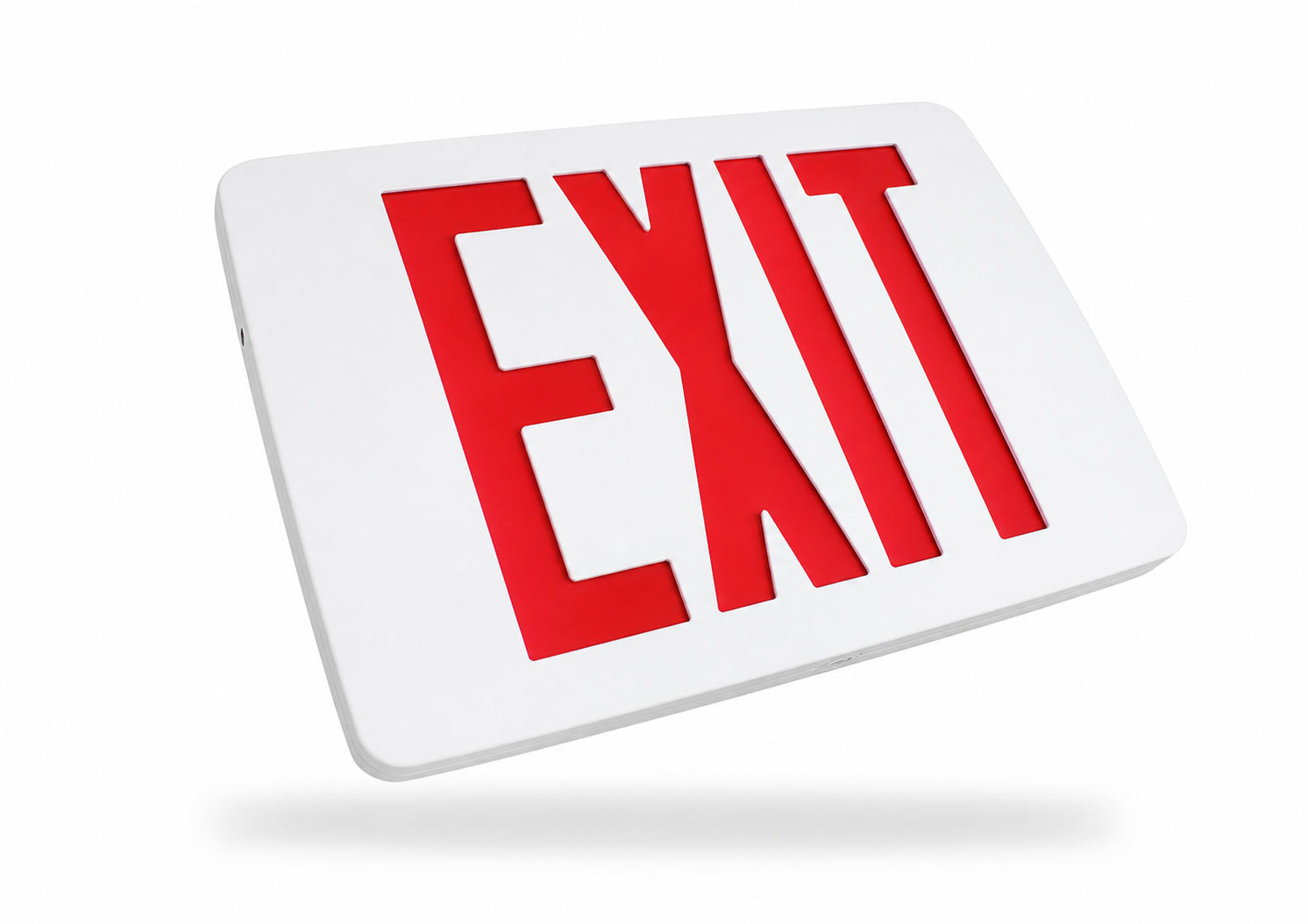

Best Lighting KZXTEU thin die-cast low profile LED exit sign with white housing and red EXIT letters

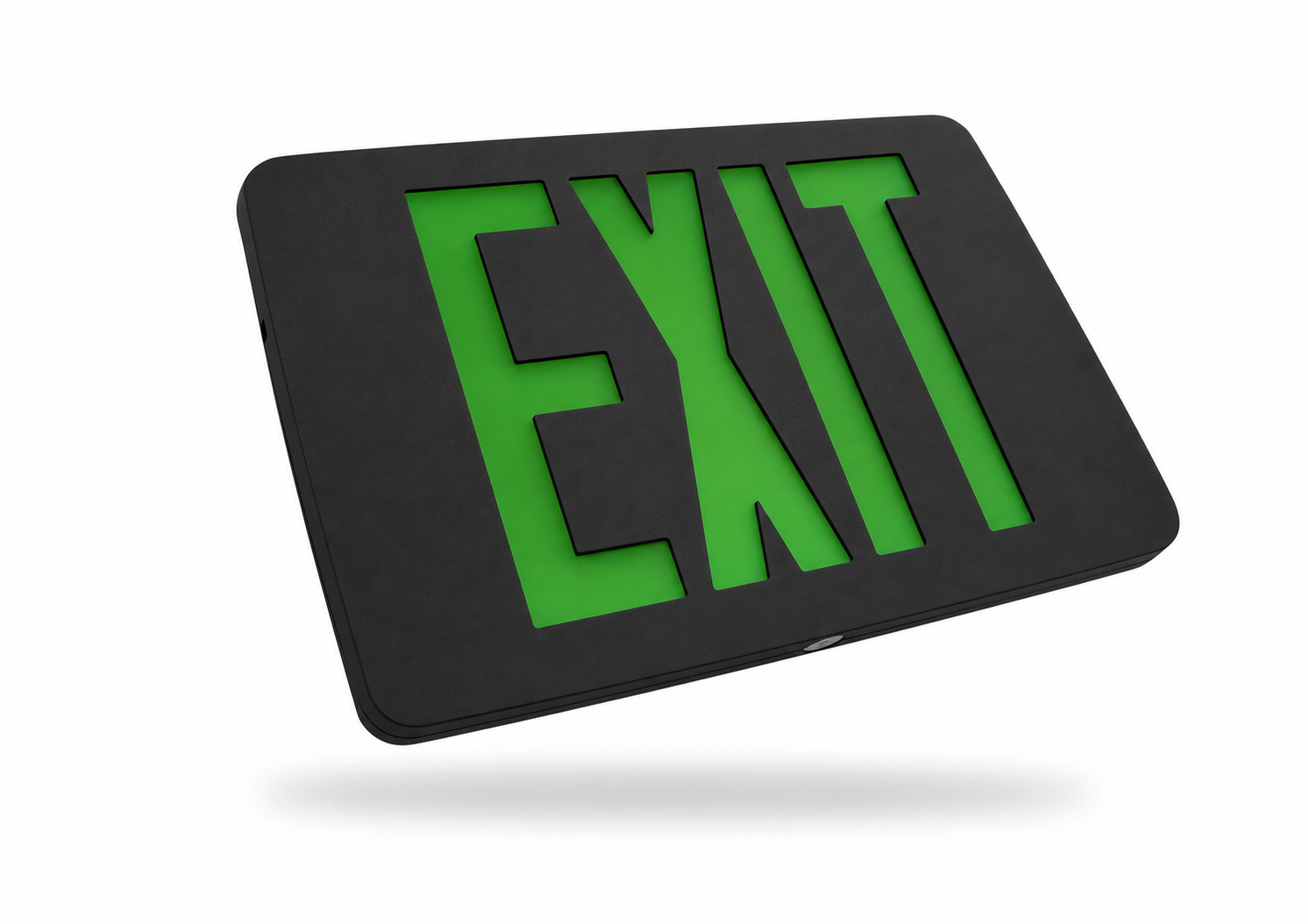

Best Lighting KZXTEU thin die-cast low profile LED exit sign with black housing and green EXIT letters

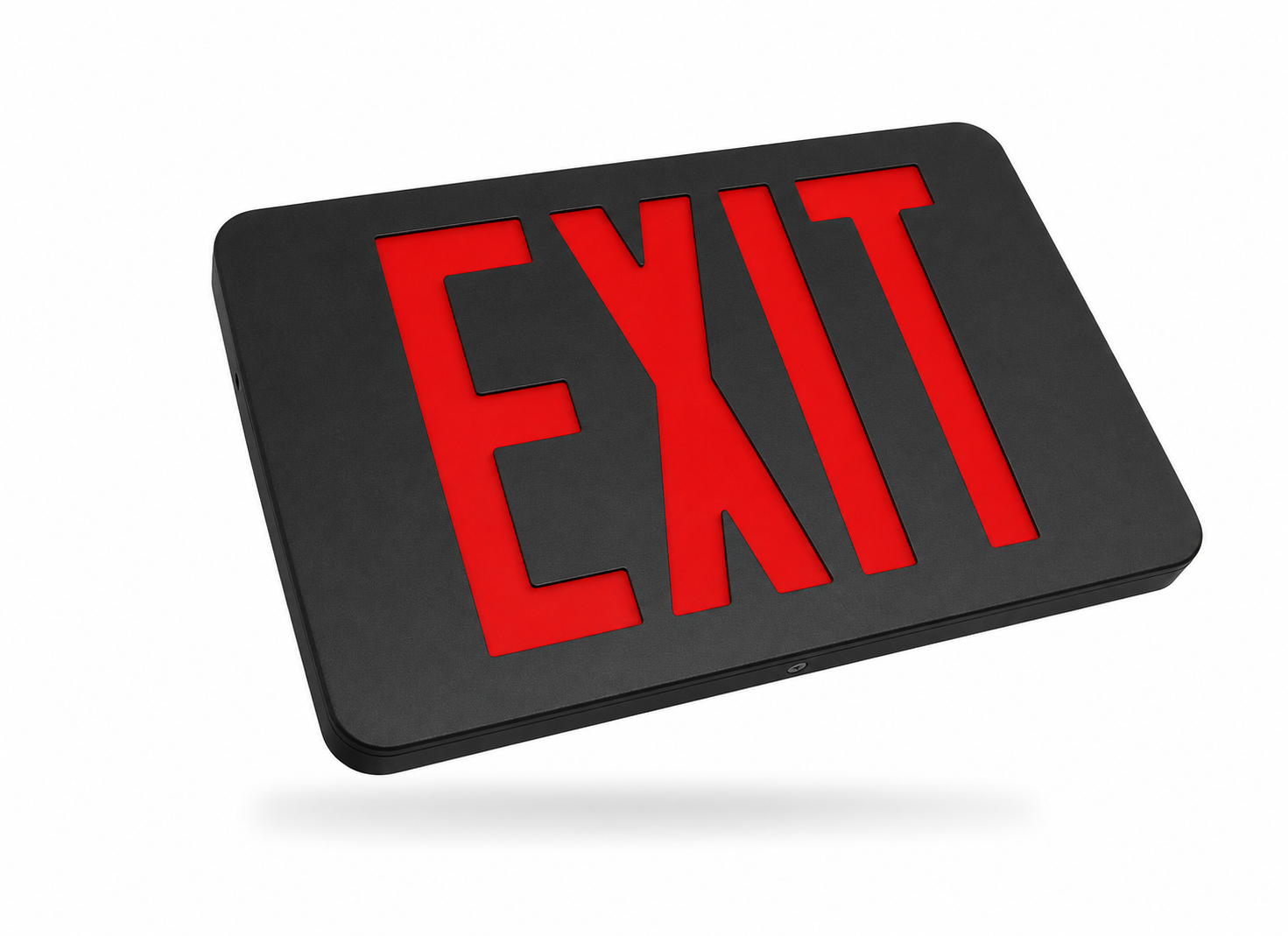

Best Lighting KZXTEU thin die-cast low profile LED exit sign with black housing and red EXIT letters
KZXTEU thin die-cast aluminum LED exit sign with red letters
KZXTEU thin die-cast aluminum LED exit sign with green letters
Best Lighting KZXTEU thin die-cast low profile LED exit sign with white housing and green EXIT letters
Best Lighting KZXTEU thin die-cast low profile LED exit sign with white housing and red EXIT letters
Best Lighting KZXTEU thin die-cast low profile LED exit sign with black housing and green EXIT letters
Best Lighting KZXTEU thin die-cast low profile LED exit sign with black housing and red EXIT letters

Thin Die-Cast Aluminum Low Profile LED Exit Sign

SKU: KZXTEU1RA
$110.41

Got questions?

Give us a call 800-847-1955!

Thin Die-Cast Aluminum Low Profile LED Exit Sign - KZXTEU, Red/Green, UL 924

The KZXTEU Thin Die-Cast Aluminum LED Exit Sign is a low-profile architectural exit sign for commercial interiors that need a metal housing, clean styling, and code-ready red or green EXIT lettering. Choose single-face or double-face visibility, brushed aluminum, white, or black housing, and AC-only or EM battery backup configurations from the same compact KZXTEU family.

This low-profile die-cast aluminum exit sign supports 120/277 V input and is UL 924 listed for damp-location use. EM models add a 2.4 V Ni-Cd battery for 90-minute emergency operation with solid-state transfer, two-rate charging, status indication, and push-to-test. It fits offices, tenant improvements, hotels, retail interiors, schools, healthcare corridors, and design-sensitive egress paths where thermoplastic signs look too utilitarian.

UL 924 Single / Double Face Red / Green Die-Cast Aluminum Low Profile Ni-Cd / 90 min 120/277 V Damp Location

Best Fit and Alternatives

Choose KZXTEU when the project needs a slim metal LED exit sign with finish choices and a cleaner look than a commodity thermoplastic fixture. It is a strong fit for front-of-house corridors, lobbies, hospitality spaces, office suites, retail corridors, schools, and healthcare interiors where the exit sign should feel durable without looking bulky.

  • Stay with KZXTEU for low-profile die-cast aluminum construction, red or green EXIT legends, 120/277 V input, and optional 90-minute battery backup.
  • Choose double-face versions where occupants approach from two directions, and single-face versions where the sign is viewed from one side.
  • Move to thermoplastic exit signs when lowest first cost matters more than metal construction and architectural appearance.
  • Move to wet-location or vandal-resistant signs for exposed exterior, washdown, or high-abuse locations outside this damp-location sign's intended use.
  • Move to an exit/emergency combo when the same location also needs adjustable emergency lighting heads.

Use the KZXTEU product PDF and the product-field guide below for final electrical values, model options, documents, and submittal checks. The structured sections below own the detailed specs, documents, buying checks, related product paths, and FAQs so the body does not repeat those sections.

Specs, documents, buying checks, compatible paths, and FAQs are organized below for easier review.

Buying support

Product details and buying checks

Before ordering KZXTEU, confirm face count, red or green legend, housing finish, AC-only or EM backup requirement, and local AHJ acceptance.

  • UL 924
  • Red / Green
  • Single / Double Face
  • Die-Cast Aluminum
  • Low Profile
  • 120/277 V
  • Ni-Cd / 90 min
  • Damp Location
  • CEC Title 20

Key features

  • Low-profile die-cast aluminum LED exit sign for architectural commercial interiors.
  • Red or green EXIT legend variants support project color standards and existing signage plans.
  • Single-face and double-face versions cover one-direction or two-direction visibility requirements.
  • Brushed aluminum, white, and black housing finishes coordinate with common interior palettes.
  • Universal installation package supports wall, ceiling, or end orientation using the included canopy and backplate hardware.
  • 120/277 V dual-voltage input supports common commercial branch circuits.
  • EM models include a 2.4 V Ni-Cd battery for 90-minute emergency operation.
  • Status LED, push-to-test, solid-state transfer, and two-rate charging support routine inspection checks.
  • Damp-location rated from 0-50 C and CEC Title 20 compliant where applicable.
  • UL 924 listing supports NFPA 101, NEC, OSHA, and AHJ review when selected and installed according to project documents.
Product family KZXTEU thin die-cast aluminum low-profile LED exit signs
SKU family KZXTEU
Listing UL 924 emergency egress sign
Legend colors Red or green EXIT lettering
Face configurations Single face or double face
Housing Low-profile die-cast aluminum

Documents

Best Fit and Project Checks

Use KZXTEU when the project calls for a slim metal LED exit sign with an architectural look, red or green legend options, and optional internal emergency battery backup.

  • Best fit: offices, tenant buildouts, hotels, retail interiors, schools, healthcare corridors, and finished commercial egress paths.
  • Confirm face count, legend color, finish, AC-only or EM backup requirement, and AHJ acceptance before ordering.
  • Review the KZXTEU product PDF for final submittal details and manufacturer data.
Configuration Selection

Match the SKU to the visible approach, finish schedule, and emergency-power requirement in the project documents.

  • Choose single-face where the sign is viewed from one direction and double-face where it must be seen from two directions.
  • Choose red or green letters to match the project standard and surrounding exit signage.
  • Choose brushed aluminum, white, or black housing to coordinate with the interior finish package.
  • Choose EM models when the sign needs integral 90-minute battery backup.
When to Choose Another Product

KZXTEU is a damp-location low-profile metal exit sign. Step to another family when the environment, jurisdiction, or fixture type changes.

  • Use wet-location signage for exposed exterior, washdown, or high-moisture spaces.
  • Use vandal-resistant signage for high-abuse areas.
  • Use Chicago-approved or NYC-approved signs when project documents require a jurisdiction-specific series.
  • Use exit/emergency combo units where adjustable emergency lamp heads are required at the same point.
Compliance notes
  • Confirm face count, legend color, housing finish, battery-backup requirement, and AHJ acceptance against the project documents.
  • Use EM versions only where internal 90-minute battery backup is required; AC-only versions do not provide emergency operation from an internal battery.
  • This die-cast aluminum sign is damp-location rated for protected interiors; use a wet-location or vandal-resistant series for exposed or high-abuse areas.

Frequently asked questions

Is KZXTEU a low-profile die-cast aluminum LED exit sign?

Yes. KZXTEU is a thin, low-profile LED exit sign family with die-cast aluminum construction and red or green EXIT legend options.

Can I order this exit sign with battery backup?

Yes. Select an EM configuration when the project requires internal battery backup. EM versions use a 2.4 V Ni-Cd battery for 90-minute emergency operation.

Should I choose single-face or double-face?

Choose single-face where the sign is viewed from one approach and double-face where people need to see the sign from two directions, such as corridors or open intersections.

Is this a red or green LED exit sign?

The KZXTEU family includes red and green letter variants. Match the legend color to project documents, existing signage, and local AHJ direction.

Is KZXTEU suitable for outdoor wet-location projects?

No. This is a damp-location exit sign for protected commercial interiors. Use a wet-location or NEMA-rated exit sign for exposed exterior or washdown applications.
