Architectural Emergency Unit LED – Die-Cast, Wet-Location Rated
Regular price
$232.14
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Architectural Emergency Unit LED – Die-Cast, Wet-Location Rated

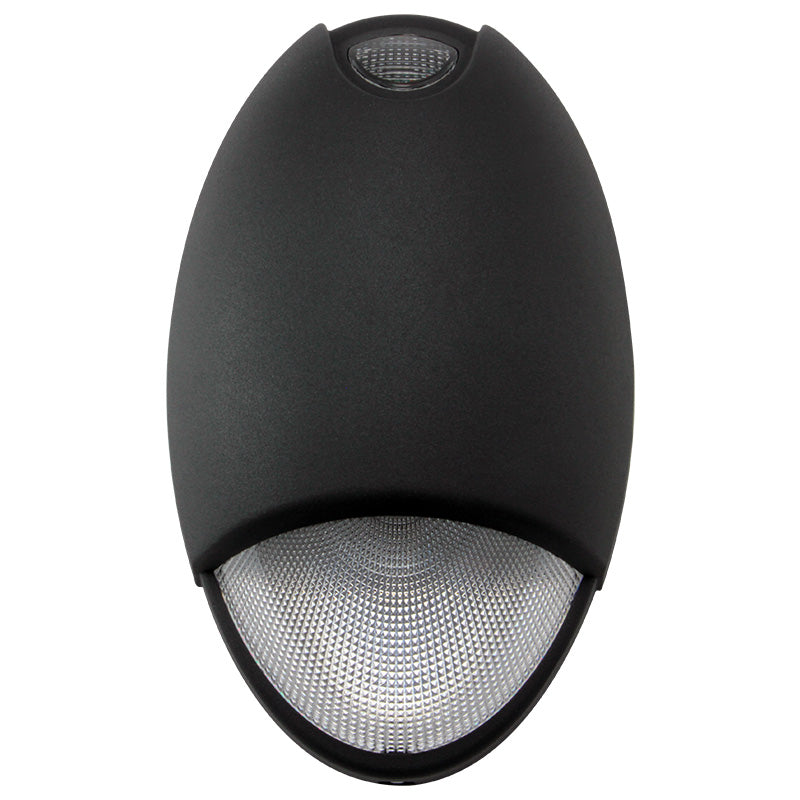

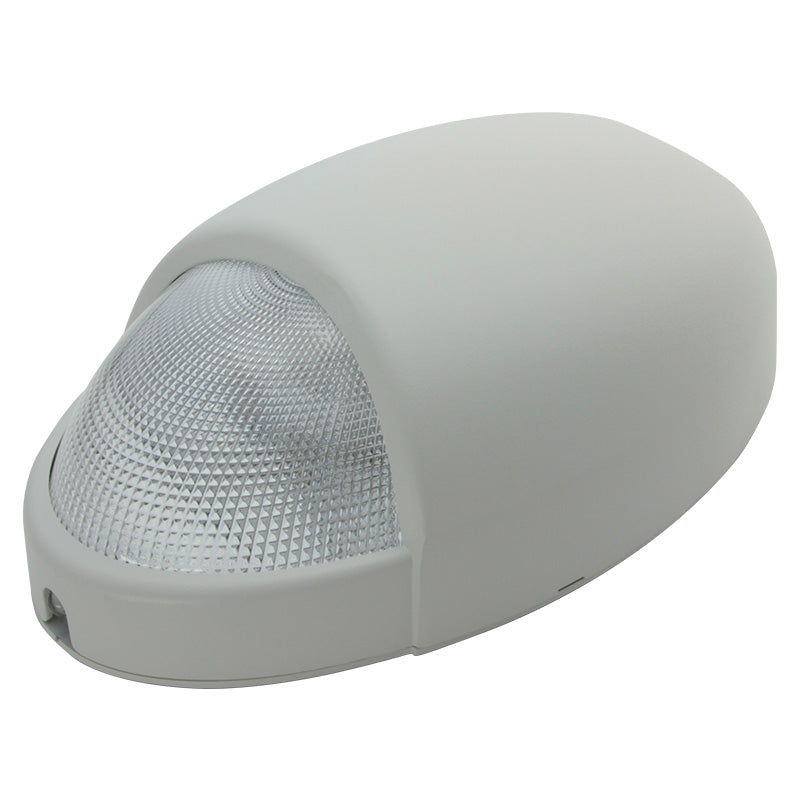

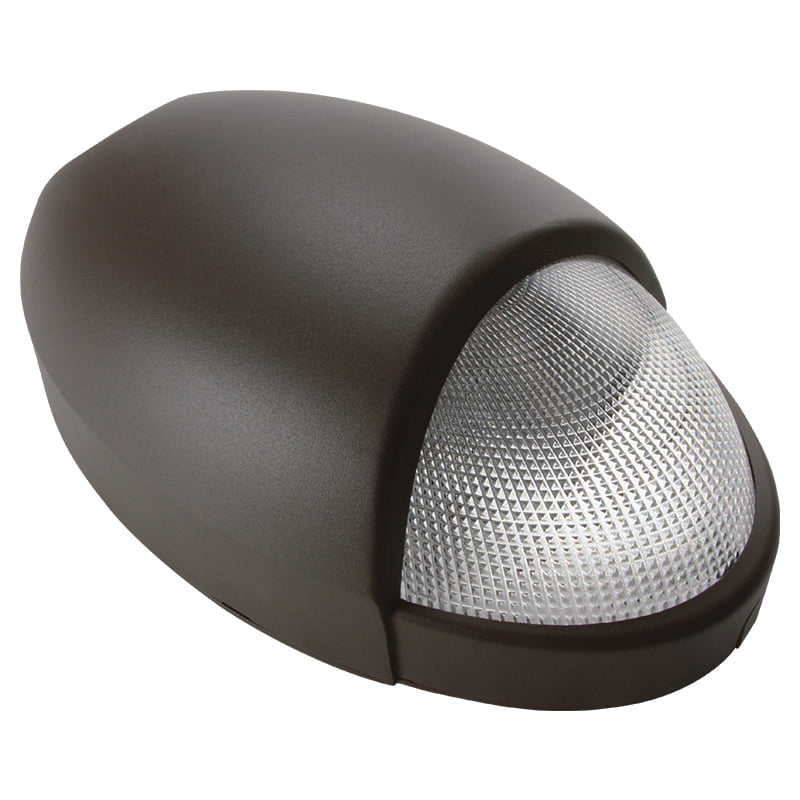

The Triton LED Architectural Emergency Wallpack is an outdoor-rated member of our weather proof emergency lights category, combining a low-profile , die-cast aluminum design with high-output area lighting and UL 924–compliant emergency lighting . Its integrated 11 W, 5000 K LED engine delivers 1,080 lumens in normal mode and 260 lumens in emergency mode—ideal for outdoor doorways, ramps, and wet-location paths.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- Wet Location
- Damp Location
- 120/277 VAC
- 90 min Battery
- Cold Weather (opt.)
- Die-Cast Aluminum
- Low Profile
- Wall Mount
- CEC Title 20
Key features
- Integrated 11 W LED (70 CRI, 5000 K ): 1,080 lm normal / 260 lm emergency.
- Spacing guide at 9′ MH: 32′ (3′ path) / 30′ (6′ path).
- Dual-voltage 120/277 VAC ; maintenance-free Ni-Cd battery for 90-minute egress runtime.
- Wet/Damp location listed; optional CL configuration for operation to −20 °C (−4 °F).
- Rugged die-cast aluminum housing with prismatic lens and mirror reflector for uniform output.
- Universal wall mounting (J-box or top conduit); recommended install height 8–12′ .
- Color finishes: Black (BL) , Bronze (BR) , Satin Aluminum (SA) , White (WH) .
Documents
Related Wet-Location Guides
Selecting Outdoor Emergency Lights Maintenance Checklist
Spec Sheet
Download Triton Emergency Wallpack Spec Sheet (PDF)
Illumination
- Single high-output 11 W white LED with mirror reflector.
- Delivered output: 1,080 lm (normal) / 260 lm (emergency).
- Design-aid spacing at 9′ MH: 32′ (3′ path) / 30′ (6′ path).
Electrical
- Universal 120/277 VAC , 60 Hz input; solid-state charger.
- Maintenance-free Ni-Cd battery — 90-minute emergency; typical 24-hour recharge.
- Protection features: low-voltage disconnect , brownout protection; status LED & push-to-test.
- CL cold-weather option: operation to −20 °C (−4 °F).
Mounting
- Surface wall mount via universal ¾" J-box or ½" top conduit entry.
- Weather-seal gasket included; recommended install height 8–12′ .
Housing / Finish
- Die-cast aluminum body with durable powder coat; prismatic lens with mirror reflector.
- Finish options: BL (Black), BR (Bronze), SA (Satin Aluminum), WH (White).
Dimensions
- 10.43" H × 6.30" W × 3.86" D
Warranty / Listings
- 5-year warranty on fixture & electronics; Ni-Cd battery 5-year prorated .
- cULus Wet/Damp listed; meets UL 924 , NFPA 101 , and NEC .
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
- Verify the selected model is rated for the final environment before ordering.
