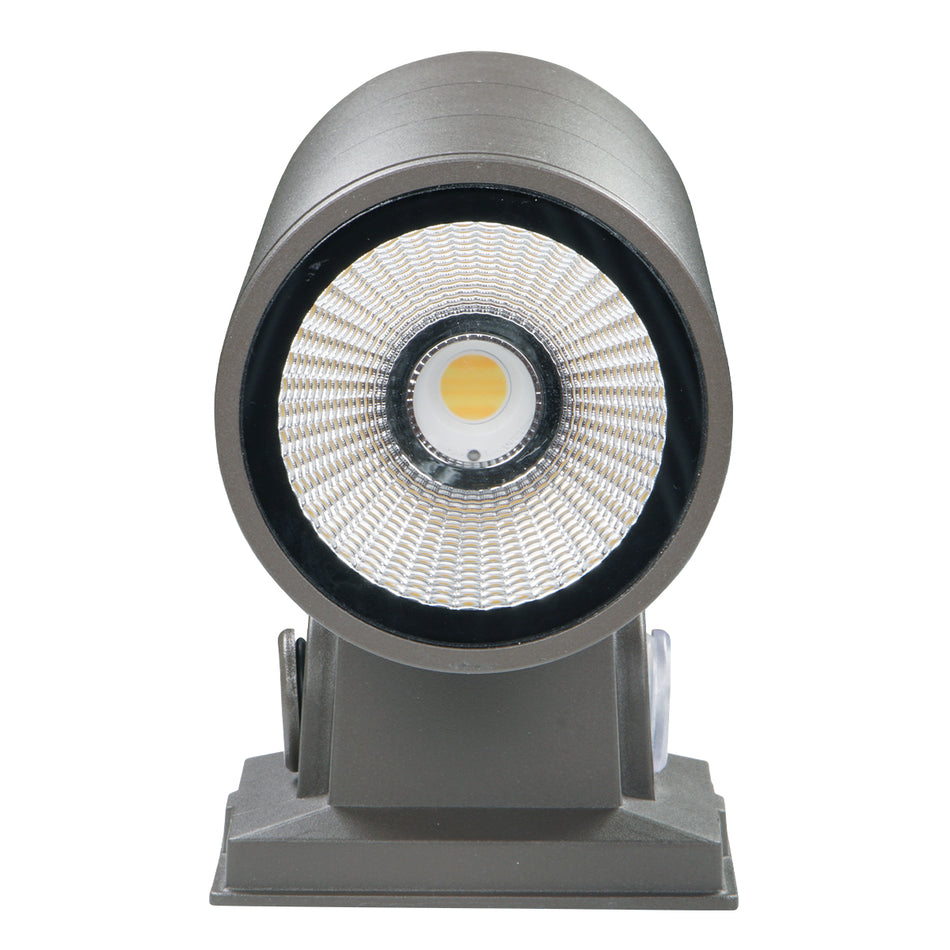

Front close-up of LED cylinder light showing COB LED and reflective optical housing

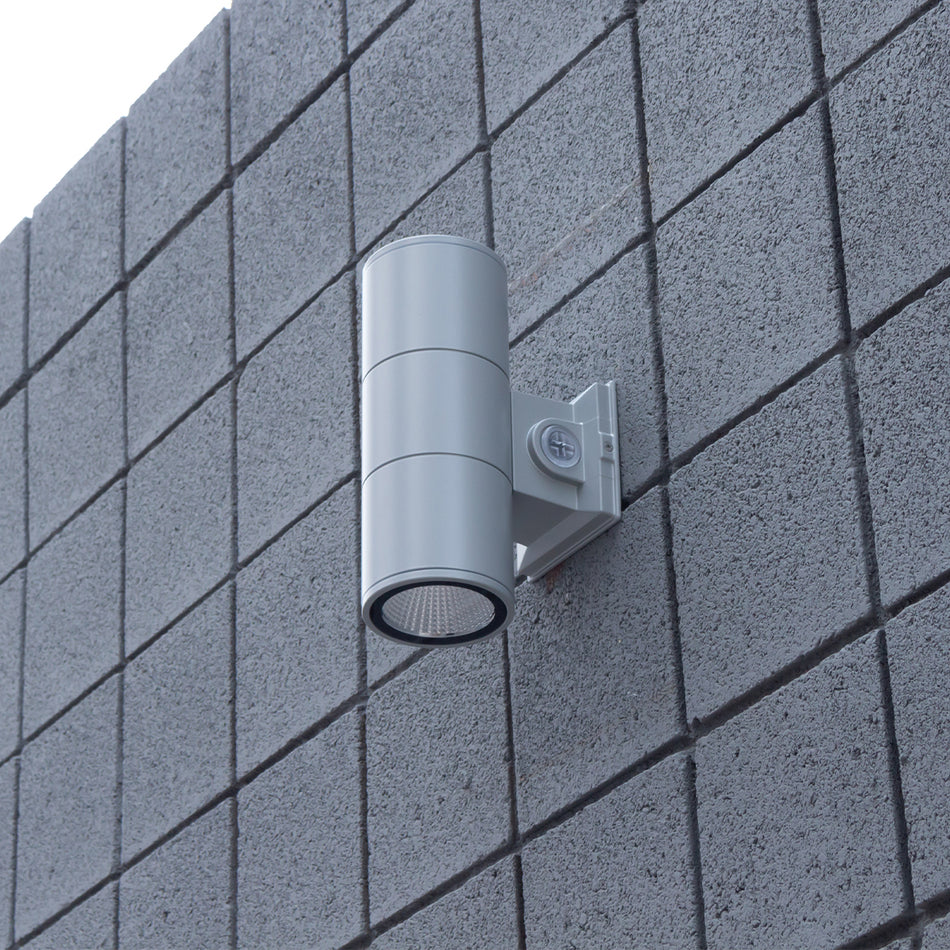

Silver up/down LED cylinder wall light mounted to a block exterior wall in daylight

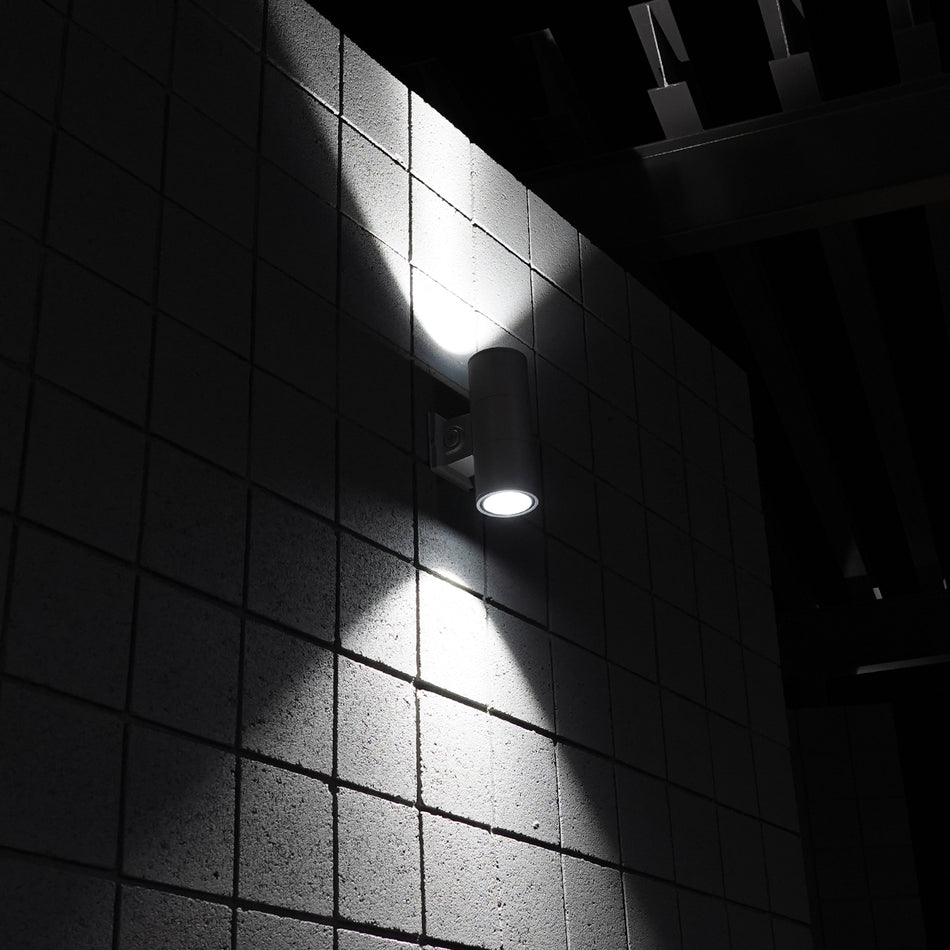

Architectural LED cylinder light casting up and down beams on wall at night
Black rectangular up/down LED wall light with integrated photocontrol and heat sink
Bronze cylindrical up/down LED wall pack with textured reflector and adjustable optics
Front close-up of LED cylinder light showing COB LED and reflective optical housing
Silver up/down LED cylinder wall light mounted to a block exterior wall in daylight
Architectural LED cylinder light casting up and down beams on wall at night
Black rectangular up/down LED wall light with integrated photocontrol and heat sink

Architectural LED Up/Down Cylinder Wall Pack – Selectable Wattage, CCT & Beam Angles (4-inch)

SKU: UDC-20-VS-CP-BL
$167.90
Accepted payment methods include Visa, Mastercard, American Express, Discover, PayPal, Venmo, Apple Pay, Google Pay, Amazon Pay, and Shop Pay.

Got questions?

Give us a call 1-888-959-1965!

Architectural LED Up/Down Cylinder Wall Pack – Selectable Wattage, CCT & Beam Angles (4-inch)

The Architectural LED Up/Down Cylinder Wall Light is a sleek 4" fixture for flexible indoor/outdoor accents. It features field-selectable wattage (12W, 16W, 20W), CCT (3000K / 4000K / 5000K), and switchable direction (up, down, or both). Dual reflectors provide precise control with included 25° / 40° / 60° beam angles. A rugged die-cast aluminum body is IP65 rated and includes built-in photocontrol. Explore more wall pack lights .

Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.

Buying support

Product details and buying checks

Review specs, documents, buying checks, compatible products, and FAQs before ordering.

  • Wet Location
  • LED
  • Outdoor Lighting

Key features

  • Architectural 4" round cylinder with selectable up, down, or up/down output
  • Field-adjustable power: 12W / 16W / 20W
  • Field-selectable color temperature: 3000K / 4000K / 5000K
  • Interchangeable beam reflectors: 25° , 40° , 60° (included)
  • Dual LED engines deliver up to 2,100 lm (model dependent)
Product family Outdoor Lighting
Option UDC-20-VS-CP-BL
Power LED engines deliver up to 2,100 lm (model dependent)
Type Outdoor Lighting | Wall Packs

Documents

Architectural LED Up/Down Cylinder Wall Pack – Selectable Wattage & CCT

The Architectural LED Up/Down Cylinder Wall Light is a sleek 4" fixture for flexible indoor/outdoor accents. It features field-selectable wattage (12W, 16W, 20W), CCT (3000K / 4000K / 5000K), and switchable direction (up, down, or both). Dual reflectors provide precise control with included 25° / 40° / 60° beam angles. A rugged die-cast aluminum body is IP65 rated and includes built-in photocontrol. Explore more wall pack lights . 4" Cylinder 12/16/20W Selectable 3000K / 4000K / 5000K Up / Down / Both 25° / 40° / 60° Beams Photocontrol IP65 Wet

Related Wall Pack Guides

Photometric Layout & Spacing Specification Checklist

Spec Sheet

Download Up/Down Cylinder Wall Light Spec Sheet (PDF)

Illumination
  • Output: 1,140–2,100 lm depending on wattage/CCT
  • Swappable reflectors ( 25° , 40° , 60° ) included
  • High-fidelity color: CRI 90
  • L70 >100,000 hours; L90 ≈ 88,000 hours
Electrical
  • Universal input: 120–277V , 50/60 Hz
  • 0–10V dimming capable
  • Built-in switches for wattage, CCT, direction, and photocontrol
Mounting
  • Mounts to standard 3.5" or 4" electrical J-box
  • Backplate with snap-fit installation
  • Switch access via side coin plugs
Housing / Finish
  • Die-cast aluminum cylinder with powder-coated finish
  • Finishes: bronze , black , or silver
  • Dimensions: 11.02” H × 6.7” D × 4.17” Ø

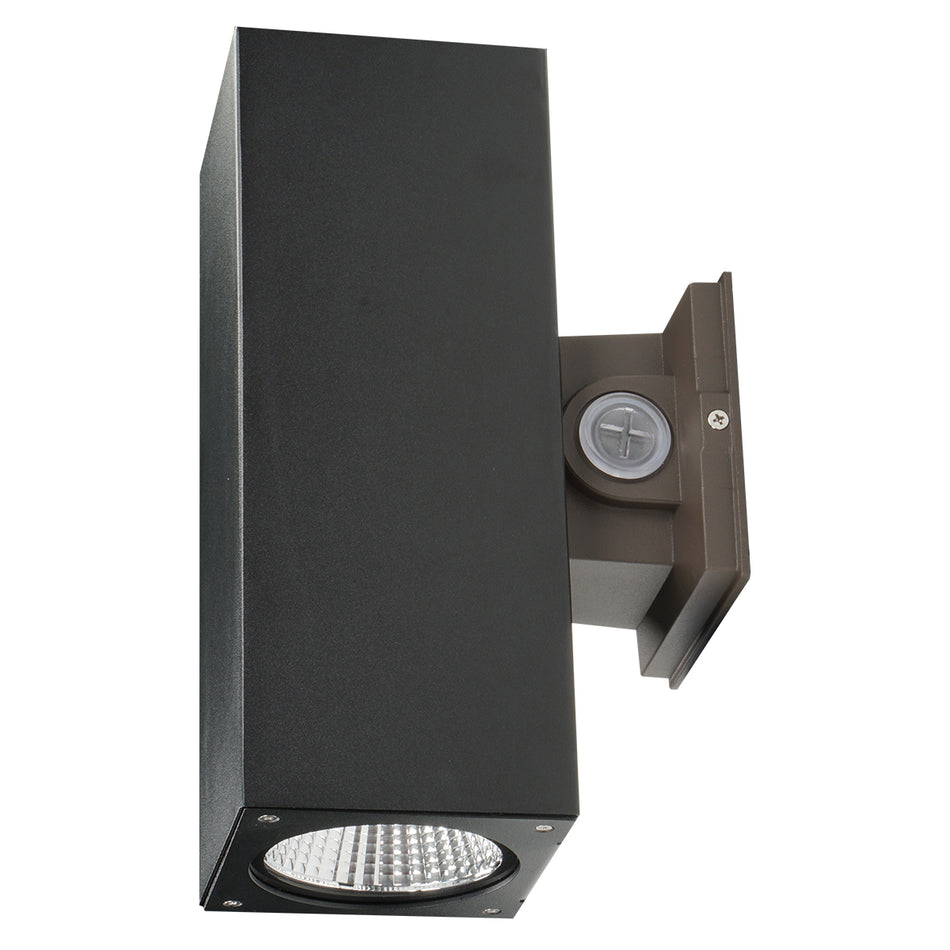

  • Optional rectangular shroud accessory
Warranty / Listings
  • 5-year limited warranty
  • UL Listed for Wet Locations
  • IP65 rated
