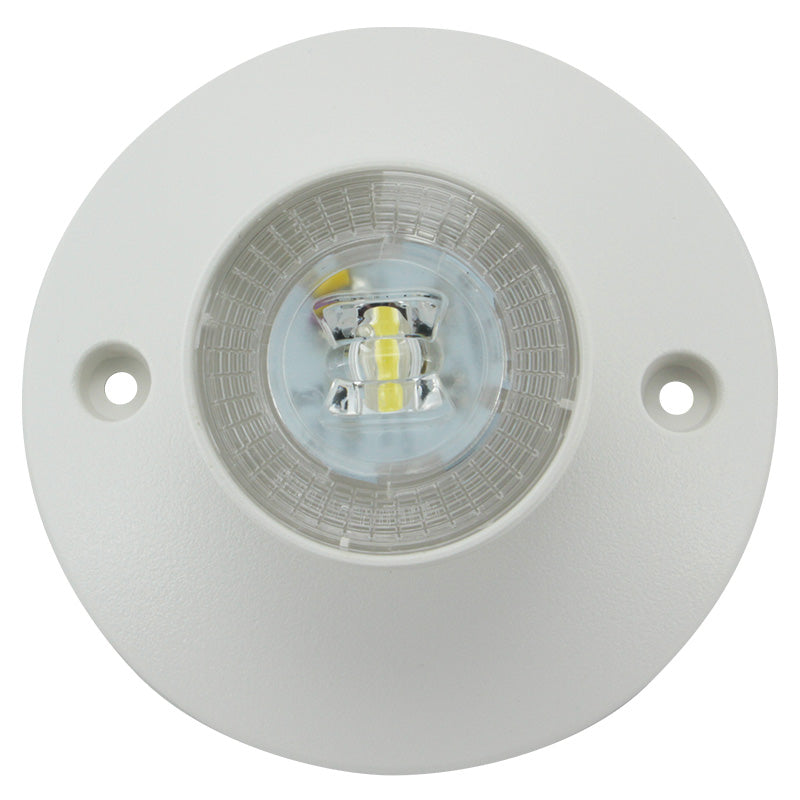

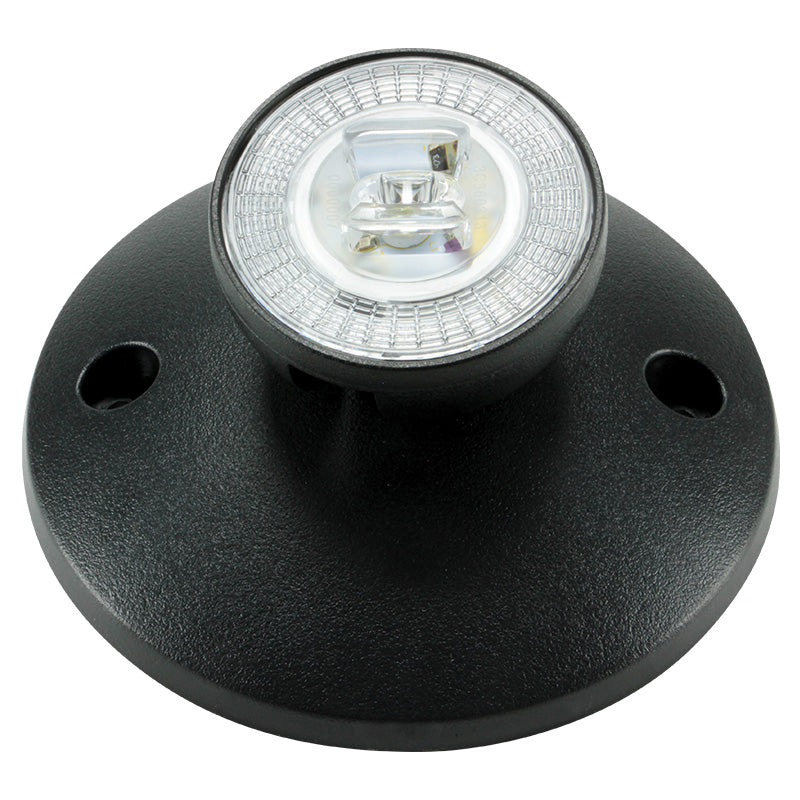

Ultra-Compact 3.6V LED Remote Heads – Single or Dual with Wide Beam
Regular price
$24.09
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Ultra-Compact 3.6V LED Remote Heads – Single or Dual with Wide Beam
Start with emergency lighting remote heads for the full lineup; for host fixtures with spare capacity, compare remote-capable emergency lights . The RL52 Series “Tempo Pro” Remote LED Heads expand egress coverage from any 3.6 V remote-capable emergency light, exit sign, or inverter. Available as a single head ( RL52 ) or dual head ( 2RL52 ), each ultra-compact unit draws just 1 W or 2 W per head and projects only ~ 2" from the surface—ideal for low-profile emergency lighting layouts.
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- Remote Heads
- 3.6 VDC
- 1 W / 2 W
- Narrow / Wide
- Damp Location
- Single / Dual Head
- ~2" Projection
- Wall / Ceiling
- NFPA 101
Key features
- 3.6 V compatible remote heads for exit signs, emergency lights, and inverters
- RL52 (single) or 2RL52 (dual) with 1 W (LO) or 2 W SMD LEDs per head
- Optics: Narrow or Wide (W) ; example at 7.5' MH (3' path): 2RL52-W up to 25' O.C.
- Ultra-compact build: lamp + base projects ~ 2" ; 4.5" round base
- UL 924/cUL listed; damp-location rated; finishes: White or Black
- Fully adjustable heads for precise egress aiming; fits standard 3"/4" J-boxes
Documents
Related Emergency Lighting Guides
3.6V Wiring Guide Wire Gauge & Distance Tables Compatibility Matrix
Spec Sheet
Download RL52 Remote LED Lamp Spec Sheet (PDF)
Illumination
- 1 W (LO) or 2 W per head, high-efficiency SMD LEDs with narrow or wide distributions
- Sample on-center spacing at 7.5' MH (3' path): 2RL52-W = 25' ; 2RL52-W-LO = 18' ; 2RL52 (narrow) = 18'
Electrical
- Powered by a remote 3.6 V DC emergency source (fixture, combo, or inverter)
- Use with compatible remote-capable units of matching voltage/output
Mounting
- 4.5" round base with standard 3" or 4" J-box hole patterns
- Heads adjust horizontally and vertically; suitable for wall or ceiling boxes
Housing / Finish
- High-impact, flame-retardant thermoplastic housing with clear optical lensing
- Finishes: White (WH) or Black (BL)
- Listed for damp-location environments
Dimensions
- Mounting plate: 4.5" diameter
- Overall depth: ~ 2.1" (single-head), ~ 2.0" (dual-head)
Warranty / Listings
- 3-year limited warranty (components)
- UL 924 & cUL certified; meets NFPA 101 and NEC
Compliance notes
- Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
