Home » Exit Signs » Wet Location Exit Signs » Vandal-Resistant Wet-Location LED Exit Sign
Vandal-resistant LED exit sign – front view with cast aluminum housing and red letters

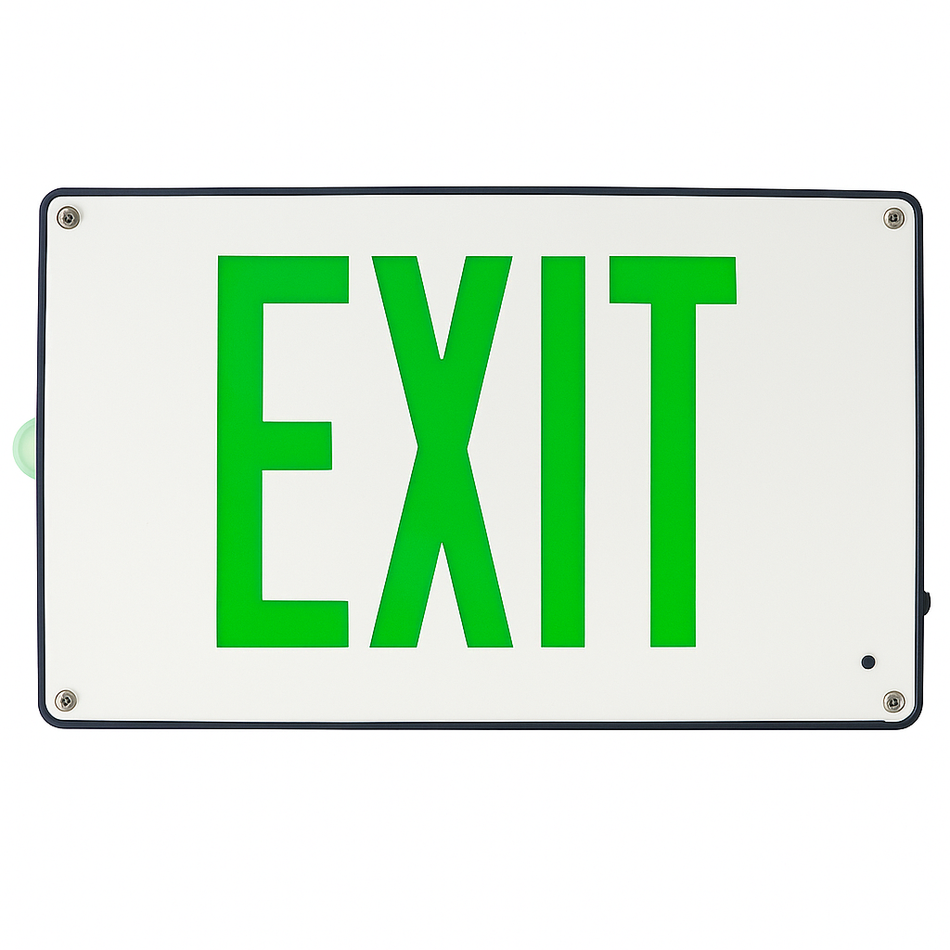

Vandal-resistant LED exit sign – front view with cast aluminum housing and green letters

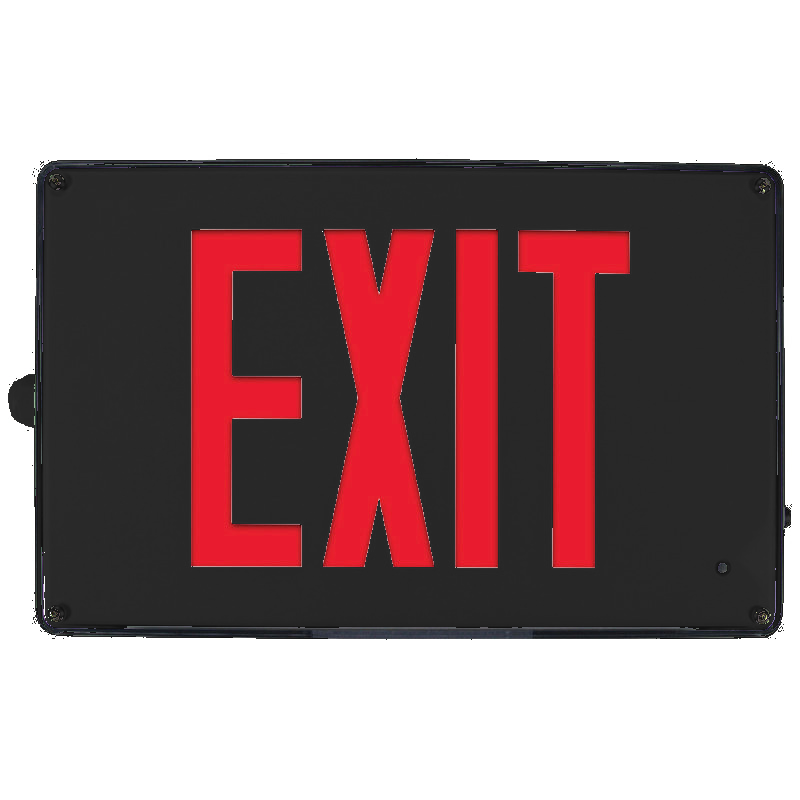

NAV vandal-resistant wet-location LED exit sign with red letters and black finish

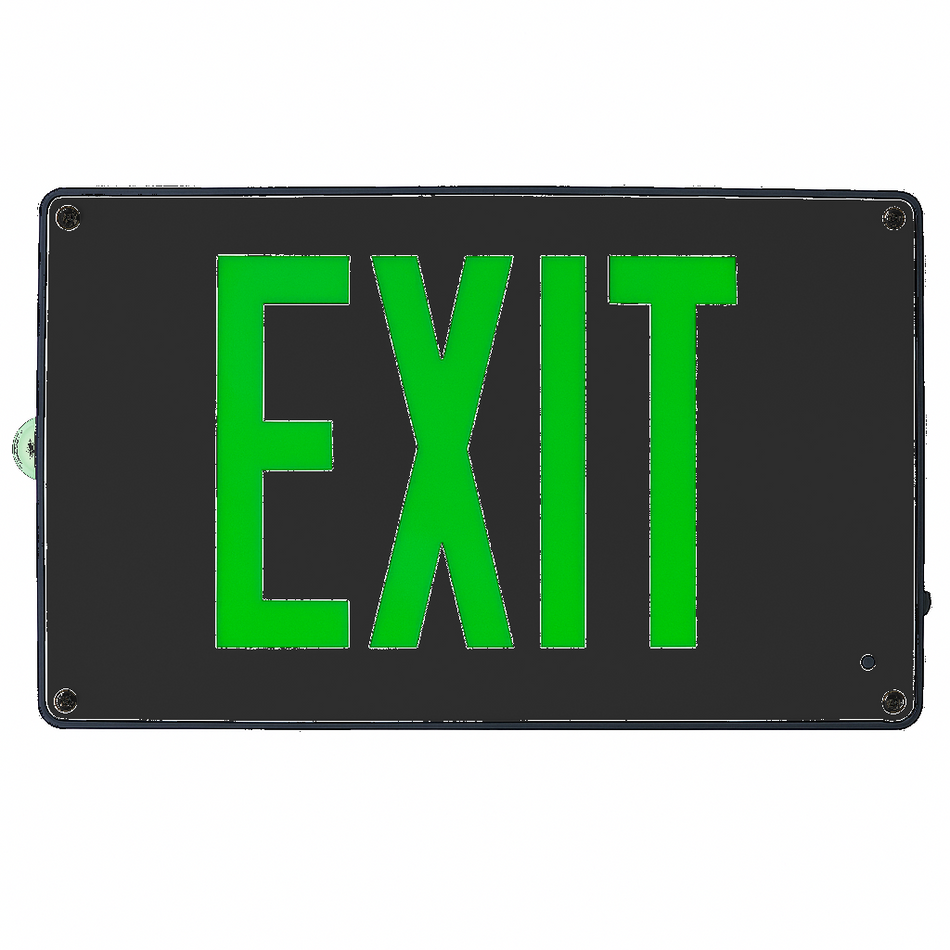

NAV vandal-resistant wet-location LED exit sign with green letters and black finish
Vandal-resistant LED exit sign – front view with cast aluminum housing and red letters
Vandal-resistant LED exit sign – front view with cast aluminum housing and green letters
NAV vandal-resistant wet-location LED exit sign with red letters and black finish
NAV vandal-resistant wet-location LED exit sign with green letters and black finish

Vandal-Resistant Wet-Location LED Exit Sign

SKU: NAV-LB-R-1-W
$336.53

Got questions?

Give us a call 800-847-1955!

Vandal-Resistant Wet-Location LED Exit Sign

The NAV Series Vandal-Resistant Wet-Location LED Exit is engineered for harsh, high-abuse environments—correctional facilities, food service areas, transit stations, and hose-down locations. Compare wet-location exit signs and outdoor exit sign combos for broader coverage. A 0.42" thick cast-aluminum housing pairs with a recessed 1/8" polycarbonate lens, tamper-resistant hardware, and IP66 / NSF splash-zone compliance. Guardian™ G2 self-test diagnostics are standard. Models include AC-only ( LB ) and Ni-Cd battery ( NC ) with up to 120-minute emergency runtime ( TF option).

Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.

Buying support

Product details and buying checks

Review specs, documents, buying checks, compatible products, and FAQs before ordering.

  • UL 924
  • IP66 / Wet Location
  • NSF Splash-Zone
  • Tamper Resistant
  • Cast Aluminum
  • 120/277 VAC
  • Battery Backup
  • 120 min (opt.)
  • Cold Weather (opt.)
  • Universal Mount

Key features

  • 0.42" cast-aluminum housing with recessed 1/8" polycarbonate lens and tamper-resistant fasteners.
  • IP66 sealed for hose-down; NSF/ANSI 2 splash-zone compliant.
  • Guardian™ G2 self-test diagnostics included standard.
  • LB AC-only; NC Ni-Cd battery with 90-minute backup; TF extends to 120 minutes .
  • Heater options IH1 / IH2 for cold environments down to -20 °C (-4 °F).
  • Universal bracket supports ceiling , wall , and end mount .
  • Field-selectable chevrons concealed behind the tamper-resistant lens.
Product family Exit Signs
SKU NAV-LB-R-1-W
Listing UL 924
Runtime/service 90-minute backup; TF extends to 120 minutes
Environment IP66 sealed for hose-down; NSF/ANSI 2 splash-zone compliant
Power led for hose-down; NSF/ANSI 2 splash-zone compliant

Documents

Related Exit Sign Guides

Exit Signs for Outdoor/Wet Areas Vandal-Resistant Options

Spec Sheet

Download NAV Vandal-Resistant Exit Sign Spec Sheet (PDF)

Illumination
  • Red or green high-intensity LEDs provide uniform legend illumination.
  • 6" EXIT letters with 3/4" stroke meet or exceed UL 924 requirements.
  • Field-selectable chevrons hidden behind tamper-resistant exit sign lens.
Electrical
  • Dual-voltage 120/277 VAC , 50/60 Hz input.
  • LB – AC-only • NC – Ni-Cd battery with 90-minute backup.
  • TF option provides 120-minute extended runtime.
  • Low-voltage disconnect, overload protection, solid-state charger.
  • Guardian™ G2 self-diagnostics system included standard.
Mounting
  • Universal bracket and hardware for wall , ceiling , or end mount .
  • Pre-drilled conduit entry hubs on top and sides.
Housing / Finish
  • 0.42" cast-aluminum housing with recessed 1/8" UV-stabilized polycarbonate lens.
  • TGIC powder-coated finish in black ( B ) or white ( W ).
  • Fully sealed and tamper-resistant for hose-down and vandal-prone areas.
Options
  • TF – 120-minute Ni-Cd battery (extends emergency runtime).
  • IH1 / IH2 – Internal heater for cold environments down to -20 °C (120 V / 277 V).
  • 2CI1 / 2CI7 – Dual-circuit input for AC-only models.
Warranty / Listings
  • 5-year warranty on housing and electronics; Ni-Cd battery 5-year prorated.
  • UL 924 listed; NFPA 101, NEC, CEC, ARRA & BAA compliant.
  • IP66 rated for wet / hose-down locations; NSF/ANSI 2 splash-zone certified.
Dimensions
  • 14" W × 10" H × 4" D (see spec sheet for detailed drawing)
Compliance notes
  • Confirm final fixture placement, runtime, and local AHJ acceptance for the project.
  • Verify the selected model is rated for the final environment before ordering.
