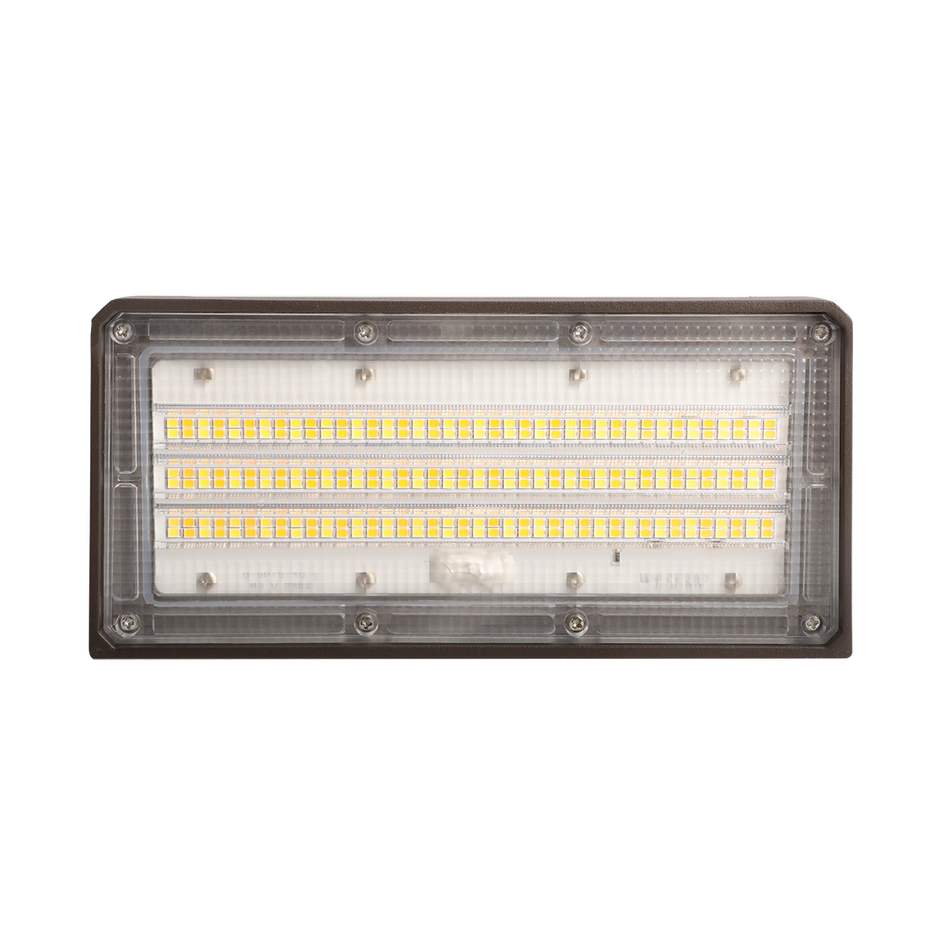

LED array with multi-row diode configuration behind a clear polycarbonate lens on wall pack fixture
Adjustable LED wall pack with bronze housing and 90-degree tilt head for directional lighting
LED array with multi-row diode configuration behind a clear polycarbonate lens on wall pack fixture

Adjustable LED Wall Pack – Selectable Wattage & Color Temp | Up to 10,700 Lumens

SKU: WPA-5L-LKFS
$93.44

Got questions?

Give us a call 800-847-1955!

Adjustable LED Wall Pack – Selectable Wattage & Color Temp | Up to 10,700 Lumens

The WPA-LKFS Adjustable Wall Pack offers flexible performance with field-selectable lumen outputs and color temperatures (3000K, 4000K, and 5000K). Available in 5,000 and 10,000 nominal lumen models, this fixture features a durable die-cast aluminum housing, IP65 rating, 0–10V dimming, and up to 154 lumens per watt. Its tilt-adjustable head and DLC Premium listing make it ideal for new construction and retrofit outdoor wall lighting applications. For broader perimeter coverage, explore our wall pack lights.

3 CCT Select Selectable Output Up to 10,700 lm IP65 Wet 0–10V Dimming 120–277V DLC Premium UL Listed Adjustable Head 4kV Surge

Key Features

  • Field-selectable CCT: 3000K / 4000K / 5000K
  • Selectable output (3 levels); up to 10,700 lm and 154 lm/W
  • Tilt-adjustable head to 90° for precise aiming
  • 0–10V dimming; universal 120–277 VAC input
  • Rated IP65; UL Wet Location; DLC Premium
  • Electrical: 4kV surge; PF > 0.90; THD < 20%
  • Durable die-cast aluminum housing (bronze) with polycarbonate lens
  • Three ½" NPT threaded openings for wiring/accessories
  • CRI 80; Type V / NEMA 7x7 distribution
  • Wall surface mount—ideal for retrofit or new installations

WPA Wall Pack Spec Sheet Icon Download Adjustable Wall Pack Spec Sheet (PDF)

Illumination

  • 5L Model: 3,044 to 5,084 lumens
  • 10L Model: 6,536 to 10,734 lumens
  • Up to 154 lumens per watt depending on CCT and setting
  • Color rendering index (CRI) = 80

Electrical

  • Universal input: 120–277 VAC, 50/60 Hz
  • 0–10V dimming driver standard
  • Power factor > 0.90 | THD < 20%
  • Surge protection: 4kV

Mounting / Construction

  • Adjustable head with 3x ½" NPT threaded openings
  • Surface mounts to wall – ideal for retrofits or new installs
  • Bronze powder-coated aluminum housing
  • 5L Model: 6.5" L × 4" W × 8" H (3 lbs)
  • 10L Model: 8.5" L × 5" W × 11" H (5 lbs)

Listings / Warranty

  • UL Listed for Wet Locations
  • DLC Premium approved
  • FCC Part 15 Class B compliant
  • IP65 rated for dust/water ingress
  • 5-year warranty on electronics and housing

Frequently Asked Questions

What are the selectable options?

Each unit allows switching between 3000K / 4000K / 5000K and 3 lumen levels, ranging up to 10,700 lm depending on model.

Is this fixture dimmable?

Yes. It comes with 0–10V dimming standard for use with compatible controls.

Can it be installed outdoors?

Yes. The fixture is IP65 rated, UL listed for wet locations, and includes 4kV surge protection.

How does the adjustable head work?

The fixture housing tilts up to 90° to direct light where needed. Ideal for perimeter lighting and pathways.

Is this DLC listed for rebates?

Yes. Both wattage classes (5L, 10L) are DLC Premium listed to maximize energy rebate eligibility.
