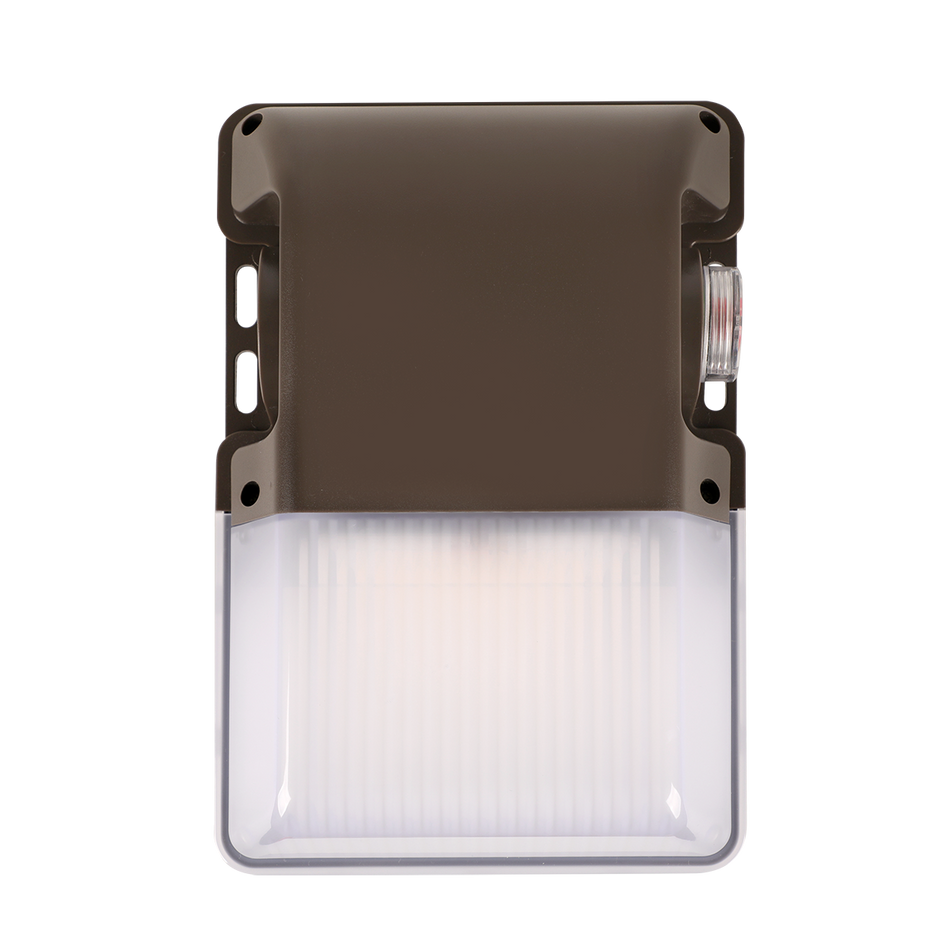

Economy LED wall pack with ribbed polycarbonate lens and low-profile housing, wet-location rated

Economy LED Wall Pack – Selectable Wattage & Color Temp | Up to 3,325 Lumens

SKU: WPE-3L-LKFS
$63.36

Got questions?

Give us a call 800-847-1955!

Economy LED Wall Pack – Selectable Wattage & Color Temp | Up to 3,325 Lumens

The WPE-LKFS Economy Wall Pack offers an affordable and energy-efficient lighting solution with selectable color temperatures and field-adjustable lumen output. With up to 3,325 lumens and a CRI over 80, this compact wall pack features an integral photocell, 0–10V dimming, and durable IP65-rated construction. Ideal for security lighting, perimeters, entrances, and general wall-mount exterior applications.

3 CCT Select Selectable Output Up to 3,325 lm Photocell D2D IP65 Wet 0–10V Dimming 120–277V DLC Premium UL Listed 4kV Surge

Key Features

  • Kelvin selectable: 3000K / 4000K / 5000K
  • Field-tunable output: 1,939–3,325 lm; up to 145 lm/W
  • Integral photocell for dusk-to-dawn operation
  • 0–10V dimming; universal 120–277 VAC input
  • Rated IP65; UL Wet Location; DLC Premium
  • Electrical: 4kV surge; PF > 0.90; THD < 20%
  • Bronze, powder-coated die-cast housing; diffused polycarbonate lens
  • Easy wall surface mount; ½" NPT threaded opening for conduit
  • Compact size: 9" H × 6" W × 2.5" D; weight 1.5 lb
  • Compliance: FCC Part 15 Class B
  • Warranty: 5-year housing & electronics

Wall Pack Spec Sheet Icon Download Wall Pack Spec Sheet (PDF)

Illumination

  • Lumen range: 1,939 lm (low) to 3,325 lm (high)
  • Efficacy: 126–145 LPW depending on setting
  • L70 > 156,000 hours | L90 > 47,000 hours

Electrical

  • 120–277 VAC input (50/60 Hz)
  • 0–10V dimming driver standard
  • Power factor > 0.90; THD < 20%
  • 4kV surge protection

Mounting / Dimensions

  • Easy surface mount installation
  • One ½" NPT threaded opening for conduit
  • Dimensions: 9" H × 6" W × 2.5" D
  • Weight: 1.5 lbs

Compliance & Warranty

  • UL Listed for wet locations
  • DLC Premium Qualified
  • FCC Part 15, Class B compliant
  • IP65 rated for water and dust protection
  • 5-year warranty on electronics and housing

Frequently Asked Questions

What does “LKFS” mean?

It stands for Lumen & Kelvin Field Selectable, meaning both output and color temperature can be adjusted on site.

Is this fixture DLC approved?

Yes, it is DLC Premium Qualified, which may make it eligible for utility rebates.

How do I adjust the light level or color?

Internal dip switches allow easy selection of light output and color temperature before or during installation.

Is this fixture suitable for outdoor use?

Yes. It is UL Listed for wet locations and rated IP65 for harsh environments.

What’s included with the fixture?

The unit includes an integrated photocell, field-selectable dip switches, and is ready for wall-mount installation.
