Full Cutoff LED Wall Pack – Selectable Lumen & Color Temp | Up to 16,800 Lumens
Regular price
$134.92
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Full Cutoff LED Wall Pack – Selectable Lumen & Color Temp | Up to 16,800 Lumens

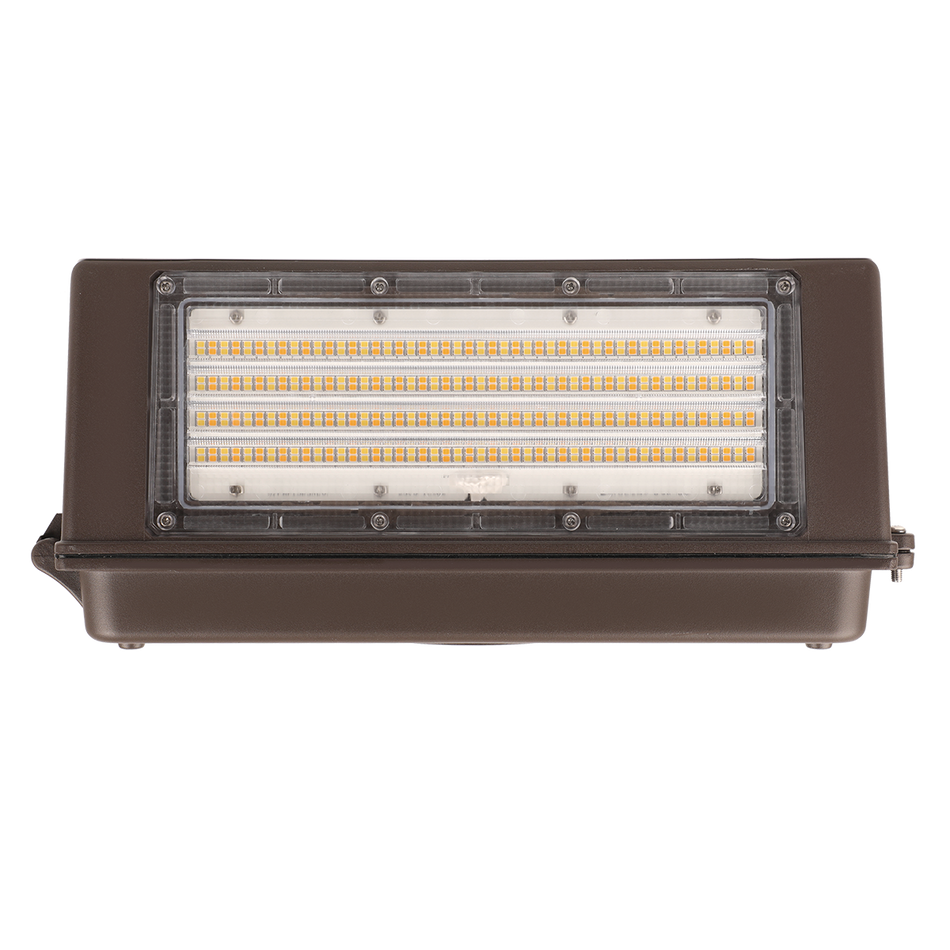

The WPFC-LKFS Full Cutoff Wall Pack provides superior efficiency and field-adjustable flexibility. Choose between three lumen outputs and color temperatures—3000K, 4000K, or 5000K—at the time of installation. Designed for energy-saving wall-mount applications, this fixture is available in 8,000 and 15,000 lumen packages and features 0–10V dimming, a polycarbonate lens, and rugged IP65-rated aluminum housing. DLC Premium listed and wet-location rated for year-round reliability. For broader perimeter coverage, explore our wall pack lights .
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- 3 CCT Select
- Selectable Output
- Up to 16,800 lm
- IP65 Wet
- 0–10V Dimming
- 120–277V
- DLC Premium
- UL Listed
- Photocell (Opt.)
- 4kV Surge
Key features
- Field-selectable CCT: 3000K / 4000K / 5000K
- Selectable output: 5,200–16,800 lm (8L/15L models)
- 0–10V dimming; universal 120–277 VAC input
- Full-cutoff optic; bronze die-cast aluminum housing + polycarbonate lens
- Efficacy up to 161 lm/W ; CRI > 80
- Rated IP65 ; UL Wet Location; DLC Premium listed
- Electrical: 4kV surge; PF > 0.90 ; THD < 20%
- Photocell options: button or pencil (factory)
- Three ½" NPT threaded openings; surface-mount to wall J-box
- Lifetime: L70 > 136,000 hrs ; L90 > 41,000 hrs
- 5-year warranty on housing & electronics
Documents
Full Cutoff LED Wall Pack – Selectable Lumen & Color Temp | Up to 16,800 Lumens
The WPFC-LKFS Full Cutoff Wall Pack provides superior efficiency and field-adjustable flexibility. Choose between three lumen outputs and color temperatures—3000K, 4000K, or 5000K—at the time of installation. Designed for energy-saving wall-mount applications, this fixture is available in 8,000 and 15,000 lumen packages and features 0–10V dimming, a polycarbonate lens, and rugged IP65-rated aluminum housing. DLC Premium listed and wet-location rated for year-round reliability. For broader perimeter coverage, explore our wall pack lights . 3 CCT Select Selectable Output Up to 16,800 lm IP65 Wet 0–10V Dimming 120–277V DLC Premium UL Listed Photocell (Opt.) 4kV Surge
Related Wall Pack Guides
Full-Cutoff Dark-Sky Guide Photometric Layout & Spacing
Spec Sheet
Download Wall Pack Spec Sheet (PDF)
Illumination
- 8L model: 5,251 to 8,552 lumens, 130–161 LPW
- 15L model: 10,352 to 16,848 lumens, 130–159 LPW
- L70 > 136,000 hrs | L90 > 41,000 hrs
- Color rendering index (CRI): > 80
Electrical
- Input Voltage: 120–277 VAC, 50/60 Hz
- Power factor > 0.90 | THD < 20%
- 0–10V dimming and 4kV surge protection
Mounting / Dimensions
- Surface mounts to standard wall junction box
- Three ½" NPT threaded openings
- Dimensions: 14" W × 9" H × 6" D
- Weight: 5 lbs
Compliance & Warranty
- UL Listed for wet locations (-40°F to 113°F)
- DLC Premium listed
- IP65 ingress protection
- FCC Part 15, Class B compliant
- 5-year warranty on electronics and housing
Compliance notes
- Verify the selected model is rated for the final environment before ordering.
