Zero-Uplight LED Wall Pack – Type III/IV, IP65 (IDA 3000K, up to 12,393 lm)
Regular price
$123.37
Couldn't load pickup availability
Got questions?
Give us a call 1-888-959-1965!
Zero-Uplight LED Wall Pack – Type III/IV, IP65 (IDA 3000K, up to 12,393 lm)
The Zero-Uplight LED Wall Pack pairs an architectural low-profile housing with high-performance optics for dark-sky-friendly illumination. Family options span 15W to 100W with 0–10V dimming , delivering up to 12,393 lumens (model dependent). A full cut-off design eliminates uplight for reduced skyglow, while Type III/IV distributions target perimeters and façades. Explore more LED wall pack lights .
Specs, documents, buying checks, accessories, and FAQs are organized below from product fields for easier review.
Buying support
Product details and buying checks
Review specs, documents, buying checks, compatible products, and FAQs before ordering.
- UL 924
- Wet Location
- LED
- emergency
- Outdoor Lighting
Key features

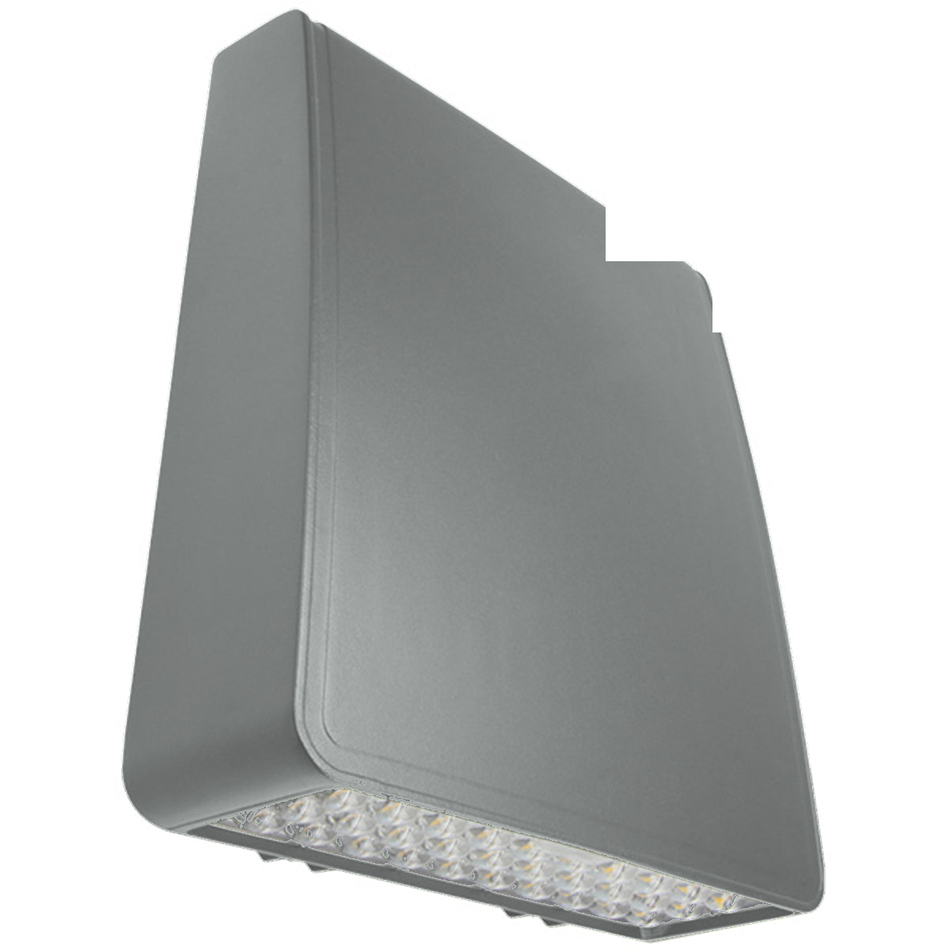

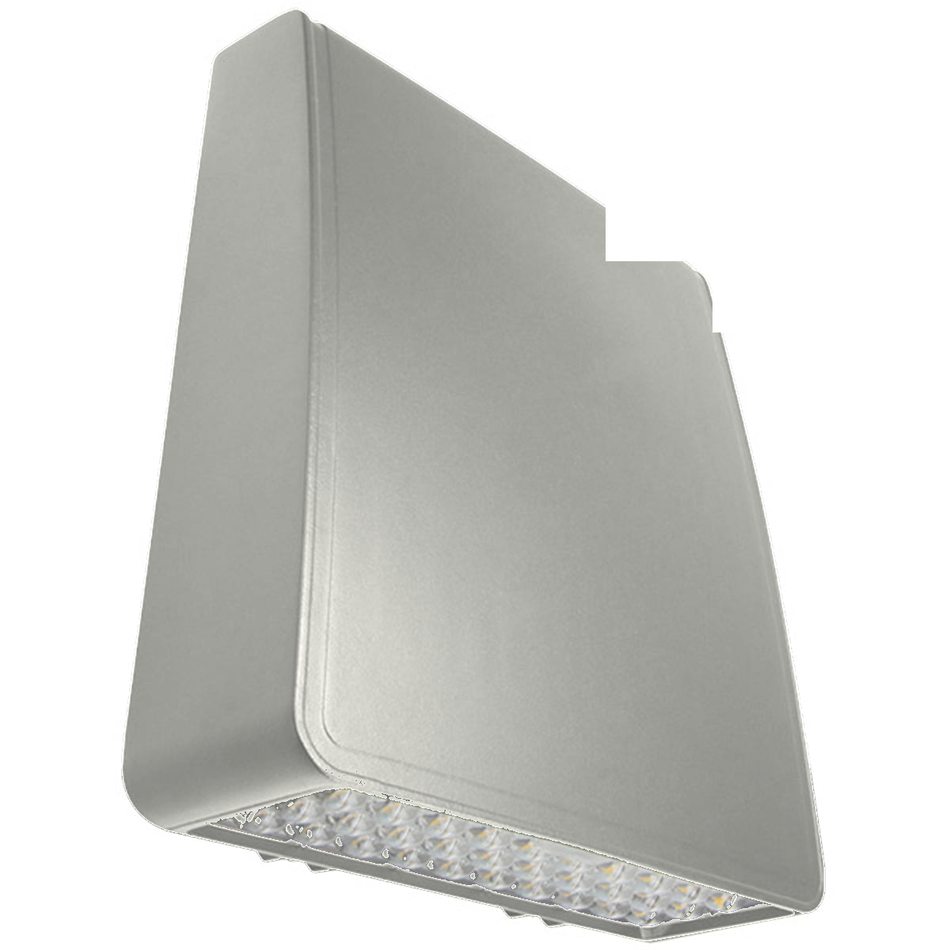

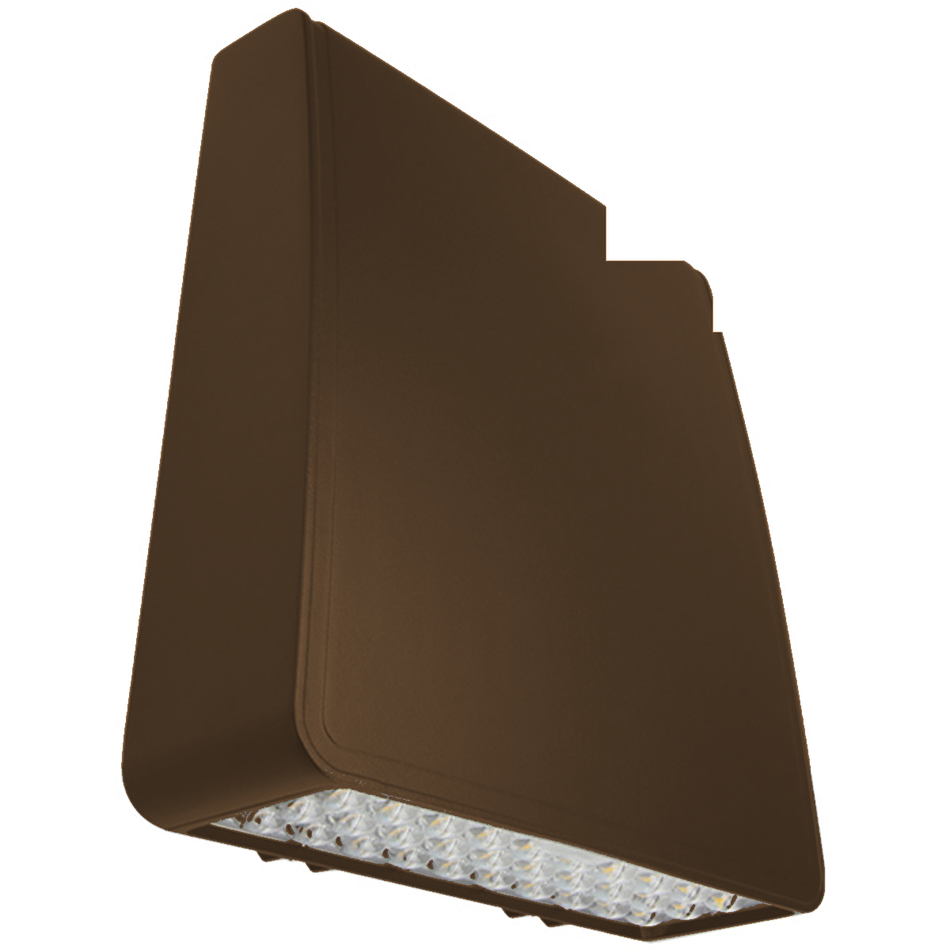

- Architectural low-profile housing in black, bronze, silver, or white
- Zero uplight full cut-off for dark-sky compliance; 3000K models IDA approved
- Family range 15W–100W (up to 12,393 lm ) with 0–10V dimming
- Field-selectable Type III and Type IV distributions
- Options: emergency battery (UL 924), surge protection, Bluetooth-enabled sensors
Documents
Zero Uplight LED Wall Pack – Type III & IV Distributions
The Zero-Uplight LED Wall Pack pairs an architectural low-profile housing with high-performance optics for dark-sky-friendly illumination. Family options span 15W to 100W with 0–10V dimming , delivering up to 12,393 lumens (model dependent). A full cut-off design eliminates uplight for reduced skyglow, while Type III/IV distributions target perimeters and façades. Explore more LED wall pack lights . Zero uplight (full cut-off) Type III / Type IV Up to 12,393 lm IP65 Wet UL 924 EM (opt.) IDA @ 3000K
Related Wall Pack Guides
Full-Cutoff Dark-Sky Guide Photometric Layout & Spacing
Spec Sheet
Download Zero Uplight LED Wall Pack Spec Sheet (PDF)
Illumination
- Output range: 1,745 to 12,393 lumens (model dependent)
- High-efficacy LEDs up to 123 lm/W (5000K models)
- CCT: 3000K / 3500K / 4000K / 5000K
- CRI 70; L70 > 50,000 hrs @ 40°C
Electrical
- 120–277 VAC standard; 347/480V optional on larger units
- Driver: 0–10V dimming (120–277V)
- Options: surge protection (10 kVA) and photocontrol (PC)
Mounting
- Mounts to standard 3.5" or 4" J-box
- Backplate with bubble level and conduit entry; hinged housing for tool-free access
Housing / Finish
- Die-cast aluminum body with UV-resistant polycarbonate lens
- IP65 rated; UL Listed for Wet Locations
Options
- Emergency Battery: 700+ lm for 90 minutes (UL 924; model dependent)
- Cold-location EM: down to -20°C (select models)
- Bluetooth PIR sensor kit (field-installed)
- SP/SPH: Surge protection for 120–277V or 347–480V models
Warranty / Listings
- 5-year limited warranty
- UL Listed for Wet Locations
- IDA Approved at 3000K (dark-sky friendly design)
Compliance notes
- Confirm final fixture placement, runtime, and local code approval for the project.
