When standard output isn’t enough: how to plan, specify, and install high-output emergency lights for large, tall, or complex spaces—while still meeting emergency lighting lumen requirements (and avoiding overbuilding).
What Are High-Lumen Emergency Lights?

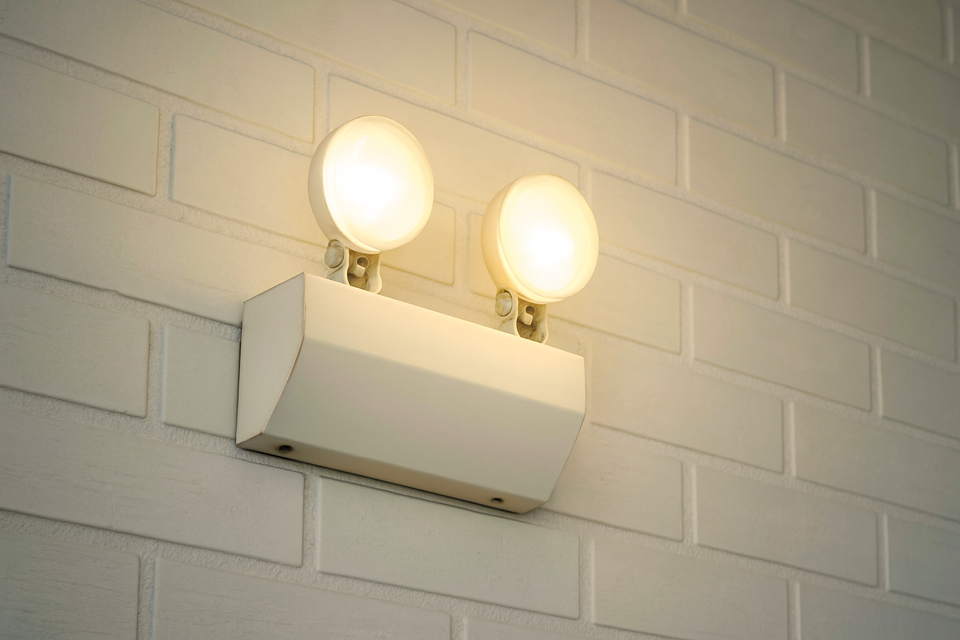

High-lumen emergency lights are battery-backed fixtures engineered to deliver significantly more brightness than economy models, so they can cover larger footprints or work from higher mounting heights while still meeting egress code. Where a typical unit might output a few hundred lumens total, high-output models commonly deliver ~600–2,000+ lumens per fixture (model-dependent), using higher-power LEDs, tuned optics, and a larger battery system to sustain the required 90-minute operation.
Important nuance: most “emergency lighting lumen requirements” questions are really about illuminance on the walking surface (foot-candles/lux). Lumens are the tool you choose—along with optics, spacing, and mounting height—to hit the target levels where people actually walk.
They retain familiar features—universal 120/277 VAC input, dual adjustable heads, status LED, and test switch—but add performance where standard output falls short (tall bays, long throws, wide rooms). Think of them as the “fewer fixtures, greater reach” option for challenging layouts.
When to Use High-Output vs Standard
- High ceilings (≈15–30 ft+): From elevated mounting, standard beams thin out before reaching the floor. High-output units maintain usable egress illumination levels from height.
- Large open areas: Convention floors, warehouses, hangars, gyms—use wider spacing with fewer fixtures while keeping average and minimum illuminance in spec.
- Long corridors & aisles: Throw light farther down linear paths to avoid installing a unit every 15–20 ft.
- Fixture minimization: Reduce visual clutter and maintenance points (fewer batteries to test/replace) while staying compliant.
- Stricter local requirements: Where the baseline foot-candle requirements are harder to achieve (or locally amended upward), higher output helps you hit the mark without dense spacing.
Rule of thumb: If one standard unit would need to cover more than a ~20 ft radius (or ~40 ft corridor span), or your mounting height climbs well beyond typical corridor placements, evaluate high-output models—and verify with photometric spacing data.
Use-Case Walkthroughs
🏭 Warehouse Aisle (30 ft racks, 12 ft wide)
Economy lights would require dense spacing to prevent dim “valleys” between heads. Two high-output fixtures—mounted high and aimed down each direction—can blanket a 100+ ft aisle, cutting fixture count and simplifying wiring. Verify with end-of-run meter checks and adjust aim for more uniform light on the floor.
🏟️ School Gym (≈25 ft ceiling)
Door-adjacent wall units leave the center court underlit. Swapping in two high-output fixtures on opposing walls (aimed to cross-fill) improves average and minimum levels across the floor with minimal visual impact and fewer batteries to service.
Optics & Aiming
- Beam type: Choose flood for wide areas; spot/narrow for throw distance; or corridor/aisle optics to project along paths.
- Distribution: Symmetric patterns spread in all directions; asymmetric beams push light forward where you need it most.
- Aiming/lock-down: Precisely set both heads, overlap beams slightly, and tighten set-screws to prevent drift.
- Glare management: In glossy spaces, avoid steep straight-down “hot spots”; use angle and asymmetric optics to wash floors more evenly.
Well-aimed 1,000 lm can outperform poorly aimed 2,000 lm. Use manufacturer photometrics (IES files / spacing charts) whenever available.
Battery Capacity & 90-Minute Runtime
- Right-size the pack: High output draws more watts—confirm the nameplate supports 90 min at the selected setting.
- Chemistry & environment: Ni-Cd/Li-ion/LiFePO4 are common; check ratings for cold/hot locations and recharge to full within 24 hrs (UL 924).
- Remote-capable variants: Some high-output hosts power remote heads—sum the host heads + all remotes and leave margin for aging/temperature.
- Self-diagnostics: Consider auto test (monthly/annual) for high mounts; ensure status LED/test access at service height.
Planning to extend coverage with remotes? See the Remote Heads Guide for voltage matching, wire sizing, and distance tips.
Spacing, Coverage & Mounting Height
- Use spacing charts: Rely on manufacturer photometrics for mounting-height-specific coverage.
- Mounting height: “High-bay” units shine at ≈15–30 ft; too low wastes spread, too high thins floor levels—stay within recommended ranges.
- Overlap safety: Maintain slight beam overlap so no egress point dips below minimums.
- Special geometries: Combine one high-output center fixture with remotes or perimeter fills as needed; verify with on-site meter tests.
- Commissioning: After aim, perform lights-out floor readings at start and near 90 min to validate uniformity and runtime.
Quick reality check on “emergency lighting lumen requirements”: codes typically don’t mandate a specific lumen number. They set foot-candle / lux requirements along the path of egress at the floor, plus basic uniformity expectations. That’s why the same “1,000-lumen” fixture can be perfect in one space and fail in another—mounting height, optics, reflectance, and spacing change what actually reaches the walking surface.
FAQ
What are the emergency lighting lumen requirements?
Most requirements are written in foot-candles (fc) / lux on the egress path at the floor—not a fixed lumen output. Lumens are what the fixture produces; foot-candles are what people receive on the walking surface. Use photometrics and spacing to hit the target levels (and keep minimums from dipping between fixtures).
How many lumens qualify as “high-lumen” for emergency lights?
There’s no universal code definition, but ≈600 lm total and up is a practical threshold. Many high-output models land in the ~600–2,000+ lm range per fixture.
One high-output fixture vs several standard units—which is better?
Often one high-output fixture is more efficient (fewer devices, batteries, penetrations). Where redundancy is critical, use overlapping placements and validate minimum levels on the floor.
Can I upgrade existing units to be “high-output”?
Not meaningfully. Emergency lights are listed as complete systems. Replace with purpose-built high-output models for real gains.
Do high-output units change maintenance?
Routine is the same (monthly/annual tests). Self-diagnostics help for high mounts. You’ll likely maintain fewer fixtures overall.
Can they power remote heads, too?
Some can. Match voltage, sum total watts (host + remotes), account for wire length/voltage drop, and keep 90-minute capacity intact.
