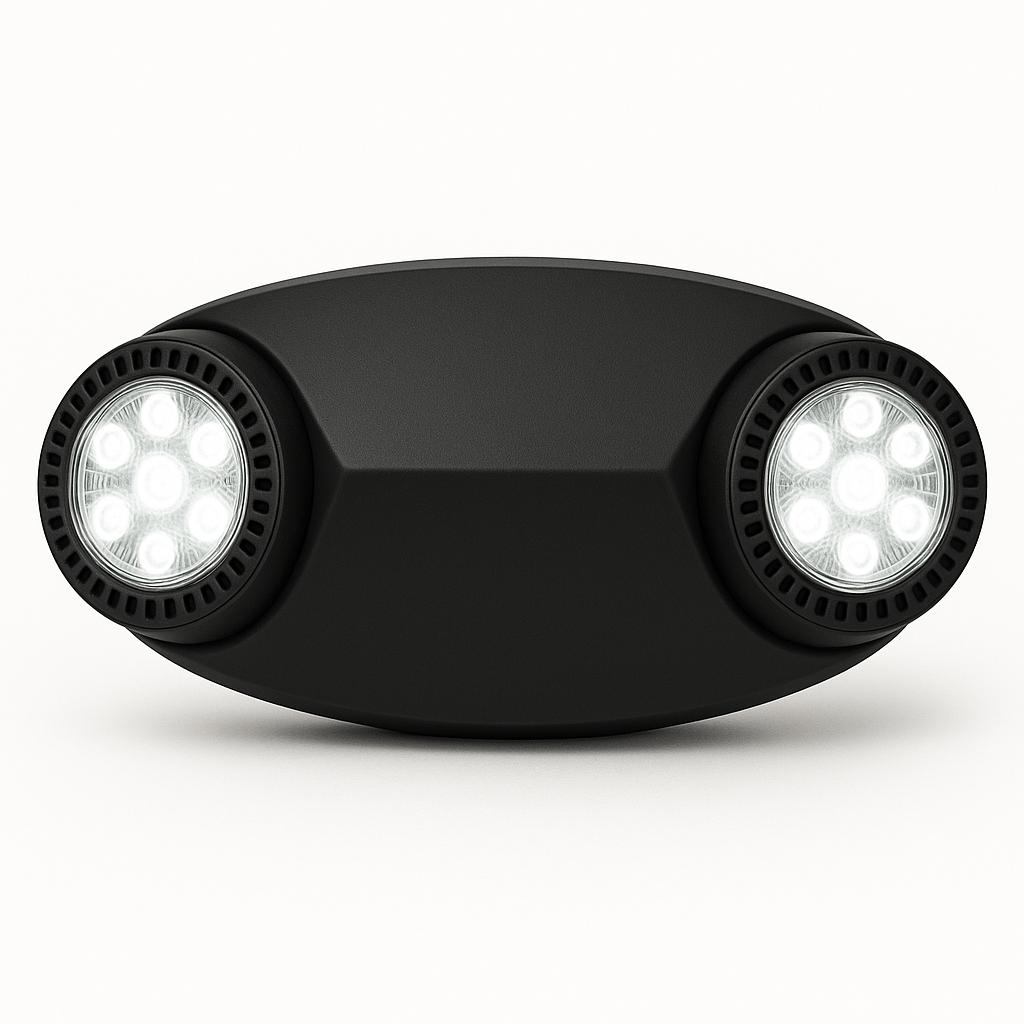

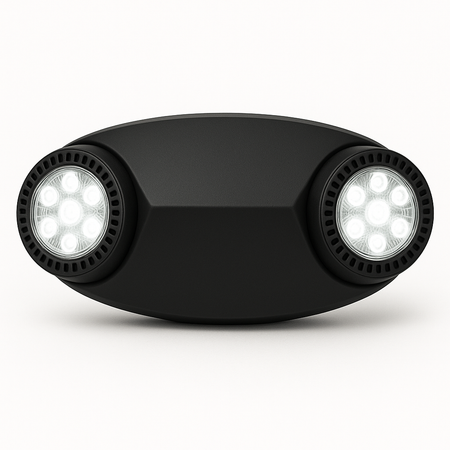

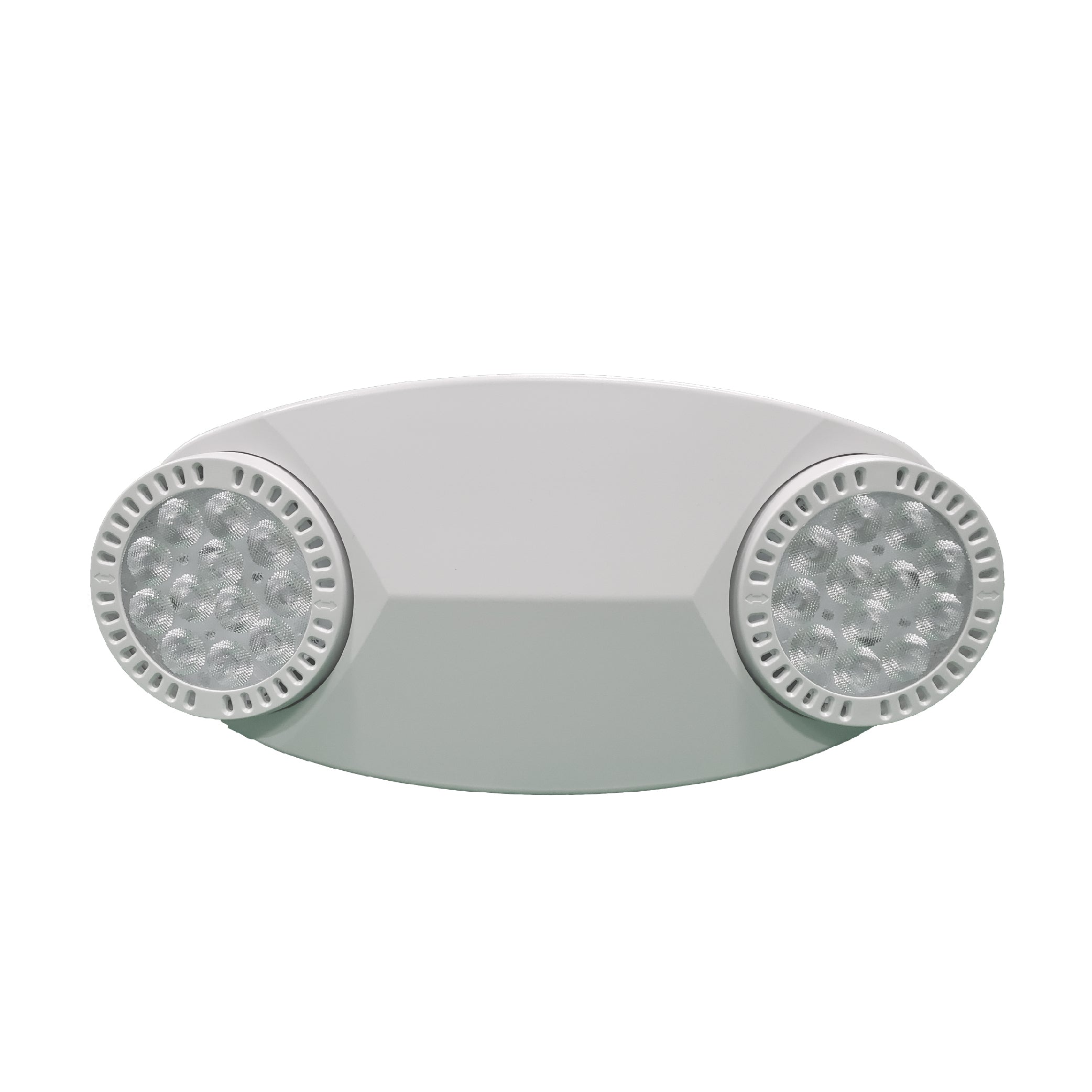

High Performance LED Emergency Light Thermoplastic Unit

HPEM Series – Long-Spacing Emergency Light with Remote-Capacity Output

Download HPEM Emergency Light Spec Sheet (PDF)

The HPEM High-Performance LED Emergency Unit delivers up to 100 ft center-to-center egress coverage from two powerful 5 W LED heads. Its LiFePO₄ battery ensures extended battery life, while integrated remote-capacity output makes it an ideal solution for commercial interiors or damp locations requiring long-spacing performance.

Illumination

• Two 5 W LED lamp-heads (12 LEDs × 0.42 W) with chrome-plated reflectors
• Up to 100 ft spacing on a 3 ft path at 7.5 ft mounting height

Electrical

• 120–277 VAC input with push-to-test switch & bi-color LED status indicator
• 9.6 V lithium iron phosphate (LiFePO₄) battery with 90-minute runtime
• 3 W remote-capacity output (supports RH16LED, SRHLED heads)
• Solid-state transfer switch with two-rate smart charger (24 h full recharge)
• Input: 4.5 W | 0.06 A @ 120–277 V

Mounting

• Universal knockout backplate for standard wall or ceiling surface mount
• Side and top conduit knockouts for alternate wiring

Housing

• Injection-molded 5 VA flame-retardant thermoplastic (white or black finish)

Options

• SDT — Self-diagnostic test cycle: monthly, semiannual, and annual

Warranty / Listings

• 5-year warranty on housing & electronics; battery prorated 5 years
• UL 924 listed for damp locations (0 °C – 50 °C)
• Meets NFPA 101, NEC, OSHA, and CEC Title 20

Dimensions

• 12 ¼ in W × 5 ¾ in H × 3 3/16 in D

Frequently Asked Questions

What is the maximum spacing the HPEM can achieve?

The HPEM can provide up to 100 feet of center-to-center spacing on a 3 ft egress path at 7.5 ft mounting height—ideal for wide coverage areas.

Does this unit include battery backup?

Yes. It features a 9.6 V LiFePO₄ battery that delivers 90 minutes of emergency illumination and offers a longer service life than Ni-Cd options.

Can the HPEM support remote heads?

Yes. The HPEM includes a built-in 3 W remote-capacity output, compatible with RH16LED and SRHLED remote head families.

Is the unit suitable for damp or wet locations?

The unit is UL 924 listed for damp locations (0 °C – 50 °C), but not rated for wet or hose-down environments.

What type of mounting is supported?

It supports wall or ceiling surface mounting via a universal knockout backplate, with conduit entry options from the side or top.

Product Features

• Battery Backup
• Brand: Best Lighting
• Damp Location
• Housing Color: Black
• Housing Color: White
• LED
• Low Profile
• Product: HPEM
• Remote Capable
• Self Testing
• Thermoplastic
• Emergency Lights
• Wet Location
