This long-form resource explains what a Recessed Edge-Lit Aluminum Exit Sign is, where it fits best, how to install it cleanly in ceilings, and the exact specs code officials check for. Written in plain English for contractors, architects, and code inspectors. Explore more models in our Edge-Lit Exit Signs collection.
Last updated: August 2025
Quick Picks
What it is
- Recessed Edge-Lit Aluminum Exit Sign with clear/mirror/white acrylic panel that “floats” the EXIT legend.
- Red or Green LED letters; single- or double-face; 6" letters with 3/4" stroke.
- UL 924 listed, damp-location rated, Title 20 compliant; EM versions provide ~90-minute backup.
Where it shines
- Upscale interiors: lobbies, corridors, retail, hospitality—keep ceilings clean and modern.
- Healthcare/office: even illumination, low profile, easy testing via push-to-test.
- Ceiling-first jobs: recess in drywall or T-bar using the included bar hangers.
Shop variants fast

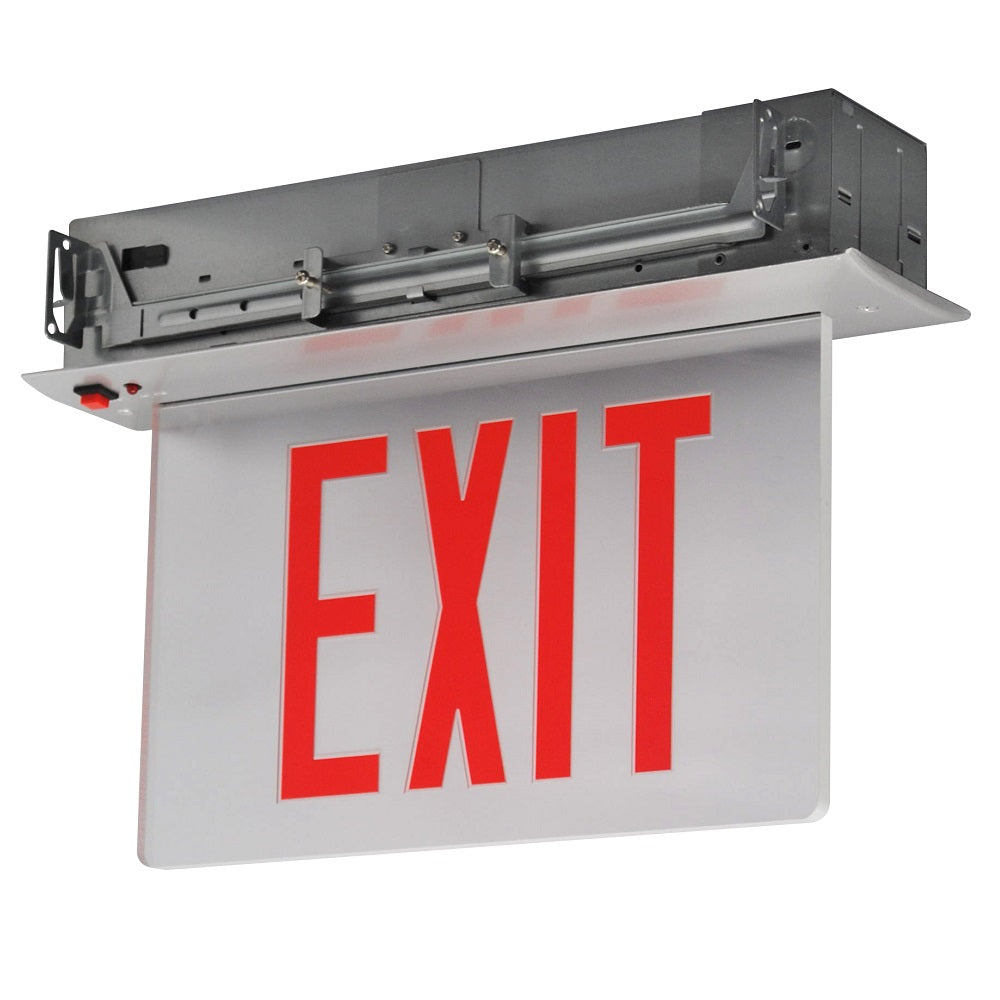

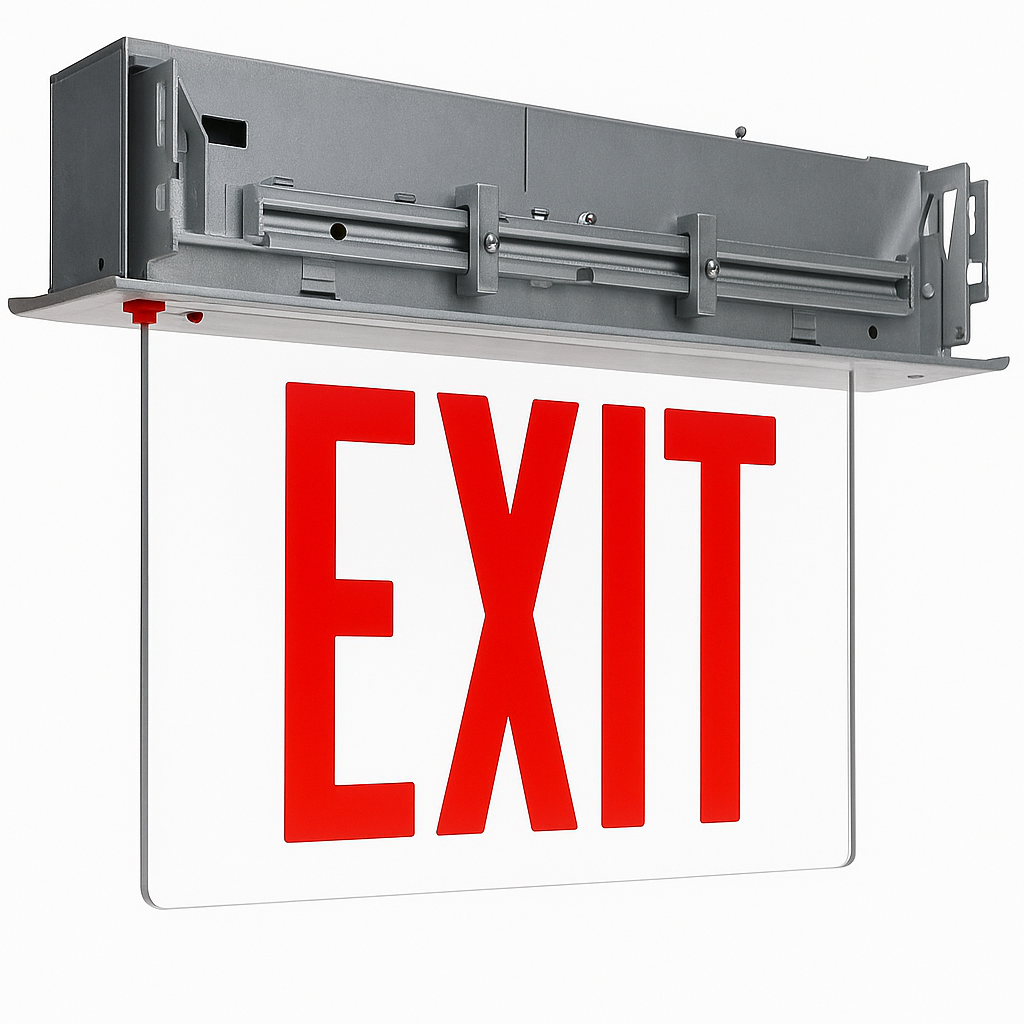

- Single-face (Red) — Clear panel · Mirror panel · White panel

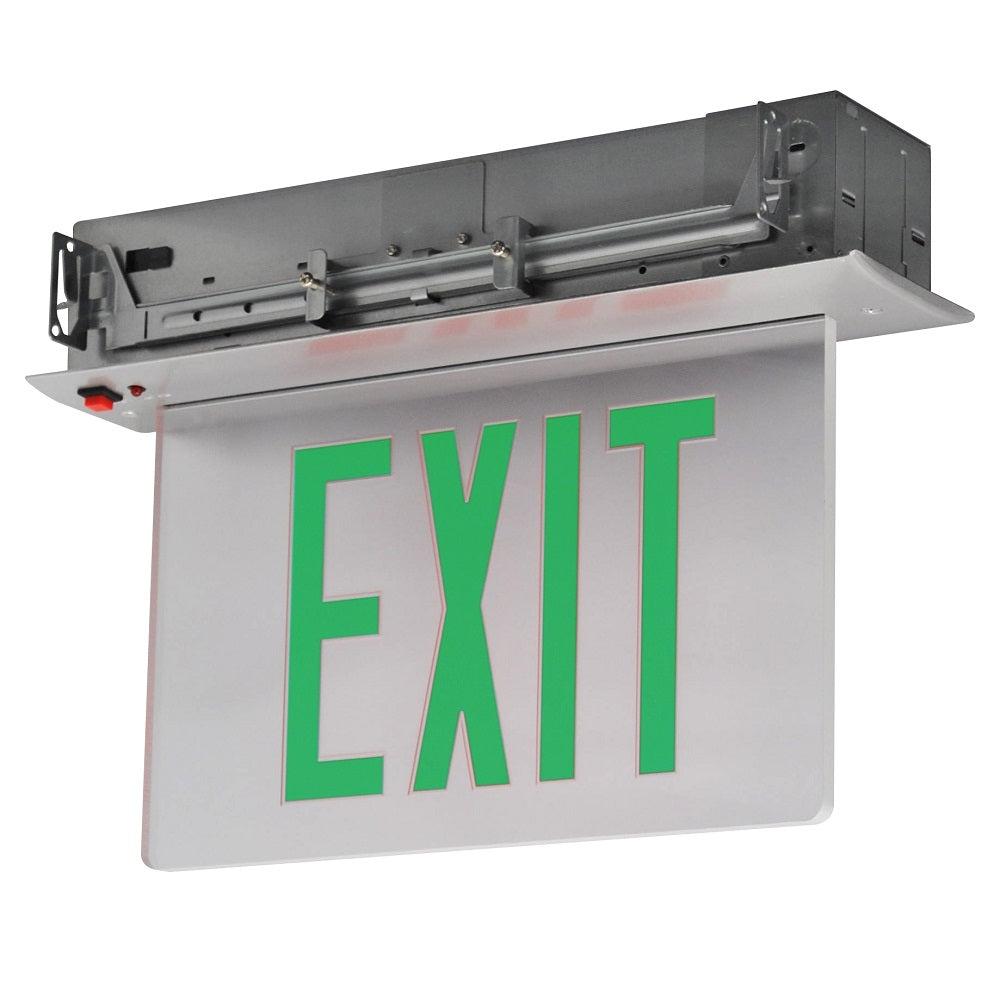

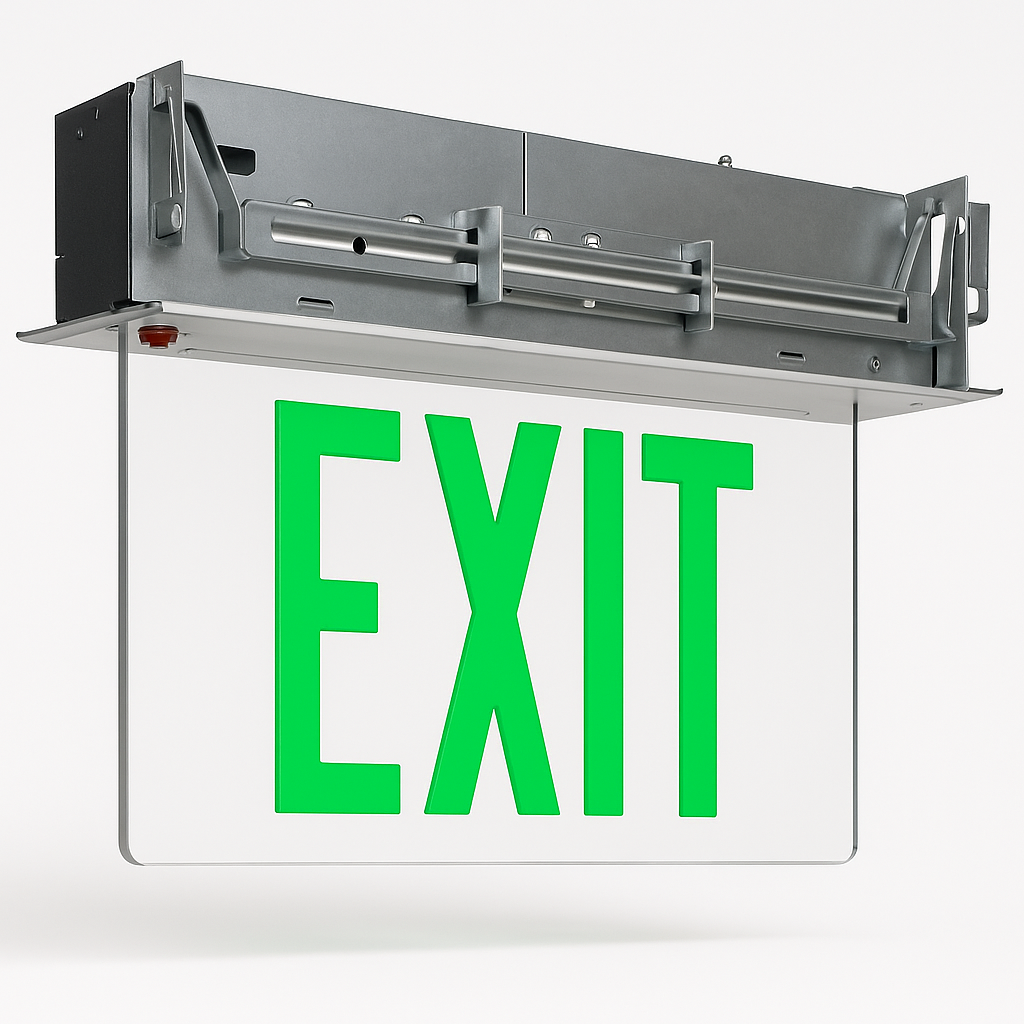

- Single-face (Green) — Clear panel · Mirror panel · White panel
- Double-face (Red) — Mirror panel · White panel
- Double-face (Green) — Mirror panel · White panel
Overview: Recessed Edge-Lit Aluminum Exit Sign
Recessed edge-lit signs tuck the housing above the ceiling and illuminate a laser-etched acrylic panel from the edge. You get a crisp, even EXIT legend that appears to float, a slim metal trim at the surface, and none of the bulk of surface-mount boxes. Aluminum construction keeps it light, rigid, and architectural.
Illumination & Panel Choices
- Red or Green LED letters with long life and low energy draw.
- Panel options: clear (most transparent), mirror (bright/reflective), or white (frosted look).
- Single- or double-face; double-face uses a factory mylar backer for equal brightness on both sides.
- Chevron arrows (self-adhesive) and a template are included for clean alignment onsite.
Electrical & Battery Backup
- Dual-voltage input 120/277 VAC; push-to-test and bi-color status LED.
- EM models include a 4.8 V Ni-Cd pack with ≈90-minute emergency runtime; charger restores within ~24 hours.
- Solid-state transfer for instant switchover—no flicker when power drops.
- SPV option accepts 208/220/240 VAC (50/60 Hz) when required.
- Dual-circuit (2C-120/2C-277) available on AC-only units for special power schemes.

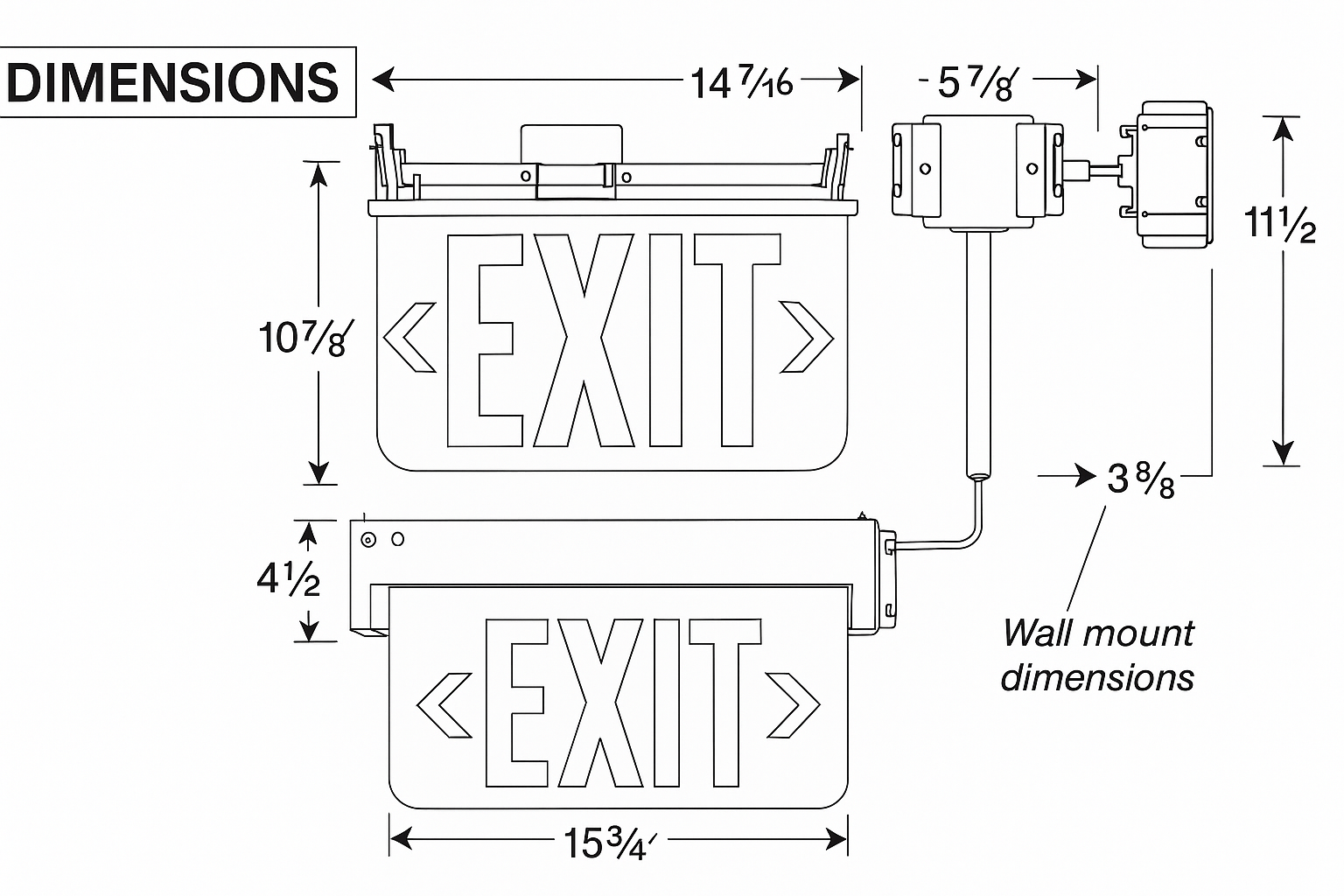

Mounting & Trim
- Ceiling recess in drywall or T-bar; bar hangers included for easy placement.
- Detachable trim allows below-ceiling servicing of battery/electronics.
- Finishes: natural aluminum, white, or black powder-coat.
- WM (wall recess) option for corridors that require wall-mounted EXITs.
Code Compliance & Listings
- UL 924 listed for emergency egress; damp-location rated (typ. 0–50 °C).
- Meets NFPA 101, NEC, and OSHA requirements for EXIT signs.
- CEC Title 20 compliant for efficiency.
- Standard characters: 6" height, 3/4" stroke for legibility.
Compare: Recessed vs Alternatives
| Type | Best For | Look & Profile | Install Notes | Watch-outs |
|---|---|---|---|---|
| Recessed Edge-Lit (Aluminum) | Premium interiors; clean ceilings | Floating panel; minimal trim | Requires ceiling cavity; bar hangers included | Cut-out & grid alignment matter |
| Surface Edge-Lit (Thermoplastic) | Value installs; fast retrofit | Slim box + clear panel | Universal canopy; wall/ceiling/end | Visible housing |
| Architectural Surface (Metal) | Design-driven spaces | Metal frame; low profile | Often more finish options | Higher material cost |
| Photoluminescent | No wiring; energy-free | Opaque plate; glows after charge | Verify charging light levels | Not for dim corridors |
Install Steps (Ceiling Recess)
- Layout & cut-out: Mark the opening per template; confirm joists/T-bar spacing and clearance for housing and conduit.
- Set the chassis: Attach bar hangers; secure housing level and square to the corridor sightline.
- Make up power: Pull 120/277 VAC (or SPV) to junction; land conductors; cap unused leads; follow local NEC.
- Battery connect (EM): After constant AC is present, connect the Ni-Cd pack; verify status LED.
- Face & arrows: Install single/double-face panels; apply chevrons with the guide template.
- Trim & test: Snap trim; press push-to-test; document initial pass in the log.
Real-World Scenarios

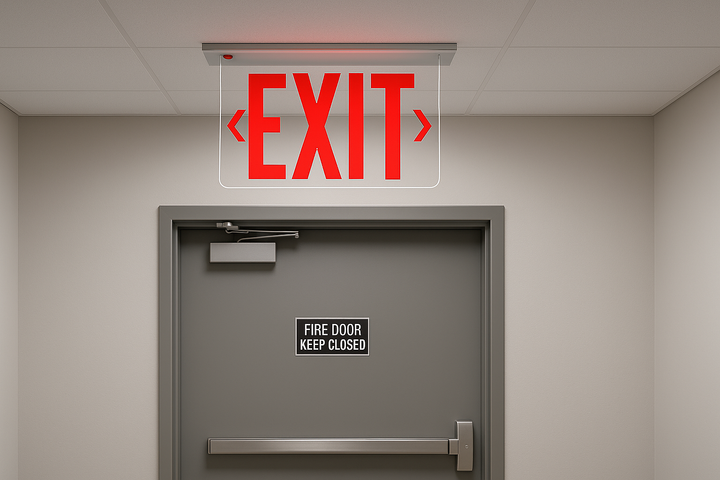

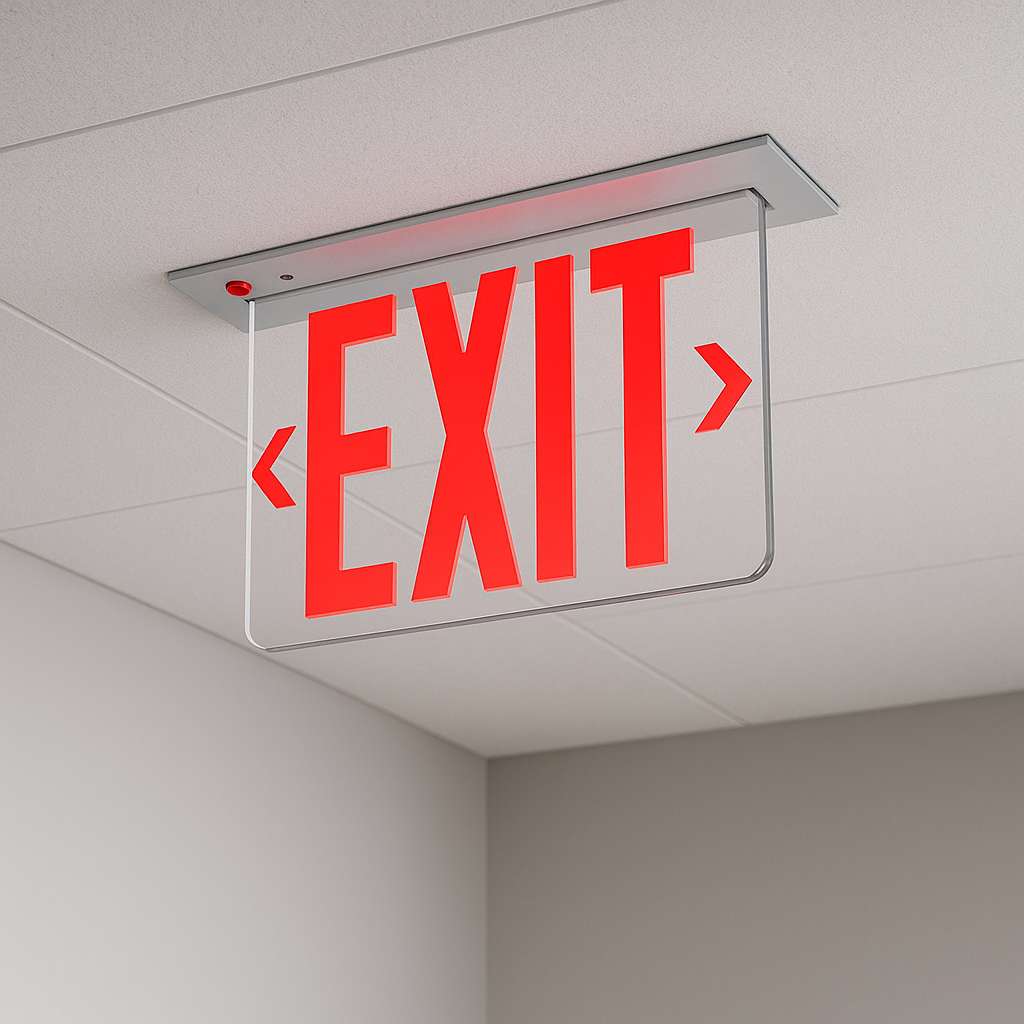

- Office lobby: Recess the unit in the vestibule ceiling; mirror panel for extra pop under downlights.
- Healthcare corridor: Double-face panel at intersections; SDT option reduces manual testing.
- Hospitality: Black trim against dark ceilings for a barely-there look; chevrons to stair towers.
- Retail: White panel for high contrast in bright ambient light; EM model on mixed circuits.
Myths vs. Facts
- “Recessed installs are slow.” With the right cut-out and bar hangers, they go in quickly and look finished immediately.
- “Edge-lit isn’t bright enough.” Properly specified LED panels with 6"/3⁄4" lettering meet UL 924 visibility.
- “You can’t change arrow direction.” Field chevrons and a template make changes simple at punch-list time.
Variants & Downloads
Visuals & Explainers
Resources
Helpful Reading
Frequently Asked Questions
Can I choose red or green letters?
Yes—select the LED legend color during installation. Both meet standard letter size/stroke requirements for visibility.
Will it recess in both drywall and T-bar ceilings?
Yes—bar hangers are included for either substrate; verify clearance and follow the cut-out template.
Does it include battery backup?
Emergency (EM) models include a Ni-Cd pack that provides approximately 90 minutes of illumination during outages.
Is it damp-location rated?
Yes—UL 924 damp listing covers typical indoor humidity ranges (not direct outdoor exposure).
Can I order special wording?
Custom legends are available on request; confirm with your AHJ if alternatives to “EXIT” are acceptable in your jurisdiction.
Tools
Submittal Helper
Export a one-pager with UL 924, damp rating, runtime, mounting method, and panel/face selections for plan review.
AHJ Checklist
Confirm letter color • face count • chevrons • 90-minute test log • spec sheet attached • location on egress plan.
