Dual Head High-Output Industrial Emergency Unit

LEDXR High-Output Industrial Emergency Unit

Download LEDXR High-Output Industrial Emergency Unit Spec Sheet (PDF)

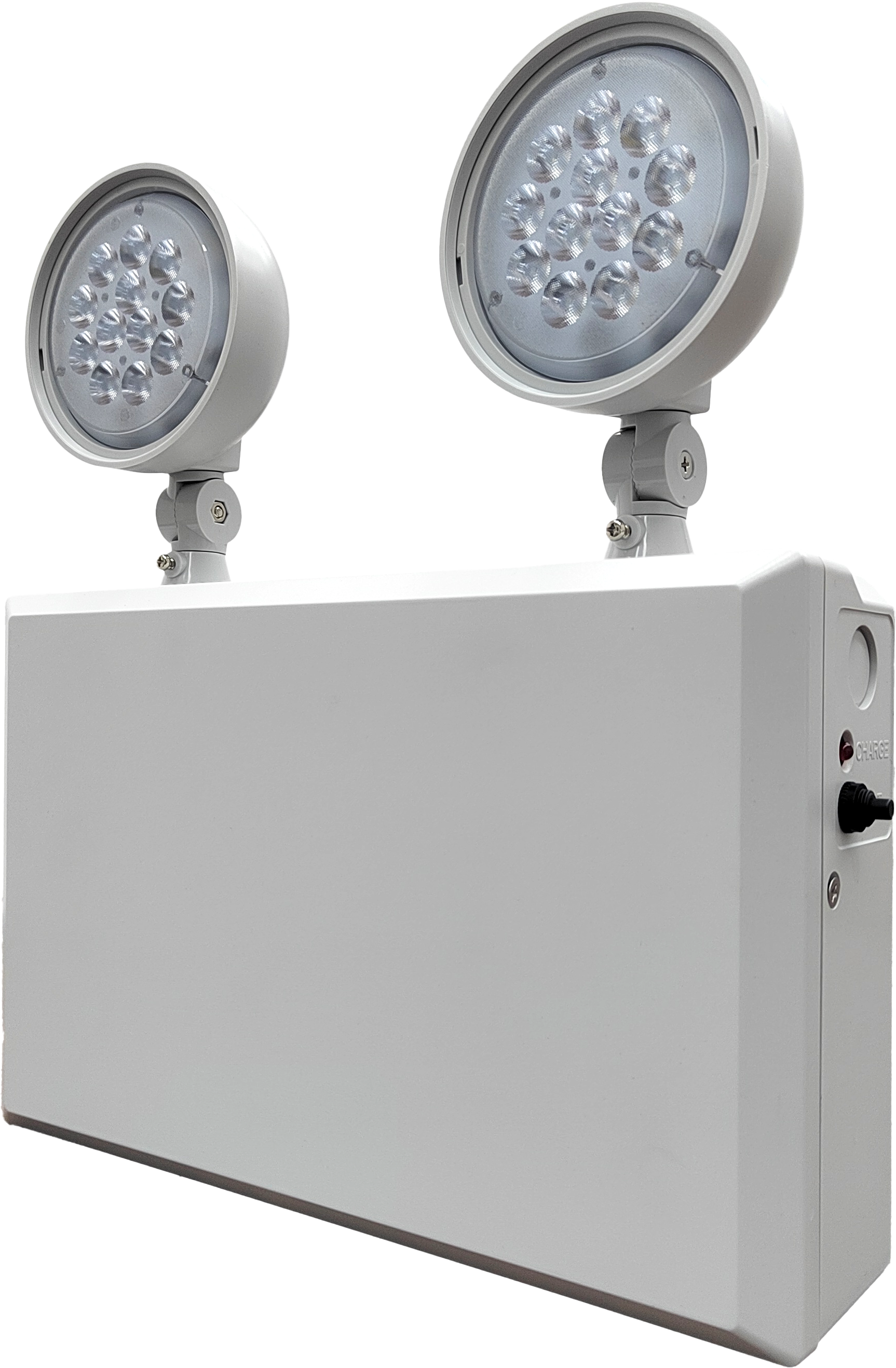

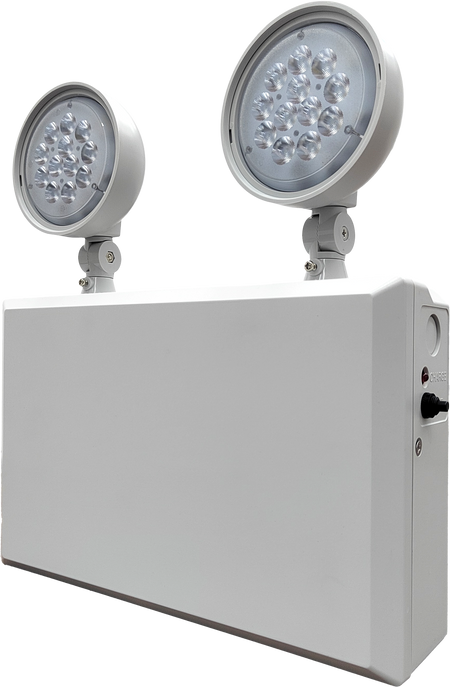

The LEDXR High-Output Industrial Emergency Unit is engineered for warehouses, factories, and other demanding commercial interiors requiring powerful, long-range egress lighting. Its two 6 W LED PAR-type heads deliver up to 100 ft center-to-center spacing along a 6 ft egress path at 15 ft mounting height. Sealed lead-acid batteries are available in multiple wattages, providing up to 88 W of remote-head capacity.

Illumination

• Two high-output Emergency Light 6 W PAR-style LED heads (12 LEDs × 0.5 W)
• Projects up to 100 ft on a 6 ft egress path at 15 ft height

Electrical

• Universal 120/277 VAC input with charge-status LED & push-to-test button
• Sealed lead-acid battery options: 6 V 50 W, 6 V 100 W, 12 V 50 W, or 12 V 100 W
• Remote-capacity output: 38 W (50 W units), 88 W (100 W units)
• Solid-state transfer switch; two-rate charger fully recharges battery in 24 h

Mounting

• Back-plate knockouts for direct wall mounting
• ½ in knockouts on top and sides for conduit entry

Housing

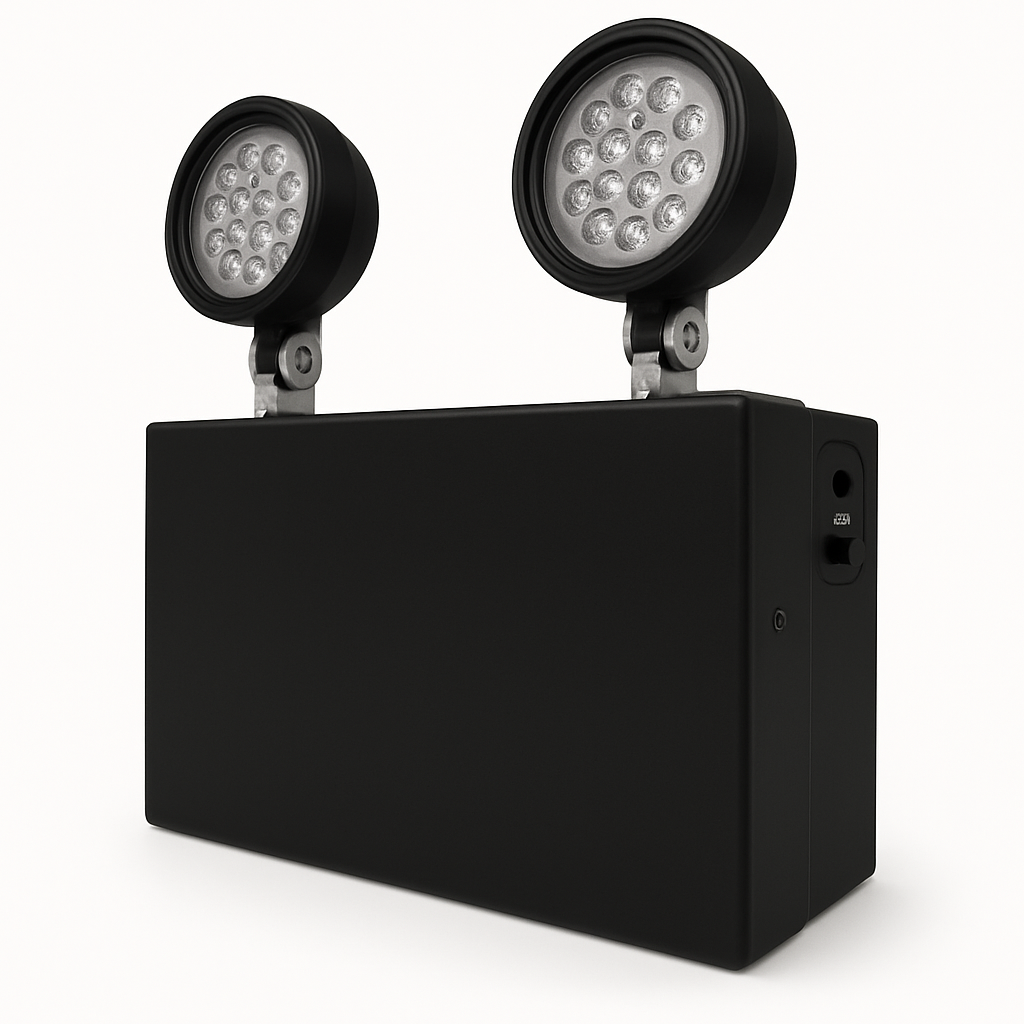

• 5 VA flame-retardant, high-impact thermoplastic — white (standard) or black

Options

• Available models: 6 V 50 W, 6 V 100 W, 12 V 50 W, 12 V 100 W — all remote-capable

Warranty / Listings

• 5-year warranty on electronics & housing; battery prorated 2 years
• UL 924 listed for damp locations (20 °C – 40 °C); NFPA 101, NEC, and OSHA compliant

Dimensions

• Approx. 13.7 in H × 12.68 in W × 2.95 in D (refer to spec sheet for exact details)

Frequently Asked Questions

What is the max spacing the LEDXR provides?
The unit can project light up to 100 feet center-to-center on a 6 ft egress path at 15 ft mounting height.

How many remote heads can the unit support?
That depends on the selected model. 50 W units provide 38 W of remote capacity; 100 W units offer up to 88 W of output.

What kind of battery is included?
You can select between 6 V or 12 V sealed lead-acid battery options with 50 W or 100 W capacities depending on runtime and load requirements.

Is the LEDXR approved for industrial use?
Yes. The LEDXR is UL 924 listed, compliant with NFPA 101, NEC, and OSHA, and ideal for demanding interior environments like warehouses and factories.

What mounting options are available?
The unit mounts directly to the wall using a knockout back plate and can also be conduit-fed through top or side entry points.

Frequently Asked Questions

What battery options are available for the LEDXR?

The LEDXR supports sealed lead-acid batteries in four configurations: 6 V 50 W, 6 V 100 W, 12 V 50 W, and 12 V 100 W — all remote-capable.

What is the maximum spacing for the LED heads?

Each 6 W LED head delivers up to 100 ft center-to-center spacing on a 6 ft wide egress path at a 15 ft mounting height.

Is this unit compatible with remote heads?

Yes. The 50 W models provide 38 W of remote-head capacity, and 100 W models offer up to 88 W for powering additional fixtures.

Can this fixture be installed outdoors?

No. The LEDXR is UL 924 listed for damp locations and indoor use. For wet or outdoor environments, consider a NEMA 4X-rated model.

How is the LEDXR mounted?

The fixture includes back-plate knockouts for wall mounting and side/top knockouts for surface conduit feed. Ceiling mounting is not supported.
