LED Exit Sign with Adjustable Light-Bar – Low Profile, Remote Capable

Low-Profile Light-Bar Exit Sign Combo — Integrated Adjustable Light-Bar, Universal Mount, Remote-Capable (1 Head), 120/277V, UL 924 / 90-min — Features & Specs

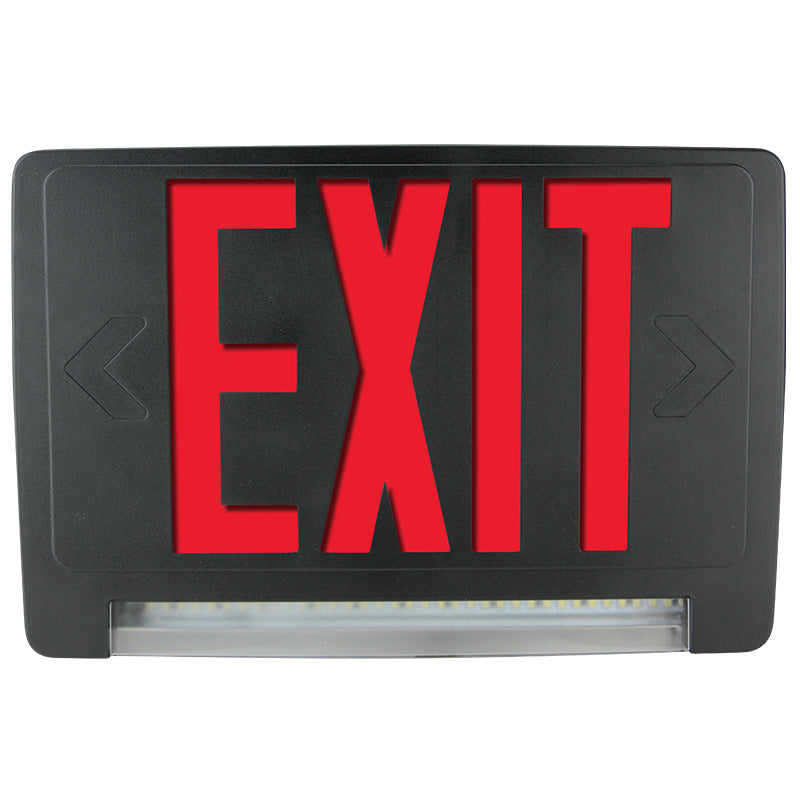

The CLED “Revolution” combination LED light-bar exit sign blends a slim, flame-rated thermoplastic LED exit sign with emergency lights and a high-output, adjustable linear light-bar for uniform egress illumination. This universal-mount combo ships with faceplates, backplate, and canopy; supports one remote LED head (MLED1, ordered separately); and offers optional Guardian self-diagnostics for smart, code-compliant maintenance.

Need a remote ready exit sign with an adjustable light bar? This low-profile LED EXIT fixture is for universal mount remote-ready exit signs projects where the sign may need to support added emergency coverage while keeping a clean profile. Use it when the doorway needs a visible EXIT legend, remote-capable planning, adjustable light-bar output, and flexible wall or ceiling mounting. Compare Remote Capable Exit Signs, browse Exit Signs, or review the Remote Capable Exit Signs guide before final selection.

Key Features

• Integrated, adjustable LED light-bar replaces bulky heads for a clean, low-profile aesthetic
• 6" letters, 3/4" stroke, 100-ft viewing distance; red or green legend
• Dual-primary 120/277 VAC input; overload & short-circuit protection (G2 adds brownout & LVD)
• Maintenance-free Ni-Cd battery; = 90-minute emergency runtime; ~24-hour recharge
• Optional G2 Guardian self-diagnostics with status LEDs and push-to-test
• Remote-capable output supports one MLED1 remote head (G2 required on host; wet-location remote available)
• Universal ceiling / wall / end mounting; interchangeable faces & back; field-selectable chevrons
• One-piece UL 94 5VA thermoplastic housing; slim 1.9" cabinet (4.3" overall with light-bar)
• Listed to UL 924 for damp locations; NFPA 101 / NEC compliant

Related Combo & Remote-Head Guides

Spec Sheet

Download CLED Exit Sign with Light-Bar Spec Sheet (PDF)

Illumination

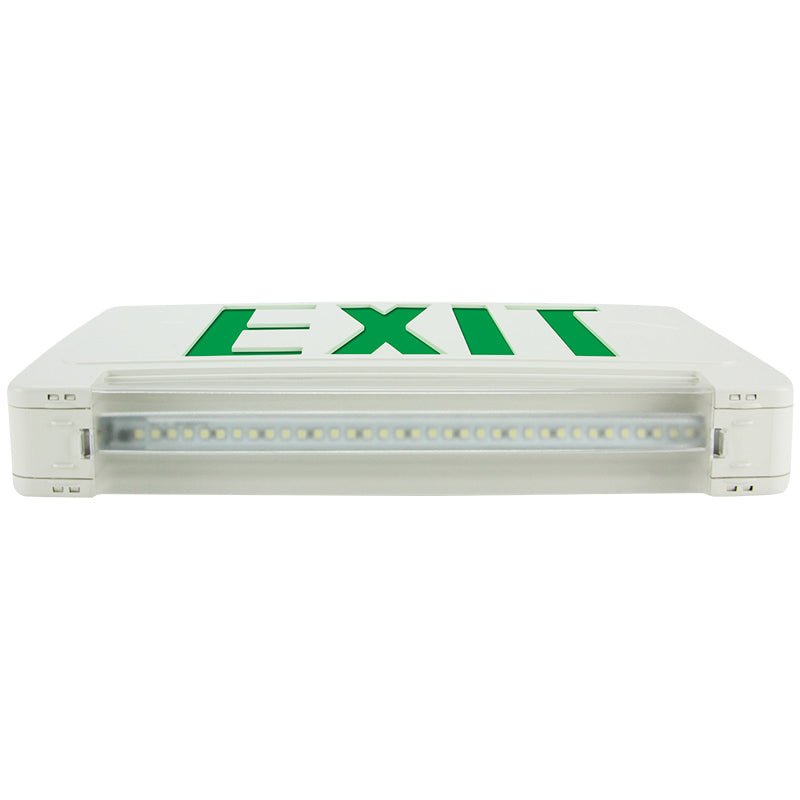

• Bright, energy-efficient LEDs illuminate the EXIT legend in your choice of a red exit sign combo or a green exit sign combo
• 1.5 W white LEDs in the integrated light-bar support typical 1 fc egress-path design targets
• Design-aid photometrics @ 7.5' mounting: up to 16' CTC spacing on a 3' path or 12' on a 6' path

Electrical

• Dual-primary 120/277 VAC input (60 Hz)
• Maintenance-free Ni-Cd battery; = 90-minute emergency runtime; ~24-hour recharge
• Overload & short-circuit protection; G2 only: brownout circuit & low-voltage disconnect
• Status LEDs & push-to-test button (G2 models perform automatic monthly / semiannual self-tests)

Mounting

• Surface ceiling, end, or wall-mount exit sign combo with snap-fit canopy
• Interchangeable faceplates and backplate with snap-together design; standard J-box pattern

Housing / Finish

• One-piece ABS thermoplastic housing, UL 94 5VA flame-retardant
• Slim cabinet profile with integrated light-bar projection

Dimensions

• Overall (with light-bar): 12.6" W × 9.1" H × 4.3" D
• Cabinet depth (without light-bar): 1.9"

Options & Accessories

• G2 — Guardian self-test/diagnostics (auto 30-sec monthly & 90-min semiannual tests)
• MLED1 — Single remote LED lamp head (wet-location option available; order separately)
• WG-S / XG-6 — Wire or polycarbonate protective guards

Warranty / Listings

• 5-year warranty on electronics & housing; Ni-Cd battery 5-year prorated
• UL 924 listed for damp locations; compliant with NFPA 101, NEC, and OSHA
