Recessed LED Emergency Light with Dual Heads – NYC Approved
Couldn't load pickup availability
Got questions?
Give us a call 800-847-1955!
Recessed LED Emergency Light - NYC Approved, Dual 1W Heads, 15 ft @ 10 ft - Features & Specs
The RM2 Recessed LED Emergency Light installs flush in drywall or grid ceilings and delivers reliable, code-compliant egress lighting. Its twin 1 W square LED heads support up to 15 ft spacing on a 6 ft path at 10 ft mounting height, while the slim steel backbox and snap-on trim provide a low-profile architectural finish. This New York City fire code compliant emergency light is ideal for projects with strict code requirements. For dependable performance in outages, see our full line of recessed emergency lights with battery backup.
Key Features
- Fully recessed ceiling installation with flush-fit trim for a clean architectural look. :contentReference[oaicite:0]{index=0}
- Two adjustable, high-impact 1 W LED heads with chrome reflectors/prismatic lenses; spacing up to 15' O.C. on a 6' path at 10' MH. :contentReference[oaicite:1]{index=1}
- 120/277 VAC dual-primary input; solid-state charger with LVD, brownout, overload & short-circuit protection. :contentReference[oaicite:2]{index=2}
- Maintenance-free sealed lead-calcium battery with 90-minute emergency runtime; ~24-hour recharge. :contentReference[oaicite:3]{index=3}
- Rugged 20-ga steel housing and trim; finishes in white or black. :contentReference[oaicite:4]{index=4}
- Listings: UL 924; meets NEC & NFPA 101; City of New York approved; Dry Location. :contentReference[oaicite:5]{index=5}
Download RM2 Recessed LED Emergency Light Spec Sheet (PDF)
Illumination
- Long-life 1 W white LED lamp heads rated 50,000 hours
- Adjustable heads deliver bright, focused egress lighting
Electrical
- Dual-voltage 120/277 VAC input, 50/60 Hz
- Maintenance-free sealed lead-calcium battery – 90-minute runtime, 24-hour recharge
- Solid-state charger with low-voltage disconnect, brownout sensing, overload and short-circuit protection
- Manual push-to-test switch for functional checks
Mounting
- Fully recessed in drywall or grid ceilings; ships with adjustable hanger bars
- Flush white trim plate with spring clips ensures a clean ceiling line
- 20 ga backbox accommodates electrical and battery components
Housing / Finish
- Heavy-duty 20-gauge steel enclosure with powder-coated finish
- Thermoplastic square LED light heads available in white (W) or black (B)
- Dry-location rated for commercial and institutional use

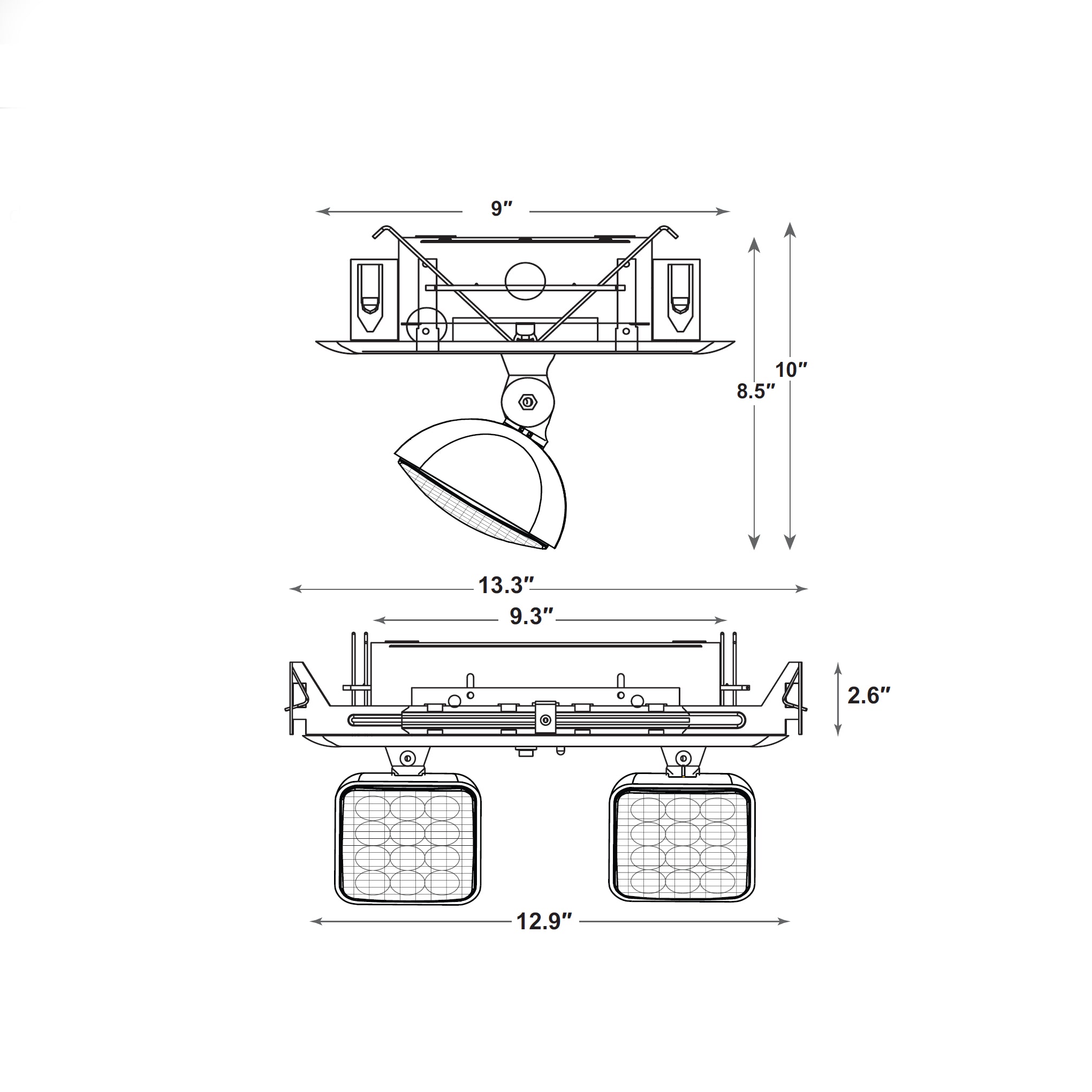

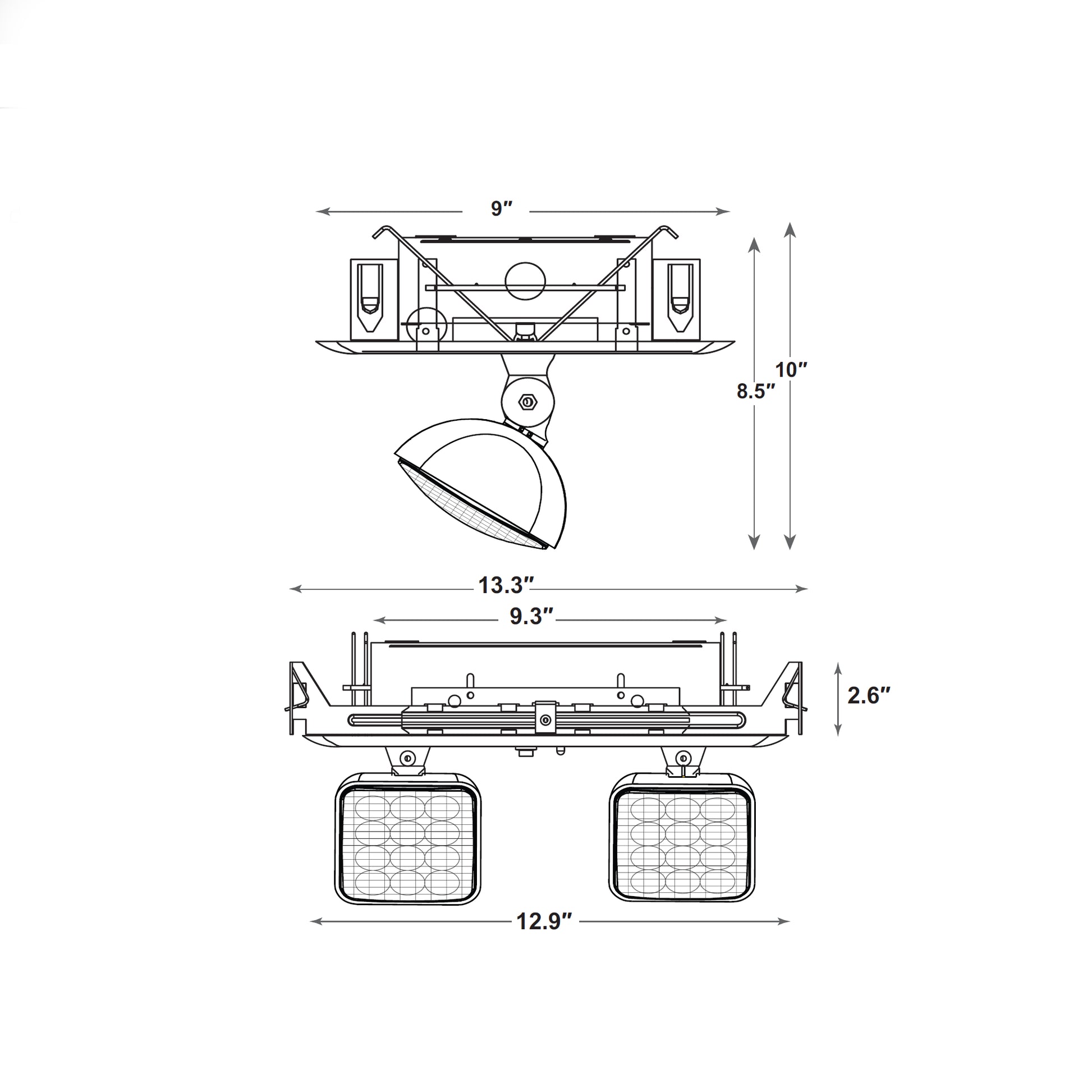

Dimensions
- Trim plate: 13.3 in L × 9.3 in W
- Recessed box depth: 2.6 in above ceiling
- Head projection below ceiling: 8.5 in when aimed directly down
Warranty / Listings
- 5-year warranty on electronics and housing
- Battery backed by a 5-year prorated warranty
- UL 924 Listed; meets NFPA 101, NEC, and New York City emergency lighting codes
Frequently Asked Questions
Can this unit be installed in drywall ceilings?
Yes, it ships with adjustable bar hangers and installs flush in drywall or T-bar grid ceilings.
How far apart can I space the RM2 heads?
Each head outputs 1 W and supports up to 15 ft spacing on a 6 ft path at 10 ft ceiling height. :contentReference[oaicite:6]{index=6}
Does this fixture meet New York City code?
Yes. The RM2 is UL 924 listed and approved for City of New York emergency egress installations. :contentReference[oaicite:7]{index=7}
What type of battery does this use?
A maintenance-free sealed lead-calcium battery provides 90 minutes of emergency runtime with a typical 24-hour recharge. :contentReference[oaicite:8]{index=8}
Is this fixture suitable for damp locations?
No, it is listed for dry locations only (25 °C). For wet-location alternatives, see our NEMA 4X emergency units. :contentReference[oaicite:9]{index=9}
