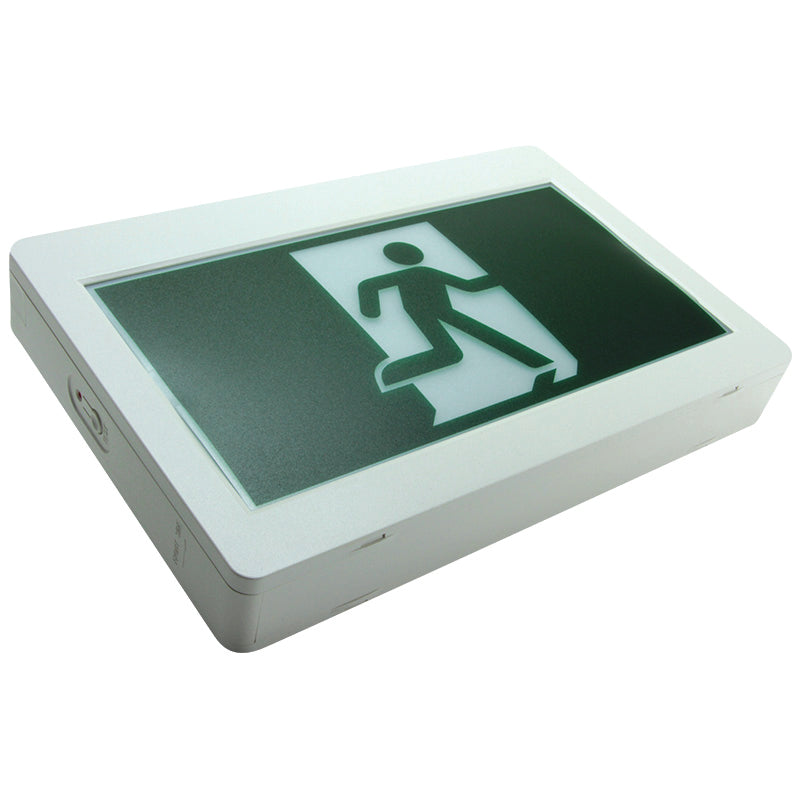

“Running Man” LED Exit Sign – Pictogram, CSA Listed, 90 Min Backup

Use RMPE where a project calls for a CSA-listed Running Man pictogram exit sign with battery backup, especially in commercial, institutional, multi-tenant, healthcare, education, and Canadian-standard egress routes where a green pictogram legend is preferred or required.

• Included films support blank, left-arrow, and right-arrow pictogram layouts.
• Use the blank pictogram where the sign simply marks the exit path without directional routing.
• Use the left or right arrow film when the fixture directs occupants toward a turn, stair, corridor, or doorway.
• Confirm arrow direction against final life-safety plans before closing the housing.

• Dual-voltage 120/347 VAC, 60 Hz input supports common commercial and Canadian building circuits.
• Maintenance-free Ni-Cd battery provides at least 90 minutes of emergency operation after a full charge.
• Typical full recharge is approximately 24 hours.
• Battery-protection circuitry and solid-state transfer support dependable emergency operation.
• Allow a full charge cycle before performing a full 90-minute discharge test.

• Before ordering, confirm whether the sign will sit above a doorway, on a side wall, or at a ceiling sightline.
• Match the junction-box location and finished surface so the pictogram stays centered and visible.
• Check nearby trim, door swing, soffits, and ceiling features for clearance.
• Confirm the sign remains visible along the intended path of travel after doors, trim, and ceiling elements are installed.

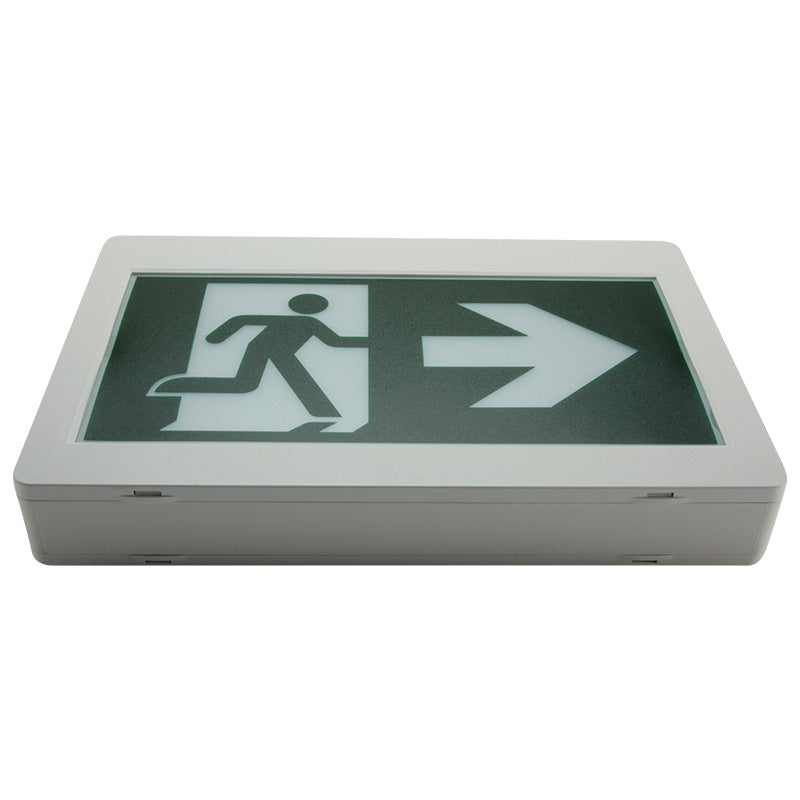

• Injection-molded white ABS thermoplastic housing resists dents and corrosion in normal commercial interiors.
• UL 94 5VA flame-retardant construction supports common life-safety specification language.
• Damp-location rating covers 10-40 C (50-104 F) suitable interior or protected locations.
• Use a wet-location exit sign instead for exposed exterior, hose-down, or harsh washdown areas.

• Cabinet dimensions: 11.8 in W x 9.1 in H x 1.8 in D.
• Single-face pictogram format is intended for locations viewed from one primary direction.

• CSA Listed and meets UL 924 for emergency exit signage.
• Designed to support NEC and NFPA 101 egress requirements when installed according to the project documents.
• Keep fixture placement notes, runtime test records, and project-document references available for local AHJ review.
• Warranty terms include five-year limited fixture coverage with prorated Ni-Cd battery protection.

Choose RMPE for a CSA-listed Running Man pictogram exit sign with 120/347 VAC input and included directional pictogram films.
