Home » Exit Sign Emergency Light Combos » Wet Location Exit Signs Combo » NEMA 4X / NSF Exit Sign & Emergency Light Combo – LED, Wet Location

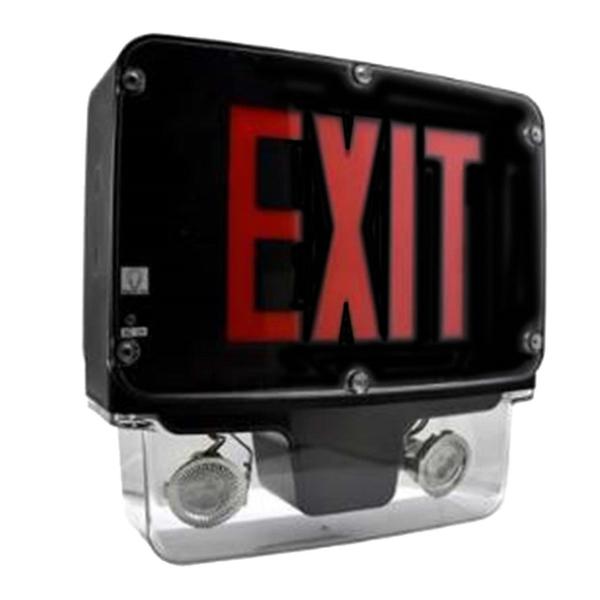

Red NEMA 4X - NSF LED Exit-Emergency Combo

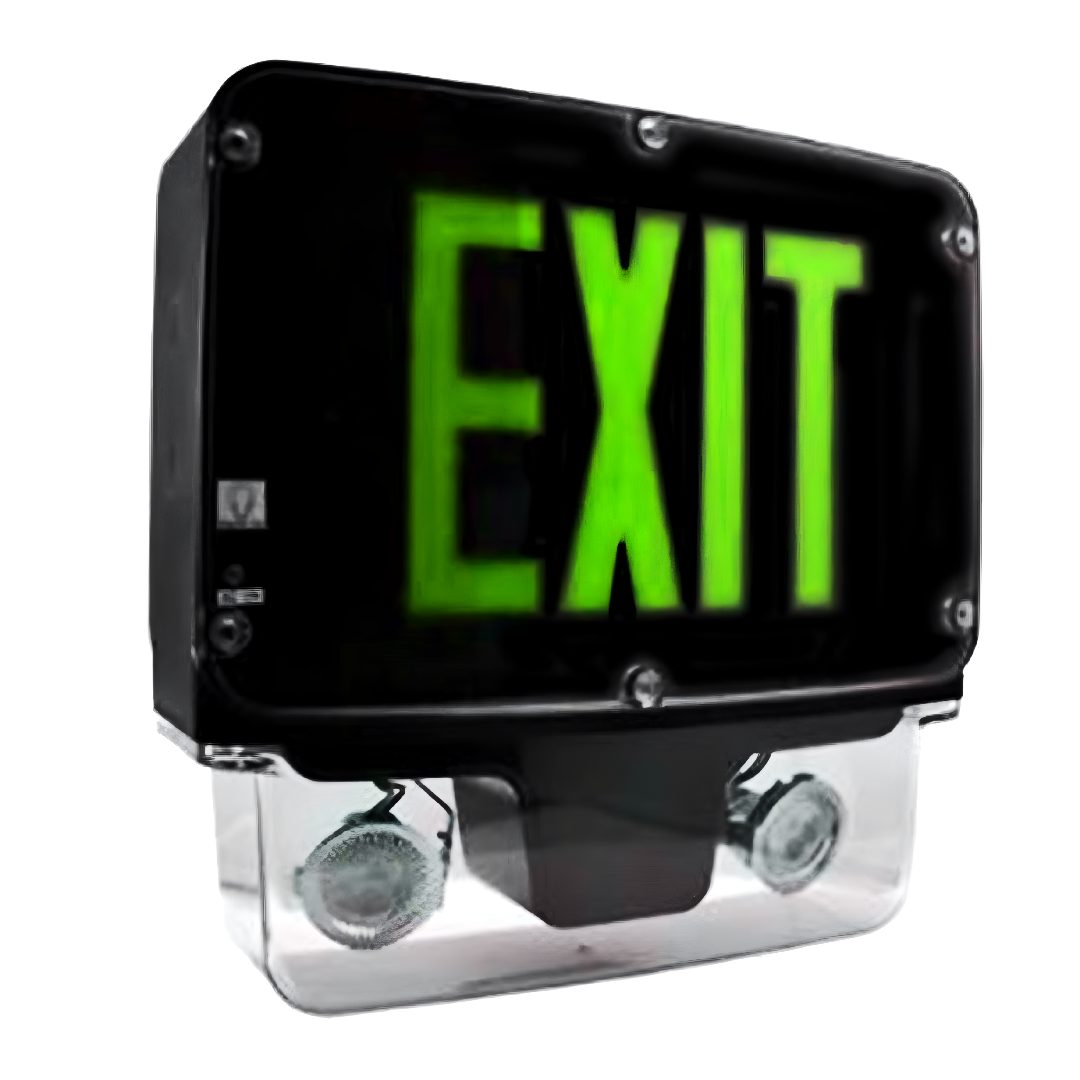

Green NEMA 4X - NSF LED Exit-Emergency Combo
Red NEMA 4X - NSF LED Exit-Emergency Combo - front-view
Green NEMA 4X - NSF LED Exit-Emergency Combo - front-view
Red NEMA 4X - NSF LED Exit-Emergency Combo
Green NEMA 4X - NSF LED Exit-Emergency Combo
Red NEMA 4X - NSF LED Exit-Emergency Combo - front-view
Green NEMA 4X - NSF LED Exit-Emergency Combo - front-view

NEMA 4X / NSF Exit Sign & Emergency Light Combo – LED, Wet Location

SKU: INDCWLEZU1R615W
$408.11

Got questions?

Give us a call 800-847-1955!

NEMA 4X IP66 NSF Exit & Emergency Combo - MR16 Heads, Red/Green Legend, Remote-Capable - Features & Specs

The NEMA 4X / NSF exit & emergency combo is engineered for wash-down / hose-down areas, corrosive sites, and food-safe environments. A sealed, impact-resistant polycarbonate body achieves IP66 with stainless hardware, while dual MR16 LED heads and a field-selectable red/green EXIT legend deliver high visibility. Explore our NEMA-rated exit sign & emergency light combos, compare Class I, Division 2 exit & emergency combos, and browse the complete exit sign & emergency light combo catalog.

NEMA 4X IP66 UL 924 NSF MR16 LED Heads Red / Green Legend 120/277V Ni-Cd / SLA · 90 min Remote to 20.8 W (Opt.) Cold-Weather (Opt.)

Key Features

  • NEMA 4X / IP66 sealed polycarbonate enclosure for wash-down and outdoor exposure; NSF for food-safe areas.
  • UL 924 compliant with 90-minute emergency operation.
  • Dual MR16 LED heads (~3.3 W each) provide broad, uniform egress illumination.
  • Field-selectable EXIT legend (red or green) with snap-out chevrons for directionality.
  • Universal 120/277 VAC input, bi-color status LED, and magnetic test switch.
  • Battery choices by model: 6/12 V Ni-Cd (12–15 W) or SLA (28 W).
  • Optional remote-capable outputs: 4.8 W, 7.8 W, or 20.8 W to power emergency lighting remote heads.
  • Mounts watertight to wall (gasketed backplate) or via canopy for top/end mount; conduit-ready entries.
  • Options: SDT self-diagnostics, CW cold-weather kit (heater/blanket), TP tamper hardware, NH exit-only.

Related Wet-Location Combo Guides

Wet-Location & NEMA/IP — Ratings, Seals & Install Exit/Light Combo Planning — Code Triggers & 90-Min UL 924

Download Exit & Emergency Combo Spec Sheet (PDF)

Illumination

  • Two MR16 ~3.3 W LED lampheads for wide egress coverage and precise aiming.
  • Field-selectable red or green LED EXIT legend with removable chevrons.

Electrical

  • Universal 120/277 VAC input with solid-state transfer, two-rate charger, magnetic test, and bi-color status LED.
  • Battery systems: 6/12 V Ni-Cd (12–15 W) or SLA (28 W) depending on model.
  • Remote-capable options provide 4.8 / 7.8 / 20.8 W to support additional remote heads.
  • 90-minute emergency runtime; typical recharge ~24 hours after a full-duration test.

Mounting

  • Gasketed backplate knockouts for watertight wall mounting.
  • Universal canopy for top or end mounts; chevrons configured in the field.
  • Conduit-ready entries to simplify exterior and industrial runs.

Housing / Lens

  • Impact-resistant polycarbonate enclosure (white, black, or gray) with clear one-piece lens.
  • NEMA 4X / IP66 sealing for hose-down, wash-down, and outdoor exposure; stainless-steel external hardware.

Options

  • SDT — self-diagnostic testing (monthly / semi-annual / annual).
  • CW — cold-weather package (heater + battery blanket) rated to -20 °C.
  • TP — tamper-resistant hardware kit.
  • NH — exit-only configuration (no heads) with remote capacity retained.

Warranty / Listings

  • 5-year warranty on housing & electronics; battery prorated 5 yrs (Ni-Cd) / 2 yrs (SLA).
  • UL 924 listed for wet locations; NSF certified; NEMA 4X / IP66.
  • Class I, Division 2 (Groups A–D); compliant with NFPA 101, NEC, OSHA, and CEC Title 20.

Compare Wet-Location Exit & Emergency Combos by Rating, Battery & Remote Capacity

All models below are from our wet-location exit sign & emergency light combos . Use enclosure rating, battery/emergency mode, and remote capacity to match wash-down and outdoor needs.

Model / Link Enclosure & Rating Legend & Heads Battery / Runtime Remote Capacity Notable Options Best Use
This model — NEMA 4X IP66 NSF exit & light combo (MR16 heads) Sealed polycarbonate; NEMA 4X / IP66; NSF Red/Green legend; dual MR16 LED heads (~3.3 W each) Ni-Cd (12–15 W) or SLA (28 W); 90-min 4.8 W / 7.8 W / 20.8 W Self-diagnostics; cold-weather to -20 °C; tamper hardware Food-prep, hose-down bays, coastal/outdoor exposure
Wet-location LED exit & light combo (remote option) Gasketed thermoplastic; wet-location Red/Green legend; LED lampheads Ni-Cd; 90-min 7.2 W @ 6 V (optional) Cold-weather heater (opt.); self-diagnostics General outdoor egress, canopies, entries
Rugged wet-location exit & light combo (higher remote) Reinforced enclosure; NEMA/IP wet-location Red/Green legend; MR16 LED heads Ni-Cd / SLA (per wattage); 90-min Up to 20.8 W NH exit-only; self-diagnostics; cold-weather Large perimeters, wide throws, remote head runs
Low-profile wet-location exit & light combo (compact) Slim polycarbonate; wet-location Red/Green legend; compact LED heads Ni-Cd; 90-min 2 W (optional) Cold-weather kit; tamper hardware Tight façades, canopy retrofits, low-profile needs

Tip: Sum host watts + remote watts to preserve the 90-minute UL 924 runtime, and match remote voltage (6/12 V) to the unit.

  • NEMA 4X exit sign combo
  • IP66 hose-down enclosure
  • NSF food-safe emergency lighting
  • MR16 LED emergency heads
  • remote-capable exit combo
  • cold-weather exit combo
  • self-testing diagnostics (SDT)
  • tamper-resistant hardware
  • stainless fasteners & lens
