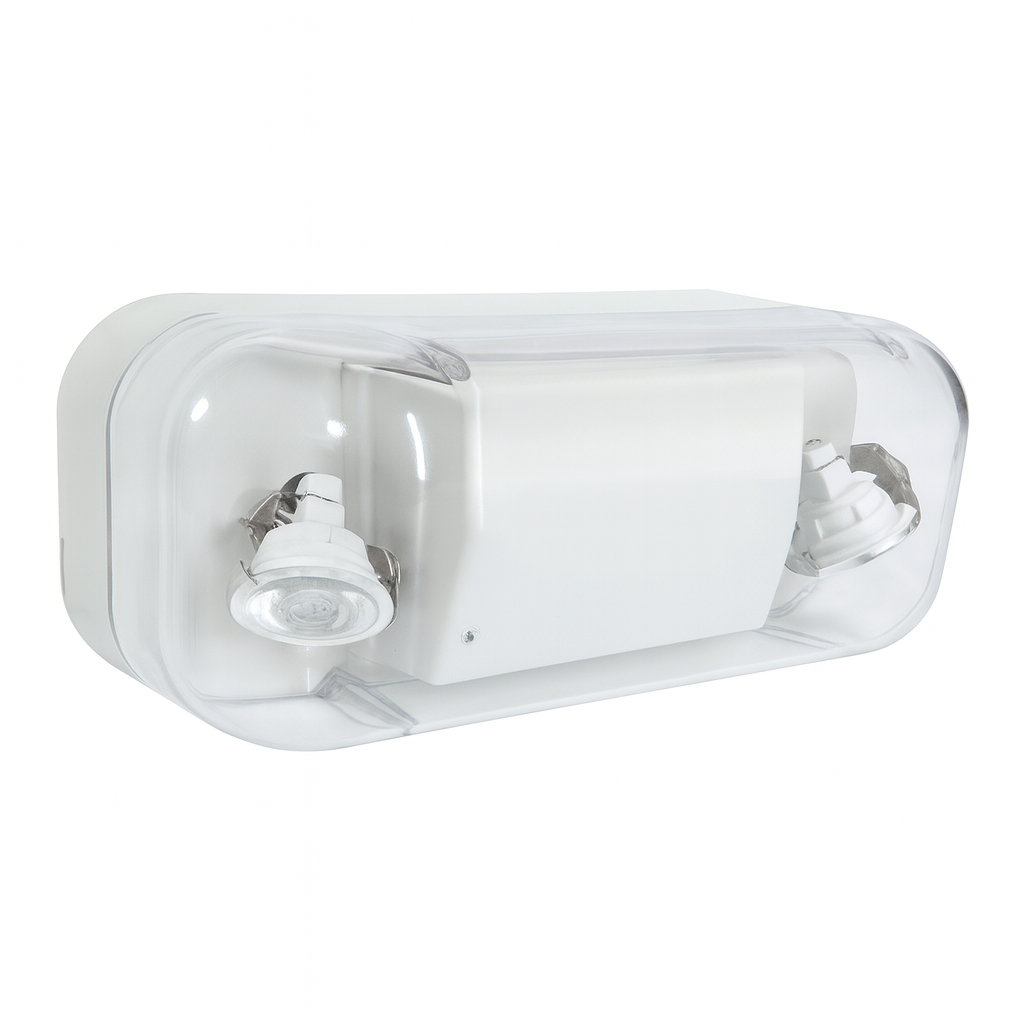

Wet Location Emergency Light – NEMA 4X – Dual MR16 Heads

Wet-Location NEMA 4X LED Emergency Light - Dual MR16, IP66, Remote Capacity 46.8 W, 90 min, 120/277 VAC - Features & Specs

This NEMA 4X wet‑location LED emergency light with dual MR16 lamp heads delivers code‑compliant egress illumination for wash‑down, food‑service, parking, and industrial perimeters. The gasketed enclosure is IP66 sealed, resists corrosion with stainless hardware, and maintains UL 924 performance for 90 minutes. For broader selection, browse our wet‑location emergency lights and see additional NEMA 4X weatherproof emergency lights. Remote‑capacity models can power compatible remote heads to extend coverage.

Key Features

• NEMA 4X / IP66 sealed, hose‑down ready enclosure with stainless hardware.
• UL 924 compliant with 90‑minute emergency operation and status LED + test.
• Dual adjustable MR16 LED heads (3.6 W each) for long‑throw aiming.
• Universal 120/277 VAC input; magnetic test switch and solid‑state transfer.
• Battery choices: 6/12 V Ni‑Cd (15 W) or SLA (36/54 W) with two‑rate charger.
• Remote‑capacity models supply up to 46.8 W (7.8 / 28.8 / 46.8 W, model‑dependent).
• Gasketed wall backplate; canopy hardware for top / end mount; conduit knockouts.
• Impact‑resistant polycarbonate body; UV‑stabilized clear lens; tamper‑resistant options.
• Options: SDT self‑diagnostics; CW cold‑weather kit (to −25 °C); TP tamper‑proof hardware.
• Listings: NSF splash‑zone; compliant with NFPA 101, NEC, OSHA.

Applications & Design Notes

Choose this unit where you need a weatherproof emergency light that tolerates wash‑down and high‑spray: food prep and beverage plants, commercial kitchens, packaging lines, docks, garages, exposed stair towers, and breezeways. Use remote‑capacity models to drive remote heads at distant landings or cross‑aisle positions while the on‑board MR16s cover the immediate path. For broader exterior projects, see our weatherproof emergency lights.

Spec Sheet

Download Wet‑Location NEMA 4X Dual MR16 Emergency Light Spec Sheet (PDF)

Specifications (Overview)

• Enclosure: NEMA 4X; Ingress: IP66
• Listings: UL 924 (emergency), wet location; NSF splash‑zone
• Heads: dual MR16 LED, adjustable
• Operation: 90‑minute emergency egress (typical)
• Applications: wash‑down, food‑service, outdoor egress, industrial perimeters

Illumination

• Two 3.6 W MR16 LED heads with long‑life emitters and flood optics for uniform coverage.
• Aim heads to cross‑light stairs, ramps, and door landings; lock position after photometric check at 90 min.

Electrical

• Universal 120/277 VAC input; bi‑color charge indicator; magnetic push‑to‑test.
• Battery Options: 15 W (6/12 V Ni‑Cd), 36/54 W (SLA); solid‑state transfer.
• Remote capacity:
  • 7.8 W (15 W model)
  • 28.8 W (36 W model)
  • 46.8 W (54 W model)
  Power compatible emergency remote heads with matched voltage.
• Two‑rate charger; ~24 h full recharge (~36 h on 54 W SLA).

Mounting

• Gasketed backplate for surface wall mount; top/side conduit entries with sealed threads.
• Canopy hardware for top/end mount included; secure to J‑box or conduit percode.

Housing / Lens

• Reinforced polycarbonate housing (white or black); UV‑stabilized clear lens.
• Corrosion‑resistant stainless hardware; tamper‑proof kit available.

Options

• SDT — self‑diagnostic testing (monthly / semiannual / annual).
• CW — cold‑weather package to −25 °C.
• TP — tamper‑proof hardware pack.

Warranty / Listings

• 5‑year warranty on housing and electronics.
• Battery: 5‑year prorated (Ni‑Cd) / 2‑year prorated (SLA).
• Meets UL 924 wet‑location, NEMA 4X, IP66, and NSF splash‑zone requirements.
• Compliant with NFPA 101, NEC, OSHA.

Dimensions

• 14 ¼" W × 6 ½" H × 6 ¼" D

Installation & Wiring Tips

• Mount 8–12 ft high to wash landings and cross‑aisles; verify egress levels at 90 minutes (end‑of‑discharge).
• Use liquid‑tight hubs and orient drain/weep features per the housing arrow to avoid water intrusion.
• Size remote loads for 7.8 / 28.8 / 46.8 W capacity; keep total remote wattage + on‑board heads within unit rating.
• Observe voltage‑drop limits when feeding remote heads; use larger gauge for longer runs.
• Apply CW package for cold environments (freezer docks, exposed facades) to maintain battery performance.

---

Compare With Other Wet‑Location Emergency Lights

Side‑by‑side reference for the parent collection. No pricing is shown.

Model (H1)	Head / Output	Remote Capacity	Runtime	Ratings	Operating Temp	Best For
This model — Wet Location Emergency Light – NEMA 4X – Dual MR16 Heads	Dual MR16 · 3.6 W each	Up to 46.8 W (54 W SLA)	90 min	NEMA 4X · IP66 · UL 924 · NSF	−25 °C (opt.) to 50 °C	Hose‑down zones, food‑service, long runs with remote heads
Wet‑Location LED Emergency Light – 1W Heads, Gasketed IP Housing	Dual 1 W heads	—	90 min	UL 924 · Wet Location	≈ 10–40 °C	Budget installs; shorter spacing
Industrial Outdoor Emergency Light – Remote Capacity	Dual 1.875 W heads	3.7 W	90 min	UL 924 · Wet Location	−20–50 °C	Docks / long runs with small remote load
Wet‑Location LED Emergency Light – 3.7W Remote Option, IP Rated	Dual 1.9 W heads	3.7 W (option)	90 min	UL 924 · IP‑rated	−20–50 °C	Parking decks, loading areas
Wet‑Location Semi‑Recessed LED MR16 Emergency Unit	Dual 7 W MR16	—	90 min	UL 924 · Wet Location	≈ 20–40 °C	Flush look; long‑throw optics

FAQs

Is NEMA 4X different from IP66?

NEMA 4X addresses enclosure construction (water spray, corrosion resistance, etc.); IP66 focuses on ingress protection. This product carries both ratings to simplify specification.

How do I size remote heads for this unit?

Add the on‑board MR16 load to your planned remote‑head wattage and select a battery pack (15/36/54 W) whose remote‑capacity line (7.8 / 28.8 / 46.8 W) covers the total at 90 minutes.

What’s the advantage of MR16 vs. integrated LED heads?

MR16 optics provide tighter beams and longer throws for tall mounts or wide egress spacing. Integrated heads may be lower profile; both types meet UL 924 when installed per code.
