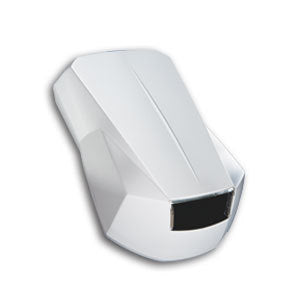

LED Outdoor Wall Light - NEMA 3R (w/Battery Backup Option)

In stock
SKU: EML-LUX-01
Regular price $396.99
15-min Time Delay?
Housing Finish?
Photocell Test Switch?

6-10 weeks lead time

Overview

Sleek Aluminum Emergency Light Cut Sheet

The LED Outdoor Wall Light can be configured as an emergency-only or AC / battery backup fixture. It is designed to meet the needs of architects and designers without sacrificing safety and performance. The LUX has a low-profile, slim look and is offered in a range of colors to blend in with the most sophisticated interior design. With sealed die-cast aluminum housing, the unit is also designed for extreme outdoor environments. An optional dual-mode illumination feature enables this aluminum Outdoor LED Emergency Light to provide lighting not only during power outages but also in normal conditions with a dedicated 5-watt LED lamp. The normal lighting can be turned on and off from a remote switch or from an optional photo cell included in the equipment.

Features

• Die-cast aluminum housing is available in two finishes: off-white and platinum gray
• Clear poly-carbonate lens, shock-absorbent, and UV-resistant
• Two high-output Xenon lamps installed in a vacuum-plated die-cast reflector
• Indoor / outdoor applications, suitable for wet locations
• Wall-mount installation on various junction boxes or via rigid conduit
• Integrated test button and LED pilot light with optical pipe
• Lead-Calcium battery monitored by a pulse-plus charger circuitry
• Nickel-Metal Hydride battery with Advanced Diagnostic charger and bi-color diagnostic LED display
• 3-year full warranty (not applicable to high-output Xenon lamps)
• 5-year warranty for Nickel Metal Hydride models
• UL listed to the UL 924 standard

Application

The Oudoor LED Wall Emergency Light is highly recommended for applications in extreme outdoor environments.

External Specifications

The LUX features a die-cast aluminum housing available in two finishes: off-white and platinum gray.

Internal Specifications

Two high-output Xenon lamps installed in a vacuum-plated die-cast reflector are standard with a Lead-Calcium battery or Nickel-Metal Hydride battery.

Electrical Specifications

120/277v AC dual-voltage operation is standard. Other voltages are available upon request such as 220v and 240v.

Code Compliance

U.L. Listed and meets or exceeds the following: U.L. 924, N.E.C. requirements, and N.F.P.A. 101.

Warranty

All components are guaranteed for 3 years, with a separate 5-year warranty for the battery.

Appeal

The Outdoor Dual-Mode LED Emergency Light appeal is with design to meet the needs of architects and designers without sacrificing safety and performance.

Overall Value

With a low-profile, slim look and is offered in a range of colors to blend in with the most sophisticated interior design. With sealed die-cast aluminum housing, the unit is highly valued for extreme outdoor environments.
