Outdoor Wall-Pack Emergency Light – Decorative Die-Cast

Outdoor LED AC Wall-Pack Emergency Light - 1,286 lm AC, Photocell D2D, UL 924 / 90 min, 120/277 VAC - Features & Specs

This outdoor LED emergency wall pack delivers bright, uniform AC area lighting every night and automatic UL 924 90-minute egress illumination during outages. Its rugged die-cast aluminum emergency light with prismatic refractor produces up to 1,286 lumens in normal mode. A factory-installed photocell enables dusk-to-dawn control (field-bypassable). See more options in our wet-location emergency lights.

Key Features

• Low-profile, die-cast aluminum wall pack with prismatic refractor for wide, even coverage.
• Bright AC illumination: 1,286 lm; emergency output ˜ 350 lm (typ.).
• UL 924 compliant with 90-minute runtime; wet-location listed (0–50 °C).
• Integrated photocell for dusk-to-dawn control (field bypass supported).
• Dual 6 W LEDs (12 W total) with mirror reflector + prismatic refractor.
• Universal 120–277 VAC; status LED & push-to-test; self-diagnostics (SDT) option.
• 4.8 V Ni-Cd battery; solid-state transfer; two-rate charger (~24 h full recharge).
• Universal knockout backplate for wall mount; top ½" sealed conduit entry.
• Options: CW cold-weather package down to -30 °C; SDT self-diagnostics.

Applications

Exterior egress doors, ramps, loading entries, breezeways, and perimeter paths where you need a combination of dusk-to-dawn AC wall-pack lighting and code-required emergency egress. Use the CW option for cold climates and SDT for automated testing in maintenance-sensitive facilities.

Related Wet-Location Guides

Spec Sheet

Download Outdoor Wall-Pack Emergency Light Spec Sheet (PDF)

Specifications (Overview)

• Lumens (AC): 1,286 lm  |  Emergency: 90-min backup (~350 lm)
• Housing: die-cast aluminum; decorative, low-profile; gasketed
• Controls: photocell (dusk-to-dawn); supports normally-ON/OFF or switched circuits
• Applications: outdoor egress paths, entries, and wet-location perimeters

Illumination

• Two high-efficiency white LEDs, 12 W total (2 × 6 W)
• Mirror-bright reflector with prismatic polycarbonate refractor
• AC output 1,286 lm; emergency output ~350 lm

Electrical

• 120–277 VAC universal input; bi-color status LED and push-to-test
• 4.8 V Ni-Cd battery — 90-minute emergency runtime
• Solid-state transfer and two-rate charger (~24 h full recharge)
• Photocell for dusk-to-dawn mode (field bypass available)

Mounting

• Backplate with universal knockout pattern for surface wall mount
• Top-mounted ½" conduit entry with weather-sealed threading

Housing / Finish

• Decorative, low-profile die-cast body; sealed and gasketed

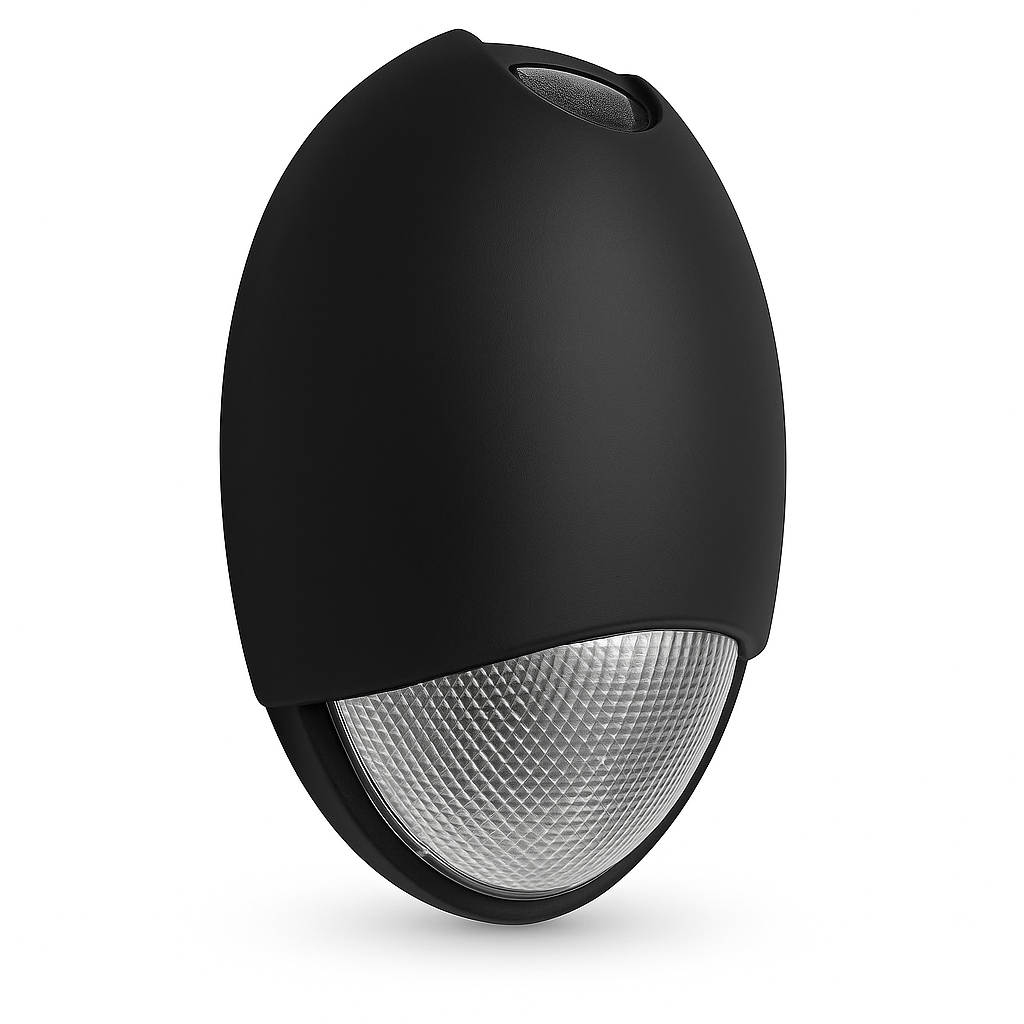

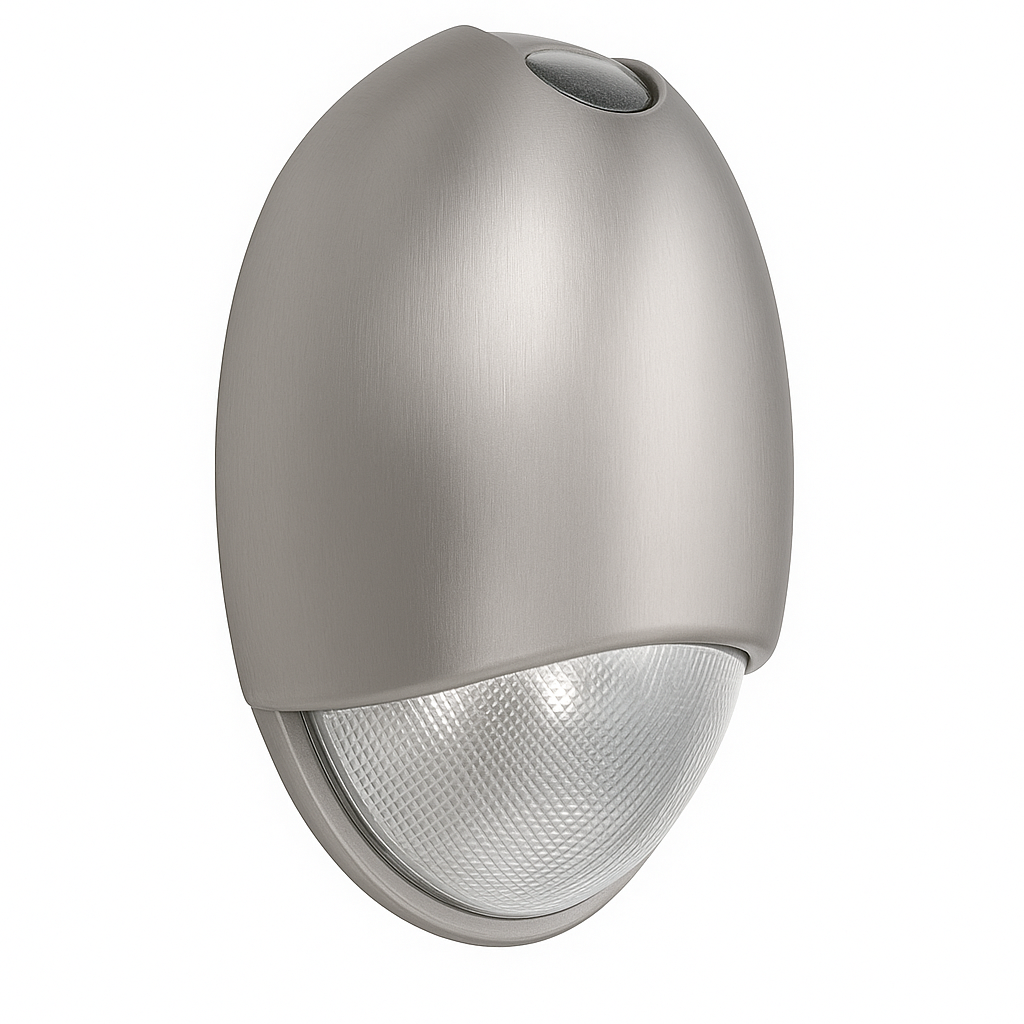

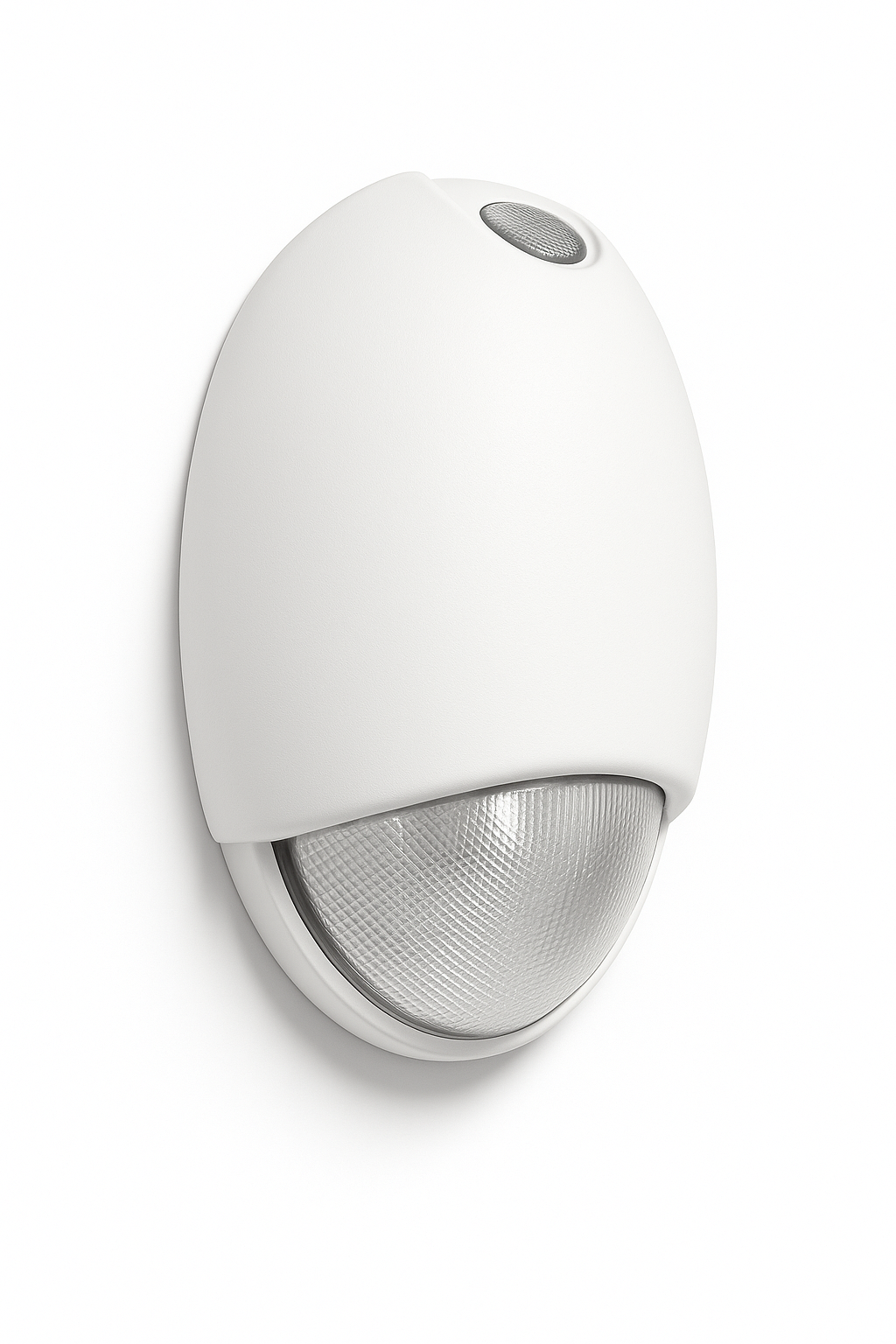

• Powder-coated finishes: white, black, nickel, dark bronze

Options

• SDT — self-diagnostic testing (monthly / bi-annual / annual)
• CW — cold-weather package (to -30 °C)
• CEC — Title 20 energy-efficiency compliant

Warranty / Listings

• 5-year warranty on housing and electronics; battery 5-year prorated
• UL 924 listed for wet locations (0 °C – 50 °C); NFPA 101, NEC, OSHA compliant

Dimensions

• 10 ½" H × 6 9/16" W × 3 5/8" D

Installation & Wiring Tips

• Mount 8–12 ft high to wash the landing without glare; use the top ½" sealed conduit entry or universal J-box pattern.
• For dusk-to-dawn AC operation, land on an unswitched circuit with the built-in photocell; bypass the photocell if you need manual/timed control.
• After install, perform functional test and verify 90-minute egress levels at end-of-discharge per local code.

Compare With Other Wet-Location Emergency Lights

Quick side-by-side to help choose the right fit for your exterior egress. (No pricing shown.)
