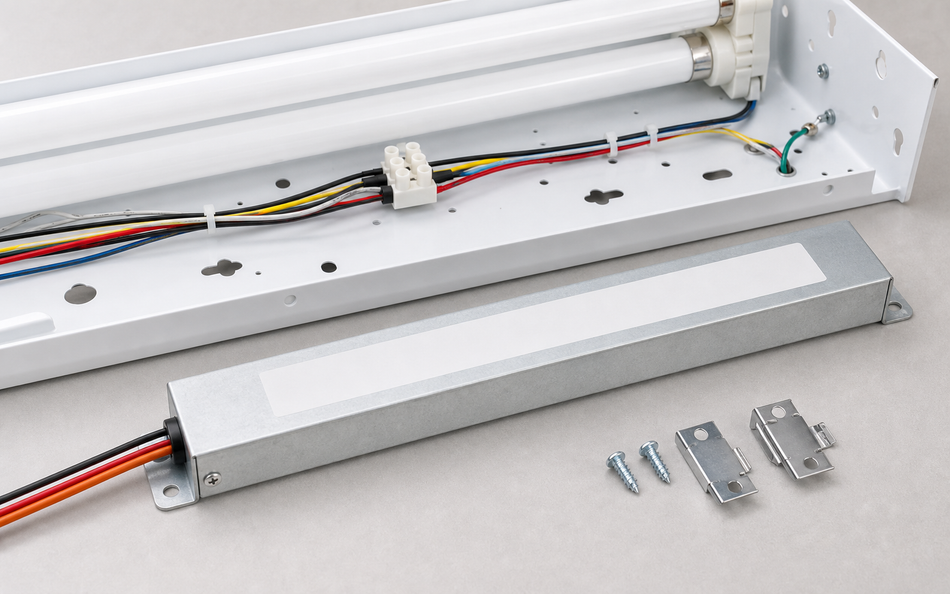

BAL1400LPTD low-profile fluorescent emergency ballast with 1400 lumen output and LED test switch
BAL1400LPTD low-profile fluorescent emergency ballast with 1400 lumen output and LED test switch

Low-Profile Fluorescent Emergency Ballast – 1400 Lumens, UL 924, Time Delay

In stock
SKU: BAL1400LPTD
$70.45

Got questions?

Give us a call 800-847-1955!

Low-Profile Fluorescent Emergency Ballast – 1400 Lumens, UL 924, Time Delay

The BAL1400LPTD is a compact fluorescent emergency ballast that delivers 1400 lumens of emergency illumination for 90 minutes. This low-profile unit is ideal for shallow fluorescent fixtures and is compatible with one- or two-lamp systems. It includes a sealed NiCd battery, integrated LED test switch, and a built-in time delay circuit for compatibility with end-of-life ballast shutdown features.

BAL1400LPTD Emergency Ballast Spec Sheet Icon Download BAL1400LPTD Emergency Ballast Spec Sheet (PDF)

Features & Benefits

  • 1400 lumen emergency light output
  • Operates one or two lamps in emergency mode
  • Low-profile galvanized steel construction (1.18" height)
  • Time delay circuit for EOL ballast compatibility
  • LED test switch and NiCd battery included
  • UL 924 listed and damp-location rated

Lamp Compatibility Chart

Lamp Type Wattage 1-Lamp Output (lm) 2-Lamp Output (lm)
T5 14W 800 850
T5 21W 900 1025
T5 28W 1250 -
T5HO 39W–54W 1300–1350 -
T8 17–40W 1050–1350 1100–1400
T8HO 86W 1400 -
T12 20–40W 700–1050 800–1100
T12HO 75–215W 1300–1400 -
CFL G24q 13–57W 750–1350 800–1350
CFL 2G11 18–55W 900–1350 1050–1275
Circular T9/T5 22–50W 750–1300 800–1350
U-Bend T8/T12 32–40W 800–875 900–950

Electrical Specifications

  • Input Power: 3.1W
  • Input Current: 0.130A @ 120V / 277V
  • Dual Voltage: 120/277V
  • Battery: 12V NiCd, rechargeable in 24 hours

Mounting / Housing

  • Low-profile design fits shallow or gasketed fixtures
  • Mounts inside, on top of, or remotely from the fixture
  • Max remote distance: 50 feet
  • Dimensions: 14.25" L × 2.25" W × 1.18" H

Compliance & Warranty

  • UL 924 Listed for field and factory installation
  • Meets NFPA 101, NEC, OSHA, and Title 20
  • Rated for damp locations (0°C to 50°C)
  • 5-year limited warranty on electronics and battery

Frequently Asked Questions

What lamps are compatible with the BAL1400LPTD?

Compatible with most T5, T8, T12, T5HO, T12HO, 4-pin CFL, circular, and U-bend lamps. See compatibility chart below.

Does this unit support remote mounting?

Yes. The ballast can be mounted remotely up to 50 feet from the lamp when using AC ballast-compatible wiring distances.

Is this ballast suitable for shallow fixtures?

Absolutely. The low-profile 1.18-inch housing is specifically designed for compact or recessed fixture applications.

Does the unit include a test switch?

Yes. The red LED test switch is provided for mandated visual and manual testing requirements.

What is the function of the time delay?

The time delay feature ensures the emergency ballast operates correctly with AC ballasts that use end-of-life shutoff circuitry.

Product Features

  • Brand: Best Lighting
  • Damp Location
  • Low Profile
  • Product: BAL1400LPTD
  • Recessed Lights
  • Steel
  • Ballasts
