Home » Ballasts » Fluorescent Emergency Ballast – 1400 Lumens, Time Delay, 120/277V | UL 924
Low-profile fluorescent emergency ballast with 1400 lumen output, UL 924 listing, and NiCd battery
Low-profile fluorescent emergency ballast with 1400 lumen output, UL 924 listing, and NiCd battery

Fluorescent Emergency Ballast – 1400 Lumens, Time Delay, 120/277V | UL 924

In stock
SKU: BAL1400ACTD
$97.57

Got questions?

Give us a call 800-847-1955!

Fluorescent Emergency Ballast – 1400 Lumens, Time Delay, 120/277V – UL 924

The BAL1400ACTD fluorescent emergency ballast delivers up to 1400 lumens of light for 90 minutes during outages. It works with or without an AC ballast, supports one- or two-lamp operation, and includes a time-delay feature for EOL (end-of-lamp-life) circuit protection. Compact painted-steel housing, a maintenance-free 6V NiCd battery, and an LED test/indicator make it a flexible, code-compliant solution. Browse all fluorescent emergency ballasts.

UL 924 1400 lm / 90 min 120/277V Time Delay Damp Location

Features & Benefits

  • Works with or without an AC ballast; converts new or existing fluorescent fixtures to emergency operation
  • Operates one or two lamps in emergency mode for a minimum of 90 minutes
  • Maximum initial output up to 1400 lumens
  • LED charge/power indicator and push-to-test switch
  • Internal solid-state transfer switch; two-rate automatic charger (24-hour recharge)
  • AC output helps compatibility with newer lamp technologies
  • Compact, durable painted steel housing (white)

Lamp Compatibility Chart

Lamp Type Wattage 1-Lamp (lm) 2-Lamp (lm)
T5 14W 1100 1200
T5 21W 1150 1250
T5 28W 1250 1300
T5HO 39W 1300 n/a
T5HO 54W 1350 n/a
T8 17W 1050 1200
T8 32W 1350 1400
T12 20W 700 800
T12 40W 850 900
T12 110W 1350 n/a
T12 215W 1400 n/a
4-Pin PL CF 13W 825 900
4-Pin PL CF 18W 975 1100
4-Pin PL CF 26W 1000 1100
4-Pin PL CF 32W 1050 1150
4-Pin Long CF 18W 900 1050
4-Pin Long CF 24W 1100 1150
4-Pin Long CF 36W 1200 1250
4-Pin Long CF 40W 1250 n/a
4-Pin Long CF 50W 1250 n/a

In 2-lamp operation, lumens are split between the two lamps.

Electrical Specifications

  • Dual-voltage input: 120/277V
  • Input power: 3.3W
  • Input current: 0.270A (120V or 277V)
  • Battery: 6V sealed NiCd (maintenance-free); 24-hour recharge
  • Charge-rate/power LED indicator and push-to-test switch

Mounting / Dimensions

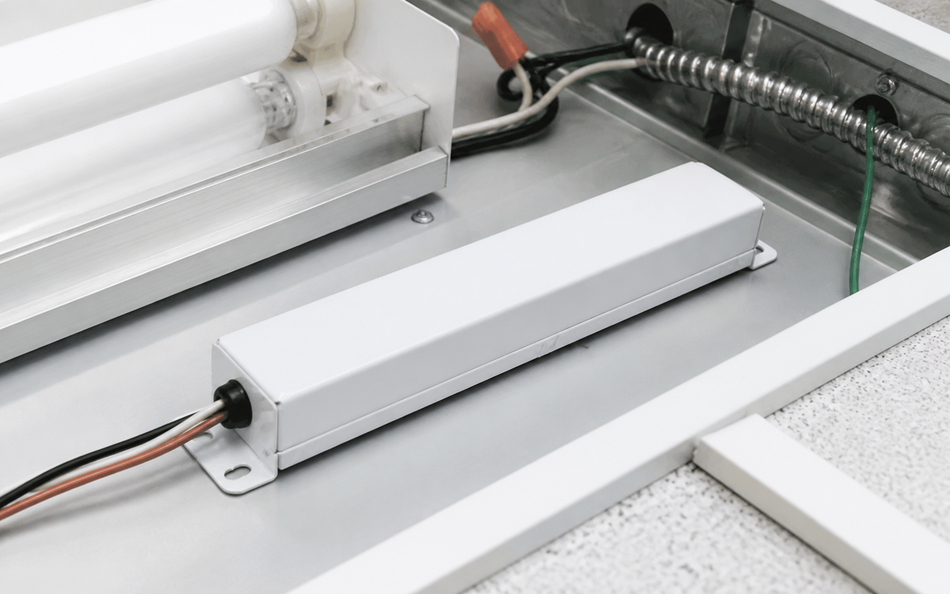

  • Suitable for installation inside, on top of, or remote from the fixture
  • Use with switched or unswitched fixtures
  • Remote distance: up to 50 ft; cannot exceed ½ of the AC ballast’s rated lamp-to-ballast distance
  • Dimensions: 13 3/8" L × 2 3/8" W × 1 1/2" H

Compliance & Warranty

  • UL 924 Listed for factory or field installation
  • CEC Title 20 compliant
  • Meets NFPA 101, NEC, OSHA, and applicable state/local codes
  • Damp location rated (0°C to 50°C)
  • 5-year limited warranty (lamps excluded)

Spec Sheet

Download BAL1400ACTD Emergency Ballast Spec Sheet (PDF)
