Fluorescent Emergency Ballast – 1400 Lumens, Time Delay, UL 924 | 120/277V

1400-Lumen Fluorescent Emergency Ballast – Features & Specs

The BAL1400TD Emergency Ballast delivers up to 1400 lumens of illumination for 90 minutes during outages. Ideal for retrofits or new construction, it supports one- or two-lamp emergency operation and includes a sealed NiCd battery, test switch with LED charge indicator, and a time-delay circuit for EOL (end-of-lamp-life) ballast compatibility. Browse all fluorescent emergency ballasts.

Spec Sheet

Download BAL1400TD Emergency Ballast Spec Sheet (PDF)

Features & Benefits

• Works with or without an AC ballast to convert new or existing fluorescent fixtures to emergency lighting.
• Operates one lamp for a minimum of 90 minutes; in two-lamp mode, lumens split between lamps.
• LED charge/power indicator and push-to-test switch; internal solid-state transfer and two-rate automatic charger (24-hour recharge).
• Durable painted steel housing; compact profile fits most fixtures.
• Suitable for sealed and gasketed fixtures.

Electrical Specifications

• Dual voltage: 120/277V
• Input power: 3.5W (120V) / 3.8W (277V)
• Input current: 0.27A (120V) / 0.25A (277V)
• Battery: 6V sealed NiCd (maintenance-free); 24-hour recharge

Mounting / Housing

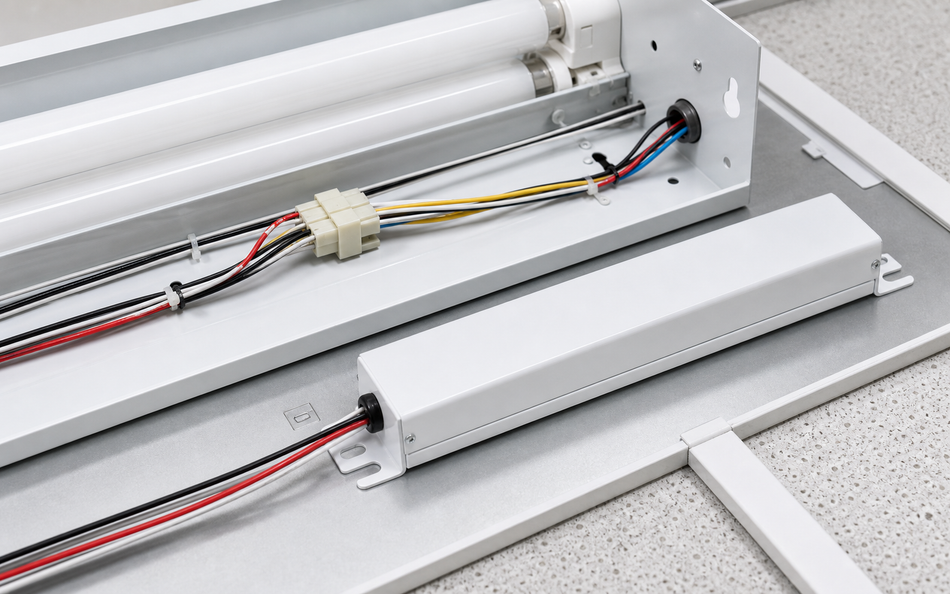

• Installs inside, on top of, or remote from the fixture.
• Remote distance: up to 50 ft and not more than ½ the AC ballast’s rated lamp-to-ballast distance.
• Dimensions: 13.4" L × 2.4" W × 1.5" H

Compliance & Warranty

• UL 924 Listed; meets NFPA 101, NEC, and OSHA guidelines
• Damp location rated (0°C to 50°C)
• 5-year limited warranty (lamps excluded)

Frequently Asked Questions

How many lamps can the BAL1400TD operate?

One lamp at up to 1400 initial lumens for at least 90 minutes. In two-lamp mode, the total output is shared between both lamps.

Which lamp types are supported?

Compatible with T5 / T5HO, T8, T12, 4-pin CFL (e.g., 2G11, G24q/GR10q), circular T5/T9, and U-bend fluorescent lamps. Verify wattage in the compatibility chart above.

Does it work with LED replacement tubes?

No—this is a fluorescent emergency ballast. For LED-only fixtures or Type B/C LED tubes, use a dedicated LED emergency driver rated for your lamp/fixture.

Is it suitable for sealed or gasketed fixtures?

Yes. It is listed for use in sealed/gasketed and enclosed fluorescent fixtures when installed per instructions and within the specified ambient temperature.

Can I remote-mount the ballast?

Yes—up to 50 ft from the lamp, provided the run does not exceed one-half of the AC ballast’s rated lamp-to-ballast distance.

How do I wire it with a switched fixture?

Provide an unswitched (always-on) feed to the emergency ballast so it can charge and transfer during an outage; the switched feed may still control normal lighting.

What does the time-delay feature do?

It prevents nuisance dropout with EOL (end-of-lamp-life) or AC-ballast shutdown features, ensuring the emergency lamp stays lit when normal power is interrupted.

What testing and maintenance are required?

Use the included LED indicator/push-to-test for functional checks. Follow NFPA 101 best practices: brief monthly tests and an annual 90-minute test. Replace the battery if it no longer supports full duration.

What’s the operating environment?

Damp location rated; 0 °C to 50 °C ambient. For wet locations, install inside a suitable listed enclosure/fixture.

What’s covered by the warranty?

5-year limited warranty on electronics and battery (lamps excluded). See product documentation for full terms.
