Exit Sign Emergency Light Combo - Red or Green Letters

In stock
SKU: BST-CXTEU-2R-W
Regular price $64.99
Choose Letter Color
Remote

ITEM DISCONTINUED. See the replacement below:

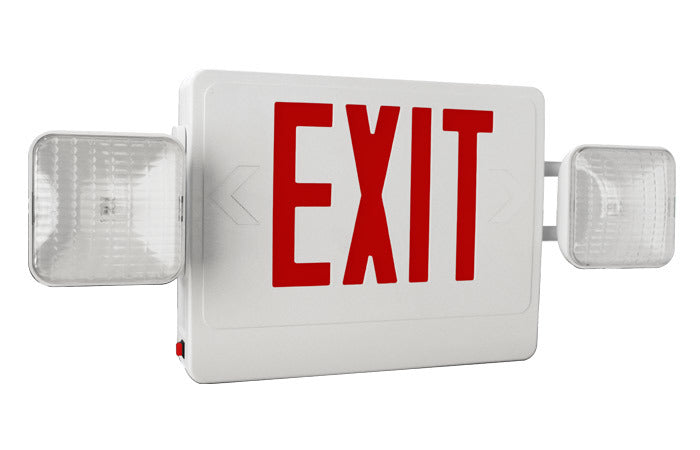

EXIT LIGHT COMBO RED - FULLY ADJ. SQUARE HEADS - LED ONLY

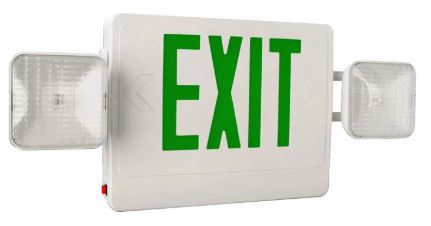

EXIT LIGHT COMBO GREEN - FULLY ADJ. SQUARE HEADS - LED ONLY



Overview

CEX Emergency Exit Sign Combo

The Exit Sign Emergency Light Combo is the best fixture for applications that require an exit sign and a set of emergency lights. Combining the two safety lighting fixtures satisfies two fire code requirements. Exit Signs are required to mark EXIT doors, stairwells, and the direction of the nearest exit. Emergency Lights ililluminate the exit pathway and work along with exit signs to guide occupants safely outside during an emergency.

Our EXIT-LIGHTS-COMBO model features an exit sign with a set of side mounted emergency lamps. The LED exit sign is constantly ililluminated while the emergency lights operate only when power is lost. A powerful battery backup powers the illumination of the exit sign and emergency lights during an emergency power outage. This exit sign with emergency lights is UL 924 Listed and compliant throughout the United States. Comes with a five-year warranty.

Exit sign combos are the perfect solution for a variety of commercial applications. Call us now to place an order, 800-480-0707.

Features

  • Affordable - Begins at less than $45
  • Combines 2 emergency fixtures into one unit
  • Efficient - LED technology consumes less than 5 watts electricity
  • Push-to-test button with LED charging indicator
  • Works for single and double face applications
  • UL924 Listed for the United States
  • 5 year warranty

Application

This exit sign with lights is popular for all types of commercial buildings. The white thermoplastic housing blends well with most commercial interiors. The Exit Sign Emergency Light Combo top, side, or back mounts to normally inflammable surfaces. It can be used for single and double sided applications.

External Specifications

This emergency exit combo is constructed from ABS thermoplastic, suitable for indoor use. Comes standard finished in white, optional black thermoplastic model available as well.

Internal Specifications

Red or green LEDs provide illumination while consuming less than 5 watts of electricity at all times. Battery backup system features 6 volt 4.5 amp sealed lead acid battery pack.

Electrical Specifications

120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.

Code Compliance

UL924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.

Warranty

Five-year warranty on parts, five-year prorated warranty on battery.

Maintenance Profile

The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The 6 volt 4.5 amp sealed lead acid battery
is replaceable.

Lifespan

8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).

Options

  • Choose between red or green letters.

Technology

Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.

Appeal

Affordable construction and design makes this exit sign ideal for almost any commercial application. Satisfies two building requirements.

Overall Value

This model is a great value, offered at less than $40 it will make your facility code compliant for years to come for both exit signs and emergency lighting fixture requirements.

Installation

The Exit Sign Emergency Light Combo is suitable for surface (wall and ceiling) installation. This model is suitable for indoor and damp location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
