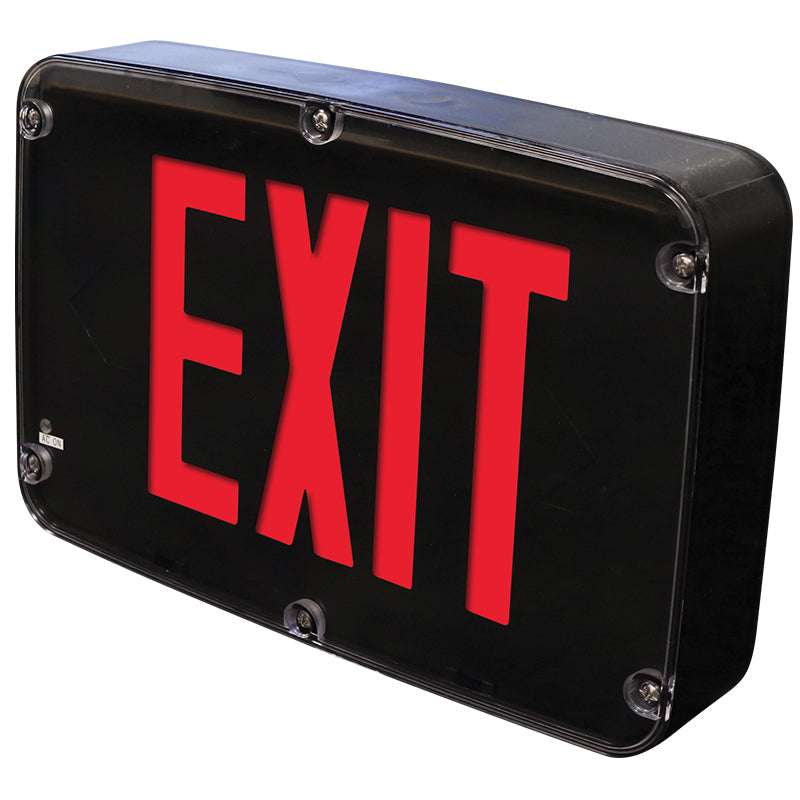

NEMA Rated Exit Signs – Weatherproof, Dustproof & Industrial-Grade

NEMA Rated Exit Signs – Weatherproof, Dustproof & Industrial-Grade

NEMA rated exit signs are engineered for harsh facilities where water, dust, corrosion, and impact are common. These UL 924 listed exit signs use sealed, gasketed enclosures to achieve NEMA 4X, NEMA 12, or NEMA 3R protection. See all NEMA rated exit signs.

NEMA 4X / 12 / 3R UL 924 Listed Water & Dust Sealed 90-Min Backup Industrial-Grade Self-Testing (Opt.)
Buyers Guide Tips

What to Look for in NEMA Rated Exit Signs

  • NEMA type & use: Match 4X (wash-down/corrosion), 12 (dust/drips), or 3R (rain/ice) to site conditions.
  • Compliance & runtime: UL 924 listing with a minimum 90-minute emergency operation; align with NFPA 101/OSHA and AHJ guidance.
  • Enclosure & sealing: Gasketed, sealed housing with continuous gaskets and tight fastener interfaces for hose-down and spray exposure.
  • Materials & corrosion: Fiberglass/polycarbonate or coated metal plus stainless hardware for chemicals, cleaners, and salt-mist resistance.
  • Legend spec: Standard 6 in letters with typical viewing up to 100 ft; choose red or green for adequate contrast in ambient lighting.
  • Faces & orientation: Select single- or double-face; for edge-lit, confirm backplate/mirror configuration to present the legend on required sides.
  • Directional chevrons: Prefer field-selectable arrows to match egress direction and reduce SKU complexity across layouts.
  • Mounting & entries: Wall/ceiling/end mounting with sealed conduit hubs; verify hub size, J-box pattern, and clearances near doors/equipment.
  • Electrical: Universal 120/277 VAC, low-wattage LEDs, solid-state charger, status indicator, and test switch on battery models.
  • Environment & impact: Impact-rated window/lens; UV and chemical resistance; consider guards in forklift/cart traffic areas.
  • Nameplate & markings: Ensure label lists NEMA rating, UL file, input voltage, ambient range, and any special conditions of use for inspection.
  • Maintenance & diagnostics: Consider self-testing electronics to automate monthly/annual checks and simplify recordkeeping.

Ideal for food processing plants, industrial wash-down areas, loading docks, wastewater facilities, and corrosive environments, these weatherproof exit signs keep electronics protected during spray-downs and exposure. For similar applications, browse wet-location exit signs.

Most models include an integrated battery system for a minimum 90 minutes of egress visibility during outages—see battery backup exit signs. Automated diagnostics are available on self-testing exit signs to simplify compliance with NFPA 101, OSHA, and local fire codes.

NEMA-rated housings typically use rugged polycarbonate or fiberglass-reinforced construction with tamper-resistant hardware and watertight seals. Most offer wall-mount exit sign, ceiling-mount exit sign, or end-mount exit sign hardware, plus field-selectable chevrons and red or green LED legends.

💡 Highlight: NEMA-rated exit signs with battery backup provide life-saving visibility during power loss in wet, corrosive, or high-pressure wash-down environments.

Build a fully sealed system with matching NEMA rated emergency lights, or specify cold-weather exit signs for freezing conditions.

Filter products

Match all
Clear all

3 Products

NEMA Rated Exit Signs – Spec Guide

  • NEMA type & application: Match 4X (wash-down/corrosion), 12 (dust/drips), or 3R (rain/ice) to site conditions and cleaning practices.
  • Compliance & runtime: UL 924 listing; battery models provide a minimum 90-minute operation and align with NFPA 101/OSHA (verify with your AHJ).
  • Enclosure & sealing: Gasketed, fully sealed housings with continuous gaskets and tight fastener interfaces for spray/hosing; protected vents/drains where specified by the manufacturer.
  • Materials & corrosion: Fiberglass/polycarbonate or coated metal with stainless hardware to resist chemicals, cleaners, and salt-mist exposure in industrial/wash-down areas.
  • Legend spec & visibility: Standard 6-in letters with typical viewing up to 100 ft; choose red or green for adequate contrast under ambient lighting conditions.
  • Faces & orientation: Single or double-face; confirm any edge-lit/backplate configuration if applicable to present legends on required sides.
  • Directional chevrons: Field-selectable arrows to align with egress paths and reduce SKU complexity across layouts/facilities.
  • Mounting & entries: Wall/ceiling/end-mount hardware with sealed conduit hubs; verify hub size/locations, J-box pattern, and clearances near doors/equipment and traffic lanes.
  • Electrical: Universal 120/277 VAC, low-wattage LEDs, solid-state charger, Status LED, and test switch on battery models; brownout/surge protection recommended for industrial sites.
  • Battery & ambient: Maintenance-free Ni-Cd or lithium packs delivering ≥90 min runtime; confirm recharge time and ambient range; add heater options for cold rooms where required.
  • Impact & durability: Impact-rated windows/lenses; consider guards for forklift/cart traffic and high-abuse zones; ensure UV/chemical resistance as needed.
  • Nameplate & markings: Label should list NEMA rating, UL file, input voltage, ambient range, and any special conditions of use for inspection readiness.

Frequently Asked Questions

What does “NEMA rated” mean for exit signs?

NEMA-rated exit signs are tested for how well their enclosures resist the environment—things like dust, moisture, corrosion, and water spray. A NEMA 4X rating, for example, means the unit is sealed against rain, hose-directed water, and corrosion.

Where are NEMA rated exit signs typically installed?

They’re used in industrial, manufacturing, food processing, chemical, and marine settings—or anywhere exposed to water, dust, washdown, or harsh cleaners.

Are NEMA rated signs code compliant?

Yes. Our NEMA-rated exit signs are UL 924 listed and meet NFPA 101 and OSHA egress requirements.

Do NEMA exit signs include battery backup?

Most models include a sealed internal battery that provides at least 90 minutes of illumination during a power failure, meeting national life-safety code requirements.

Can NEMA rated exit signs be used outdoors?

Absolutely. Many are rated NEMA 4X for direct exposure to weather, making them a good fit for outdoor walkways, loading docks, and facility exteriors.
