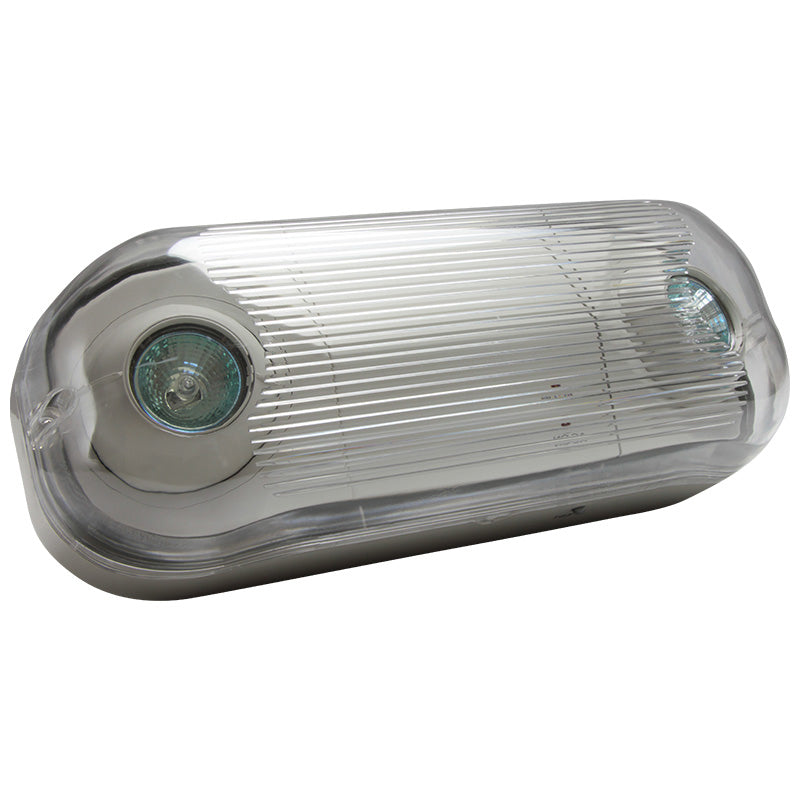

Wet-location halogen emergency light with dual MR16 heads and sealed polycarbonate housing
Wall-mounted emergency unit with 7.2W MR16 lamps and corrosion-resistant gray enclosure
IP-rated emergency lighting fixture in industrial wash-down application
Wet-location halogen emergency light with dual MR16 heads and sealed polycarbonate housing
Wall-mounted emergency unit with 7.2W MR16 lamps and corrosion-resistant gray enclosure
IP-rated emergency lighting fixture in industrial wash-down application

Wet-Location Emergency Light – Dual 7.2W Halogen Heads, SLA Battery

SKU: LL50H-N4
$122.64

Got questions?

Give us a call 800-847-1955!

Wet‑Location Halogen Emergency Light – Dual 7.2 W MR‑16, 25 ft Spacing, UL 94 5VA — Features & Specs

The LL50H‑N4 wet‑location halogen emergency light is built for harsh environments with a fully gasketed, corrosion‑resistant polycarbonate enclosure that resists wash‑down spray and impact. Dual adjustable 7.2 W MR‑16 halogen lamps (≈ 100 lm per head) deliver bright, reliable egress illumination for 90 minutes from a sealed lead‑acid battery. Ideal for food‑prep areas, marine facilities, parking decks, and other wet industrial spaces. Explore our wet‑location emergency lights for additional models.

UL 924 Wet Location SLA / 90 min 120/277 VAC MR‑16 Halogen Wall Mount UL 94 5VA Thermoplastic

Key Features

  • Two fully adjustable 7.2 W MR‑16 halogen lamps (≈ 100 lm per head) for crisp, long‑throw egress coverage.
  • Spacing guide at 7.5 ft mounting height: up to 25 ft center‑to‑center on a 3 ft path, 20 ft on a 6 ft path (design aid).
  • 90‑minute emergency runtime; typical 24‑hour recharge.
  • Dual‑voltage 120/277 VAC; solid‑state charger, low‑voltage disconnect, brownout protection, and push‑to‑test.
  • Impact‑resistant, UV‑stable UL 94 5VA thermoplastic enclosure with full gasketing and stainless hardware.
  • Wall‑mount installation with universal pattern and rear keyholes; optional guards available.
  • Operating temperature: 15–40 °C (59–104 °F); finish: Gray.

Applications & Design Notes

Choose this unit when you need a rugged, wet‑location halogen emergency light that stands up to wash‑down and corrosion—dock doors, processing lines, coastal corridors, stair towers, and breezeways. The MR‑16 halogen optics provide tight, high‑contrast beams that travel well in mist and fog. Cross‑aim the two heads to overlap footprints on 90‑minute tests, and add a wire guard (WG‑S) or poly guard (XG‑90) in high‑abuse areas. For LED alternatives or remote‑capable platforms, compare options in our broader weatherproof emergency lights collection.

Spec Sheet

Download LL50H‑N4 Emergency Light Spec Sheet (PDF)

Specifications (Overview)

  • Listings: UL 924 emergency lighting; wet‑location construction
  • Lamp Heads: dual 7.2 W MR‑16 halogen, adjustable
  • Spacing (design aid): 25 ft c‑to‑c on a 3 ft path; 20 ft on a 6 ft path at ~7.5 ft MH
  • Input: dual‑voltage 120/277 VAC, 60 Hz
  • Battery: sealed lead‑acid (SLA), 90‑minute egress; ~24 h recharge
  • Housing: impact‑ and UV‑resistant polycarbonate, UL 94 5VA
  • Operating Temp: 15–40 °C (59–104 °F)
  • Finish: Gray

Illumination

  • Two adjustable 7.2 W MR‑16 halogen heads (≈ 100 lm per head) with focused optics for long‑throw coverage.
  • Use the spacing guide as a starting point; verify foot‑candle levels at 90 minutes under site conditions.

Electrical

  • Dual‑voltage 120/277 VAC input with solid‑state charger.
  • Maintenance‑free SLA battery; 90‑minute emergency run; ~24 h recharge.
  • Low‑voltage disconnect (LVD), brownout sensing, and push‑to‑test diagnostics.

Mounting

  • Universal wall‑mount pattern with rear keyhole slots for fast installation.
  • Optional guards: WG‑S (wire) and XG‑90 (poly) for added impact resistance.

Housing

  • Precision‑molded, corrosion‑resistant polycarbonate enclosure, UL 94 5VA flame‑rated.
  • Fully gasketed cover with stainless hardware; sealed for wet environments.

Dimensions

  • 14.8" W × 5.8" H × 4.3" D

Warranty / Listings

  • 5‑year warranty on electronics and housing; 5‑year prorated battery warranty.
  • Meets UL 924, NEC, and NFPA 101 requirements.

Installation & Aiming Tips

  • Mount around 7–9 ft and cross‑aim heads to overlap beams on stairs, ramps, and landings.
  • Seal conduit penetrations and keep the gasketed cover clean to maintain the wet‑location rating.
  • Confirm egress levels at the 90‑minute mark and adjust aiming before hand‑off.

Compare With Other Wet‑Location Emergency Lights

Side‑by‑side from the parent collection (H1 anchors; no pricing shown).

Model (H1) Heads / Output Remote‑Capable Runtime Ratings Operating Temp Housing Best For
This model — Wet‑Location Halogen Emergency Light – Dual 7.2 W MR‑16, 25 ft Spacing, UL 94 5VA Dual 7.2 W MR‑16 halogen (≈100 lm/head) — 90 min UL 924 · Wet Location · UL 94 5VA 15–40 °C Thermoplastic (gasketed) Harsh, wet industrial areas; wash‑down zones
Wet‑Location LED Emergency Light – 1W Heads, Gasketed IP Housing Dual 1 W LED heads — 90 min UL 924 · Wet Location ≈10–40 °C Polycarbonate Budget installs; shorter spacing
Wet‑Location LED Emergency Light – 3.7W Remote Option, IP Rated Dual 1.9 W LED heads 3.7 W (option) 90 min UL 924 · IP‑rated −20–50 °C UL 94 5VA polycarbonate Parking decks; loading areas; wash‑down
Industrial Outdoor Emergency Light – Remote Capacity Dual 1.875 W sealed LED 3.7 W 90 min UL 924 · Wet Location −20–50 °C Gasketed polycarbonate Docks; long runs w/ remotes
Wet Location Emergency Light – NEMA 4X – Dual MR16 Heads Dual 3.6 W MR16 LED Up to 46.8 W 90 min NEMA 4X · IP66 · UL 924 · NSF to −25 °C (opt.) Sealed polycarbonate Hose‑down; multi‑remote feeds
Wet‑Location Semi‑Recessed LED MR16 Emergency Unit Dual 7 W MR16 LED — 90 min UL 924 · Wet Location ≈20–40 °C Vandal‑resistant Flush look; long‑throw optics
Outdoor Wall‑Pack Emergency Light – Decorative Die‑Cast Dual 6 W LEDs (AC 1,286 lm) — 90 min UL 924 · Wet Location 0–50 °C (to −30 °C w/ CW) Die‑cast aluminum Entries needing dusk‑to‑dawn AC + egress

FAQs

Why choose halogen (MR‑16) instead of LED?

Halogen MR‑16 optics provide tight, high‑contrast beams that can punch through mist and fog. If you need lower power draw or remote‑head capacity, consider LED alternatives in the comparison grid.

Is this unit remote‑capable?

No. This model focuses on integrated MR‑16 heads. For remote‑capable wet‑location fixtures, see LED‑RX (R option) or NEMA 4X MR16 platforms with higher remote capacity.

Any guard or accessory recommendations?

Use WG‑S wire guards or XG‑90 poly guards in high‑abuse areas. Both mount over the enclosure to add impact resistance.
