Combo Wet Location, NYC Exit - 8'' Red LED - 2x12W Round Heads

In stock
SKU: CPT-NXLED-RC-RW-8NY-2H-SM-HTR1
Regular price $632.99
Internal Heater?
Lamp Head Mount

Overview

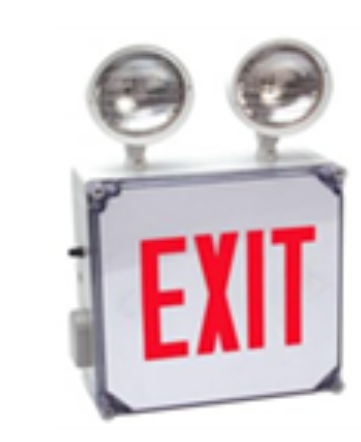

The WP-EXIT-COMBO-NY Series combo wet location LED exit sign with emergency light is designed for use oudoors and in other environments that feature moisture, such as wash-down areas. This fixture combines an efficient LED exit sign with powerful emergency lamps, satisfying two building and fire code requirements in one unit. Indoor New York City exit signs are constructed from steel or aluminum, but since this is a wet location model it is manufactured from a polycarbonate type of plastic. New York City wet location exit signs with emergency lights feature a weatherproof and waterproof fiberglass housing that is NEMA rated, insuring its durability. The letters on the face of this NYC exit sign are red in color, 8 inches tall, and 1 inch wide.

All New York City exit signs are evaluated and approved by the NYC Building Department. All NYC exit sign, including waterproof models, are required to operate using electricity, 120v or 277v AC. The WP-EXIT-NY New York City wet location exit sign uses efficient LED technology to produce brilliant EXIT illumination. Red LEDs are the only color available per NYC building and fire code regulations. This waterproof combo exit sign with lights comes standard with a 90-minute battery backup system for exit sign and emergency lights operation after AC power is lost during a power outage.

Combo wet location exit signs with lights wall (back) mount onto normally inflammable surfaces. This is a single-sided combo exit sign which can be double-sided at an additional charge. The emergency lamps can also be placed on the side for an additional charge; this configuration allows the combo to be ceiling (top) mounted. Other options include an internal battery heater, which insures the battery backup system's functionality in freezing environments. Wet location New York City emergency lights and exit signs for are UL Listed and come with a one-year warranty.

Features

  • New York City Approved exit sign with emergency lights for wet locations
  • Weatherproof and waterproof
  • Efficient - LED technology consumes less than 5 watts electricity
  • Push-to-test button with LED charging indicator
  • Long-lasting - 8 to 10 year EXIT sign solution
  • UL 924 Listed for the United States
  • 1 year warranty

Application

The WP-EXIT-COMBO-NY wet location exit sign combo is intended for indoor and oudoor use in wet locations. It is manufactured to the exit sign regulations set forth by the NYC Building Department. Waterproof emergency lights and exit signs are extremely versatile. For locations that feature freezing temperatures, make sure to add on the internal battery heater option.

External Specifications

Entire unit is constructed from UV stabilized waterproof fiberglass polycarbonate. Housing is grey with red letters.

Internal Specifications

Red LEDs provide illumination the waterproof exit sign while consuming less than 5 watts of electricity at all times. Battery backup system features 6v 4.5 ah lead acid emergency light battery. 9-watt Halogen lamp heads provide are fully adjustable.

Electrical Specifications

120/277v AC dual-voltage operation is standard. Other voltages available upon request such as 220v and 240v. AC lockout prevents battery pack discharge. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.

Code Compliance

New York City Approved Wet Location Rated. UL 924 Listed for the U.S. and Canada, CS860, NFPA, Life Safety 101, UL Listed for Damp Locations.

Warranty

One-year warranty on parts, five-year prorated warranty on battery.

Maintenance Profile

The maintenance required for this wet location exit sign emergency light combo is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery
is replaceable.

Lifespan

8-10 year expected lifespan on all components except replaceable battery (five-year lifespan).

Options

Internal Battery Heater - For freezing environments, the internal battery heater option will allow the emergency light and its battery backup system to function properly even when temperatures drop below 32 F. Please specify 120 or 277v AC connection.

Side Mount Lamps - Side mounted emergency lamps allow the unit to be top mounted.

Double Sided Sign - Add a second exit faceplate for applications that require a double-sided exit sign.

Technology

Battery backup system features brownout protection and low-voltage disconnect, ensuring a long lifespan. Push button testing is easy and reliable.

Appeal

Durable wet location, weatherproof construction is offered at an affordable price.

Overall Value

This New York City exit sign combo is rated for extreme environments and offered at an affordable price.

Installation

This wet location exit sign is suitable for back (wall) installation but can be top (ceiling) mounted when ordered with side-mounted emergency lamp. This model is suitable for indoor/oudoor and wet location installations on normally inflammable surfaces. Use two of three provided wires to connect the unit to AC power. Use the black(120v) and white(Common) wires for 120v AC connections and the red(277v) and white(Common) wires for 277v AC connections.
