Large Wall Pack 1x42W CFL (w/ Battery Backup Option)

In stock
SKU: EXT-TL106-CF-42-120/277-BB
Regular price $213.99

This unit is unavailable, please contact our sales team for a quote!



Cast Aluminum Exit Sign

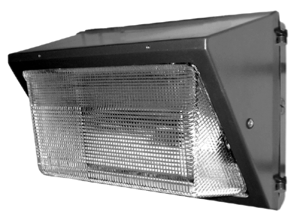

The Emergency Wall Pack is a popular choice for all types of oudoor commercial applications. The die-cast aluminum enclosure emergency light housing is durable and attractive, featuring an architectural bronze powder coated finish. This oudoor wall pack features an internal, anodized aluminum reflector that allows for ideal light distribution.

The oudoor wall packs are used throughout schools, offices, and all other types of commercial properties. The Emergency Wall Pack comes standard with an electronic programmed start ballast powering 4-pin Triple Tube lamps.


Cast Aluminum Exit Sign Dimensions
  • Attractive ‚Äì Architectural bronze powder coated finish
  • Durable ‚Äì Die-cast enclosure can handle moderate abuse
  • Efficient - Optional photocell allows for night use and emergency functionality
  • Surface mountable, or to a 4" junction box
  • 120/277VAC Input
  • Meets Buy america requirements
  • UL Listed
  • Two year warranty


The Emergency Wall Pack can be used in a multitude of scenarios for oudoor lighting of all types of commercial buildings. The wet location oudoor wall packs have the option of mounting on a 4" junction box or surface mounting.

External Specifications

Housing is a fully sealed and gasket die-cast aluminum enclosure with a bronze powder coated finish. The Emergency Wall Pack is wet location listed for oudoor use. Approximate weight: 10 lbs.

Internal Specifications

Features Compact Fluorescent lamps: 4-Pin Triple Tube lamps from 26 to 42 watts.

Electrical Specifications

120/277v AC dual-voltage operation is standard. Low voltage battery disconnect protects the battery pack form being damaged by long discharge periods.

Code Compliance

UL Listed for the U.S. and Canada, UL Listed for Wet Locations, Buy America.


Two-year warranty on parts.

Maintenance Profile

The maintenance required for this unit is monthly and yearly testing of the battery backup system per OSHA regulations. The nickel cadmium battery is replaceable.


Optional battery backup system features an emergency ballast for continued use during a power-outage.


The bronze powder coated finish provides a sleek, attractive look to the useful Emergency Wall Pack.

Overall Value

High value rated: offered at affordable pricing, the Emergency Wall Pack provides an appealing finish and a durable design.
